Page
+$1:+$
86
SM482
PLUS

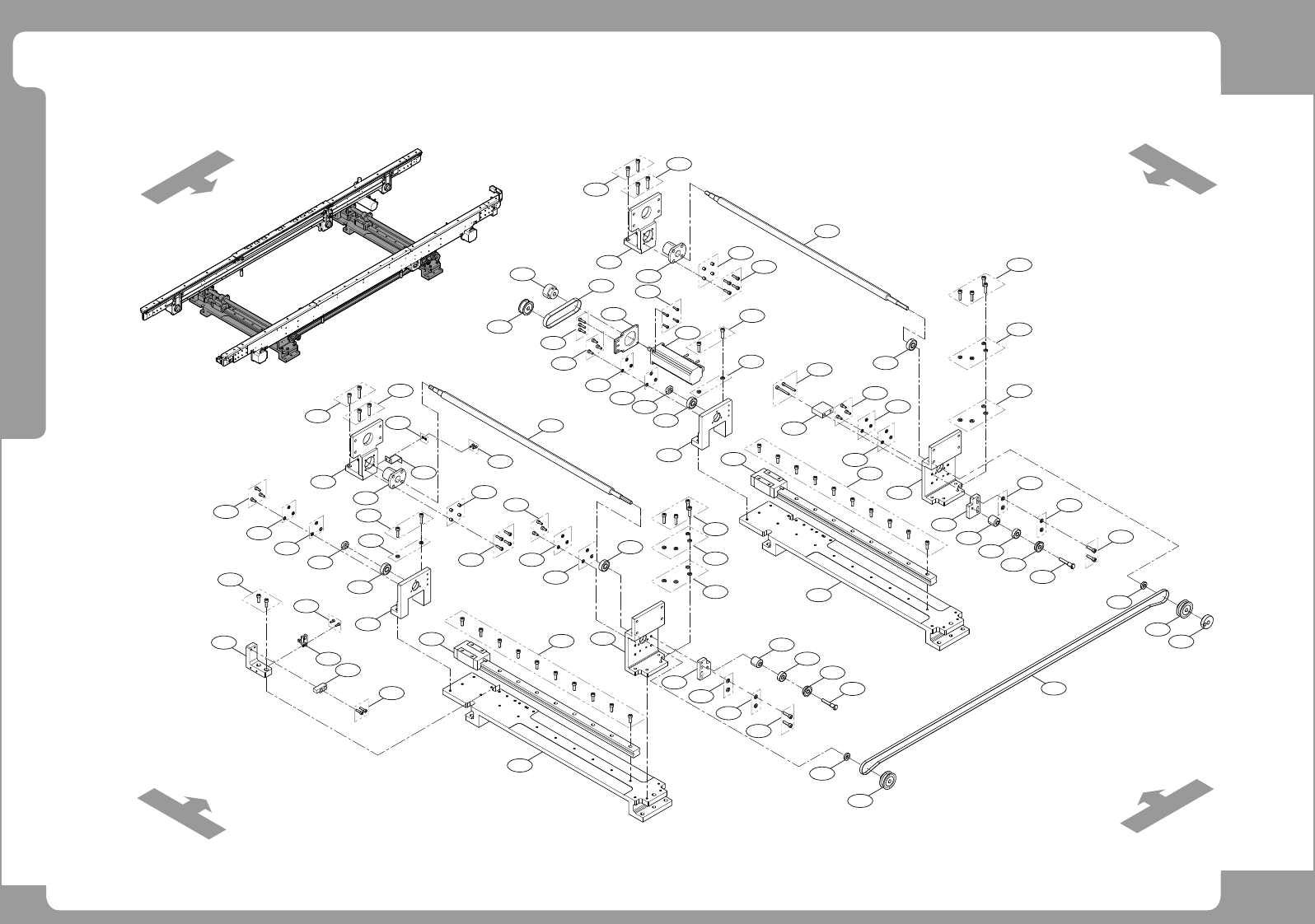

L1200 Conveyor Assembly(4/4) - OPTION
Rear side
Front side
Left side
Right side
38
18
34
32
12
13
3
39
2
4
41
11
11
12
13
12
13
25
3
9
7
6
14
15
16
17
30
26
13
35
30
31
26
12
27
19
3
29
31
37
40
39
11
24
12
13
31
6
25
36
20
5
6
7
28
7
2
5
36
8
25
5
4
25
20
5
6
7
31
33
26
26
28
13
1
11
12
13
14
10
15
1
16
17
21
22
23
21
22
10
19
13
Page
+$1:+$
87
L1200 Conveyor Assembly(4/4) - OPTION
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J7053725A SUPPORT-WIDE ADJUST 2
2 MC13-900029 LM GUIDE 2
3 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 22
4 J71530404B FIX STAND 2
5 FC18-90321936 FLAT WASHER 12
6 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 12
7 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 12
8 J70530748B STOPPER-FRONT 1
9 FC18-902751 SOCKET HEAD CAP SCREW M4*35 (NI/ZN) 2
10 J70530660B TENSION BKT 2
11 FC18-903478 FLAT WASHER 12
12 FC18-903492 SPRING WASHER [M5 (BL/ZN)] 16
13 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 20
14 J7053661B WIDTH TENSION SPACER 2
15 MC03-900080 BALL BEARING 2
16 MC03-900121 BALL BEARING 2
17 J7053662A TENSION BEARING PIN 2
18 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 4
19 FC18-902763 SOCKET HEAD CAP SCREW M5*25 (NI/ZN) 4
20 J7053194A BEARING NUT 2
21 J7153326A WIDTH PULLEY COLLAR 2
22 MC19-900014 PULLEY-WIDTH 2
23 J70531109A MANUAL_HANDLE 1
24 MC05-001022 TIMING BELT 1
25 MC03-900008 BALL BEARING 2
26 MC13-900225 LEAD SCREW 2
27 MC05-001026 BELT,TIMING 1 MC05-900026
28 J7053677A MOVE STAND 2
29 J7053695B STOPPER 1
30 J7053128A SPACER NUT 8
31 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 11
Page
+$1:+$
88
L1200 Conveyor Assembly(4/4) - OPTION
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 MC19-002217A PULLEY 1 MC19-900015
33 J7153330A PULLEY SHAFT 1
34 FC30-004421A PLATE-MOTOR_NMB 1 J7053780A
35 EP08-002166A MOTOR,STEP 1 EP08-900160
36 J7053726A SCREW STAND 2
37 J7053216B DOG-SENSOR 1
38 FC18-903488 SPRING WASHER [M3 (BL/ZN)] 2
39 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 2
40 EP19-900109 PHOTO SENSOR 1
41 J70530749B DOG ADJUST 1
