Page +$1:+$ 95 Head Ass’y(3/5) SM482 PLUS NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC09-002274A BRACKET -OUT_ILL_BKT 2 2 AM03-015254A ASSY ,BOARD- V ACUUM SENSOR 1 AM03-007104A 3 FC09-0022…
Page
+$1:+$
94
SM482
PLUS
Head Ass’y(3/5)
3
7
1
1
5
8
10
9
4
2
6
16
17
14
14
15
13
12
11
Page
+$1:+$
95
Head Ass’y(3/5)
SM482
PLUS
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC09-002274A BRACKET-OUT_ILL_BKT 2
2 AM03-015254A ASSY,BOARD-VACUUM SENSOR 1 AM03-007104A
3 FC09-002281A BRACKET-BKT_AIR_L 1
4 AM03-015252A AIR_MODULE 1
5 J9060357B HEAD OUTER LED BOARD ASSY[Rev 1.1] 1
6 HP14-000163 VALVE,SOLENOID 6
7 FC09-002282A BRACKET-BKT_AIR_R 1
8 FC07-000534A OUT_ILL_BLOCK 1
9 FC07-001724A OUTER_ILL_BLOCK 1
10 J7155515A LOWER COVER 2 1
11 HP14-000206 VALVE,ETC-BLOW_VALVE 6
12 FC14-000381A PLUG 6
13 HP04-000018B AIR FILTER 6
14 HP06-900183 FITTING_ELBOW 7
15 HP04-900036 SUCTION_FILTER 6
16 HP06-000074 FITTING-STRAIGHT 6
17 HP09-001001 MANIFOLD 1
Page
+$1:+$
96
SM482
PLUS

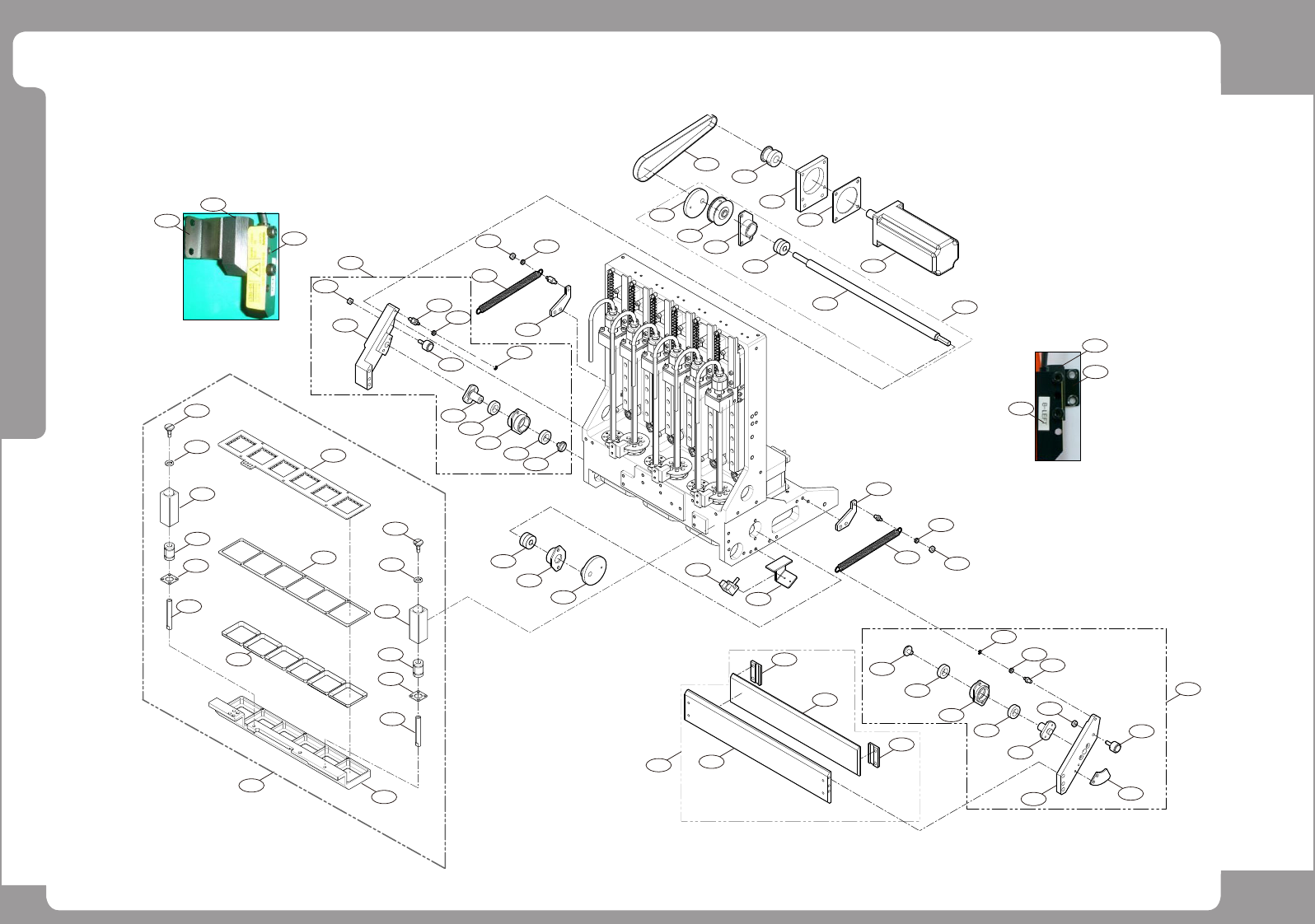

Head Ass’y(4/5)
15
16
16
17
21
19
1
28
38
16
32
16
18
23
18
6
7
8
12
5
9
13
24
48
46
39
49
39
10
35
10
37
14
22
39
10
47
52
46
12
11
14
50
29
39
9
3
40
42
41
43
44
45
31
40
41
42
43
44
45
30
34
33
36
24
10
37
27
51
25
25
26
19
20
2
1
4
