Osai Automation Systems

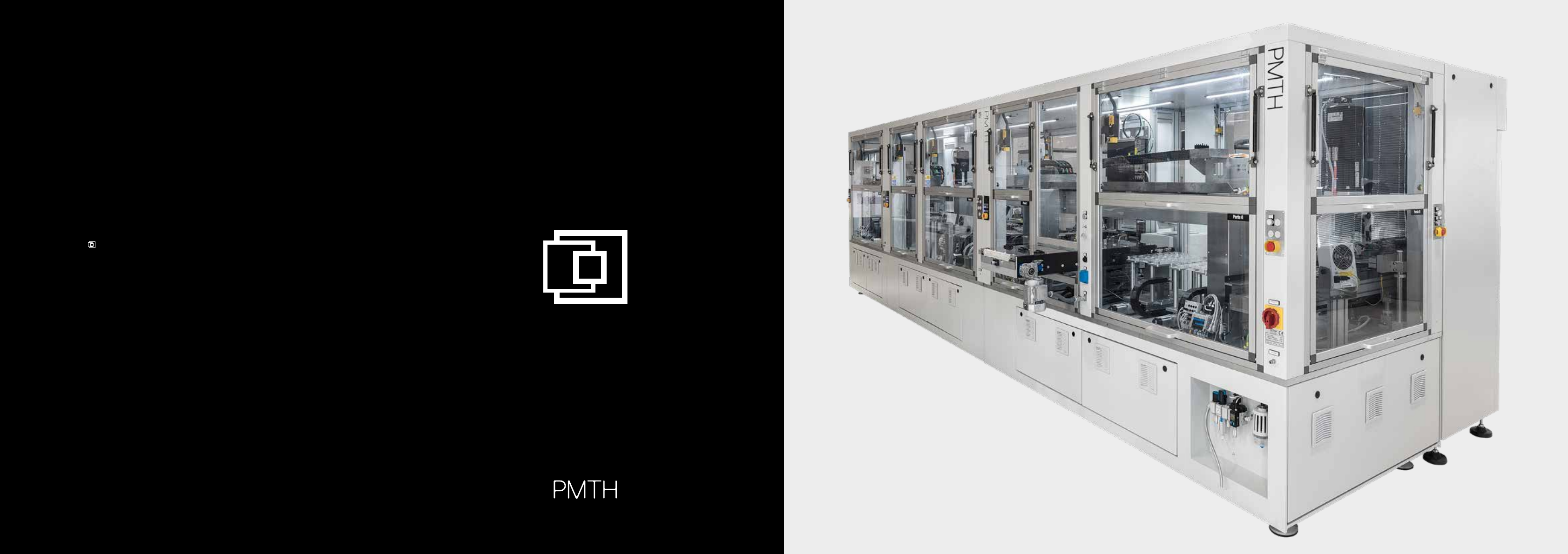

POWER MODULE TEST HANDLER
OSAI A.S. S.p.A. SB
Via Cartiera, 4 - 10010 Parella (TO) - ITALY
Tel: +39 0125 66.83.11
sales@osai-as.com - www.osai-as.com
•
Confi gurable
•
Scalable
•
Upgradable
Up to 400 UPH
Osai Automation Systems
POWER MODULE TEST HANDLER
OSAI A.S. S.p.A. SB
Via Cartiera, 4 - 10010 Parella (TO) - ITALY
Tel: +39 0125 66.83.11
sales@osai-as.com - www.osai-as.com
•
Confi gurable
•
Scalable
•
Upgradable
Up to 400 UPH
Osai Automation Systems
POWER MODULE TEST HANDLER
OSAI A.S. S.p.A. SB
Via Cartiera, 4 - 10010 Parella (TO) - ITALY
Tel: +39 0125 66.83.11
sales@osai-as.com - www.osai-as.com
•
Confi gurable
•
Scalable
•
Upgradable
Up to 400 UPH
CONFIGURE YOUR HANDLER WITH STANDARD FEATURES
Automatic device conditioning at the desired
test temperature.
KEYPOINTS
Hot and Ambient temperature
Programmable Hot temperature up to 175°C
Closed loop temperature control
Accuracy ± 2°C (@175°C)
High reliability
Long life IR lamps
Low soak time to optimize the UPH, also for high
mass modules
40 sec from Ambient to 175°C (on HPD package)
Soak buffer Up to 12 Modules
High speed cooler with forced air
To perform optical inspection and/or weight check.
The optical inspection verifies that the unit has no
physical defects, including pin position and height.
The weight check ensures that the module contains
the expected SilGel quantity.
KEYPOINTS
Suitable for:
Power modules, DBC-AMB, discretes
Inspection capability
5S, 6S inspection, convexity check
Pins and rivets presence, bent pins, damaged plastic case
3D Inspection capability
Laser profilometer for 3D checks on the package
Weight check specification
Range: 0-500grams
Accuracy: 1%
Resolution: 0,01grams
PIN CHECK, WEIGHT CHECK, OPTICAL INSPECTION
The ultimate solution for fast and accurate
plastic case marking, which allows a single
unit traceability.
Several Laser sources are available to mark
any type of plastic case.
KEYPOINTS
Laser marking sources
Green (532nm), IR (1.064nm), CO
2
(10.600nm)
Particle free
Specific extraction hoses, active vacuum exhaust system
Marking capability
One side or both
Marking types and checks
Strings, 1D, 2D codes, logos
Grading and quality (OCV)
Tailored DB communication
For traceability
LASER MARKINGCONFIGURABLE INPUT / OUTPUT
Input / output is fully configurable to
accommodate the most used input output
media.
KEYPOINTS
Input output media:
Tray, blister, tape, tube, transport belt
Loader/unloader
OSAI Standard module (NeoTray feeder) or custom
In-line capability
SMEMA interface
AGV Ready (open to robotization for material handling)
Bin formats
Tray, blister, tape, tube, transport belt
HI-POT, STATIC, DYNAMIC TEST
Test station for AC (Dynamic) -
DC (Static) test.
Hard docking system to minimize
the electrical stray parameters.
KEYPOINTS
Suitable for:
AC/DC/Hi-POT test fixtures
Supported test fixtures for:
DBC, Power module, high power discrete
components
Temperature control
Closed loop temperature control
Accuracy ± 2°C ( @175°C)
TEST AT TEMPERATURE
