Section 3 ThermoFlex 3-19 Thermo Scientific Fluid T op Off R emove the reservoir cap by unscrewing it countercloc kwise.     …

100%1 / 138
Section 3
3-18 ThermoFlex
Thermo Scientific
Initial Filling
Ensure the reservoir drain plug on the back of the chiller is in place, or the

Before using any uid refer to the manufacturer’s MSDS for handling
precautions.
Slowly

comply may result in internal spillage.
Note

O FLO) causing the chiller to shut down.
Since the reservoir capacity may be small compared to your application and

keep the system topped off when external circulation is started.

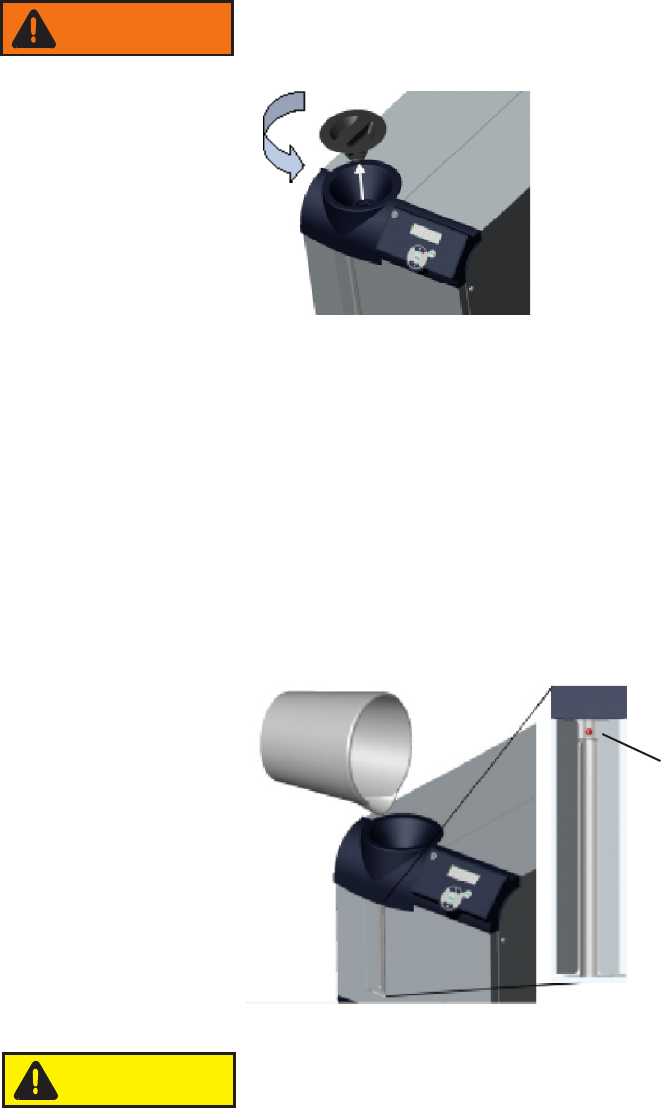

Figure 3-6 Reservoir Cap
Before replacing the reservoir cap ensure the reservoir sight tube ball
stopper is securely in place, see next page.
Replace the reservoir cap by screwing it clockwise. Cap should be hand tight.
Reservoir Sight Tube & Ball
MAX
LEVEL
MIN
LEVEL
Figure 3-7 Reservoir Sight Tube & Ball
WARNING
Locate and remove the reservoir cap by
unscrewing it counterclockwise.
To prevent the introduction of particulates




Section 6.
CAUTION
Section 3
ThermoFlex 3-19
Thermo Scientific
Fluid Top Off
Remove the reservoir cap by unscrewing it counterclockwise.
 



Slowly
failure to comply may result in internal spillage.
Note

O FLO
expand when heated.
Note
already in the reservoir will temporarily affect the chiller's stability
performance.
Before replacing the reservoir cap ensure the reservoir sight tube
ball stopper is securely in place.

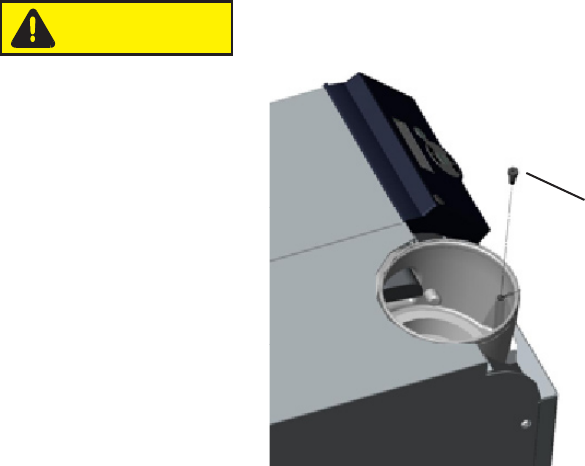

Reservoir Ball Stopper
Figure 3-8 Reservoir Ball Stopper
CAUTION
Section 3
3-20 ThermoFlex
