PSV7000 Owner’s Manual 4—1

Chapter

4Maintenance

Performing the maintenance procedures described

in this chapter optimizes operation of your

PSV7000 System, enhances longevity by minimizing

wear and malfunctions, and reduces any downtime.

The manuals that came with any optional equip-

ment on your system may contain additional main-

tenance procedures.

Note: Only individuals trained on these procedures by Data I/O or

its representatives are qualified to perform maintenance on the

PSV7000 System.

This section describes the preventive maintenance schedule for the

PSV7000 System and equipment options, with topics appearing in

this order:

Maintenance Schedule

Workspace, Head and Gantry on page 4-8

Programmers on page 4-28

The Laser Module on page 4-34

Handler Computer on page 4-41

Troubleshooting on page 4-44

Tape Output System on page 4-54

Dual Tray Feeder on page 4-61

A handy sign-off chart

is at the end of this

chapter.

Maintenance ■ Maintenance Schedule

4—2 Data I/O • 096-0640-001B

back

Maintenance Schedule

This Maintenance Interval Chart below recommends intervals based

on single-shift daily usage. Information about the specified proce-

dures and intervals can be found on the pages referenced in the right

column.

Make copies of this

chart and post near

your work area.

Date

completed

/ initials

Component

Action

(see precautions also, on page listed)

Page

Items to check Every Day

Every day Sockets Clean with dry compressed air. Check for wear; replace

if necessary.

For HIC Socket Adapters, see more information in cus-

tomer letter Cleaning HIC Sockets (PN 983-5053) on our

web site Technical Library. This link opens the PDF

which lists cautions and suggested items, such as

Cleaning brush (PN 5655500901) and ProGold Wipes

(PN 5705500902).

page

4-8

Every day Input air pressure

Verify the input air pressure at the regulator is within

specifications

and that it is constant, that is the

Nm3/min. [Normal Cubic Meter/min.] (SCFM ) must be

stable. For specifications, see PSV7000 Air Requirements

Table on page 2-3.

—

Items to check Every Week

* denotes optional equipment

■ Maintenance Schedule ◘

PSV7000 Owner’s Manual 4—3

back

Every week Programmers

To help ensure there are no problems with the pro-

grammer hardware, run the programmers’ Self-test

once a week at a minimum; more often is even better.

The Power-On-Self-test (POST), which sets precision to

a laser-trimmed reference, runs when programmers are

powered up .

This insures proper operation of the programmers

voltage sources.

CAUTION: Possible damage to programmers

and devices! DO NOT TURN AIR OR POWER

OFF to the PSV7000 Machine while a job is

running.

A job must be

Finished

before turning OFF

compressed air or electrical power. Wait for the

gantry to park before turning OFF.

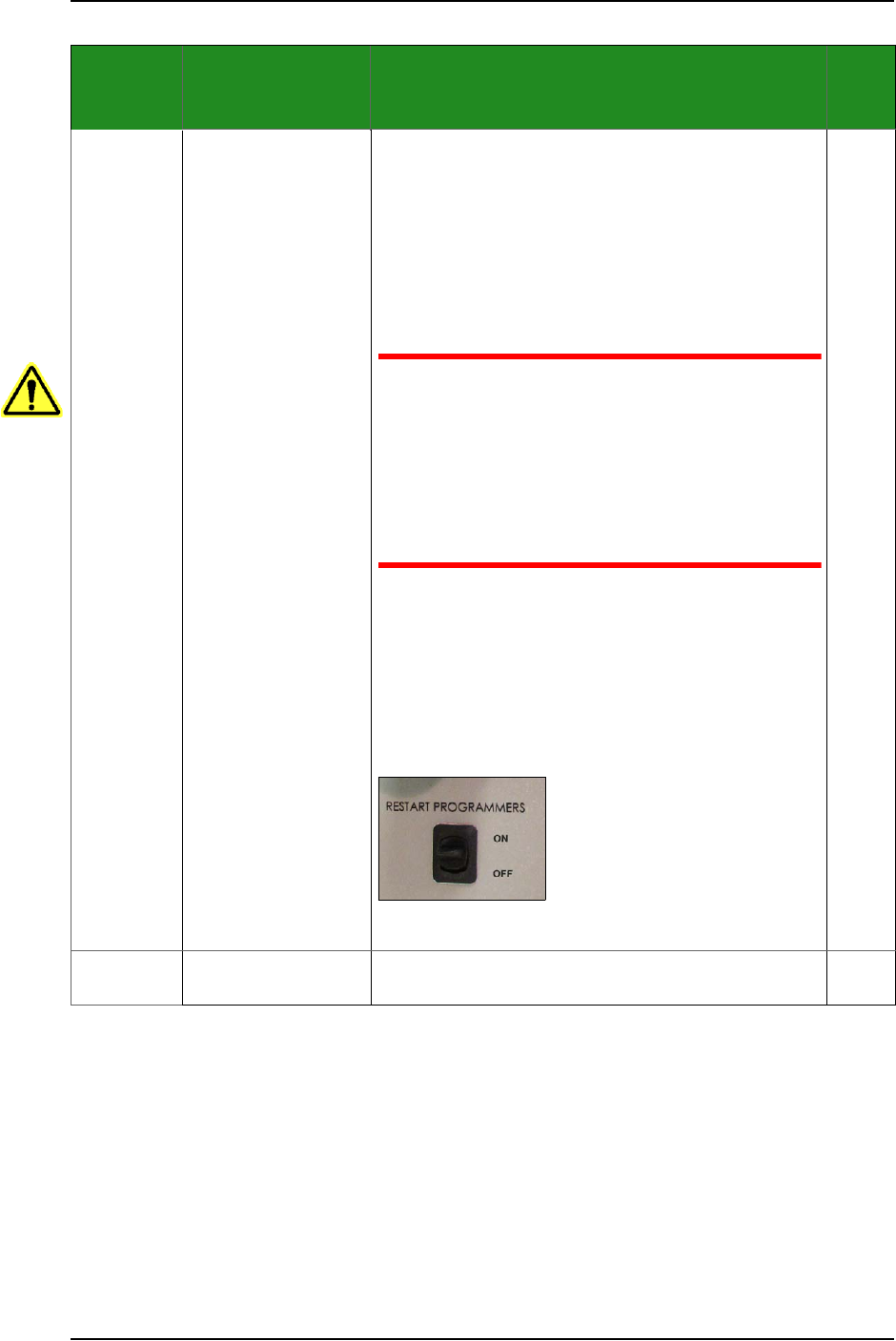

Run the Self-test by either

A) turning the PSV7000 System power OFF properly

and then ON (Shutting Down the PSV7000 System on

page 2-7) or

B) turning OFF only power to the programmers, and

then ON, with the Programmer Power Switch on the

Power Panel. If there is a programmer issue, a message

will display when the next TaskLink job is run.

—Refer to the Operator’s Manual for switch locations.

—

Every week General system Clean surfaces of equipment and all areas in workspace

with a clean brush, cloth, or dry compressed air.
