Sample
dialog.txt
file:
Diagnostic Pass #1
Run Vpp Overcurrent test.
DUT 1 G1 Vpp overcurrent is sensed at 57 mA.
DUT 1 G2 Vpp overcurrent is sensed at 57 mA.
DUT 1 G3 Vpp overcurrent is sensed at 57 mA.
DUT 1 G4 Vpp overcurrent is sensed at 57 mA.
DUT 2 G1 Vpp overcurrent is sensed at 57 mA.
DUT 2 G2 Vpp overcurrent is sensed at 57 mA.
DUT 2 G3 Vpp overcurrent is sensed at 57 mA.
DUT 2 G4 Vpp overcurrent is sensed at 57 mA.
Error: DUT 3 G1 Vpp overcurrent is not sensed from 50
mA to 70 mA.
Error: DUT 3 G2 Vpp overcurrent is not sensed from 50
mA to 70 mA.
Error: DUT 3 G3 Vpp overcurrent is not sensed from 50
mA to 70 mA.
Error: DUT 3 G4 Vpp overcurrent is not sensed from 50
mA to 70 mA.
DUT 4 G1 Vpp overcurrent is sensed at 57 mA.
DUT 4 G2 Vpp overcurrent is sensed at 57 mA.
DUT 4 G3 Vpp overcurrent is sensed at 57 mA.
DUT 4 G4 Vpp overcurrent is sensed at 57 mA.
Diagnostics failed.
Replacing a FlashCORE Programmer
If a programmer is not working properly, it can be removed and
replaced with another one.
Tools Required
• Cable Tie tool
• Clippers to cut cable tie
• 3 mm hex key (Allen wrench)
• Access door key that came with your PSV7000
WARNING: Electric shock hazard! Injury or death may result
from contact to parts inside the machine. Shut off the
PSV7000 System by turning OFF the main power switch
before working on or near the gantry, before opening any
access doors or removing any cabinet panels.
■ Programmers ◘ Replacing a FlashCORE Programmer
PSV7000 Owner’s Manual 4—31
back
To remove a FlashCORE programmer:
1. Properly turn OFF the PSV7000 sub-systems and machine
power. See Shutting Down the PSV7000 System on page 2-7.
2. With the supplied door key, open the lower, right front access
door.
3. Locate the target programmer and follow the heavy gray power
cable to the connection panel on the right side of the machine.
Refer to Figure 4-18 on page 4–31.
4. Mark the cable (to re-install in the same place) and pull the con-
nector straight out.

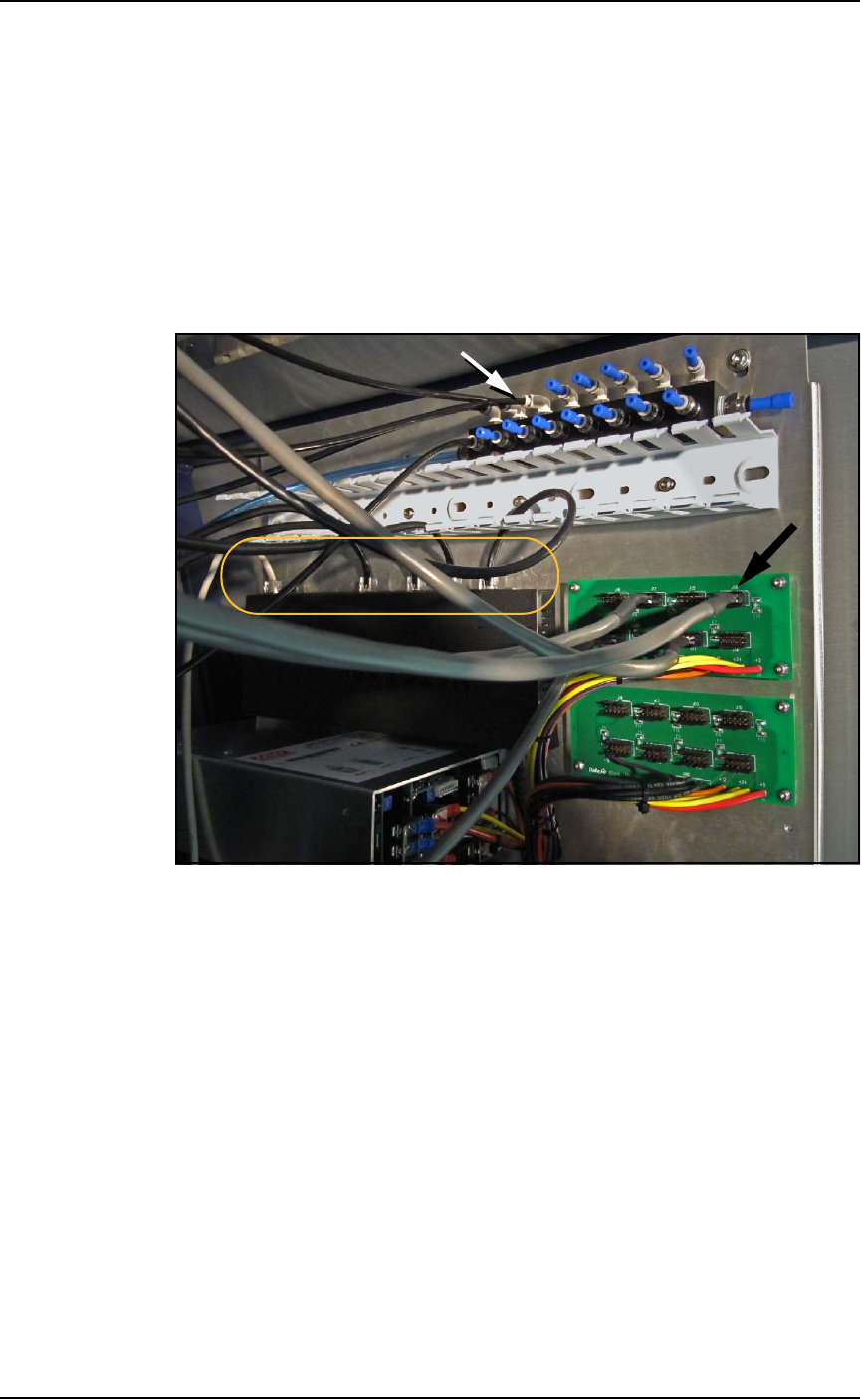

Figure 4-18: The right side connection panel inside the right front
access door. Power cables (black arrow), Pneumatic tubing (white
arrow), and the Ethernet connections (circled).
5. Follow and mark the thin black tubing to the air manifold on the
right mounting plate.
6. Disconnect the air tube at the one-touch connector (push in on
the collar while pulling the tube out).
Maintenance ■ Programmers
4—32 Data I/O • 096-0640-001B
back
Figure 4-19: The Programmer air manifold. Only two programmers are
connected in this view. Blue plugs must be installed into all unused
ports.
7. Follow and mark the heavy Ethernet cable to the router on the
right mounting plate.
8. Disconnect the Ethernet cable by pinching the clip and pulling
up. Refer to Figure 4-18 on page 4–31.
9. Remove four screws (3 mm hex key) from the bottom side of the
programmer. One screw also holds a cable tie which must be cut
first. Save the cable tie mount for reuse (as well as the screws).
Figure 4-20: Inside the machine looking up at the programmers. There
are four attachment screws (arrows) per programmer.
10. Open the front or back safety door to access the workspace.
