Maintenance ■ Programmers
4—32 Data I/O • 096-0640-001B
back

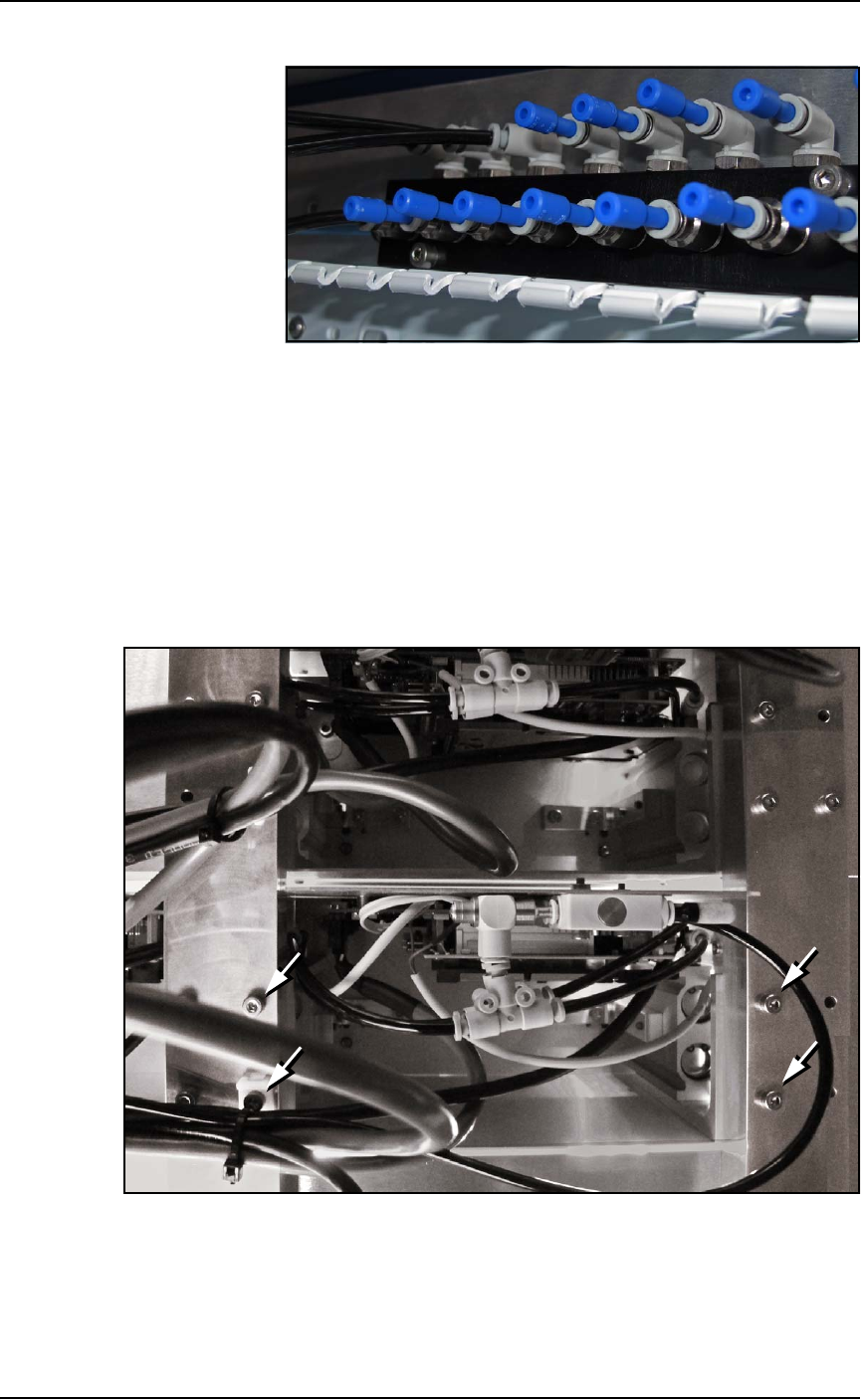

Figure 4-19: The Programmer air manifold. Only two programmers are
connected in this view. Blue plugs must be installed into all unused
ports.
7. Follow and mark the heavy Ethernet cable to the router on the
right mounting plate.
8. Disconnect the Ethernet cable by pinching the clip and pulling
up. Refer to Figure 4-18 on page 4–31.
9. Remove four screws (3 mm hex key) from the bottom side of the
programmer. One screw also holds a cable tie which must be cut
first. Save the cable tie mount for reuse (as well as the screws).
Figure 4-20: Inside the machine looking up at the programmers. There
are four attachment screws (arrows) per programmer.
10. Open the front or back safety door to access the workspace.
■ Programmers ◘ Replacing a FlashCORE Programmer
PSV7000 Owner’s Manual 4—33
back
11. Lift up on the target programmer being cautious of the cables
that will come out with it.
Replacement is in the reverse order of removal.
Maintenance ■ The Laser Module
4—34 Data I/O • 096-0640-001B
back
The Laser Module
[Laser Marking only] Laser Marker System is optional equipment on
your PSV7000 Programming System. The Laser Module employs a
rotor. The Laser System includes a fume extractor.
The Laser Module
The Laser rotor transports devices to and from the enclosed lasing
area. The Laser rotor may require periodic cleaning or new probe
tips.
Cleaning the Rotor Housing and Device Tips
Requirements
• Disposable gloves and protective goggles
• Sealable Plastic bags
• Antistatic cleaner
• Cloth Paper towels
Housing
WARNING: Possible health hazard! Lased materials can con-
tain hazardous toxins in the dust that cause eye and skin
damage! DO NOT use compressed air to remove laser dust or
any method that allows the particulate to be released into
the work environment. Wear safety goggles and disposable
protective gloves.
1. Properly shut off the PSV7000 sub-systems and machine power.
See Shutting Down the PSV7000 System on page 2-7.
2. Wear eye protection and put on disposable protective gloves.
3. Use a damp cloth or paper towel and antistatic cleaner to wipe
laser marking dust and other foreign material from the housing.
4. Rotate the Laser Rotor by hand (it will only rotate in one direc-
tion) and wipe the remaining rotor surfaces.
5. Place paper towels, cloth, and protective gloves into a sealable
plastic bag. Seal the bag and dispose of as hazardous waste.
Remove safety goggles.
WARNING: Possible health hazard from toxic materials! Gov-
ernment regulations apply to the storage of hazardous
waste. Ensure that contaminated filters are:
• properly labeled and stored in your hazardous waste stor-
