Maintenance ■ The Laser Module

4—40 Data I/O • 096-0640-001B

back

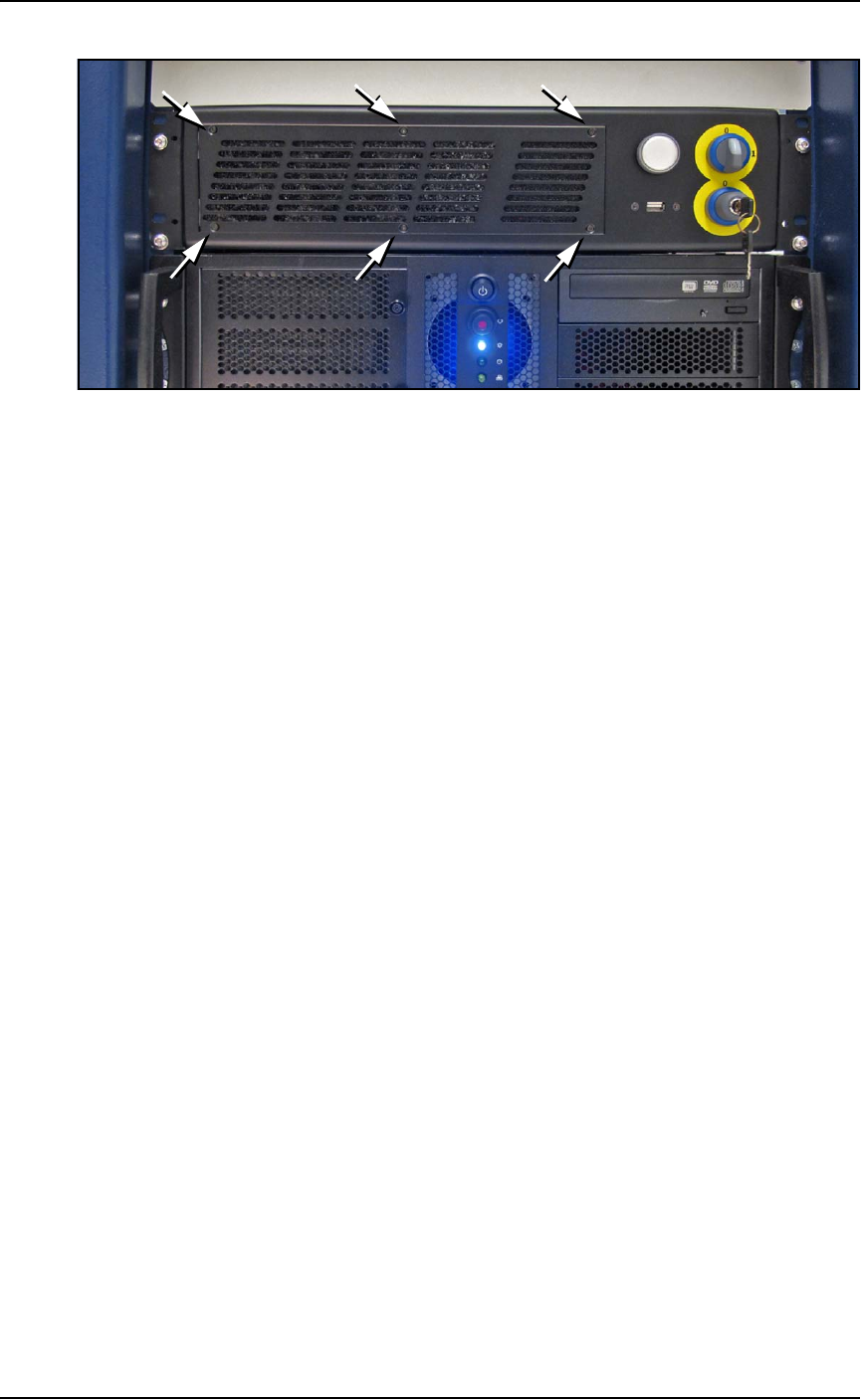

Figure 4-25: The location of Laser Computer filter (Laser Marker

equipped models only). Six screws (arrows) attach the filter grille.

To remove the Laser Computer air filter:

1. Turn OFF the Laser computer.

1a. Switch to the Laser PC by pressing the keyboard key

Scroll-Lock twice and then immediately press 2.

1b. Exit the Lighter Laser software.

1c. Shut down the PC using the Windows Start Menu.

2. Unscrew the six small Phillips screws on the filter grille and

remove it.

3. Remove the old air filter and clean such as with a light-duty vac-

uum (or replace with a new air filter if necessary).

4. Replace the filter grille and attach with the six screws.

■ Handler Computer ◘ Handler Computer Air Filter

PSV7000 Owner’s Manual 4—41

back

Handler Computer

The main PSV7000 Machine computer, or Handler Computer, is at

the left side of the machine and requires little maintenance.

Handler Computer Air Filter

The Handler Computer has an air filter that requires periodic

cleaning or replacing.

To remove the air filter:

1. Properly shut off the PSV7000 sub-systems and machine power.

See Shutting Down the PSV7000 System on page 2-7.

2. Open the filter door by unscrewing the two knurled knobs. See

Figure 4-26.

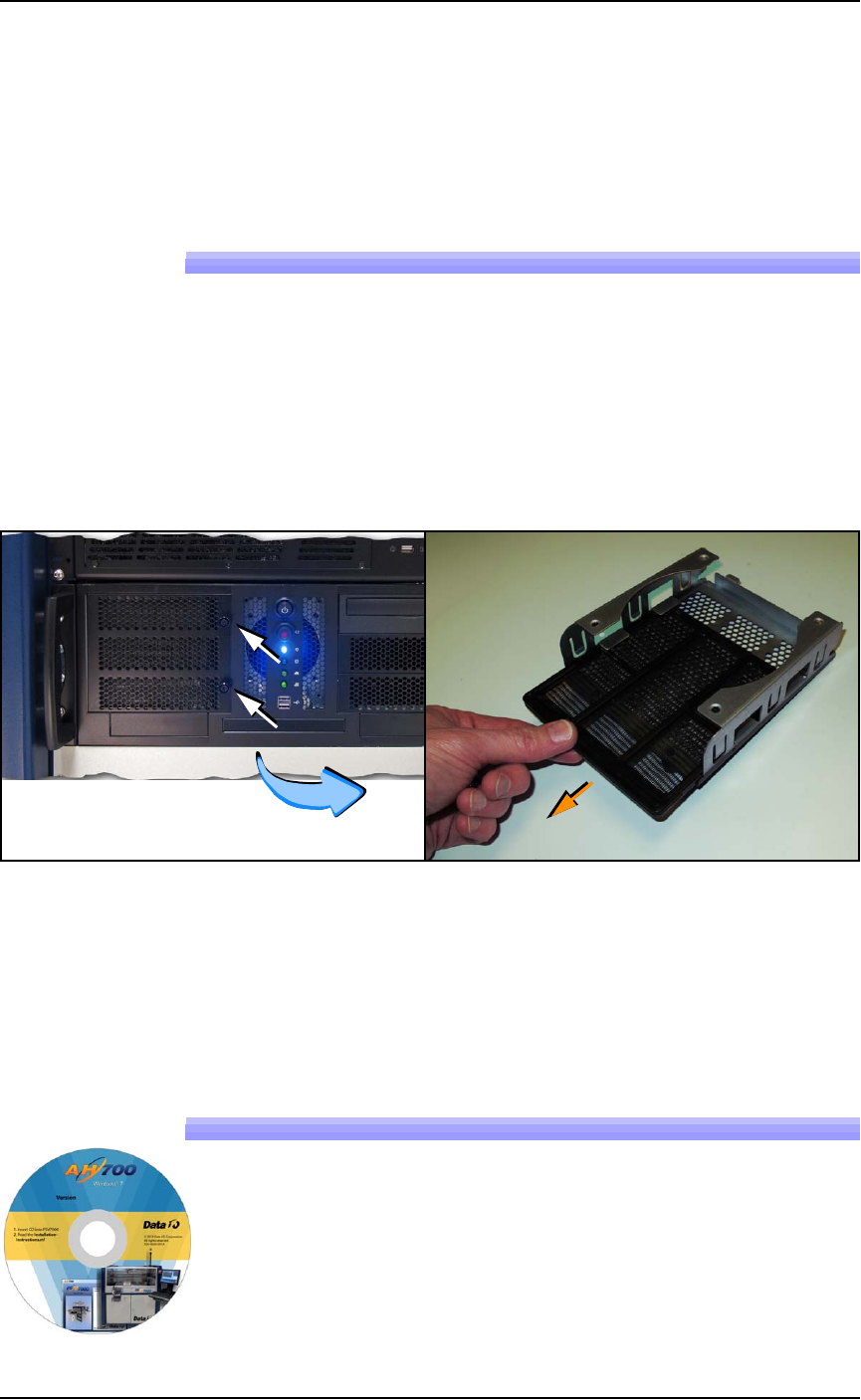

Figure 4-26: The Handler Computer filter door has two knurled knobs

(white arrows). The filter (screen) slides out.

3. Open the filter door or lift it out.

4. Pull out the filter tray out of the door.

5. Clean filter as necessary such as with a light-duty vacuum.

Installing AH700 Software Updates

AH700 Software updates are periodically published with improve-

ments. Delivery depends on contract options.

To install new AH700 Updates on the Handler Computer, insert the

AH700 CD and follow instructions in the

Installation Instruc-

tions.rtf

file.

Maintenance ■ Handler Computer

4—42 Data I/O • 096-0640-001B

back

Note: Your existing

winAH400.ini

will not be replaced so all

your settings will remain the same.

Note: Updating TaskLink is a different CD. For more TaskLink

information, see TaskLink’s online Help.

Note: PSV7000 System algorithms are updated weekly at

http://www.dataio.com/algorithms/ and are available

depending on your maintenance plan. Algorithms are

updated vis TaskLink. See TaskLink Help for more informa-

tion.
