Maintenance ■ Handler Computer
4—42 Data I/O • 096-0640-001B
back
Note: Your existing
winAH400.ini
will not be replaced so all
your settings will remain the same.
Note: Updating TaskLink is a different CD. For more TaskLink
information, see TaskLink’s online Help.
Note: PSV7000 System algorithms are updated weekly at
http://www.dataio.com/algorithms/ and are available
depending on your maintenance plan. Algorithms are
updated vis TaskLink. See TaskLink Help for more informa-
tion.
■ 3D Coplanarity Inspection System ◘ Cleaning the 3D Inspection PC Filter
PSV7000 Owner’s Manual 4—43
back
3D Coplanarity Inspection System
The 3D Inspection System requires little maintenance. The 3D Inspec-
tion PC is just below the Handler PC on the left side of the machine.

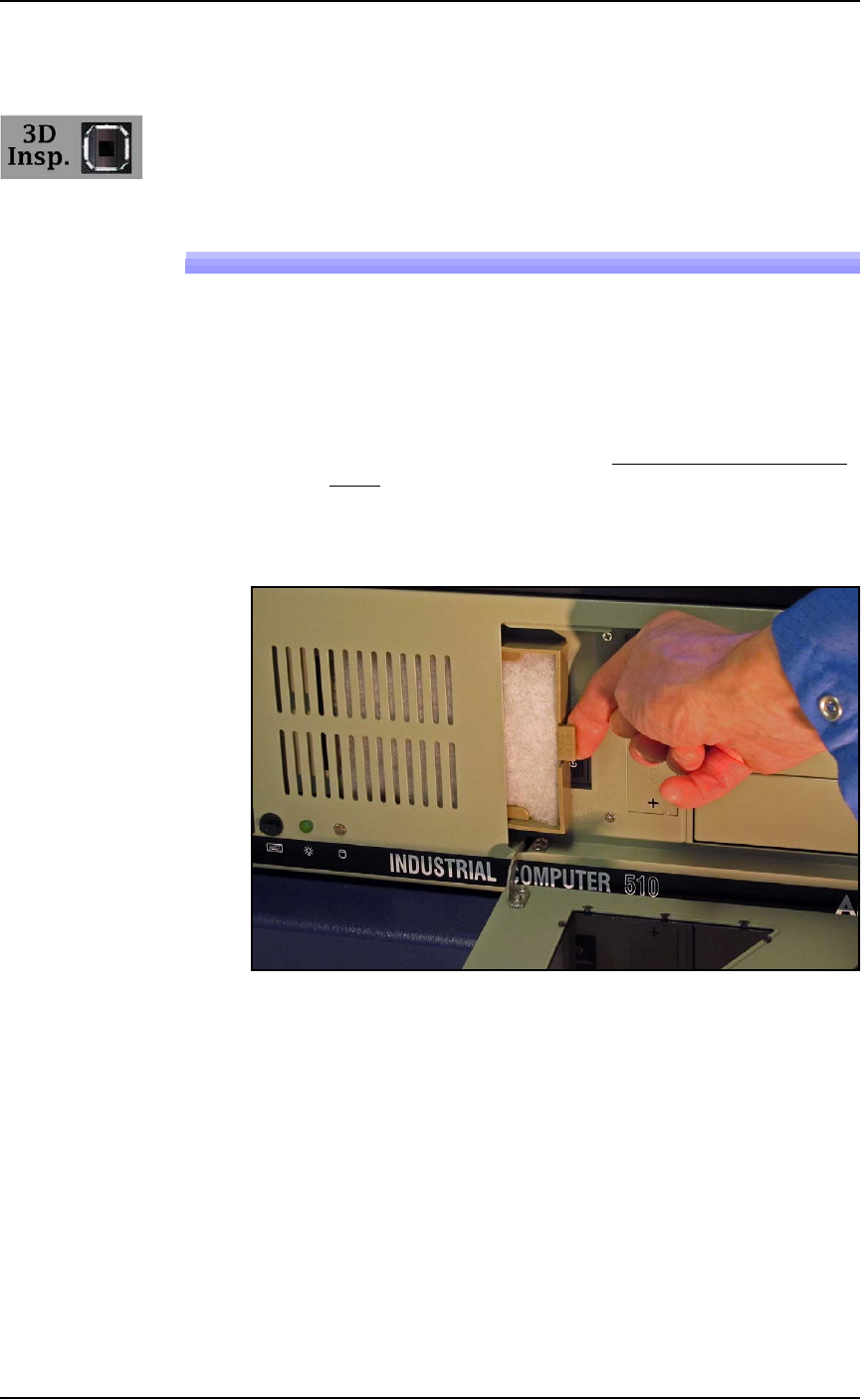

Cleaning the 3D Inspection PC Filter
1. Shut down the 3D Inspection PC using the Windows Start menu
as follows:
1a. Use the Scroll Lock key on the keyboard to switch to the 3D
Inspection PC. (Scroll-Lock > Scroll-Lock > 3.)
1b. Exit the UltraVim Application software. Then at the dialog,
type EX to exit.
1c. Shut down the 3D Coplanar PC with the Windows START
menu.
2. Open the PC door with the key.
3. Pull the small tab on the filter tray toward you and slide to the
right.
4. Inspect the filter. It should be white. Clean or replace with a new
filter.
5. Replace the filter tray and close and lock the PC door.
To turn
Maintenance ■ Troubleshooting
4—44 Data I/O • 096-0640-001B
back
Troubleshooting
This section contains solutions to problems that may arise during
operation of the PSV7000.
Troubleshooting for the Tape Output System is covered in a separate
heading; see Troubleshooting the Tape Output System on page 4-57.
Also, see PSV7000 on-screen Help for a more detailed Trouble-
shooting chart.
Headings below cover:
• Common Error Messages
• Collect all PSV7000 System Logs on page 4-45
• Programming Problems on page 4-48
• Pick and Place Problems on page 4-49
• Air Pressure Problems on page 4-50
• Tube Input and Output Problems on page 4-51
• Tray Feeder Problems on page 4-52
• Handler Computer Failure on page 4-52
• Laser Marking Problems on page 4-53
Common Error Messages
Lamp color Error Messages Possible Resolution
Red
“Cannot con-
nect to the motion
controller.”
• Check that both Emergency Stop buttons are OFF.
• Check that all safety doors are closed.
• Properly shut down the PSV7000 Machine if possible, and
restart the system.
Red
“E-STOP
ACTIVATED” but
the OK button is
grayed out (unavail-
able)
• Check that both E-Stop buttons are released.
• Check that all safety doors are closed.
• If a restart is necessary, press Ctrl + Alt + Del on the keyboard
