■ Dual Tray Feeder ◘ Cleaning and Inspecting the Dual Tray Feeder
PSV7000 Owner’s Manual 4—61
back
Dual Tray Feeder
The Automatic Data I/O Dual Tray Feeder is optional equipment to
the PSV7000 System. It is a high-speed tray exchanger, delivering
JEDEC trays to pick and place positions.
Information not found here, but important, can be found in the Tray
Feeder Operation Manual, such as the location of possible pinch points.

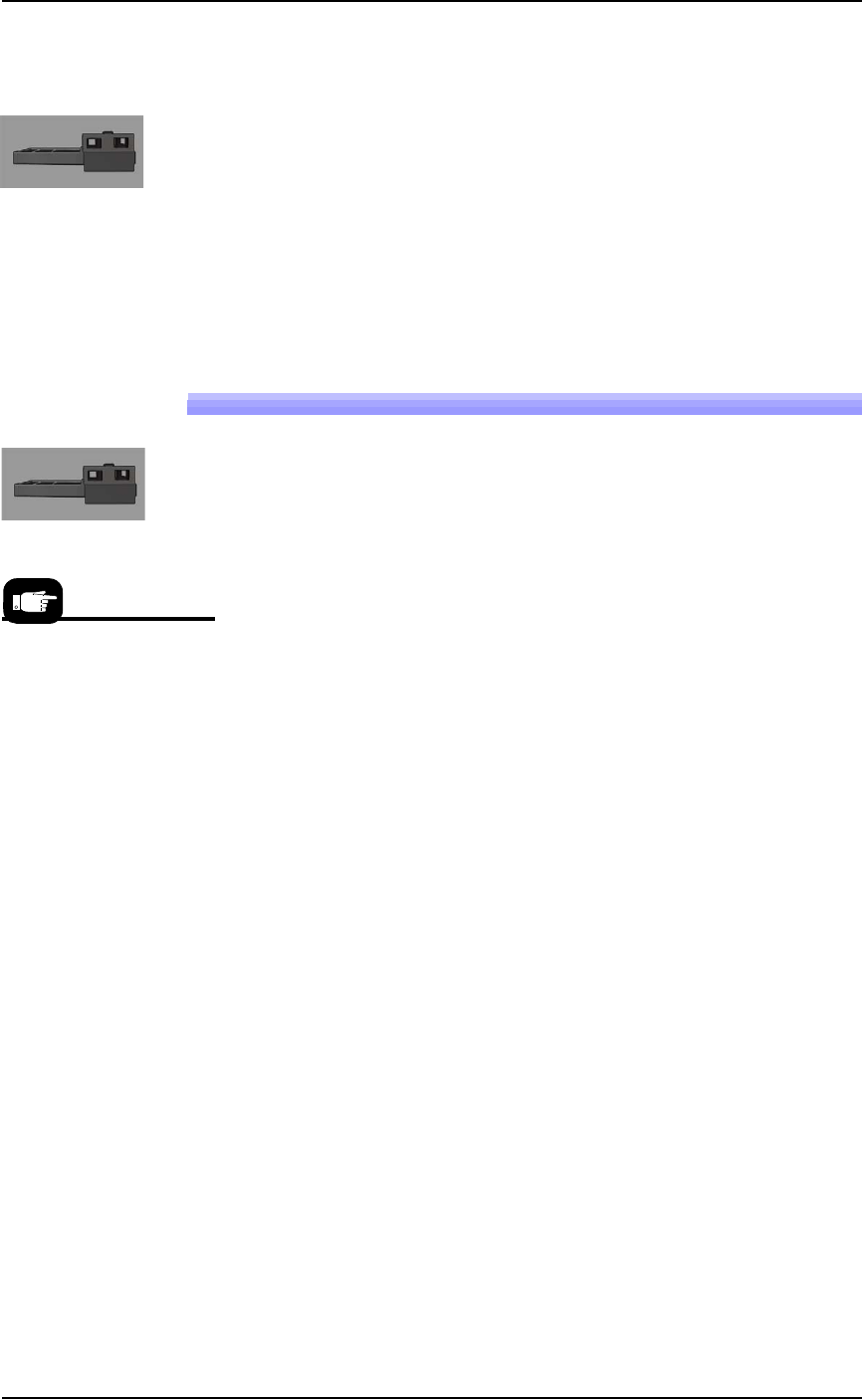

Cleaning and Inspecting the Dual Tray
Feeder
[Data I/O Dual Tray Feeder Tray Feeder only]
1. Stop or Pause a job if one is running.
2. Check the automatic Tray Feeder for damaged or broken parts
and replace as necessary.
3. Visually inspect the shuttle belts for dirt, nicks, or other signs of
damage.
4. If the shuttle belts are dirty, clean with dry, compressed air and
wipe with a dry, lint-free cloth and isopropyl alcohol.
5. Check that the black teflon strips on both long, inside walls are
clean. Clean with a dry, lint-free cloth and isopropyl alcohol.
6. Check that the shuttle/elevator is clean and that trays lay flat.
For more information, see
the Tray Feeder Manual
that came with your system.
Maintenance ■ Electrical Equipment Disposal Notice
4—62 Data I/O • 096-0640-001B
back
Electrical Equipment Disposal
Notice
For customers in the European Union, this symbol displayed on your
Data I/O product indicates that the item must NOT be discarded with
general municipal waste. Either return products displaying this
symbol to Data I/O so that they may be recycled, reused, or otherwise
properly disposed of, in accordance with the European Union's
WEEE Directive, or you may dispose of it yourself in accordance with
the European Union's WEEE Directive.
Data I/O will collect this equipment at no cost to the equipment
owner and process it accordingly. (This includes auxiliary equipment
that came with your PSV7000 System such as Tape-Out Module, and
Tray Feeder.) Contact your nearest Data I/O office to receive informa-
tion about returning WEEE labeled products with no charge.
■ Maintenance Sign-off Chart ◘ Cleaning and Inspecting the Dual Tray Feeder
PSV7000 Owner’s Manual 4—63
back
Maintenance Sign-off Chart
PSV7000 SN____________
For maintenance instructions see
Maintenance Schedule on page 4-2.
Copy this chart
to use near your
PSV7000 Machine
Enter name of people responsible or daily check marks:
Sunday
Monday Tuesday
Wednesday
Thursday Friday Saturday
Daily
• Blow off sockets
• Check input air
pressure
Name
Enter initials and date:
Jan. Feb. Mar. Apr. May Jun.
Weekly
• Run programmer
Self-test, (cycle
power)
• Clean surfaces
• Clean probe tips.
• Check Tray Feeder*
• Clean 3D Inspection
System*
Jul. Aug. Sep. Oct. Nov. Dec.
Jan. Feb. Mar. Apr. May Jun.
Jul. Aug. Sep. Oct. Nov. Dec.
