Introduct ion ■ System Description 1—8 Data I/O • 096-0460-001B back • Illegal-bit check • Functional verification operations • Secure device • V erify options such as voltage (Optional) Inspec t device leads— The option…
■ System Description ◘ Machine Axes
PSV7000 Owner’s Manual 1—7
back
Machine Axes
The PSV7000 System gantry operates on three primary axes: X, Y, Z.
An additional axis, called the R-axis (theta), is used by the PNP head
to change device orientation (rotation).

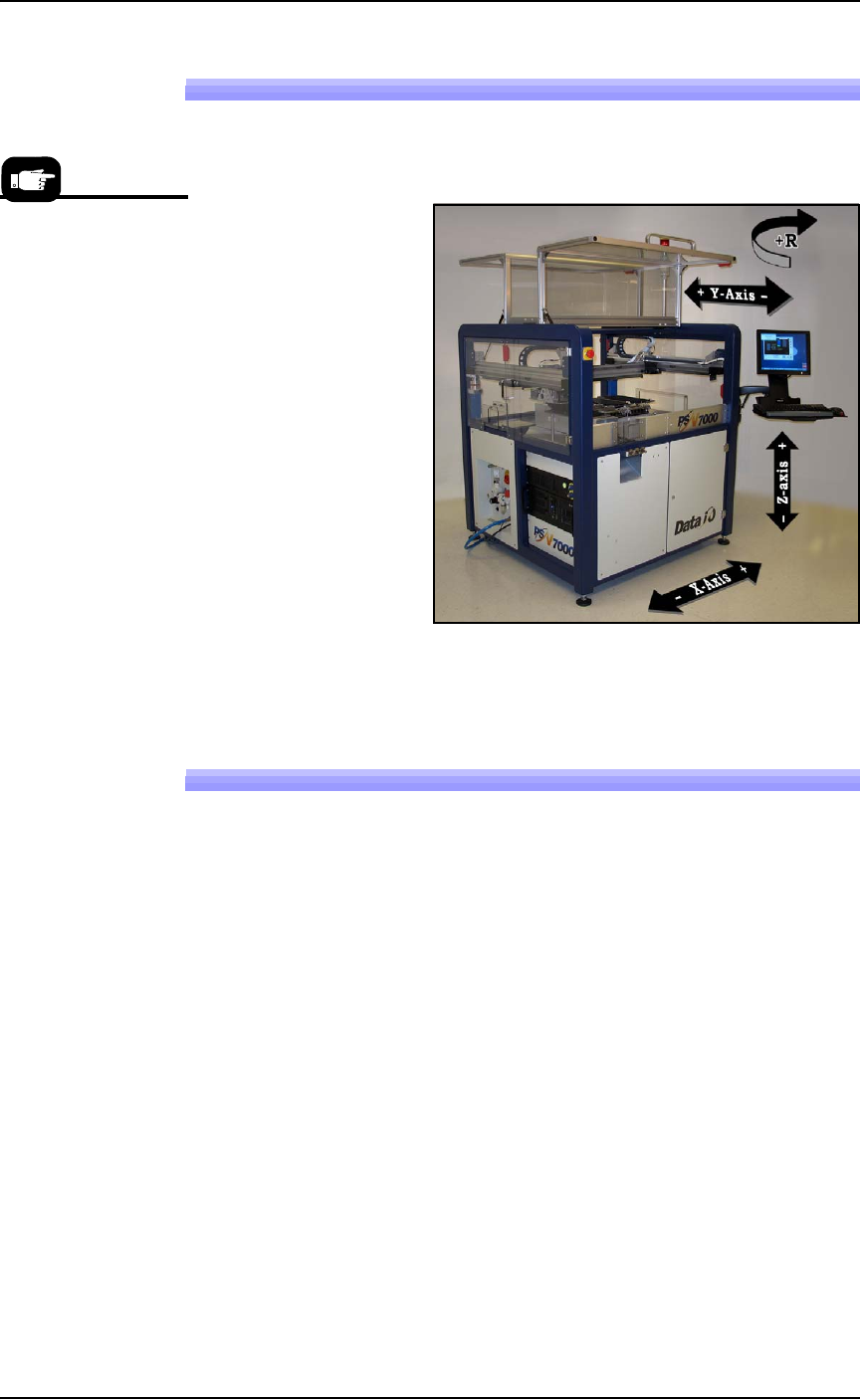

Figure 1-2: These axes describe motion direction on the PSV7000. The
X-Y coordinate 0,0 is at the left front corner.
Basic Machine Functions
The PSV7000 System performs these basic operations when pro-
cessing devices:
1. Pick devices from the input media—
The pick and place head (PNP head) unloads devices from the input
tube, tray, or tape module. These devices are placed into program-
ming sockets in all cases except when Ignore Programmers is selected,
in which case the head takes devices directly to a different media
(repackaging only) or to the shuttle for marking only.
2. Process devices—
Devices in the programming sockets undergo any or all of the fol-
lowing processes as determined by the job. These processes are set in
TaskLink.
• Continuity check
•ID check
•Erase
•Blank check
•Program
• Verify programming
•Read
There’s a glossary (just
before the index) of
terms related to pro-
gramming with the
PSV7000 System.
Introduction ■ System Description
1—8 Data I/O • 096-0460-001B
back
• Illegal-bit check
• Functional verification operations
• Secure device
• Verify options such as voltage
(Optional) Inspect device leads—
The optional 3D Coplanar Inspection System detects bent leads on
devices prior to further processing.
(Optional) Mark devices—
When available, devices that pass the programming and verification
operations are marked at the Laser Module or moved to a Label
Marker where they are marked for identification.
3. Load devices into the output media—
Devices are moved by the PNP head to output media: trays, tubes, or
tape. Devices that fail one of the programming processes are placed
into the reject bin or reject tray.
Input and Output Options
PSV7000 System input and output options are: static tray (manual),
tray feeder (automatic), tube, and tape.
Most combinations of input and output options may be used. For
example, the PSV7000 System can be configured with input as static
tray and output as taped. However, the use of a tray feeder precludes
the use of static trays and vice versa.
Manuals for Optional Equipment
The manuals that came with any optional equipment on your system
contain additional, more in-depth information. Some of the manuals
came in hard copy format with your PSV7000 System. Others are
PDFs installed on the Handler computer.
Figure 1-3: A few of the Optional equipment manuals, from left to
right: 3D Inspection System, Tiger Fume Extractor, Laser Marker, Tape
Output Module.
■ System Description ◘ PSV7000 Specifications
PSV7000 Owner’s Manual 1—9
back
PSV7000 Specifications
Specifications are without optional equipment.
1
Since the monitor arm rotates, length and width dimensions can be
adjusted inversely, up to 13 cm (5 inches). For example, if you sub-
tract 13 cm from length, then add 13 cm to width.
FACILITIES
Supply Air Pressure clean, dry, oil-free air at
5.5–8.2 Bar (551–827 kilopascals)
(80–120 PSI)
Air Flow 85 liters/minute (3 SCFM) constant
AC Input Voltage 208–230 VAC, single phase
AC Input Frequency 50–60 Hz
AC Input Power (max) 15 Amps (with all options)
PSV7000 DIMENSIONS
Length (including monitor)
1
178 cm (70 inches)
Width (including monitor)
1
178 cm (70 inches)
Height: machine (doors closed)
then add [light tower]
150 cm (59 inches) +
[48 cm, 19 in.]
Weight (no optional equipment) 227 kg (500 lbs)
ENVIRONMENT
Operating Temperature +13° to +30° C (+55° to +86° F)
Relative Humidity 35% to 90% non-condensing
Sound level
≤ 80 dB (without tube vibrators)
OTHER
Handler PC Operating System Windows® 7 Professional, 64-bit
Monitor 15 inch LCD Touchscreen
