Machine Components

The PSV7000 System has many components, or subassemblies, that

work together. Refer to the figure below to locate primary compo-

nents.

Component Descriptions

Light Tower

Allows monitoring the status of the PSV7000 System from a distance

while the system is processing devices. See Light Tower Interpretation

in the Operator’s Manual for a complete description of lamp colors

and significance.

Gantry

Travels along X- and Y-axes moving the PNP head to different loca-

tions within the work envelope.

Pick and Place Head (PNP Head)

The PNP head is responsible for moving devices to and from their

respective stages within the workspace. It moves devices in four axes,

X, Y, Z and R.

The PNP head uses different sized probe tips to accommodate the

great number of device types that are available. See Installing the Cor-

rect Probes in the Operator’s Manual. During operation, vacuum at

each probe holds a device. Vacuum sensors detect whether or not a

device is present on a probe tip.

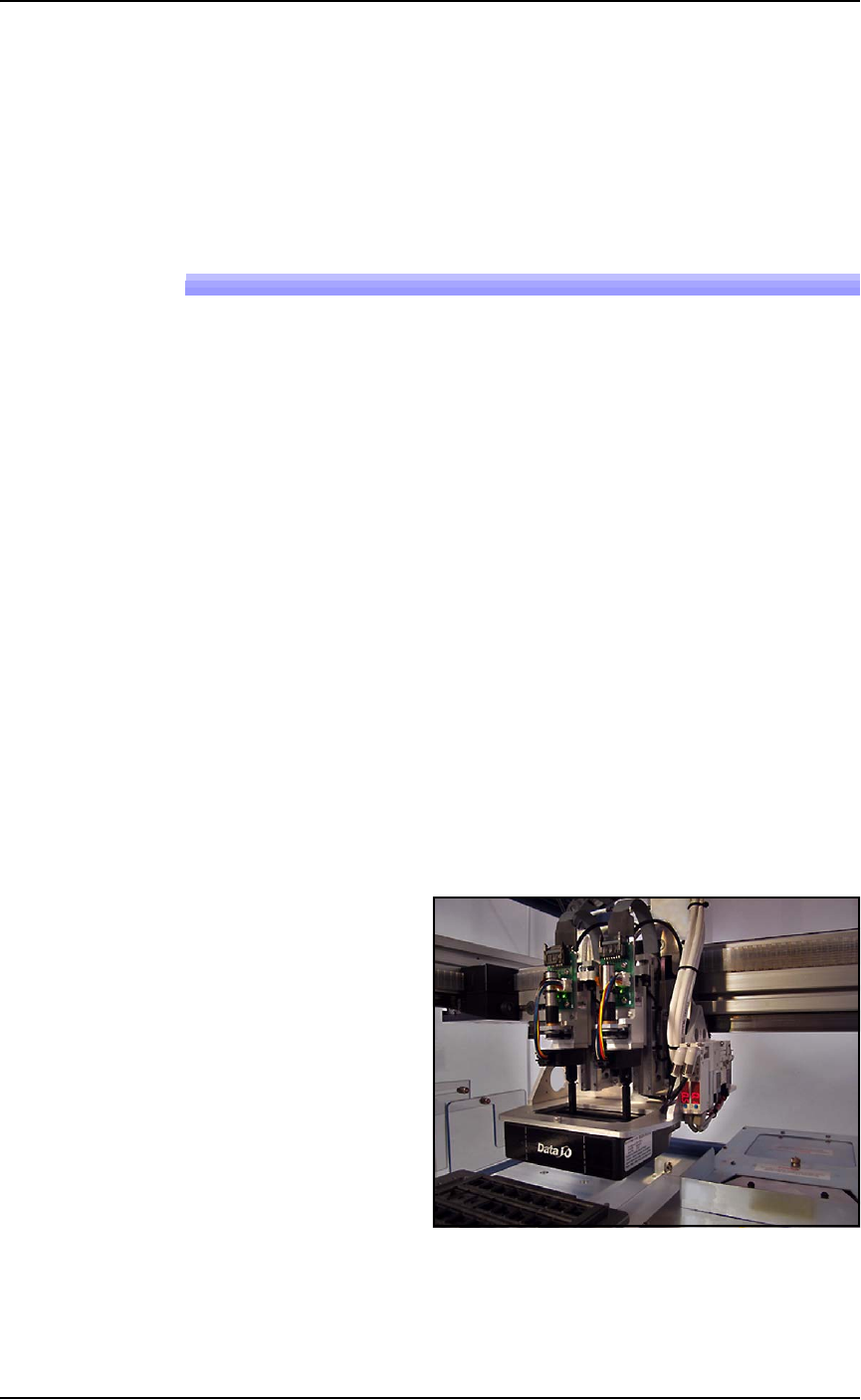

Figure 1-4: The PSV7000 PNP head.

■ Machine Components ◘ Component Descriptions

PSV7000 Owner’s Manual 1—11

back

The probes each pick up a device and move it to a programming

socket. To place devices at target locations, a probe lowers, vacuum is

turned off and blow-off air is momentarily turned on.

WARNING: Collision hazard! The gantry system and associated

components move with high speed and force, and have the

potential to cause great bodily harm. Do not bypass the safety

interlocks or operate the with the safety doors open or removed.

Programmers

Data I/O’s FlashCORE III programming modules are one of the

fastest programmer architectures available. FLASHCORE Pro-

grammer Modules in the PSV7000 include pneumatic socket actua-

tion.

Figure 1-5: A FlashCORE Programmer with a Socket Adapter and

Actuator Plate installed on it. The front cover plate is removed.

Device-Position (Vision) System

PSV7000 uses a Laser-guided Device-position Sensor attached to the PNP

head for precise picking and placing.

Static Tray Mount

Using positioning pins and a magnet, JEDEC and non-JEDEC stan-

dard trays are held firm for the PNP head to pick devices and return

them after processing.

Introduction ■ Machine Components

1—12 Data I/O • 096-0460-001B

back

Figure 1-6: Static trays. Note that the beveled corner is at the near

right, adjacent to the sensor.

Handler Computer

The on-board Handler computer hosts TaskLink software and the

AH700 software, and monitors all sensors. The computer contains a

CPU that runs Microsoft Windows 7 Operating System (at time of

release).

CAUTION: Possible machine damage! Adding software to the

PSV7000 System can cause damage or cause the system to oper-

ate improperly. Adding software without specific instruction from

Data I/O Customer Support will void the warranty and may incur

service charges if subsequent service is required.

Keyboard and Touch Screen

Both methods of input are available for operation. With the touch-

screen, tap the screen with a finger only, not sharp objects such as

pens or pencils.

Note: Throughout this Owner’s Manual, the term click is also

used to mean tap when using the touch screen monitor.
