Introduction ■ Machine Components

1—12 Data I/O • 096-0460-001B

back

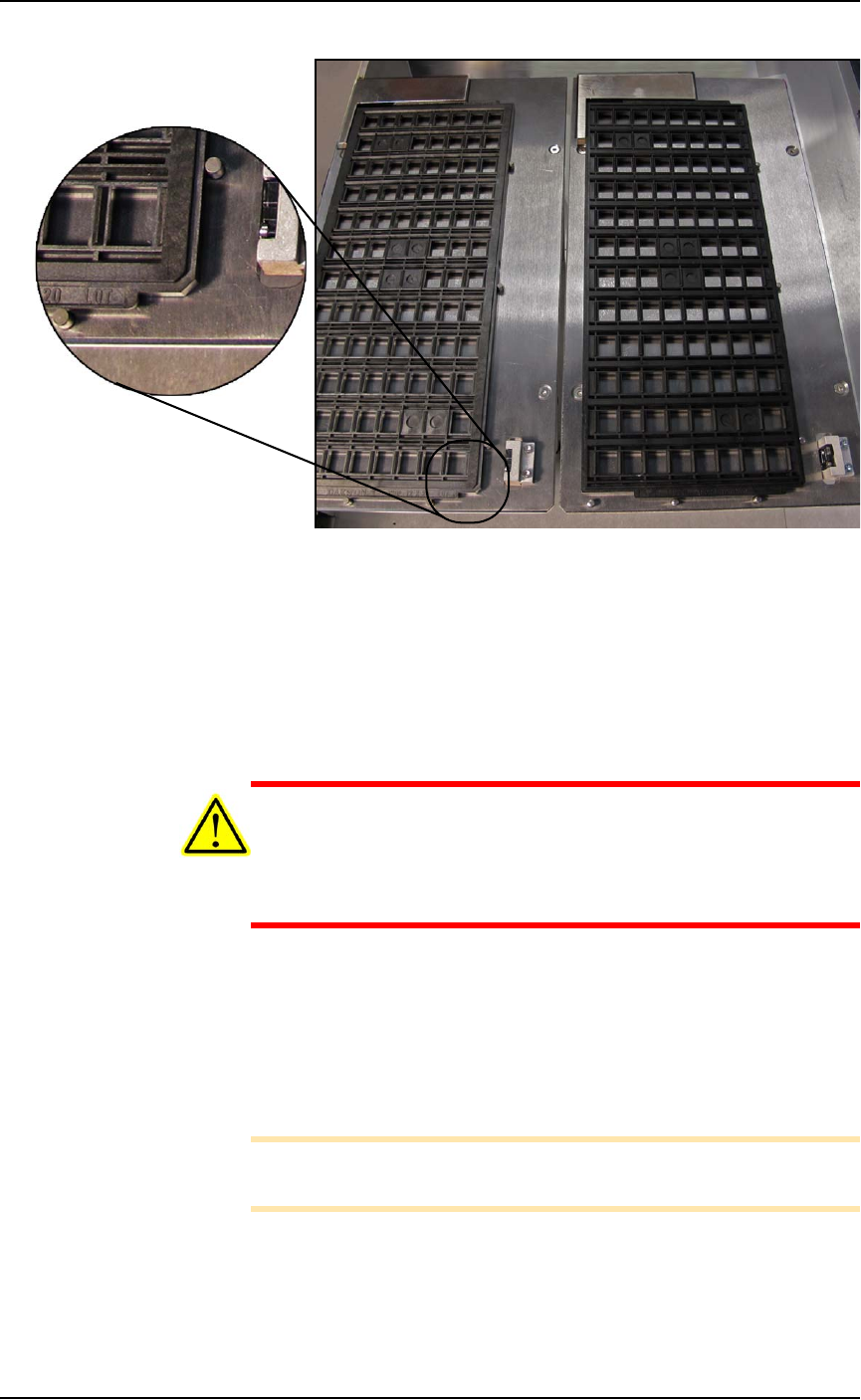

Figure 1-6: Static trays. Note that the beveled corner is at the near

right, adjacent to the sensor.

Handler Computer

The on-board Handler computer hosts TaskLink software and the

AH700 software, and monitors all sensors. The computer contains a

CPU that runs Microsoft Windows 7 Operating System (at time of

release).

CAUTION: Possible machine damage! Adding software to the

PSV7000 System can cause damage or cause the system to oper-

ate improperly. Adding software without specific instruction from

Data I/O Customer Support will void the warranty and may incur

service charges if subsequent service is required.

Keyboard and Touch Screen

Both methods of input are available for operation. With the touch-

screen, tap the screen with a finger only, not sharp objects such as

pens or pencils.

Note: Throughout this Owner’s Manual, the term click is also

used to mean tap when using the touch screen monitor.

■ Machine Components ◘ Component Descriptions

PSV7000 Owner’s Manual 1—13

back

ESD Strap Connection

When operators plug an antistatic wrist strap into the ESD strap con-

nection, it reduces the risk of damage to devices and Socket Adapters

from electrostatic discharge (ESD).

Safety Doors

Designed to protect against injury and damage from the PNP head

movement, the safety doors are an important safety feature, stopping

the gantry when they are opened.

For more information see Safety Door with Interlocks on page 1-5.

Power Panel

The Power Panel is on the lower left side of the machine.

Connections

The Power Panel allows for the attachment of AC power and air.

Optional connections:

• you can connect an ethernet cable for internet connection

• the Tape Output module connects here also.

Controls

Mounted on the Power Panel are the main power switch and the

main air regulator and filter. There is a second regulator with a sepa-

rate gauge for adjusting socket opener pressure. See Adjusting the

Socket Actuator Air Pressure on the Programmers on page 4-9.

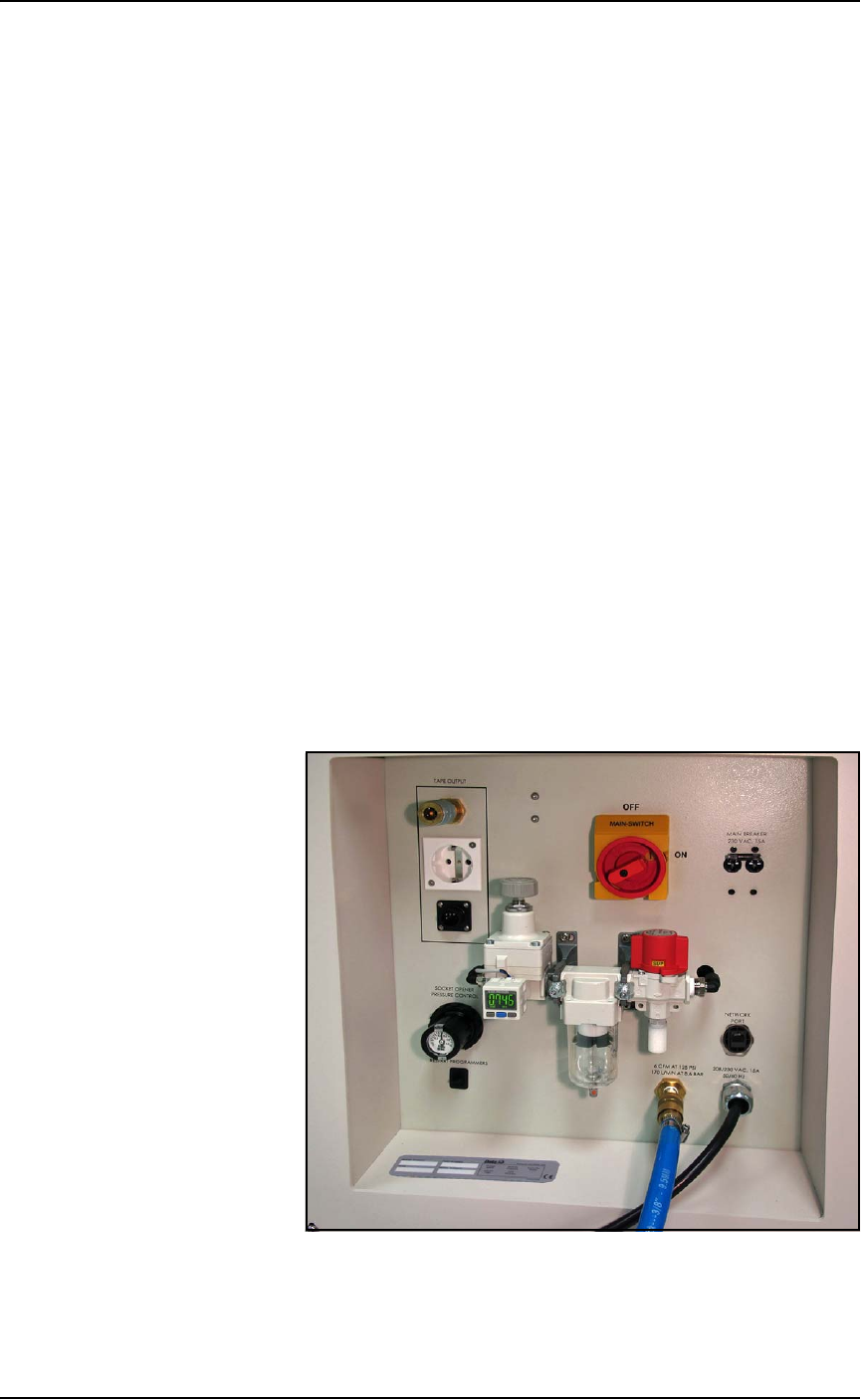

Figure 1-7: Power Panel on the left side of the machine.

Introduction ■ Machine Components

1—14 Data I/O • 096-0460-001B

back

Circuit Breakers

There is one circuit breaker and one toggle switch on the Power

Panel.

The toggle switch allows shutting off power to only the program-

mers.

Optional Equipment Descriptions

Numerous hardware options can be purchased with PSV7000, most

of which are the various input and output modes. Some of the

non-input/output options are 3D-Coplanarity, laser marking for

devices, and output reel labelling.

(Optional) Labelling Device Reels

A Label Printer can be used to mark output reels for identification.

Figure 1-8: Paper Labeler. (Your labeler may look different.)

Laser Marking Devices

The Laser Marking System uses an ultra compact IR Laser to mark

devices. The laser applies a customer-defined mark. Lighter Software is

supplied with the laser for creating marking files. The laser marking

system operates as a Class 1 laser system, with a class 4 embedded

laser (CDRH classification), and therefore uses integrated interlocks

to prevent the laser from firing while any cover is open. The laser

should never be operated without safety covers in place. Observe all

warnings regarding laser usage.

For additional safety information, see Laser Safety on page 1-20.

Main Circuit Breaker 230 V 15 A
