Applying Power for the First Time
Before the PSV7000 System is turned on for the first time, ensure the
following:
The external air line is connected, and the main air valve is open.
All E-Stop buttons are in the released (operating) positions (refer
to Emergency Stop (E-Stop) Buttons on page 1-4 for location).
All safety doors and access doors are closed.
The circuit breakers on the Power Panel on the left side of the
machine are in the ON (UP) position.
The power switch on the Handler Computer is set to the ON
position (although it will not have power yet). The rocker switch
is ON when tipped to the down position.
(Optional) The Socket Adapters required for the job have been
installed on all necessary programmer sites. See Installing Socket
Adapters in the Operator’s Manual for more information.
When satisfied, rotate the main power switch on the Power Panel to
the ON position (clockwise).
After power is applied, verify that no obvious failures or electrical
anomalies occur. Verify that the Handler Computer starts properly
and displays a network log-on dialog.
Note: If electrical or mechanical problems are noted, turn OFF the
PSV7000 System and notify Data I/O Customer Support.
At the Microsoft Log-on window, click the user profile (usually
labeled MFG) to complete the startup procedure.
Normal operating pro-
cedure never requires the
Handler Computer
power switch to be
turned off manually.
■ Applying Power for the First Time ◘ Shutting Down the PSV7000 System
PSV7000 Owner’s Manual 2—7
back

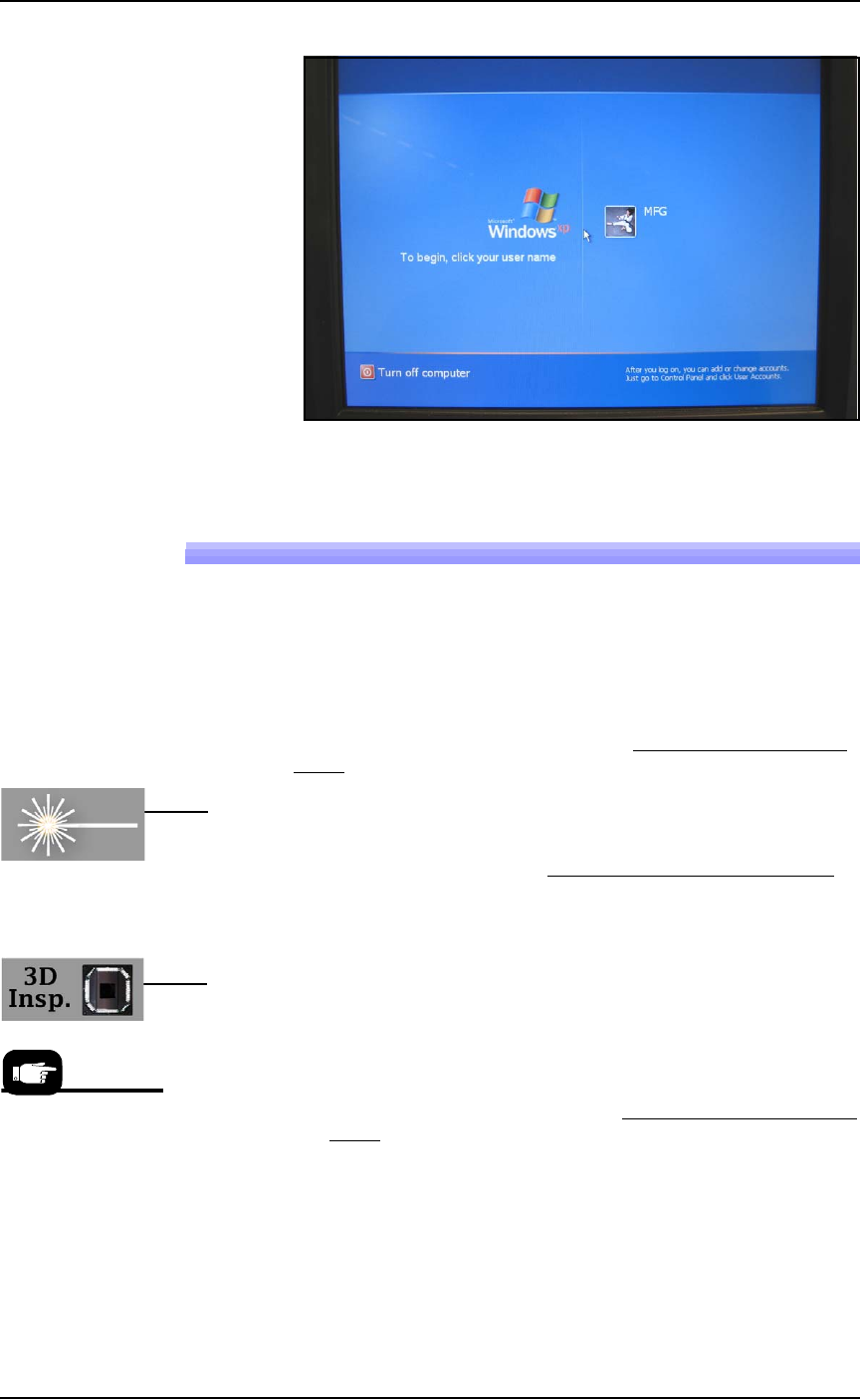

Figure 2-2: Windows Log-on window.
Shutting Down the PSV7000 System
1. Finish and Exit any job that is running.
2. (Optional) Remove all devices from the system.
3. With Handler PC active (key sequence: scroll-lock > scroll-lock 1),
exit AH700 and TaskLink and any other software that you have
running.
4. Shut down the Handler Computer PC with the Windows Start
menu.
5. [Laser Marker System only] At the keyboard switch to the
Laser PC (key sequence: scroll-lock > scroll-lock 2).
5a. (Optional) Save and exit the Laser Marker software.
5b. Shut down the Laser PC with the Windows START menu
.
Wait until it finishes shutting down—see the message “I’s
now safe to shut off the computer.”
5c. Turn OFF (0) the Enable Selector (Laser PC).
5d. Turn OFF (0) the Key Selector (Laser PC).
6. [3D Coplanarity Inspection System only] At the keyboard
switch to the 3D Inspection PC. (key sequence: scroll-lock >
scroll-lock 3).
6a. Exit the UltraVim Application software. At the next dialog
type EX to exit.
6b. Shut down the 3D Inspection PC with the Windows START
menu.
7. WAIT UNTIL WINDOWS COMPLETES SHUTTING DOWN,
then rotate the main power switch (on the Power Panel) counter-
clockwise to the OFF (vertical) position.
8. (Optional) Padlock the main power switch so that it cannot be
turned back ON while the lock is in place.
If the PSV7000 Machine will not be used for several days, the shop air
should also be removed or turned off at the Power Panel.
Note that the
On/Off switches for
the Tube Media
Modules do not need
to be turned OFF.
Power is controlled
by the AH700 SW.
Setup ■ Applying Power for the First Time
2—8 Data I/O • 096-0460-001B
back
(Optional) Installing Antivirus Software
The PSV7000 System has no antivirus software installed from the fac-
tory. It is highly recommend that customers install their own anti-
virus software. The software should be set to run virus scans
manually rather than at a scheduled time unless you are sure that the
PSV7000 System will not be running jobs at that time.
Note: An antivirus program may affect performance.
The PSV7000 System runs Windows 7 Professional 64-bit operating
system. Follow instructions for your antivirus software. Contact
Data I/O Service with specific questions. See Contacting Data I/O on
page x (in Preface).
(Optional) Network Settings
After starting up the PSV7000 System and logging on, double-click
Computer > Map Network Drive (Windows 7).
IP Address and Port Number
If you need the IP Address for communicating with other Data I/O
software, they are available via TaskLink. The Port numbers are also
displayed. (Port numbers are the same for all programmers on a
PSV7000 Machine.)
Addresses and Port numbers can be found as follows.
1. Start TaskLink on the target PSV7000 System. (Closing AH700
will return to TaskLink.)
2. Click System > Options > Communication tab. The IP Address
and site numbers are listed in the lower left corner.
