Setup ■ Setting Up Input and Output Media
2—12 Data I/O • 096-0460-001B
back
Install Reject Bin
Install a reject container for devices failing any process. Many work-
space layouts are possible. Generally, a reject bin (or box) is placed on
the front left of the workspace as shown in Figure 2-6, on top the Tape
Input media exit chute. However, a box or pad can be placed wher-
ever there is room for it as long as its location is taught in the Package
File.

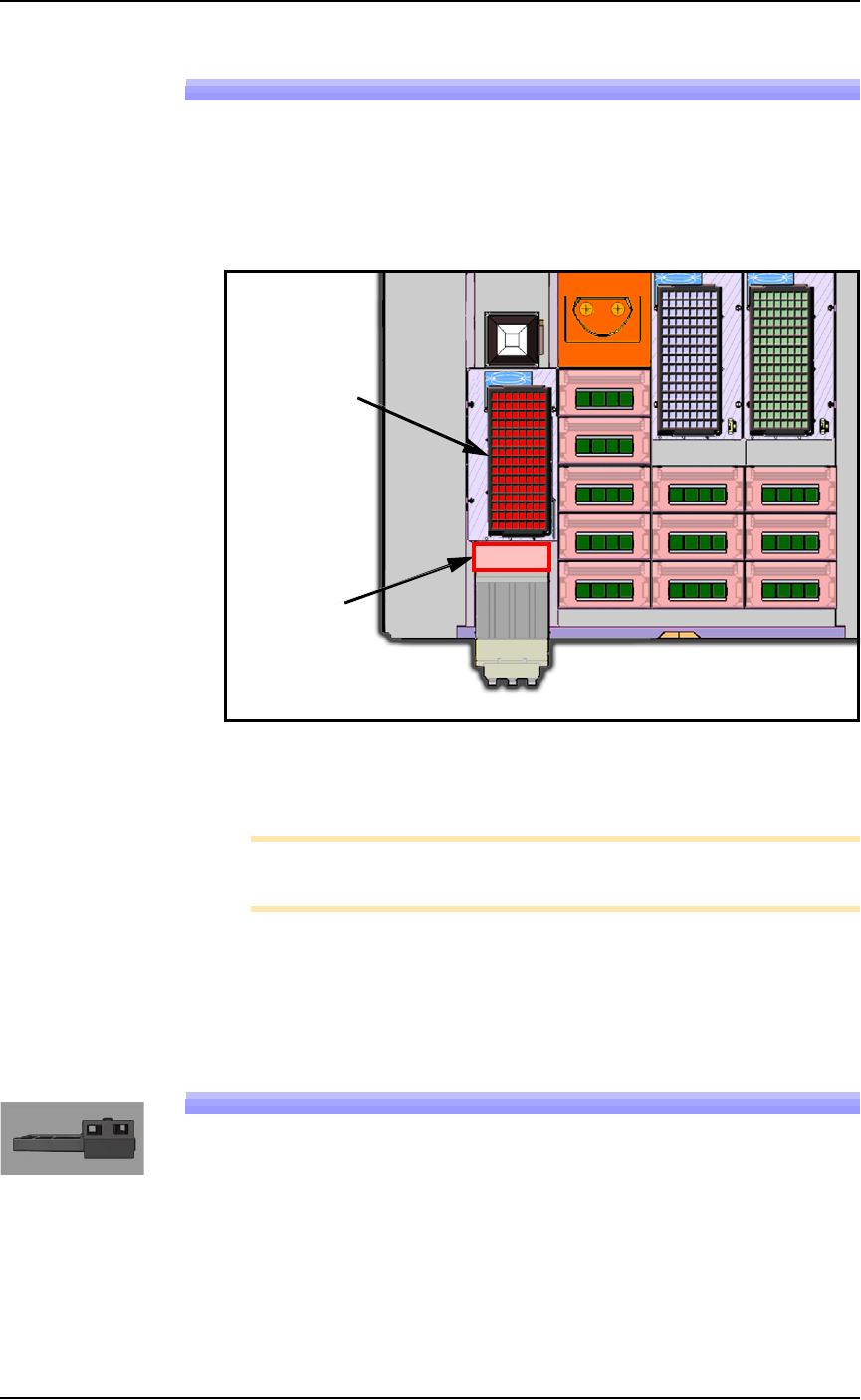

Figure 2-6: Common locations for the reject tray and bin. Only one is
necessary. The reject bin that comes with the PSV7000 should be
placed as shown.
Note: On the Gantry window, the reject bin or tray is associated
with a yellow position label that reads RTr.
A tray may be used as a reject container versus a bin. Possible layouts
are shown in the above diagram.
Setting Up an Automatic Tray Feeder
The PSV7000 System can be configured with an Automatic Dual Tray
Feeder.
The Tray Feeder must be level to the Gantry and square to the
PSV7000 Machine. For general information about setting it up, see the
Tray Feeder Owner’s Manual that came with your system. Look for
the heading Installation.
Reject Tray
Reject Bin
■ Setting Up Input and Output Media ◘ Setting Up an Automatic Tray Feeder
PSV7000 Owner’s Manual 2—13
back

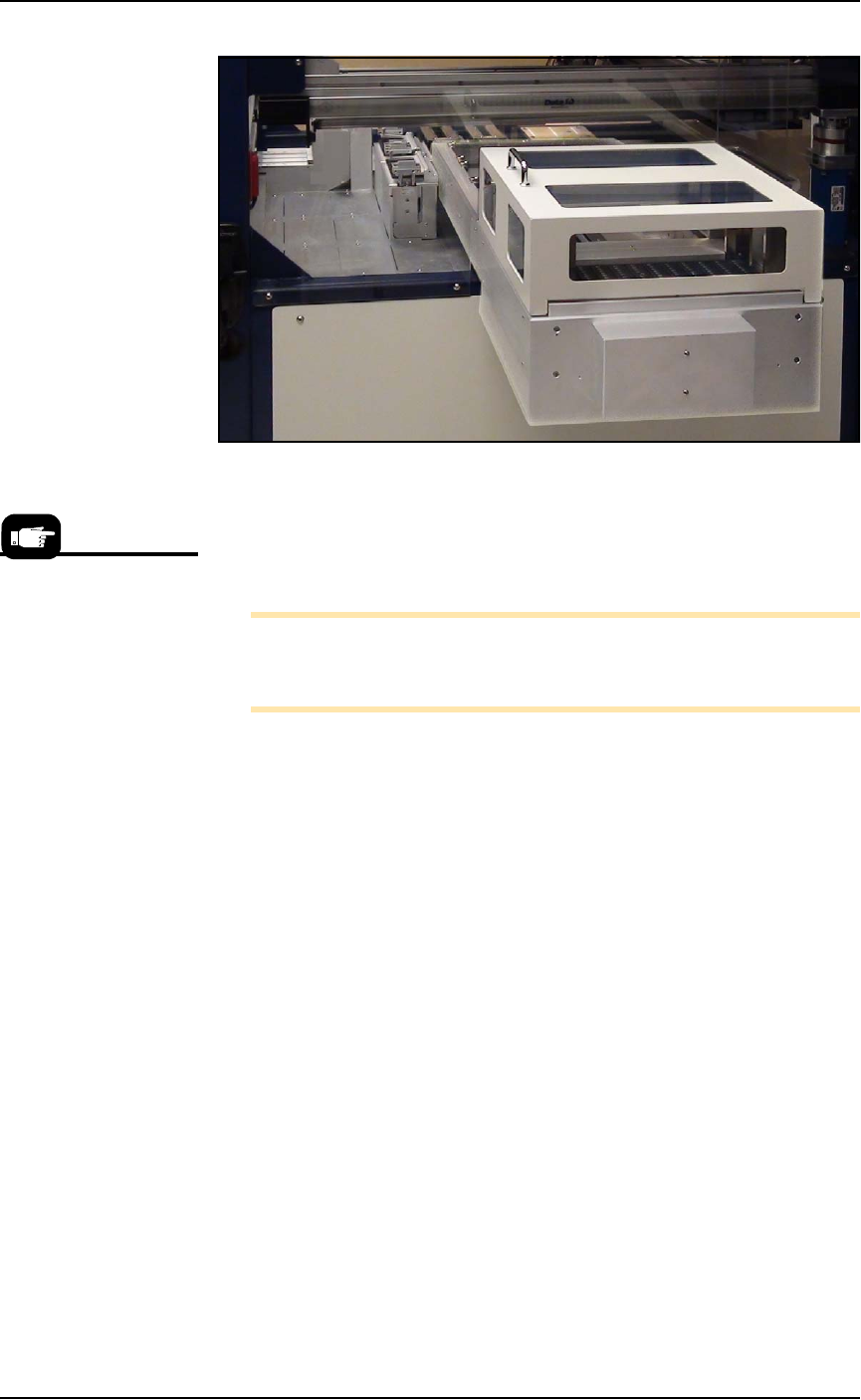

Figure 2-7: The Data I/O Dual Tray Feeder mounted on PSV7000.
The winAH400.ini file requires editing prior to using a Data I/O Dual
Tray Feeder if your PSV7000 Machine has not already been set up for
one at the factory. See the AH700 on-screen Help file for topic Editing
the winAH400.ini file.
Note: When your winAH400.ini file is set to run Automatic Tray
Feeders, before you can run static trays again, the file will need to
be changed back to ModelTray1=STD.
Installing the Tray Feeder
The Data I/O Dual Tray Feeder can only be installed if your PSV7000
was set up for it at the factory or by a Data I/O Service Techncian.
Requirements
• Two people to lift it
•Metric hex key set
• Key to access door
• 12 mm wrench
To install the Data I/O Dual Tray Feeder:
1. Shut OFF PSV7000 power. See Shutting Down the PSV7000 System
on page 2-7.
2. Remove the Input and Output static tray mounts, if installed.
Refer to Removing Tray Platforms on page 2-10.
3. On the right side of the machine, locate the clear rectangular
shield covering the Data I/O Dual Tray Feeder opening.
4. Remove the left screw with a 4 mm hex key and a 12 mm
wrench.
Prior to editing the
winAH400.ini file, make a
backup copy.
Setup ■ Setting Up Input and Output Media
2—14 Data I/O • 096-0460-001B
back

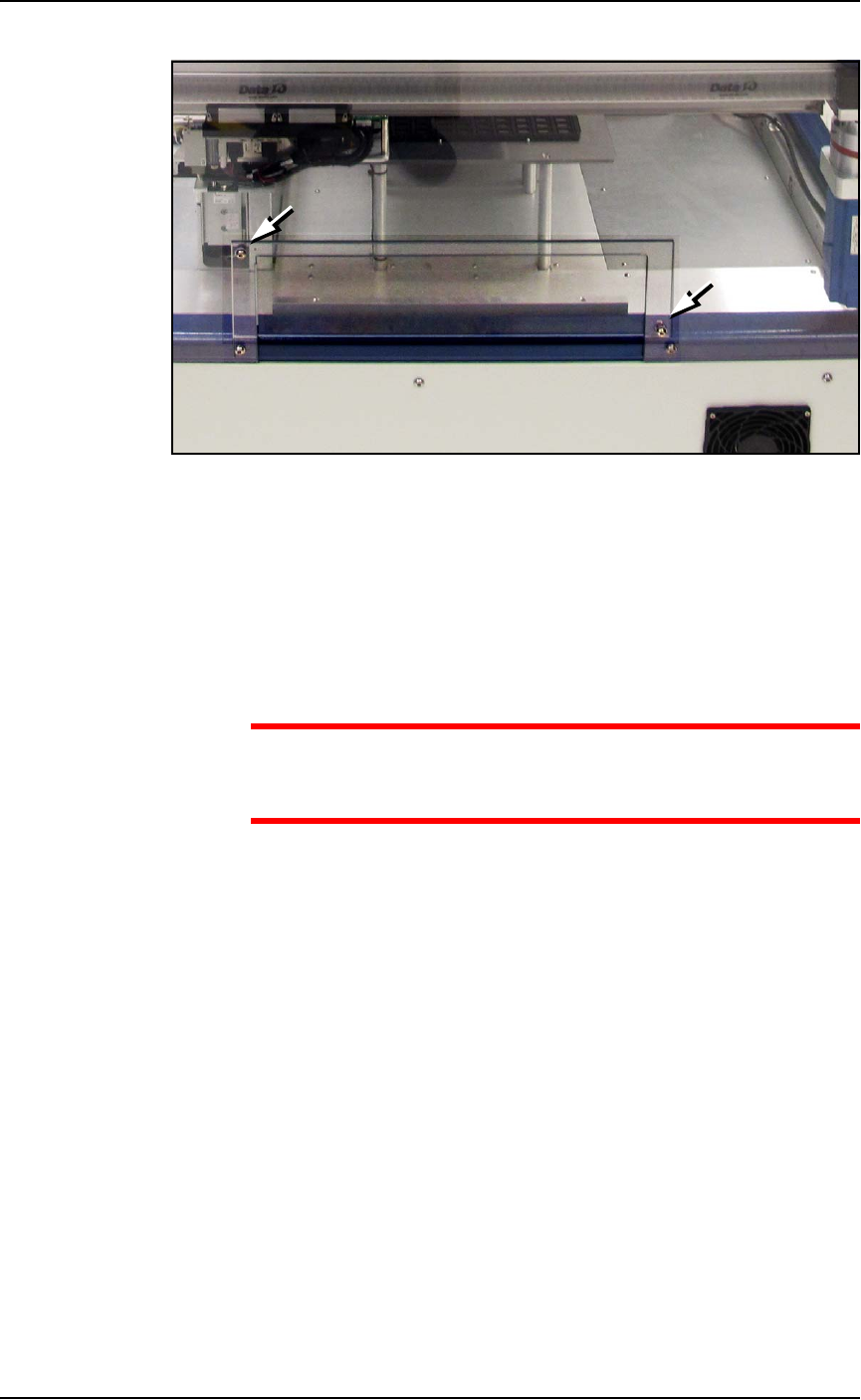

Figure 2-8: The safety shield for the Data I/O Dual Tray Feeder has not
yet been rotated out of the way. Note that the tray mounting plates
(shown here) would NOT be installed at this time.
5. Loosen the lower right screw.
6. Rotate the shield up 90° clockwise and fasten in place at the
extra hole with the screw removed earlier.
7. Get the Data I/O Dual Tray Feeder fasteners ready, and a 5 mm
hex key.
CAUTION: Heavy equipment! The Data I/O Dual Tray Feeder
weighs 29 kg (64 lb). Two people are required to lift it. A third
person is needed to attach fasteners. Use caution.
8. With two people lifting the Data I/O Dual Tray Feeder, slide the
nose into the shield opening and in far enough to rest on the
mount bar inside.
Refer to Figure 2-9 below.
