■ Setting Up Input and Output Media ◘ Setting Up an Automatic Tray Feeder
PSV7000 Owner’s Manual 2—13
back
Figure 2-7: The Data I/O Dual Tray Feeder mounted on PSV7000.
The winAH400.ini file requires editing prior to using a Data I/O Dual
Tray Feeder if your PSV7000 Machine has not already been set up for
one at the factory. See the AH700 on-screen Help file for topic Editing
the winAH400.ini file.
Note: When your winAH400.ini file is set to run Automatic Tray
Feeders, before you can run static trays again, the file will need to
be changed back to ModelTray1=STD.
Installing the Tray Feeder
The Data I/O Dual Tray Feeder can only be installed if your PSV7000
was set up for it at the factory or by a Data I/O Service Techncian.
Requirements
• Two people to lift it
•Metric hex key set
• Key to access door
• 12 mm wrench
To install the Data I/O Dual Tray Feeder:
1. Shut OFF PSV7000 power. See Shutting Down the PSV7000 System
on page 2-7.
2. Remove the Input and Output static tray mounts, if installed.
Refer to Removing Tray Platforms on page 2-10.
3. On the right side of the machine, locate the clear rectangular
shield covering the Data I/O Dual Tray Feeder opening.
4. Remove the left screw with a 4 mm hex key and a 12 mm
wrench.
Prior to editing the
winAH400.ini file, make a
backup copy.
Setup ■ Setting Up Input and Output Media
2—14 Data I/O • 096-0460-001B
back
Figure 2-8: The safety shield for the Data I/O Dual Tray Feeder has not
yet been rotated out of the way. Note that the tray mounting plates
(shown here) would NOT be installed at this time.
5. Loosen the lower right screw.
6. Rotate the shield up 90° clockwise and fasten in place at the
extra hole with the screw removed earlier.
7. Get the Data I/O Dual Tray Feeder fasteners ready, and a 5 mm
hex key.
CAUTION: Heavy equipment! The Data I/O Dual Tray Feeder
weighs 29 kg (64 lb). Two people are required to lift it. A third
person is needed to attach fasteners. Use caution.
8. With two people lifting the Data I/O Dual Tray Feeder, slide the
nose into the shield opening and in far enough to rest on the
mount bar inside.
Refer to Figure 2-9 below.
■ Setting Up Input and Output Media ◘ Setting Up an Automatic Tray Feeder
PSV7000 Owner’s Manual 2—15
back

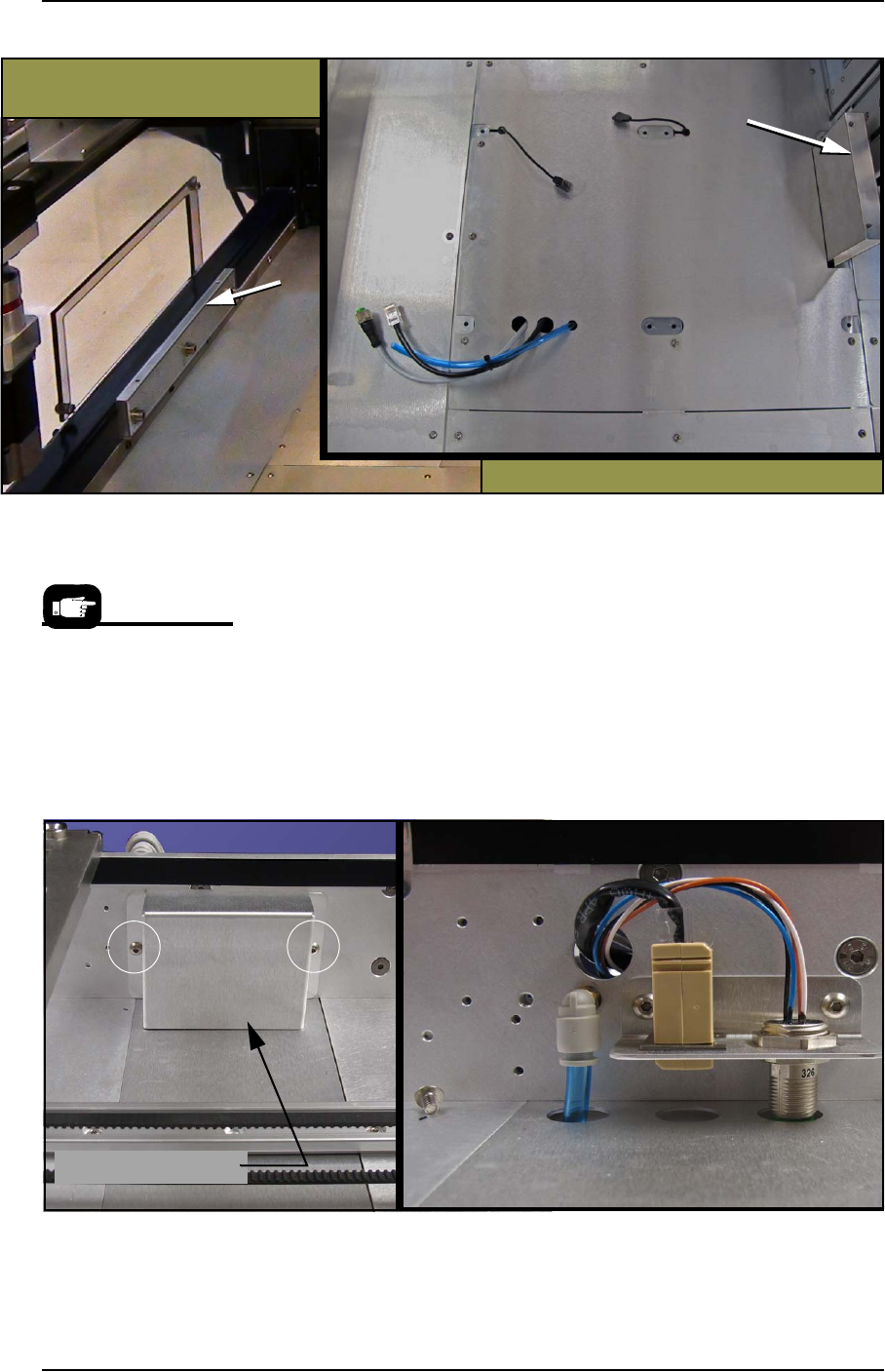

Figure 2-9: The Data I/O Dual Tray Feeder mounting bars (arrows).
Views from the back of the machine. (Note that the shield has not been
rotated out of the way in this image.)
9. Screw in two screws (5 mm hex key) into each of the two mount-
ing bars to secure the feeder.
10. Remove the utilities connection cover; two screws (2.5 mm hex
key).
11. Plug in the three utilities: air, electrical, and ethernet.
The air connection is a One-Touch fitting.
Rotate the electrical connector until it slides into the socket, then
screw the ring up.
Figure 2-10: The Data I/O Dual Tray Feeder utilities connection cover
has two screws (circled). The Ethernet cable is not connected in this
view.
Utilities cover is removed
Utilities Cover
Refer to the following
two figures for Tray
Feeder connections.
