■ Setting Up Input and Output Media ◘ Setting Up the Tape Output System
PSV7000 Owner’s Manual 2—21
back
14c.Locate the line
TubeFeeder1=FALSE
and change to
TubeFeeder1=TRUE
14d.Locate the line
TubeFeeder2=FALSE
and change to
TubeFeeder2=TRUE
14e.Save the winAH400.ini file and exit Windows Explorer.
Running the Tube media is covered in the Operator’s Manual, revi-
sion B and later.
Running Tube Input and Output
1. Insert tubes and adjust tube guides.
Note: Ensure that blank devices are loaded into the input tubes
with the correct pin 1 orientation. If pin 1 orientation doesn’t
match pin 1 on the sockets, the correct rotation much be taught in
the Package file.
Pin 1 on Data I/O sockets is almost always toward the far side of
the adapter (the back of the machine). Some BGAs and PLCCs are
marked.
2. Turn the power switch ON at both the Input vibrator module
and output module.
3. Adjust vibration controls if devices do not travel freely in either
tube.
Remember that:
•The Setup window > Options tab must be set to match the work-
space setup. This is covered in the Operator’s Manual.
• The Package File must be taught the Tube locations.
Setting Up the Tape Output System
The PSV7000 System can be configured with an optional Tape Output
System.
The Tape Output System receives programmed devices directly from
the PSV7000 System via the PNP head. The Tape Output System
advances the carrier tape through a mechanism that seals the tape
(using heat or pressure), and rolls the filled tape onto a reel for
delivery to the next stage in the manufacturing process.
On the Gantry window,
the Tube Feeders are
associated with the yel-
low position labels that
read Vib1 and Vib2.
Setup ■ Setting Up Input and Output Media
2—22 Data I/O • 096-0460-001B
back

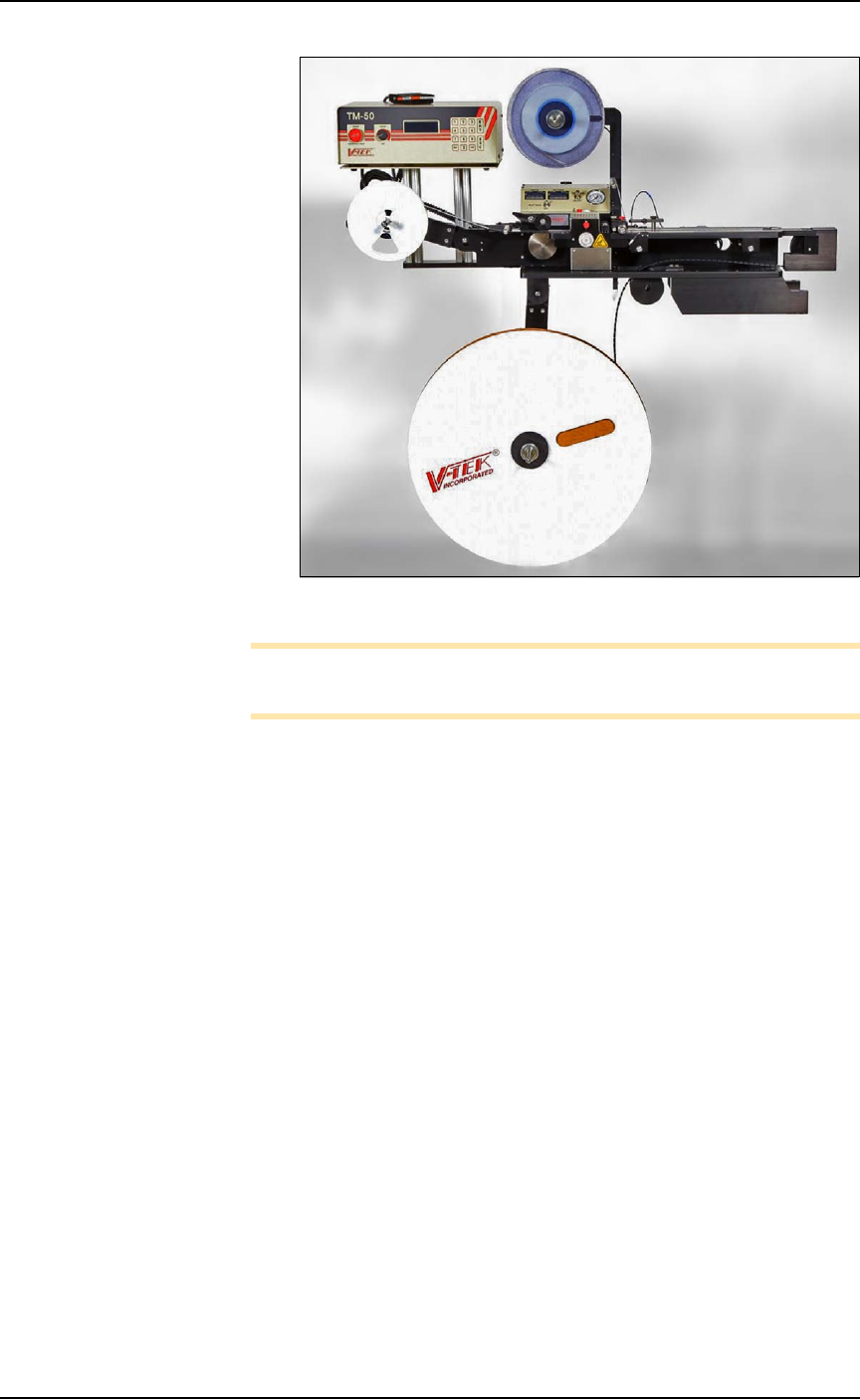

Figure 2-18: Tape Output System.
Note: For additional information, refer to the TM-50 SMD Taping
Module User’s Guide that came with your Tape Output System.
Installing the Tape Output Module onto the
PSV7000 Machine
Tools Required
•metric hex key set
• 10 mm wrench
• two to three people to lift / install the Tape Output Module
These steps are for installing the TM-50 SMD Taping Module (which
can be ordered with the PSV7000).
1. On the left side of the machine prepare the two small clear safety
covers and one sensor for receiving the Tape Out Module.
1a. Loosen three screws that secure an irregular shaped safety
shield (4 mm hex key) and slide it to the right.
1b. Loosen the screw on the lower left of a rectangular safety
shield shown in Figure 2-19 on page 2–23 (4 mm hex key).
1c. Unscrew the top screw (4 mm hex key).
1d. Rotate the rectangular shield ccw 90° and screw it to the
fixed safety shield with the screw you just removed. Refer to
the figure below.
■ Setting Up Input and Output Media ◘ Setting Up the Tape Output System
PSV7000 Owner’s Manual 2—23
back
Figure 2-19: To install the Tape Output Module, shield ‘A’ slides to the
right. Shield ‘B’ rotates counterclockwise 90°.
1e. Unscrew the two screws that secure the safety shield sensor
(2.5 mm hex key) and let the sensor hang.
1f. Unscrew the five screws that secure large fixed safety shield
(4 mm hex key).
WARNING: Possible injury or property damage! The Tape
Output Module is heavy. Use caution. Two people are
required to lift this equipment. Approximate weight: 47.63 kg
(105 lbs.). A third person may be required to bolt it into place.
2. Install the Tape Output Module onto the plate in the PSV7000
workspace and screw it down with six screws (4 mm hex key).
See Figure 2-20.
A
B
A
