Setup ■ Setting Up Input and Output Media 2—24 Data I/O • 096-0460-001B back Figure 2-20: TM-50 T ape-Output Mo dule mo unting s crews. Th ree more locations on opposite sid e (hidden in this view). Vie wed from the back…
■ Setting Up Input and Output Media ◘ Setting Up the Tape Output System
PSV7000 Owner’s Manual 2—23
back

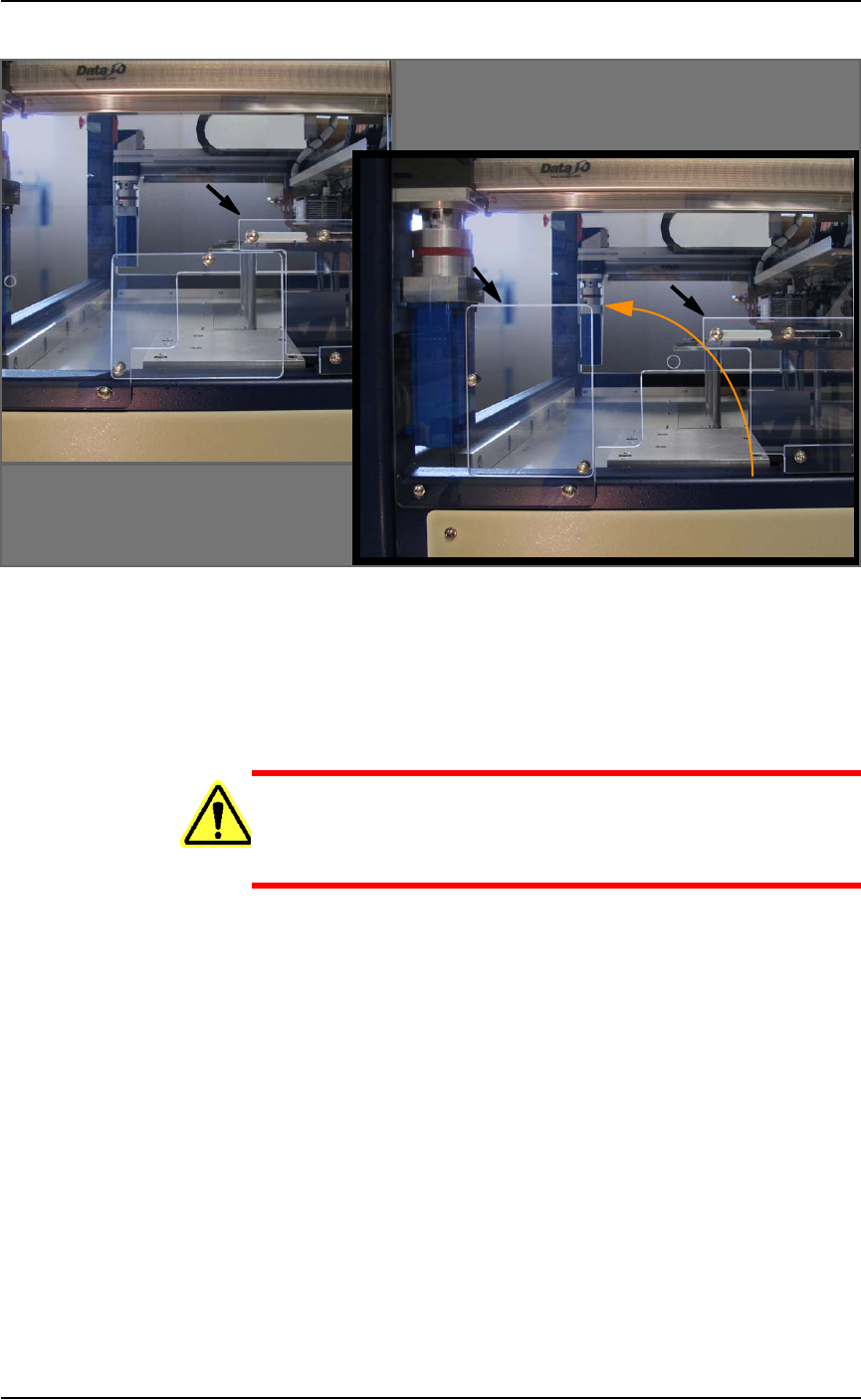

Figure 2-19: To install the Tape Output Module, shield ‘A’ slides to the
right. Shield ‘B’ rotates counterclockwise 90°.
1e. Unscrew the two screws that secure the safety shield sensor
(2.5 mm hex key) and let the sensor hang.
1f. Unscrew the five screws that secure large fixed safety shield
(4 mm hex key).
WARNING: Possible injury or property damage! The Tape
Output Module is heavy. Use caution. Two people are
required to lift this equipment. Approximate weight: 47.63 kg
(105 lbs.). A third person may be required to bolt it into place.
2. Install the Tape Output Module onto the plate in the PSV7000
workspace and screw it down with six screws (4 mm hex key).
See Figure 2-20.
A
B
A
Setup ■ Setting Up Input and Output Media
2—24 Data I/O • 096-0460-001B
back

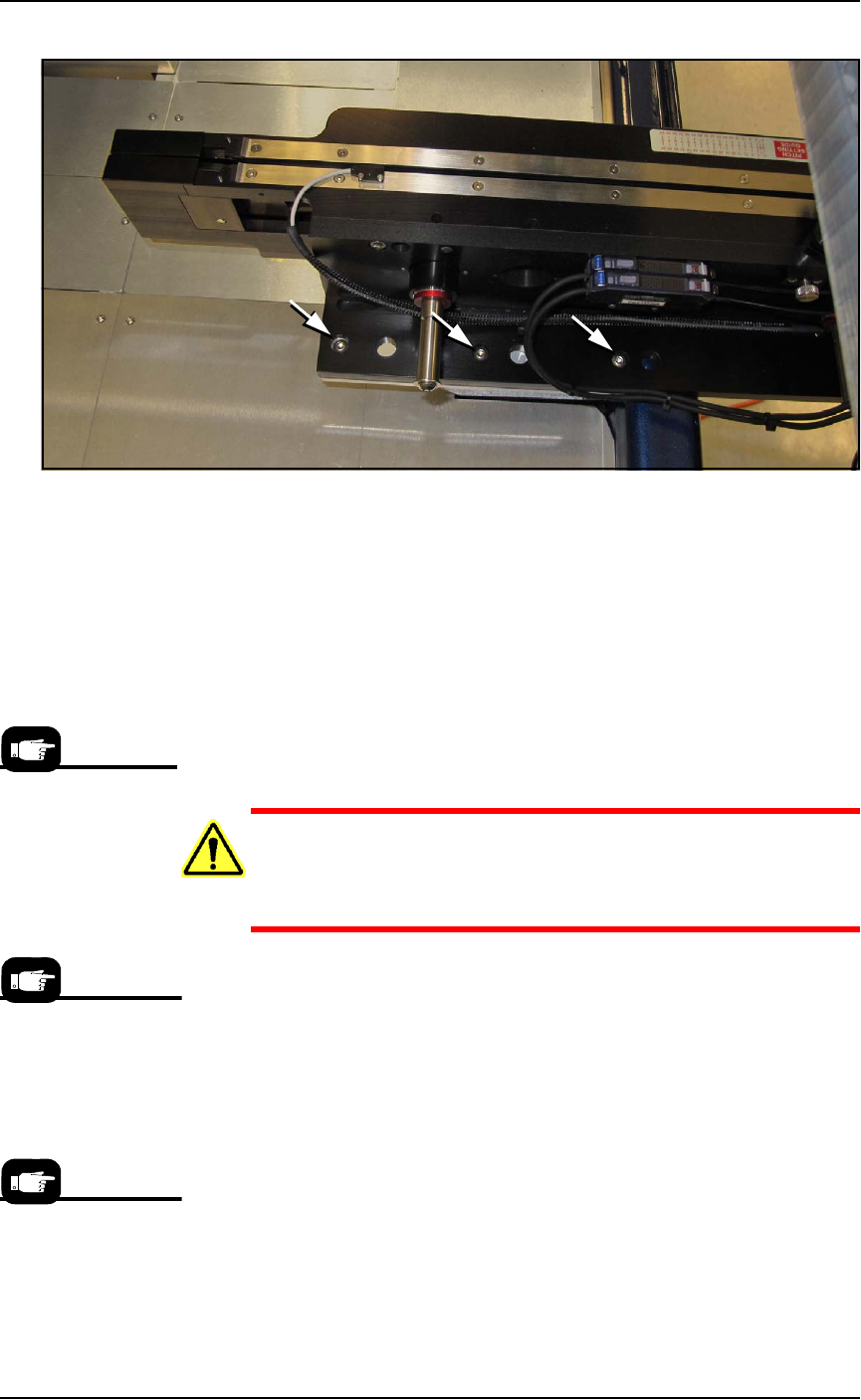

Figure 2-20: TM-50 Tape-Output Module mounting screws. Three more
locations on opposite side (hidden in this view). Viewed from the back
of the machine.
3. Reinstall the large fixed safety shield with five screws.
4. Reinstall the sensor onto the shield.
5. Re-adjust the irregular shaped safety shield. To fill the gaps, this
shield will require adjustment to accommodate the position of
the track (table) once it is set to the desired track/tape width.
Setting Up the Tape Output Module
CAUTION: Possible tape damage from Excessive Heat! Improper
routing of the device tape may cause enough heat to melt the
tape. Ensure the correct routing path is followed. See the TM-50
SMD Taping Module User’s Guide.
To set up the Tape Output System:
1. Edit the winAH400.ini file for Tape Output—
1a. Using Windows Explorer, locate
C:\AH700\winAH400.ini
and m
ake a backup copy, for example,
winAH400backup.ini
.
1b. Open the original file with Microsoft Notepad.
1c. Locate the line:
TapeOutPutInstalled=FALSE
and change it to True:
TapeOutputInstalled=TRUE
1d. Save the
winAH400.ini
file and exit Windows Explorer.
The information that
follows is adapted
from the TM-50 SMD
Taping Module User’s
Guide that came with
your Tape Output Sys-
tem.
If you have previously
used Tape Output, you
may already have
saved a winAH400.ini
file specifically for a
Tape Output setup.
The communication
cable may also be
called I/O or Sensor
Output.
■ Setting Up Input and Output Media ◘ Setting Up the Tape Output System
PSV7000 Owner’s Manual 2—25
back
2. The Tape Output Module gets power and air from the
PSV7000 System. Connect the compressed air, electrical power,
and communication (top-to-bottom on the PSV7000 power
panel).
3. Ensure the PSV7000 System air is connected and power is ON.
4. Switch the Tape Output Module ON by pulling out its
Power/E-stop button.
5. Turn the take-up reel tension adjust knob counterclockwise to
zero. (Black knob on the controller.)
6. Set the taping job parameters at the controller. For more infor-
mation see the TM-50 SMD Taping Module User’s Guide, chapter
3, Controller.
7. Pull the nearest half of the track (table) out to the desired track
width. It stops at detents set to specific tape widths.
8. Mount the carrier tape reel—
8a. Remove the carrier tape quick lock from the carrier tape
spindle.

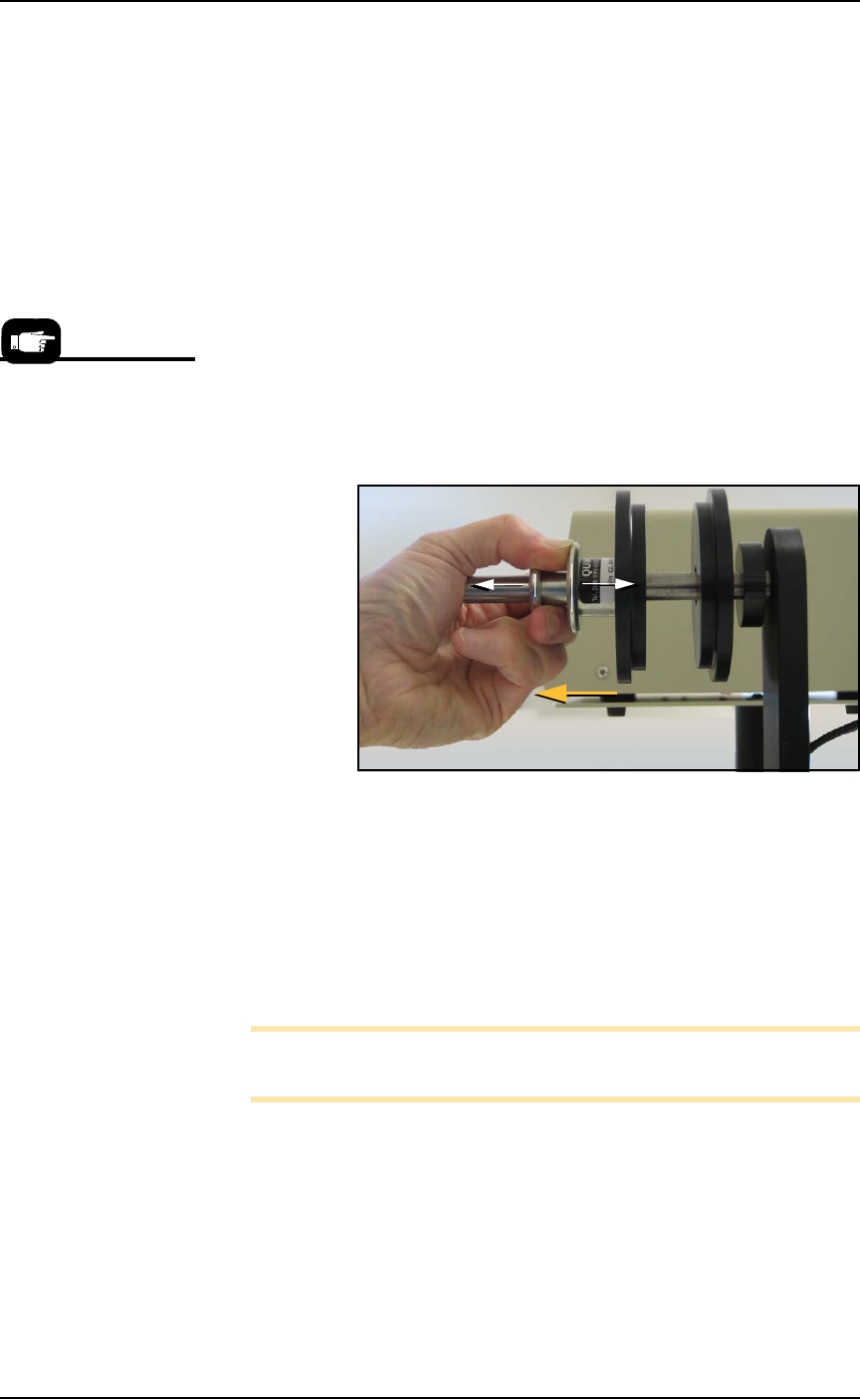

Figure 2-21: Removing the spindle QuickLock.
8b. Mount the bulk carrier tape reel on the right spindle so the
tape unwinds from the top.
8c. Replace the quick lock.
8d. Trim the end of the carrier tape so it is clean and straight.
9. Route the carrier tape—
9a. Guide the carrier tape into the loading track. It should feed
right to left through the loading track easily.
Note: Lowering the feed reel support arm can reduce drag if the
angle at which the carrier enters the loading track is too steep.
9b. Bring the end of the carrier tape past the sealer and engage
the sprocket holes on the teeth of the drive sprocket.
If the carrier tape does not feed to the sprocket easily, see the
TM-50 SMD Taping Module User’s Guide, Chapter 4, Setup,
Route the Carrier Tape for items to check.
10. Mount the cover tape—
For more information
about these steps, see the
TM-50 SMD Taping
Module User’s Guide.
