Administrative Functions ■ Administrator Functions 3—12 Data I/O • 096-0460-001B back Figure 3-4: Click Get Movetimes to optimize head travel. 2. Click Yes when prompted to save positions. Monitoring Statistics Occasiona…
■ Administrator Functions ◘ Optimize Movetimes
PSV7000 Owner’s Manual 3—11
back
.

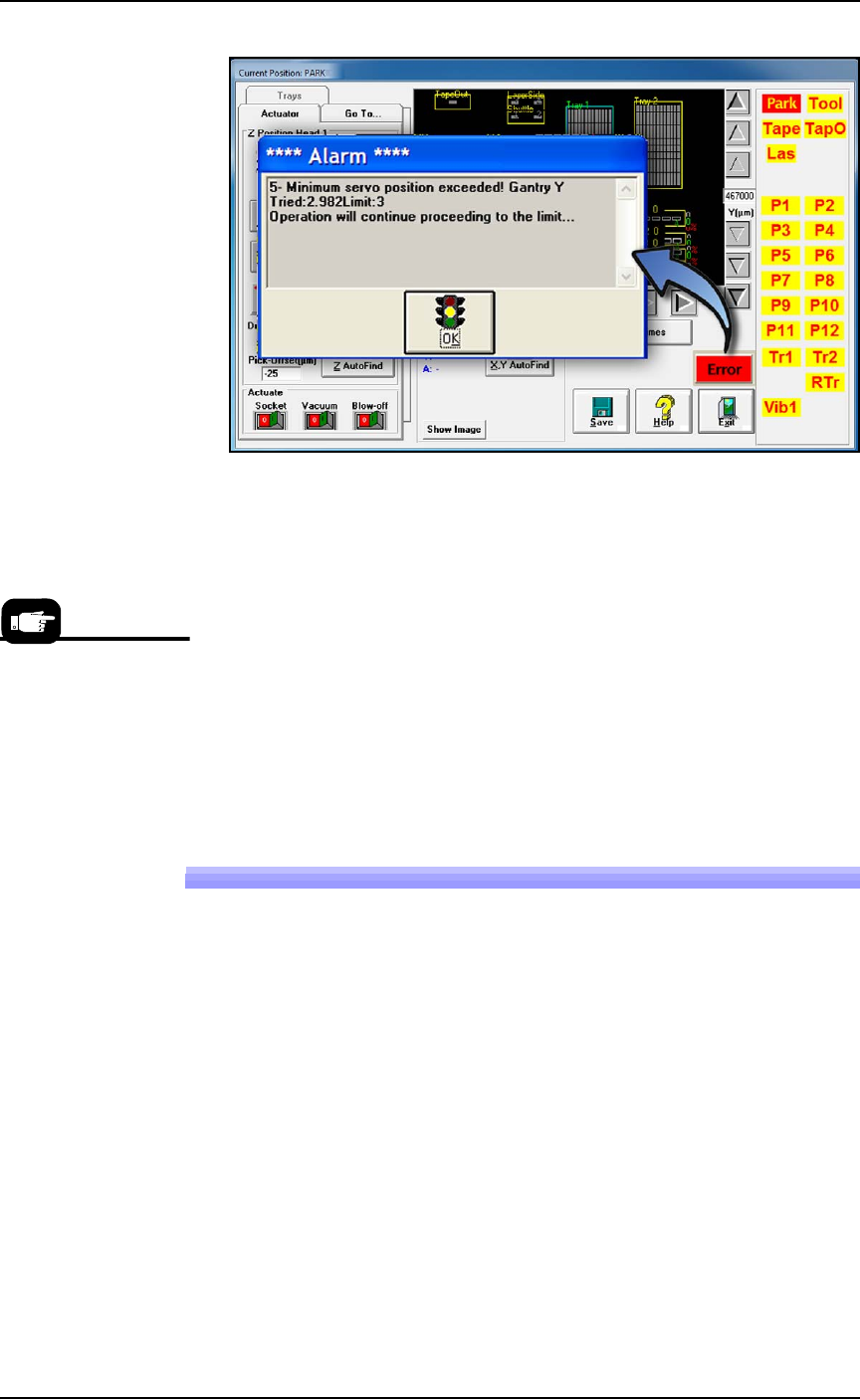

Figure 3-3: Error messages don’t display until you click the red Error
pop-up button to open the Alarm dialog.
1c. Write down the axis (in this case, Y-axis), whether the mini-
mum or maximum position has been exceeded (in this case,
the minimum position), and the “Tried” and “Limit” values
(in this case, Tried = 2.982 and Limit = 3).
1d. Click OK.
2. Contact Data I/O Service or your nearest authorized representa-
tive.
3. The item that was being taught when the error occurred (tray,
programmer, reject bin, etc.) needs to be re-taught. See Teaching
the Package File in the AH700 Help.
Optimize Movetimes
After the equipment locations are taught, you can optimize the move-
ment of the PNP head in the work envelope. This command (Get
Movetimes) calculates programming times versus head travel time to
decide the best PNP head path, especially effective when some pro-
grammers are not used.
To get movetimes:
1. On the Gantry window, click Get Movetimes.
For contact
information see
Contacting Data I/O
on page ix.
Administrative Functions ■ Administrator Functions
3—12 Data I/O • 096-0460-001B
back
Figure 3-4: Click Get Movetimes to optimize head travel.
2. Click Yes when prompted to save positions.
Monitoring Statistics
Occasionally, the system administrator may require statistics for a
group of devices for a given job. This is easily accomplished using
any of three statistics tools described on the next pages:
• TaskLink’s Session Data Logging feature
• the AH700 Statistics window
• (optional) Statistical Process Control Software (customer-sup-
plied)
• Sort-on-Error-Code separates devices that fail specific, customer
specified processes.
In addition, Data I/O offers additional utilities for enhancing yield
and reducing errors. These include the Automotive Performance Pak
(see page 3-34) and several other software packages and hardware
such as Factory Integration Software (FIS) and Serial Number Server
(SNS).
For turning ON
Sort-On-Error-Code in
the winAH400.ini file, see
the AH700 on-screen
Help.
For setting up
Sort-On-Error-Code see
TaskLink Help for
PSV7000.
■ Administrator Functions ◘ Monitoring Statistics
PSV7000 Owner’s Manual 3—13
back
Figure 3-5: Automotive Performance Pak and some of its features.
TaskLink Session Data Logging
For complete instructions on enabling and using TaskLink’s Session
Data Logging option, see TaskLink online Help.
AH700 Statistics Window
PSV7000’s AH700 software provides statistics that include: devices
programmed successfully, continuity failures, and verify failures.
To view programming statistics using the AH700 software:
1. At either the Setup window or at the Run window, click Statis-
tics.
2. Select either Package Type or Job Statistics from the drop-down
field in the upper left corner.
