■ Marking Options ◘ (Optional) Creating a Laser Marking File PSV7000 Owner’s Manual 3—27 back 8. Have o perator #2 open the PS V7000 rear safety door and unscrew the knurled screw on the inspection door of the Laser Modu…
Administrative Functions ■ Marking Options
3—26 Data I/O • 096-0460-001B
back

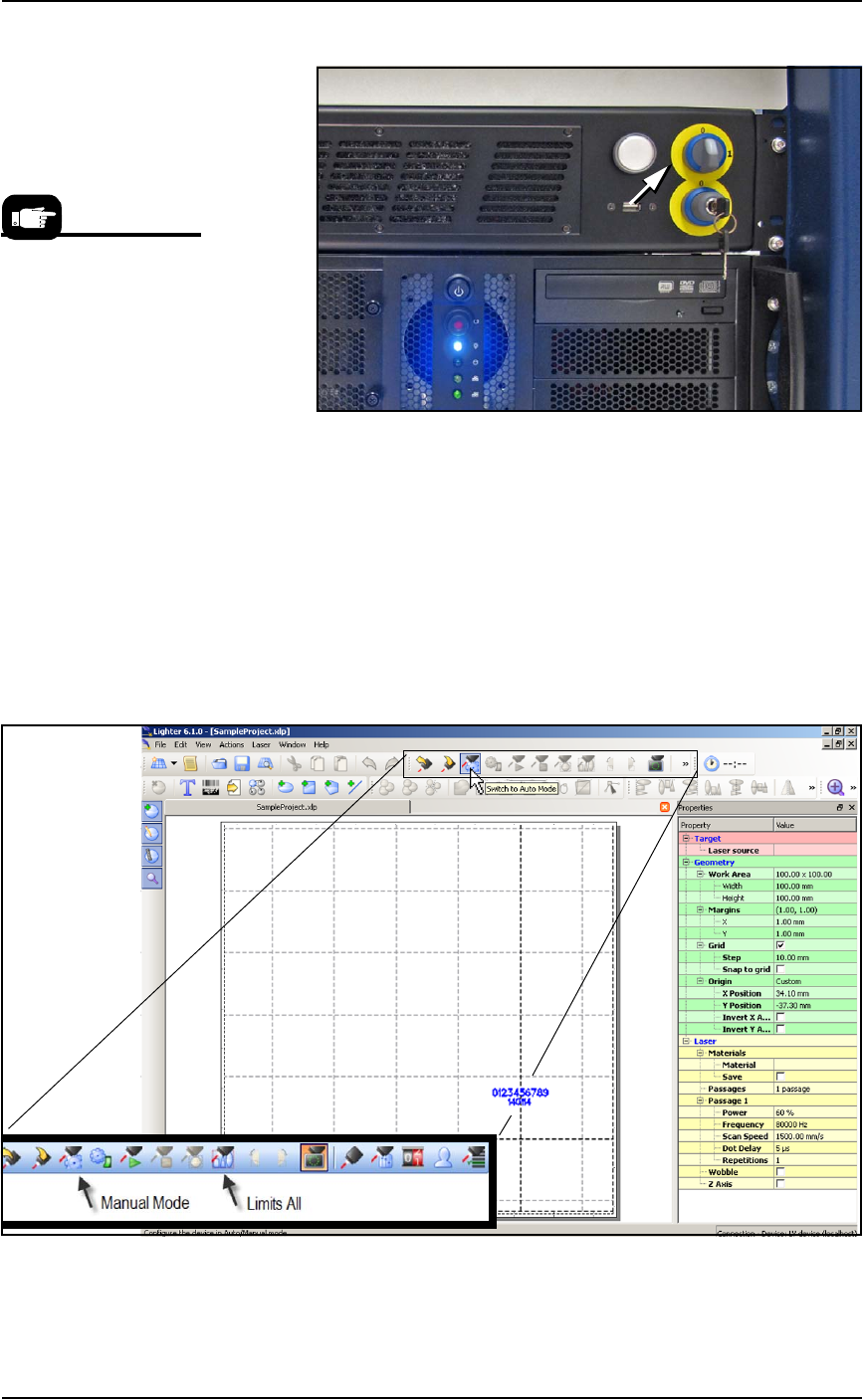

Figure 3-12: The Laser PC Enable Selector (arrow) and the Key
Selector.
3. Switch to the Laser PC by pressing the Scroll Lock (ScrLk) key-
board key twice and then number 2.
4. If the Lighter SW Engine is open, close it.
5. Navigate to your laser art file on the Laser PC:
D:\Data\docs\layouts\
. Files have a .xlp extension. Dou-
ble-click your file to open it in the Lighter Editor SW.
6. Click Switch to Manual Mode. The Limits All button becomes
available.
Figure 3-13: The Manual Mode button enables the Limits All button.
7. Click Limits All to turn on a low power laser target light.
The Laser is warmed up
when you see a tooltip in
lower right corner of the
Windows tray.
■ Marking Options ◘ (Optional) Creating a Laser Marking File
PSV7000 Owner’s Manual 3—27
back
8. Have operator #2 open the PSV7000 rear safety door and
unscrew the knurled screw on the inspection door of the Laser
Module.
9. Push the hinged inspection door down (open) about just enough
(about 20 mm ) to see the red laser light striking the rotor. See
the figure below.

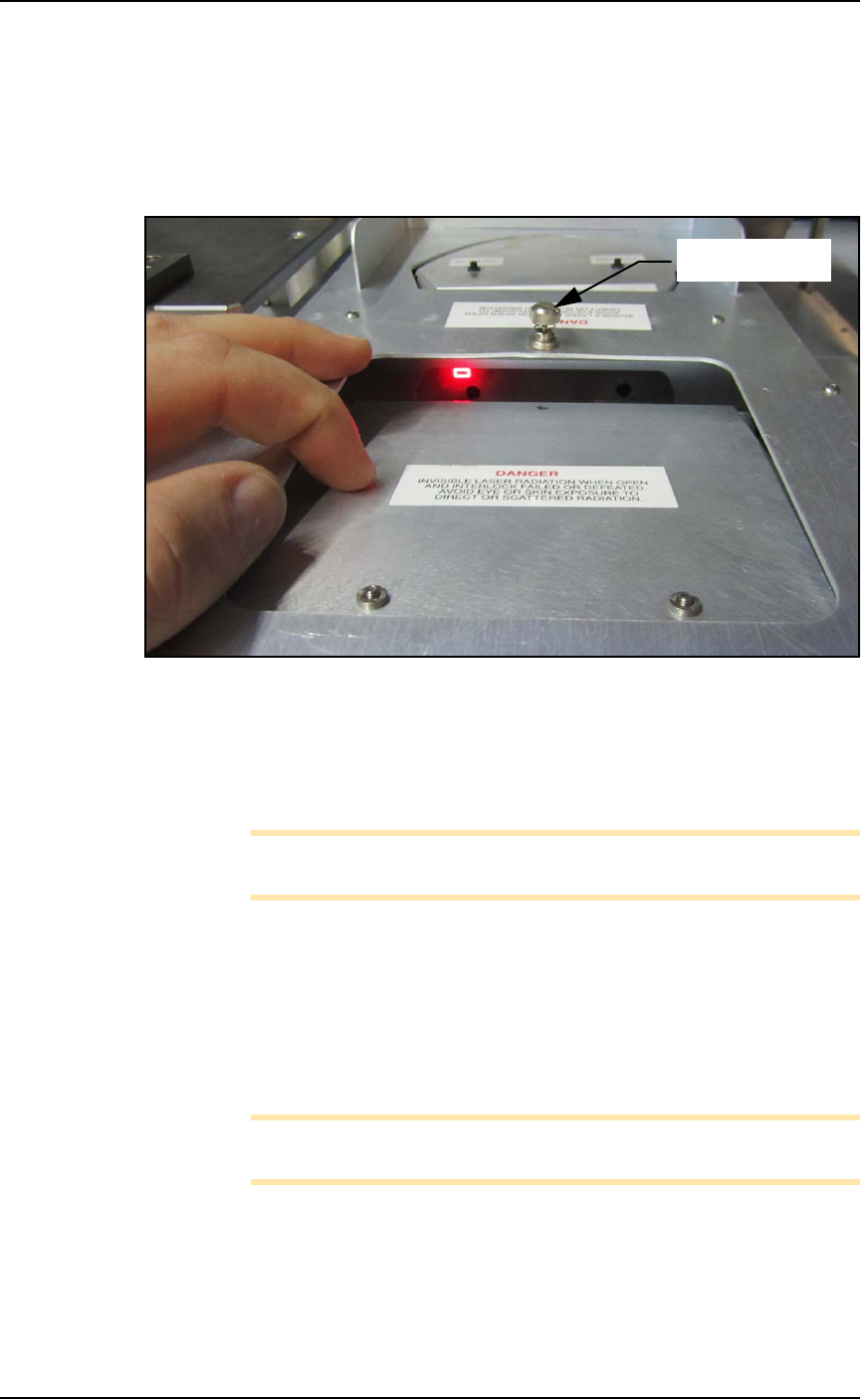

Figure 3-14: The laser is missing the target in this photo. Only this left
target position must be aligned.
10. If the laser light is not centered on the device tip, then select the
art to be marked and drag it as directed by operator #2.
Zoom in for ease of use.
Note: The actual target laser light moves in the opposite direction
of art movement in the Lighter Editor.
11. When satisfied, Save your changes.
12. Close the inspection door and tighten the knob.
13. Retry Running One device. Refer to the previous heading.
If all appears correct and still there is no mark, contact Data I/O Cus-
tomer Support.
Note: The Laser rotor has been leveled at the factory. If you experi-
ence trouble, contact Data I/O Customer Support.
Knurled screw
Administrative Functions ■ 3D Coplanarity Option
3—28 Data I/O • 096-0460-001B
back
3D Coplanarity Option
The 3D Coplanarity Inspection System should already have the cor-
rect prism Reticle installed. If it has been changed or altered, refer to
the UltraVim User Manual or contact Data I/O.
Requirements
• UltraVim Scanner Technologies Accessories Case (all equipment
required is in this case)
• UltraVim Software User Manual
• TaskLink Ver 7.5 or higher
• The 3D Coplanarity Inspection System should already have the
correct prism Reticle installed. If it has been changed or altered,
refer to the UltraVim User Manual or contact Data I/O.

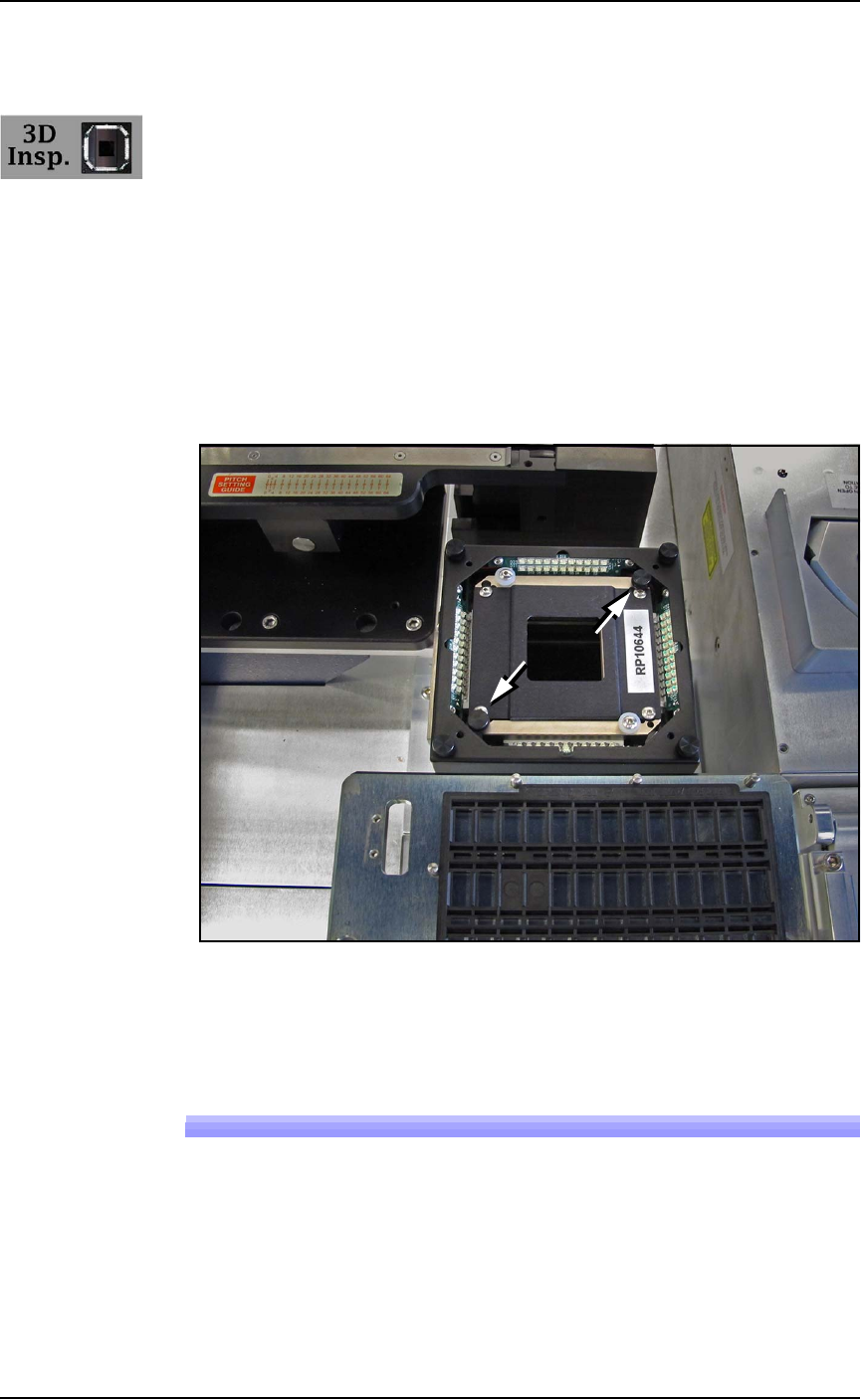

Figure 3-15: Top view with Prism Reticle installed. (Reticle fasteners at
arrows). Ref: also visible in this view are the Laser Module Option and
the Tape-Out Option.
Running a Job with 3D Inspection
1. Start the 3D Inspection PC as follows:
1a. The 3D Inspection PC is just below the Handler PC. Open
the PC door with the key and push the Power switch ON
and release.
1b. Close and lock the door.
