2 3 SZ-Motor / Sensor / Duct Moving-axis KHT -1004 6 29 31 27 17 33 35 2 4 1 1 10 3 21 20 38 26 26 5 30 41 25 24 18 30 26 7 16 36 14 10 1 1 4 24 40 41 25 37 1 32 34 28 28 28 13 12 9 8 14 OLD 28 22 23 15 42 39 19 No. Part…
1
3

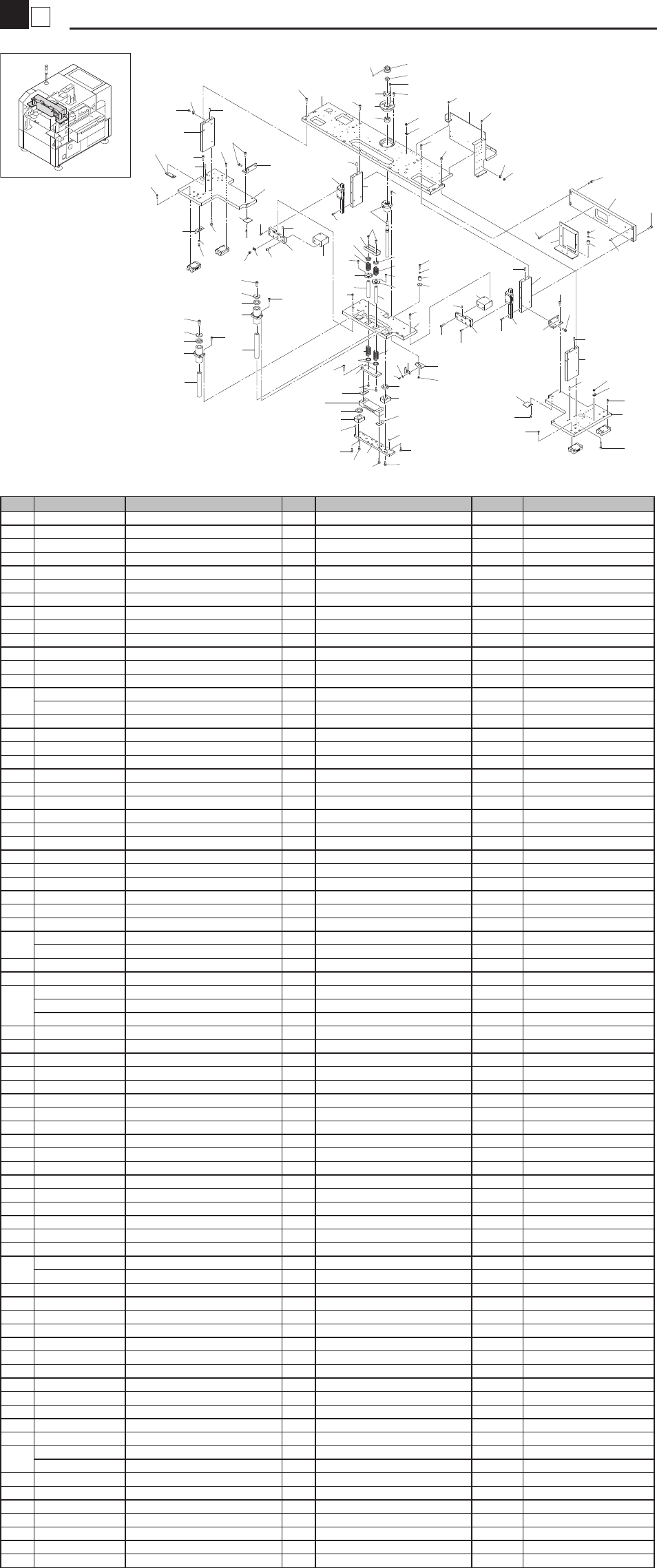

SZ-Base / Load Cell
Moving-axis
KHT-1301
37
36
46
52
38
17
41
43
47
47
21
69
42
69
58
58
58
67
5
18
49
55
55
6
58
49
18
5
53
58
58
19
67
57
67
67
2
27
27
24
46
20
62
13
13
59
25
10
53
45
14
14
31
65
31
35
65
52
52
56
56
59
30
35
40
68
43
43
69
69
49
49
61
29
47
63
4
60
49
49
45
45
57
57
2
58
68
70,71,72
22
22
3
48
12
66
23
51
28
48
48
54
33
39
44
33
50
67
16
39
13
13
32
32
7
7
26
26
34
52
23
66
58
11
52
43
69
61
14
13
9
8
48
58
1
64
52
61
14
13
9
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M2201-00 FRAME 1,SZ 1
2 KHT-M2202-00 FRAME 2,SZ 2
3 KHT-M2203-00 BASE FRAME,SZL 1
4 KHT-M2204-00 BESE FRAME,SZR 1
5 KHT-M2205-00 FRAME 3,SZ 2
6 KHT-M2206-00 PLATE 1,SZ AXIS 1
7 KHT-M2207-00 SHAFT,SPRING 2
8 KHT-M2208-00 SHAFT,BUSH 2
9 KHT-M2209-00 LINER BUSH,SZ 2
10 KHT-M2210-00 PLATE 2,SZ AXIS 1
11 KHT-M2211-00 BLOCK 1,SZ GUIDE 1
12 KHT-M2211-50 BLOCK 1R,SZ GUIDE 1
13 KHT-M2212-00 SPRING,SZ 4
14
KHT-M2213-00 DAMPER,SZ 2 OK MG30005-2010/3/2
KHT-M2213-00 DAMPER,SZ 4
15 KHT-M2215-00 WASHER,PLAIN 2
16 KHT-M2216-00 STOPPER PLATE 1
17 KHT-M2217-00 HOLDER,BRG. 1
18 KHT-M2221-00 SZ AXIS GUIDE ASSY 1
19 KHT-M2224-00 FREME 4,SZ 1
20 KHT-M2227-00 DOG,SZ ORG 1
21 KHT-M2231-00 BRACKET.I/O 1
22 KHT-M2233-00 BRAKET,FRAME 2
23 KHT-M2235-00 BLOCK 2,SZ GUIDE 2
24 KHT-M2238-00 BRKT.,ORG DOG 1
25 KHT-M2239-00 WASHER,PLAIN 2
26 KHT-M2239-10 WASHER,PLAIN 2
27 KHT-M2244-00 COVER,SZ GUIDE 2
28 KHT-M2245-00 HOLDER BRKT.2,SHAFT 1
29 KHT-M2246-00 DOG,CY ORG. 1
30 KHT-M2251-00 PLATE,LC 1
31
Delete MG30005-2010/3/2
KHT-M2252-00 SHAFT SUPPORT,SZ 2
32 KHT-M2253-00 COLLER SPRING 2
33 KHT-M7531-00 COLLAR 4
34
KHT-M9D00-02 BALL SCREW,SZ 1 OK MJ70196-2012/8/1
KHT-M9D00-01 BALL SCREW,SZ 1 OK MJ30102-2012/4/19
KHT-M9D00-00 BALL SCREW,SZ 1
35 KGY-M7152-00 SPACER,L.C. 2
36 KG2-M9173-00 LOCK NUT 1
37 KG7-M9111-01 PULLEY 1 1
38 KGJ-M3159-01 PLATE R,BRG. 1
39 KGJ-M3169-00 DAMPER,R 4
40 KHT-M6533-A0 LOAD CELL ASSY 1
41 90990-26J002 BEARING 1
42 90990-11J003 SCREW,PAN HEAD W/W 17
43 90990-11J005 SCREW,PAN HEAD W/W 13
44 90990-28J015 WASHER,PLAIN 2
45 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
46 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
47 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
48 91312-04014 BOLT HEX.SOCKET HEAD 16 M4X14
49 91312-04016 BOLT,HEX.SOCKET HEAD 26 M4X16
50 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
51 91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12
52
91312-05014 BOLT HEX.SOCKET HEAD 14 M5X14 OK MG30005-2010/3/2
91312-05014 BOLT HEX.SOCKET HEAD 16 M5X14
53 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
54 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
55 91312-05025 BOLT HEX.SOCKET HEAD 8 M5X25
56 91312-06014 BOLT HEX.SOCKET HEAD 2 M6X14
57 91312-06016 BOLT HEX.SOCKET HEAD 8 M6X16
58 91312-06020 BOLT HEX.SOCKET HEAD 22 M6X20
59 91312-06025 BOLT HEX.SOCKET HEAD 2 M6X25
60 91312-06030 BOLT HEX.SOCKET HEAD 4 M6X30
61 91312-08016 BOLT HEX.SOCKET HEAD 2 M8X16
62 92902-04200 WASHER PLAIN 2
63 92902-04600 WASHER PLAIN 2
64 92A08-04306 SET SCREW M4X6 2
65
Delete MG30005-2010/3/2
99480-04010 PIN PARALLEL: 4X10 4
66 99480-05012 PIN,PARALLEL 4
67 99480-06018 PIN PARALLEL 10
68 99480-06020 PIN PARALLEL 5
69 $NK-2N NYLON CLIP 47
70 KHT-M9702-00 SHIM 0.01 1
71 KHT-M9702-10 SHIM 0.03 1
72 KHT-M9702-20 SHIM 0.05 1
2
3

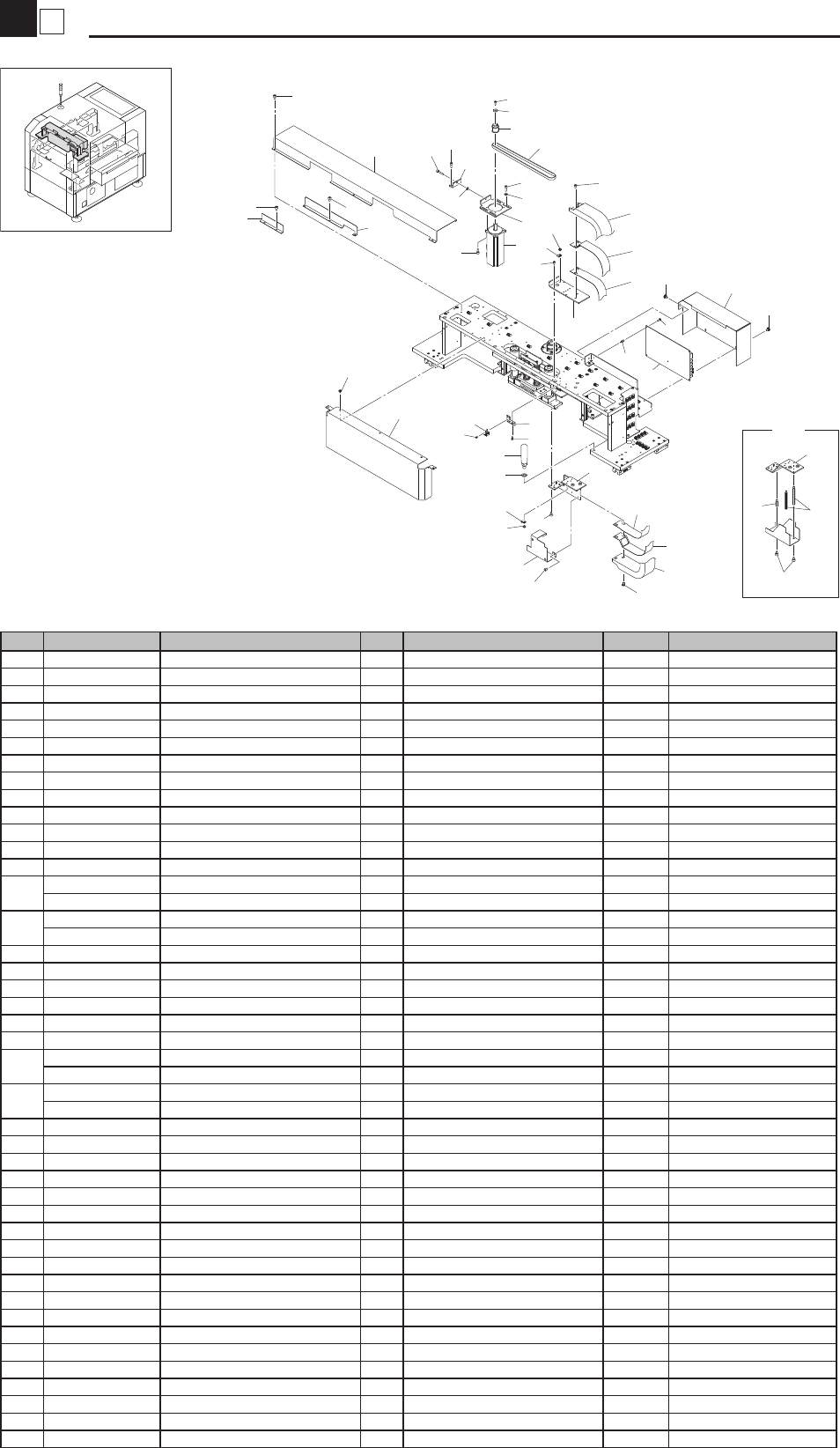

SZ-Motor / Sensor / Duct
Moving-axis
KHT-1004
6
29
31
27
17
33
35
2
4
11
10
3
21
20
38
26
26
5
30
41
25
24
18
30
26
7
16
36
14
10
11
4
24
40
41
25
37
1
32
34
28
28
28
13
12
9
8
14
OLD
28
22
23
15
42
39
19
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M2219-00 BELT, SZ 1
2 KHT-M2220-00 PLATE,SZ MOTOR 1
3 KHT-M2222-00 BRKT.,SZ DUCT 1
4 KHT-M2223-00 DUCT,CABLE SZ 1
5 KHT-M2232-00 COVER, I/O 1
6 KHT-M2230-00 BRKT.,SENSOR ORG 1
7 KHT-M2234-00 COVER,HEAD 1
8 KHT-M2236-00 BRKT., BELT TENSION 1
9 KHT-M2241-00 COVER,SZ CABLE 1
10 KHT-M2242-00 TAPE 1,SZ DUCT 1
11 KHT-M2243-00 TAPE 2,SZ DUCT 1
12 KHT-M2247-00 COVER SZ 2 1
13 KHT-M2248-00 COVER SZ 1 1
14
KHT-M2254-01 BRKT.,DCUT SZ 1 NG MF70196-2010/1/12
KHT-M2254-00 BRKT.,DCUT SZ 1
15
KHT-M2255-01 COVER HNS. 1 NG MF70196-2010/1/12
KHT-M2255-00 COVER HNS. 1
16 KGS-M2256-00 GRIP 1
17 KV7-M9205-01 PULLEY 1:P22-3GT 1
18 90K63-331847 AC SERVO MOTOR 1
19 KHT-M6521-V1 SENSOR SZ ORG ASSY 1
20 KGY-M4572-00 I/O SHEAD BOARD ASSY 1
21 90563-03J100 SPACER BOLT 5
22
Delete MF70196-2010/1/12
90563-04J700 SPACER BOLT 2
23
Delete MF70196-2010/1/12
90563-04J200 SPACER BOLT 1
24 90990-01J032 BOLT,HEX.SOCKET HEAD 4
25 90990-11J001 SCREW PAN HEAD 3
26 90990-12J001 SCREW BIN.HEAD W/W 8
27 90990-28J076 WASHER 1
28 91312-04006 BOLT HEX.SOCKET HEAD 11 M4X6
29 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
30 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10
31 91312-04012 BOLT,HEX.SOCKET HEAD 1 M4X12
32 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
33 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
34 91312-05025 BOLT HEX.SOCKET HEAD 1 M5X25
35 92902-05200 WASHER PLAIN 4
36 92902-10600 WASHER PLAIN 1
37 95302-05700 NUT HEXAGON 1
38 98502-03008 SCREW PAN HEAD (+) 5
39 98502-03006 SCREW PAN HEAD 2
40 98702-04008 SCREW,FLAT HEAD (+) 4
41 $NK-2N NYLON CLIP 47
42 91312-04005 BOLT HEX.SOCKET HEAD 2 M4X5 MF70196-2010/1/12
3
3
SY-Frame / Guide
Moving-axis
KHT-1004
20
28
19
18
27
17
1
17
4
30
29
34
33
34
33
23
21
37
34
33
35
35
15
23
24
13
14
35
35
36
36
39
36
36
10
11
25
25
25
25
29
32
32
32
31
31
38
31
31
38
12
38
38
34
33
31
38
26
16
2
29
29
8
2
2
2
32
22
22
9
9
7
5
6
3
3
36
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M2603-00 HOLDER NUT,SY 1
2 KHT-M2606-00 STOPPER,SY 4
3 KHT-M2608-00 GUIDE SY 1
4 KHT-M2610-00 HOLDER BRG.,SY 1
5 KHT-M2611-00 PLATE 1,MASK GUIDE 1
6 KHT-M2611-50 PLATE 2,MASK GUIDE 1
7 KHT-M2612-00 PLATE 3,MASK GUIDE 1
8 KHT-M2612-50 PLATE 4,MASK GUIDE 1
9 KHT-M2613-00 PLATE 5,MASK GUIDE 2
10
KHT-M2614-03 PLATE 6,MASK GUIDE 1 Hole position change NG MJ10048-2012/1/20
KHT-M2614-02 PLATE 6,MASK GUIDE 1 OK MG20041-2010/3/5
KHT-M2614-01 PLATE 6,MASK GUIDE 1
11
KHT-M2614-51 PLATE 7,MASK GUIDE 1 OK MG20041-2010/3/5
KHT-M2614-50 PLATE 7,MASK GUIDE 1
12
KHT-M2615-01 SPACER 1 OK MF60111-2009/6/15
KHT-M2615-00 SPACER 1
13 KHT-M2618-00 FRAME 1,CY 1
14 KHT-M2622-00 STAY DUCT SY 1
15 KHT-M2628-01 BRKT.3,HNS. 1
16 KHT-M2692-00 STOPPER MASK 1
17 KGY-M2607-00 BALL SCREW,SY AXIS 1
18 KG2-M2604-00 SUPPORT UNIT 1
19 KV4-M2220-00 COUPLING Z 1
20 KGJ-M2607-00 HOLDER,MOTER SY 1
21 91312-04010 BOLT HEX.SOCKET HEAD 3 M4X10
22 91312-04014 BOLT HEX.SOCKET HEAD 30 M4X14
23 91312-05008 BOLT HEX.SOCKET HEAD 6 M5X8
24 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
25 91312-05012 BOLT HEX.SOCKET HEAD 6 M5X12
26 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
27 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
28 91312-05025 BOLT HEX.SOCKET HEAD 4 M5X25
29 91312-05045 BOLT HEX.SOCKET HEAD 8 M5X45
30 91312-06045 BOLT HEX.SOCKET HEAD 4 M6X45
31 90990-11J001 SCREW PAN HEAD 1
32 90990-33J006 BOLT,STOPPER 4
33 90990-28J014 WASHER,PLAIN 16
34 90112-12J040 BOLT HEX.SOCKET HEAD 16
35
90990-09J001 SCREW FLAT HEAD 16 OK MJ10098-2012/2/9
92B12-05025 SCREW CR0S.COUN 16 OK MF50151-2009/5/28
92B17-05016 SCREW CR0S.COUN 16
36 92B12-05008 SCREW CR0S.COUN 12
37 92902-04200 WASHER PLAIN 3
38 $NK-3N NYLON CLIP 5
39 KHT-M2633-00 TAPE, SY-AXIS 4 MF90014-2009/9/3
