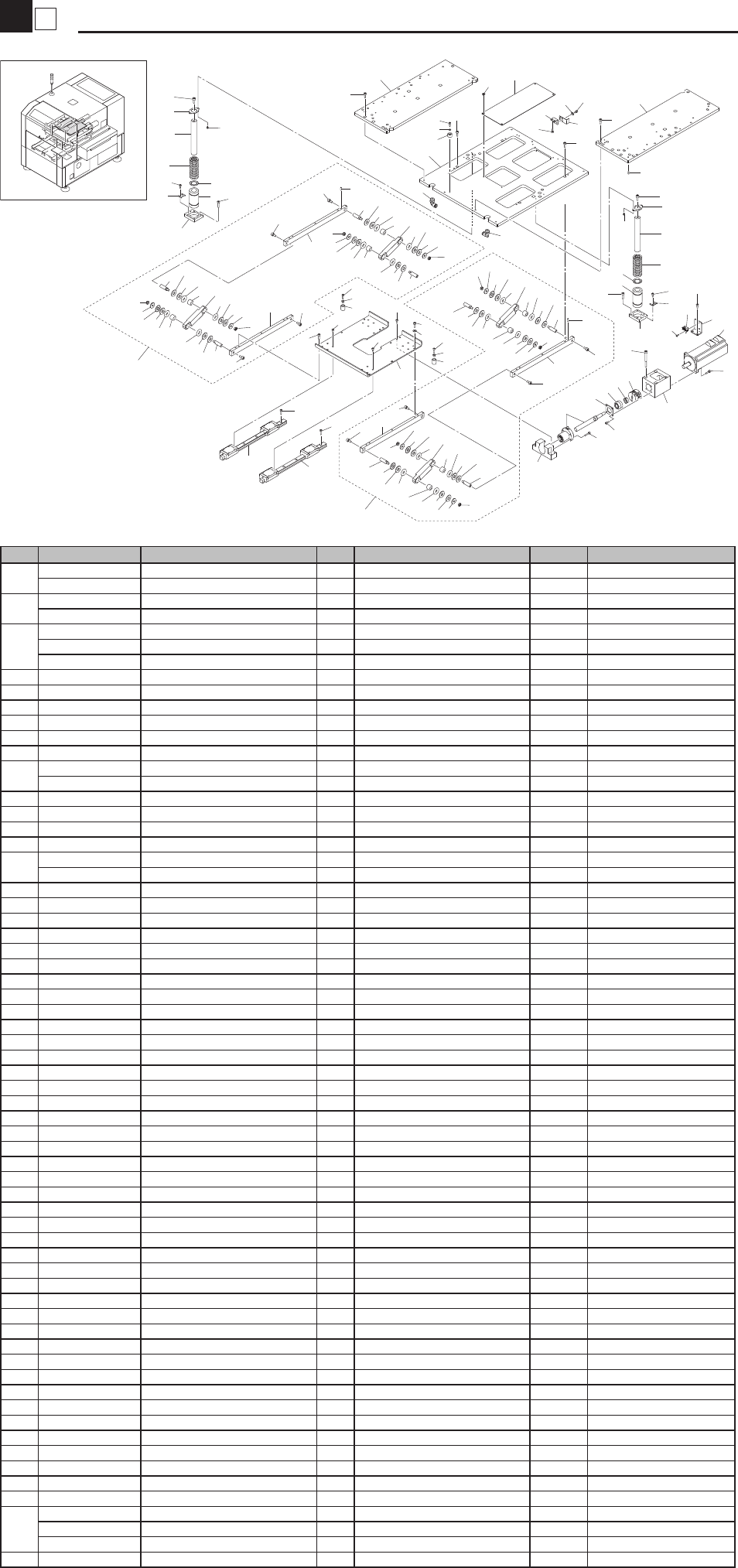

KHT_YSP_PL - 第20页
10 3 XYZ-Cable Moving-axis KHT -1004 7 7 7 2 34 34 4 8 7 7 32 33 20 OLD 38 18 35 37 29 23 16 24 17 28 35 35 35 35 14 13 6 35 30 30 3 9 24 23 16 29 31 37 37 30 37 37 28 28 28 28 28 7 28 9 9 34 22 4 34 7 7 37 35 30 1 30 32…
9
3
Z-Motor / Sensor
Moving-axis
KHT-1301
15
13
26
38
37
13
15
14
34
33
7
27
3
24
5
25
9
8
25
35
17
32
2
19
11
1
28
16
29
31
18
4
33
30
23
12
22
10
21
20
25
8
6
22
36
34
33
25
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M3175-00 BRKT.,MOTOR Z 1
2 KHT-M3177-00 BELT 1,MOTOR Z 1
3 KHT-M3183-00 BRKT,DOG Z 1
4 KHT-M3185-00 BRKT.,Z SENSOR 1
5 KHT-M3186-01 DOG,Z ORG 1
6 KHT-M3190-00 COVER,CONNECTOR 1
7 KHT-M3191-00 BRKT.,EJECTOR 1
8
KHT-M3192-A0 BRKT.,HNS. 2 with tape OK MGX0006-2010/11/17
KHT-M3192-02 BRKT.,HNS. 2
9 KHT-M3196-00 BRKT.,HARNESS 1
10 KHT-M3198-00 COVER,TERMINAL 1
11 KGY-M3206-00 PULLEY 1,MOTOR Z 1
12 KHT-M3166-00 EJECTOR 2
13 KGR-M9933-00 INLINE FILTER 2
14 $TSH6-02 JOINT 2
15 $SL10-02 JOINT 2
16 90K63-831G09 AC SERVO MOTOR 1
17
KHT-M6521-K0 SENSOR Z HIGH ASSY 1 OK MF60051-2009/6/8
KHT-M6521-J0 SENSOR Z ORG ASSY 1
18 90990-01J050 BOLT HEX.SOCKET HEAD 1 MH90030-2011/9/30
19 KHT-M3174-000 WASHER Z SHAFT 1 MH90030-2011/9/30
20 90563-03J100 SPACER BOLT 4
21 90563-03J400 SPACER BOLT 4
22 91312-03006 BOLT HEX.SOCKET HEAD 6 M3X6
23 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
24 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
25 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10
26 91312-04045 BOLT HEX.SOCKET HEAD 2 M4X25
27 91312-06008 BOLT HEX.SOCKET HEAD 2 M6X8
28 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
29 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
30 92902-04200 WASHER PLAIN 2
31 92902-06200 WASHER PLAIN(N) 4
32 98502-03006 SCREW PAN HEAD 2
33 $NK-2N NYLON CLIP 14
34 90990-11J003 SCREW,PAN HEAD W/W 21
35 90990-11J001 SCREW PAN HEAD 2
36 KGR-M9933-F0 FILTER, SPARE 1
37 KJH-M2257-00 JOINT(PVG10-6) 2 PVG10-6 OK MF40020-2009/4/6
38 $USD6-4 JOINT 1 OK MF40020-2009/4/6
10
3
XYZ-Cable
Moving-axis
KHT-1004
7
7
7
2
34
34
4
8
7
7
32
33
20
OLD
38
18
35
37
29
23
16
24
17
28
35
35
35
35
14
13
6
35
30
30
3
9
24
23
16
29
31
37
37
30
37
37
28
28
28
28
28
7
28
9
9
34
22
4
34
7
7
37
35
30
1
30
32
29
16
23
24
24
37
7
30
28
28
37
25
35
33
13
35
15
32
28
12
35
37
35
37
35
37
23
24
16
29
19
20
30
38
31
5
11
4
6
35
37
1
8
7
20
21
36
21
36
21
36
2627
26
27
36
22
36
21
36
21
36
22
36
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M31D1-01 BRKT. 1,Y HNS. 2
2 KHT-M31D2-01 BRKT. 2,Y HNS. 1
3 KHT-M31D3-01 BRKT. 3,Y HNS. 1
4 KHT-M31D4-01 BRKT. 4,Y HNS. 3
5 KHT-M31D5-01 BRKT. 5,Y HNS. 1
6 KHT-M31D6-01 BRKT. 6,Y HNS. 2
7 KHT-M31D7-01 BRKT. 7,Y HNS. 10
8 KHT-M31D8-01 TAPE,Y HNS. 2
9 KHT-M31D9-00 TAPE,2Y HNS. 2
10 KHT-M31DA-00 BRKT. 1R,XYZ HNS. 1
11 KHT-M31DB-00 BRKT. 1L,XYZ HNS. 1
12 KHT-M31DC-00 BRKT. 2L,XYZ HNS. 1
13 KHT-M31DD-00 BRKT. 3,XYZ HNS. 2
14 KHT-M31DE-00 BRKT. R,CONNECTOR 1
15 KHT-M31DF-00 BRKT. L,CONNECTOR 1
16 KHT-M31DG-00 AIR TERMINAL 4
17 KHT-M31DH-00 BRKT.,CAMERA HNS. 1
18 KHT-M31DJ-01 BRKT.CONNECTOR 1
19 KHT-M31DK-01 BRKT.CONNECTOR 1
20
KHT-M31DL-01 COVER,CONECTOR 2 NG MF40186-2009/5/12
KHT-M31DL-00 COVER,CONECTOR 2
21 KHT-M31DM-00 BRKT. Y HNS. 5
22 KHT-M31DN-00 BRKT. Y HNS. 3
23 $TSH4-M5 JOINT 19
24 $TSH6-M5M JOINT 24
25 $USD6-4 JOINT 17
26 KHT-M31D0-00 CABLE R,XYZ AXIS 1
27 KHT-M31D0-50 CABLE L,XYZ AXIS 1
28 91312-04005 BOLT HEX.SOCKET HEAD 34 M4X5
29 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
30 91312-05008 BOLT HEX.SOCKET HEAD 34 M5X8
31 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
32 91312-05025 BOLT HEX.SOCKET HEAD 5 M5X25
33 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
34 98702-04006 SCREW FLAT HEAD 16
35 $NK-2N NYLON CLIP 123
36 90990-11J001 SCREW PAN HEAD 81
37 90990-11J003 SCREW,PAN HEAD W/W 42
38 90990-23J025 GROMMET(3) 2
11
3
PU-Plate / Motor / Sensor / Guide
Moving-axis
KHT-1102
57
35
34
56
55
58
31
38
30
3
38
38
45
38
33
43
12
13
15
34
2
1
40
14
22
8
34
7
11
39
51
51
52
54
50
54
53
53
51
51
52
10
10
47
47
47
47
46
46
46
46
48
48
49
27
49
48
48
50
54
53
47
47
46
46
48
49
27
48
28
50
50
53
47
47
46
46
48
49
48
50
10
10
6
9
31
40
14
22
8
34
39
41
11
21
24
23
19
17
34
37
5
20
18
35
7
16
6
9
54
54
53
53
47
47
47
47
46
46
46
46
48
48
49
27
49
48
48
50
50
26
26
36
36
51
51
51
51
33
33
4
34
38
38
44
54
54
53
47
47
46
46
48
49
27
25
25
48
50
53
47
47
46
46
48
49
48
50
20
18
35
28
29
42
32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M3201-01 PLATE 1L, PU 1 OK MF60160-2009/6/10
KHT-M3201-00 PLATE 1L, PU 1
2
KHT-M3201-51 PLATE 1R, PU 1 OK MF60160-2009/6/10
KHT-M3201-50 PLATE 1R, PU 1
3
KHT-M3202-02 PLATE 2, PU 1 OK MFX0115-2009/11/26
KHT-M3202-01 PLATE 2, PU 1 OK MF60160-2009/6/19
KHT-M3202-00 PLATE 2, PU 1
4 KHT-M3203-00 PLATE 3, PU 1
5 KHT-M3204-01 HOLDER NUT 1
6 KHT-M3206-00 LINEAR BUSH 2
7 KHT-M3207-00 STOPPER 2
8 KHT-M3208-00 SPRING 2
9 KHT-M3209-00 WASHER 2
10
KHT-M3211-01 STAY LEG 4 OK MFX0115-2009/11/26
KHT-M3211-00 STAY LEG 4
11 KHT-M3215-00 SPACER 2
12 KHT-M3216-00 DOG 1
13 KHT-M3217-00 STAY,DOG 1
14 KHT-M3223-00 PLATE,SPRING 2
15
KHT-M3241-01 COVER,PU 1 OK MF60183-2009/6/22
KHT-M3241-00 COVER,PU 1
16 KHT-M3242-00 BRACKET,MOTOR R 1
17 KHT-M9C00-00 BALL SCREW,PU 1
18 KGJ-M3133-00 COLLAR,DAMPER 4
19 KGJ-M3159-01 PLATE R,BRG. 1
20 KGJ-M3169-00 DAMPER,R 4
21 KGY-M3153-00 R COUPLING 1
22 KGY-M3253-00 BAR, PU 2
23 90990-26J002 BEARING 1
24 KG2-M9173-00 LOCK NUT 1
25 $TL6-02 JOINT 2
26 KHT-M3220-00 GUIDE PU 2
27 KHT-M3212-00 LEG 1 4
28 KHT-M3210-00 LINK PU 2
29 KHT-M3222-00 WASHERS 4
30 90990-46J006 BOLT,THIN HEAD 4
31 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
32 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
33 91312-04008 BOLT HEX.SOCKET HEAD 18 M4X8
34 91312-04010 BOLT HEX.SOCKET HEAD 16 M4X10
35 91312-04014 BOLT HEX.SOCKET HEAD 12 M4X14
36 91312-04016 BOLT HEX.SOCKET HEAD 10 M4X16
37 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
38 91312-05014 BOLT HEX.SOCKET HEAD 20 M5X14
39 91312-05020 BOLT HEX.SOCKET HEAD 8 M5X20
40 91312-06014 BOLT HEX.SOCKET HEAD 2 M5X14
41 91312-06060 B0LT HEX.SOCKET HEAD 4 M6X60
42 92902-03600 WASHER PLAIN 4
43 92902-04200 WASHER PLAIN 2
44 92902-05200 WASHER PLAIN 3
45 99480-03008 PIN,PARALLEL 1
46 KHT-M3224-00 BEARING 16
47 KHT-M3225-00 WASHER 16
48 KHT-M3226-00 WASHER 16
49 KHT-M3218-00 BEARING 8
50 KHT-M3219-00 SHAFT BRG. 8
51 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
52 99480-04012 PIN,PARALLEL 4
53 92902-06600 WASHER PLAIN 8
54 95602-06100 NUT,U 8
55 KHT-M3231-00 STAY,SENSOR PU 1
56 KHT-M6521-L1 SENSOR PU ORG ASSY 1
57
90K63-931212 AC SERVO MOTOR 1 OK MJ70209-2012/8/3
90K63-331212 AC SERVO MOTOR 1 OK MG60072-2010/6/22
90K63-331512 AC SERVO MOTOR 1
58 98502-03008 SCREW PAN HEAD (+) 2
