13 3 Mask Clamp A.D.P . L / R Moving-axis KHT -1401 29 1 8 9 15 9 12 6 20 3 7 1 4 24 27 2 25 18 17 22 6 17 18 21 23 18 27 23 28 28 24 14 19 1 1 8 4 15 26 16 9 10 5 9 13 3 20 25 7 17 17 30 18 2 22 23 27 21 23 28 27 28 24 …
12
3

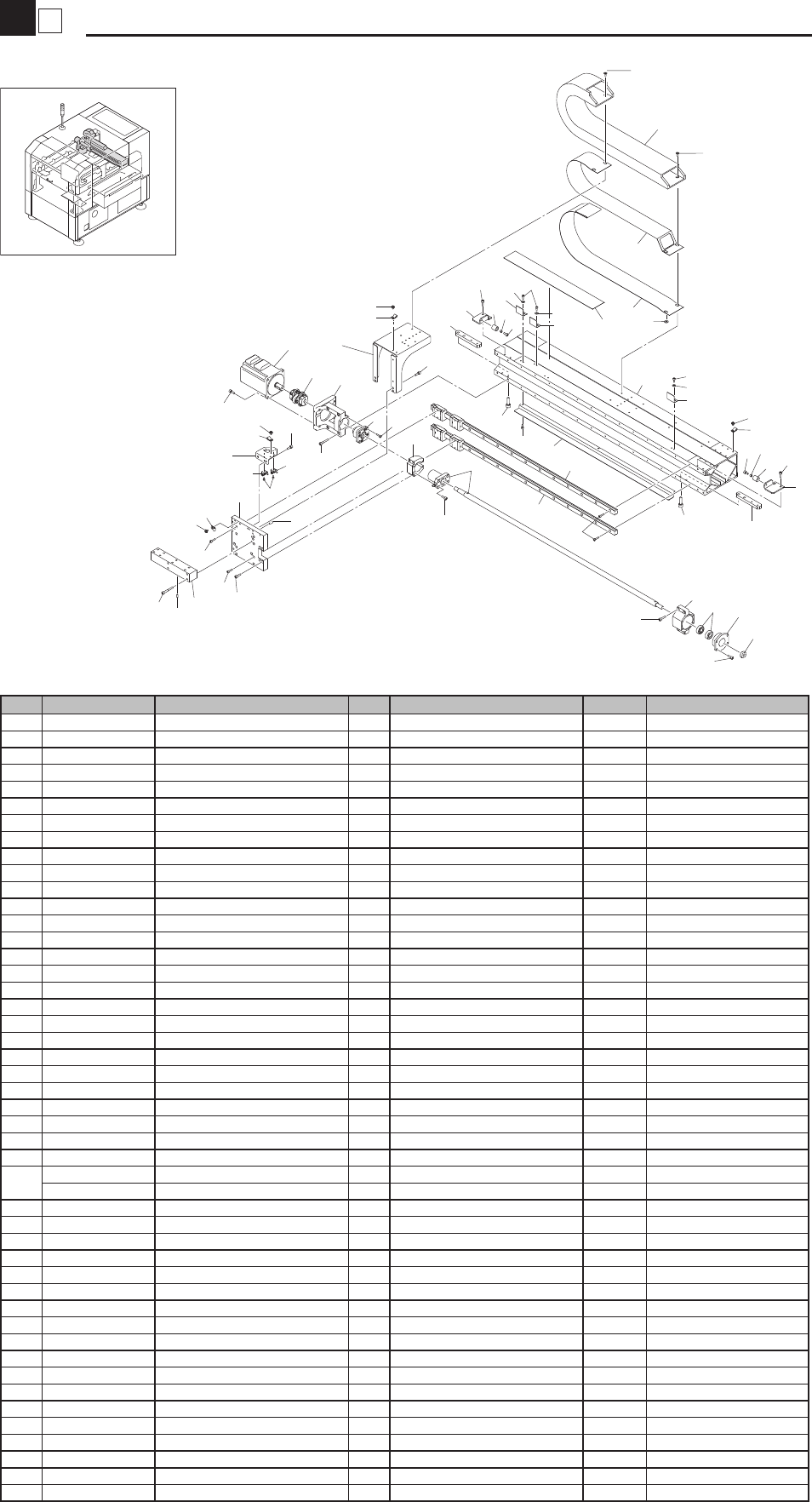

PCB Camera / X-axis
Moving-axis
KHT-1011
45
29
28
37
22
24
7
19
34
42
13
33
9
37
37
12
11
20
20
17
17
33
43
43
10
43
33
45
29
42
9
10
10
36
36
45
29
37
32
5
30
29
45
41
6
30
35
35
38
27
26
40
4
37
3
2
2
35
39
25
31
23
37
18
8
37
14
16
15
44
21
46
46
1
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7501-00 FRAME CX 1
2 KHT-M7502-00 GUIDE CX 1
3 KHT-M7503-00 BALL SCREW,CX AXIS 1
4 KHT-M7504-00 HOLDER NUT,CX 1
5 KHT-M7505-00 PLATE,CX 1
6 KHT-M7506-00 STAY,CX 1
7
KHT-M7507-00
BRKT DUCT,CX 1
8 KHT-M7508-00 BRKT SENSOR,CX 1
9 KHT-M7511-00 PLATE NUT,CX 4
10 KHT-M7514-00 DOG SENSOR,CX 3
11 KHT-M7515-00 PLATE STOPPER R,CX 1
12 KHT-M7515-50 PLATE STOPPER L,CX 1
13 KHT-M7516-00 COVER UNDER,CX 1
14 KHT-M2617-00 CABLE DUCT,SY 1
15 KHT-M2626-00 TAPE 3,SY DUCT 1
16 KHT-M7521-00 TAPE 1,CX DUCT 1
17 KHT-M7531-00 COLLAR 2
18 KG2-M9173-00 LOCK NUT 1
19 KV7-M2604-00 SUPPORT UNIT 1
20 KGJ-M3169-00 DAMPER,R 2
21 KGS-M220A-30 TAPE X-AXIS 2
22 KGT-M2220-00 COUPLING,X-AXIS 1
23 KGT-M2240-00 SLEEVE,BRG. 1
24 KGT-M2241-01 HOLDER,MOTOR X AXIS 1
25 KV7-M2242-01 HOLDER,BRG X AXIS 1
26 KHT-M6521-S0 SENSOR CX ORG ASSY 1
27 KHT-M6521-T0 SENSOR CX OT ASSY 1
28
90K63-A11440 AC SERVO MOTER 1 OK MG50154-2010/6/18
90K63-411440 AC SERVO MOTOR 1
29 $NK-3N NYLON CLIP 26
30 99480-06014 PIN,PARALLEL 4
31 90933-01J000 BEARING 2
32 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
33 91312-04010 BOLT HEX.SOCKET HEAD 9 M4X8
34 91312-04014 BOLT HEX.SOCKET HEAD 6 M4X14
35 91312-04016 BOLT,HEX.SOCKET HEAD 34 M4X16
36 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
37 91312-05014 BOLT HEX.SOCKET HEAD 22 M5X14
38 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
39 91312-05020 BOLT HEX.SOCKET HEAD 4 M5X20
40 91312-05030 BOLT HEX.SOCKET HEAD 4 M5X30
41 91312-05040 BOLT HEX.SOCKET HEAD 4 M5X40
42 91312-08025 BOLT HEX.SOCKET HEAD 8 M8X25
43 92902-04200 WASHER PLAIN 6
44 92902-05600 WASHER PLAIN 1
45 90990-11J003 SCREW,PAN HEAD W/W 23
46 98702-05010 SCREW,FLAT HEAD 4
13
3
Mask Clamp A.D.P. L / R
Moving-axis
KHT-1401
29
1
8
9
15
9
12
6
20
3
7
1
4
24
27
2
25
18
17
22
6
17
18
21
23
18
27
23
28
28
24
14
19
11
8
4
15
26
16
9
10
5
9
13
3
20
25
7
17
17
30
18
2
22
23
27
21
23
28
27
28
24
24
14
19
26
11
16
10
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90990-19J024 NEEDLE PIN 4
2 90990-28J074 WASHER,PLAIN 2
3 91312-03012 BOLT HEX,SOCKET HEAD 4
4 91312-04006 BOLT HEX,SOCKET HEAD 2
5 91312-05010 BOLT HEX,SOCKET HEAD 4
6 91312-05014 BOLT HEX,SOCKET HEAD 8
7 92012-03006 BOLT BUTTON HEAD 4
8 92012-05008 BOLT BUTTON HEAD 8
9 92012-05010 BOLT BUTTON HEAD 4
10 92902-05600 WASHER,PLAIN 4
11 98702-03008 SCREW,FLAT HEAD 2
12 KHT-M2681-01 BASE A.D.P 1
13 KHT-M2681-51 BASE A.D.P 1
14 KHT-M2682-02 STAY A.D.P 2
15 KHT-M2683-01 PLATE A.D.P. 2
16 KHT-M2684-01 CLAMPER 1 2
17 KHT-M2685-01 BUSH 4
18 KHT-M2686-01 SHAFT A.D.P 4
19 KHT-M2688-00 MAGNET 2
20 KHT-M2689-00 NUT 2
21 KHT-M268A-00 KNOB 2
22 KHT-M268B-00 SPRING 2
23 KHT-M268C-00 WASHRE PLAIN 4
24 KHT-M268D-00 HOLDER PLATE,BUSH 4
25 KHT-M268E-00 STOPPER,DOWN 2
26 KHT-M268F-00 PLATE CLAMP 2
27 98702-04008 SCREW,FLAT HEAD 4
28 98902-03008 SCREW BINDING HEAD 8
29 KHT-M2680-01 MASK CLAMP A.D.P.L 1
30 KHT-M2680-51 MASK CLAMP A.D.P.R 1
1
4
3S Gear Box
Head
KHT-0906
36
4
15
39
29
30
11
15
39
16
30
11
10
12
29
17
15
9
30
43
31
14
13
29
22
21
28
33
34
46
32
7
24
2
33
28
25
20
1
44
8
45
37
43
43
3
26
44
6
5
27
23
38
42
40
19
43
41
35
40
18
43
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7101-00 PLATE,LC 1
2 KHT-M7102-00 HOLDER BLOCK 1
3 KHT-M7103-00 GEAR BOX 1 1
4 KHT-M7104-00 GEAR BOX 2 1
5 KHT-M7105-00 HOLDER,HARMONIC 1
6 KHT-M7106-00 FRANGE SHAFT 1
7 KHT-M7107-00 DAMPER 2 1
8 KHT-M7108-01 STOPPER PLATE,3S 1
9 KHT-M7110-00 SHAFT 1 1
10 KHT-M7111-00 SHAFT 2 1
11 KHT-M7112-00 COLLAR 1,SHAFT 2 2
12 KHT-M7113-00 COLLAR 2,SHAFT 2 1
13 KHT-M7114-00 SHAFT 3 1
14 KHT-M7115-00 GEAR 1 1
15 KHT-M7116-00 GEAR 2 3
16 KHT-M7117-00 OIL SEAL(AG 0141 E2) 1
17 KHT-M7118-00 WAVE WASHER,BRG. 1
18 KHT-M7119-00 HOLDER R,SHAFT 2 1
19 KHT-M7119-10 HOLDER L,SHAFT 2 1
20 KGY-M7155-00 HOLDER R,BRG. 1
21 KGY-M7155-10 HOLDER F,BRG. 1
22 KGY-M7156-00 SHAFT,BRG. 1
23 KGY-M7157-00 HARMONIC DRIVE,3S 1
24 KGY-M7181-00 OIL SEAL(AG 0256 E0) 1
25 90185-01J000 NUT, U 1
26 90200-01J500 O-RING 1
27 90200-01J560 O-RING 1
28 90933-01J001 BEARING 2
29 90933-01J900 BEARING 3
30 90933-02J698 BEARING 3
31 90990-28J058 WASHER,PLAIN 1
32 90990-28J059 WASHER,PLAIN 2
33 90990-29J040 SHIM 2
34 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
35 91312-03045 BOLT HEX.SOCKET HEAD 3 M3X45
36 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
37 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
38 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
39 91B00-03616 KEY, STRAIGHT 2
40 92012-04012 BOLT,BUTTON HEAD 2
41 99009-08400 CIRCLIP 1
42 99480-04008 PIN,PARALLEL 2 M4X8
43 99480-04010 PIN PARALLEL 7 M4X10
44 91312-04010 BOLT HEX.SOCKET HEAD 9 M4X10
45 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
46 92902-03200 WASHER PLAIN 2
