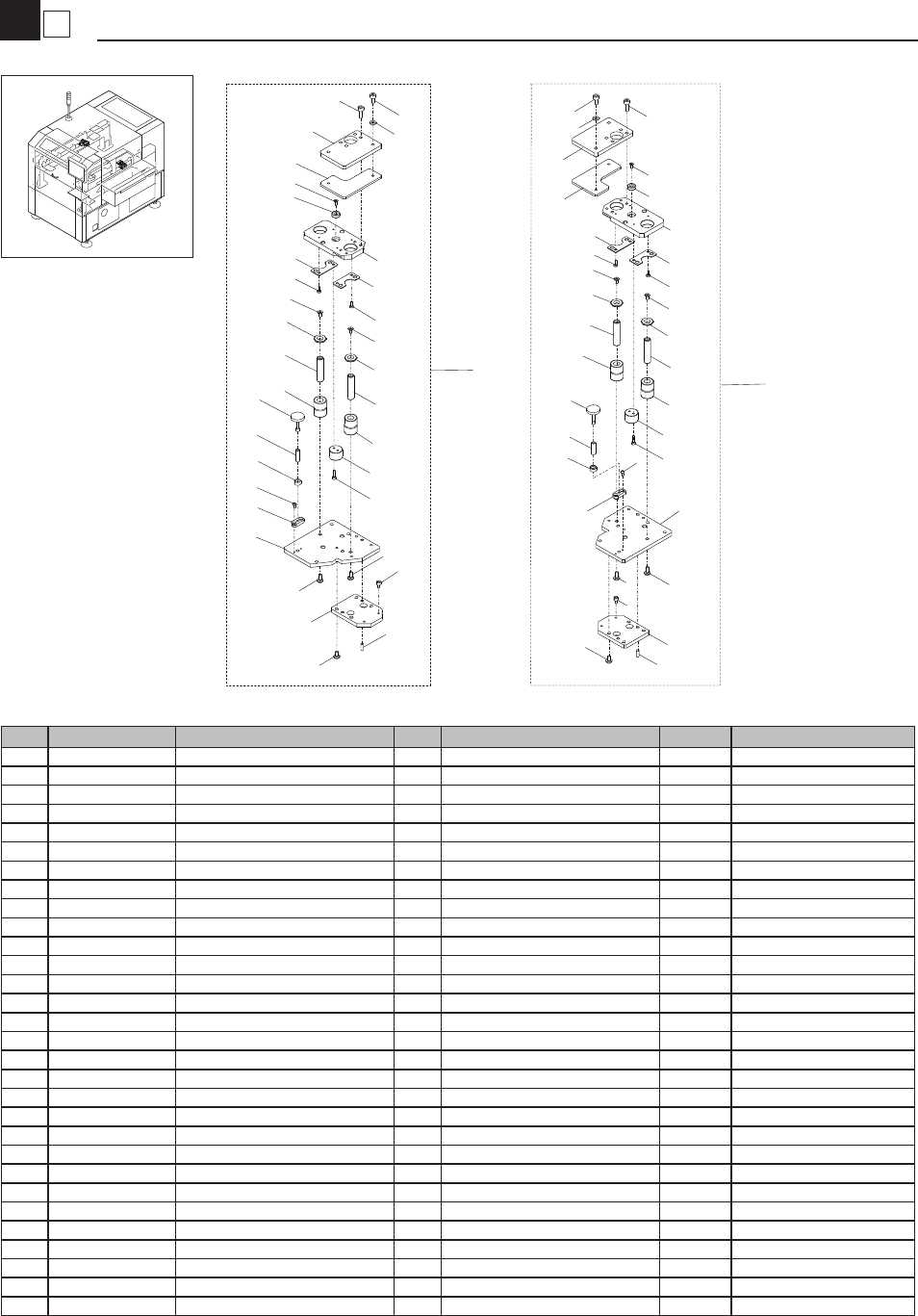

KHT_YSP_PL - 第24页
1 4 3S Gear Box Head KHT -0906 36 4 15 39 29 30 1 1 15 39 16 30 1 1 10 12 29 17 15 9 30 43 31 14 13 29 22 21 28 33 34 46 32 7 24 2 33 28 25 20 1 44 8 45 37 43 43 3 26 44 6 5 27 23 38 42 40 19 43 41 35 40 18 43 No. Part N…
13
3
Mask Clamp A.D.P. L / R
Moving-axis
KHT-1401
29
1
8
9
15
9
12
6
20
3
7
1
4
24
27
2
25
18
17
22
6
17
18
21
23
18
27
23
28
28
24
14
19
11
8
4
15
26
16
9
10
5
9
13
3
20
25
7
17
17
30
18
2
22
23
27
21
23
28
27
28
24
24
14
19
26
11
16
10
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90990-19J024 NEEDLE PIN 4
2 90990-28J074 WASHER,PLAIN 2
3 91312-03012 BOLT HEX,SOCKET HEAD 4
4 91312-04006 BOLT HEX,SOCKET HEAD 2
5 91312-05010 BOLT HEX,SOCKET HEAD 4
6 91312-05014 BOLT HEX,SOCKET HEAD 8
7 92012-03006 BOLT BUTTON HEAD 4
8 92012-05008 BOLT BUTTON HEAD 8
9 92012-05010 BOLT BUTTON HEAD 4
10 92902-05600 WASHER,PLAIN 4
11 98702-03008 SCREW,FLAT HEAD 2
12 KHT-M2681-01 BASE A.D.P 1
13 KHT-M2681-51 BASE A.D.P 1
14 KHT-M2682-02 STAY A.D.P 2
15 KHT-M2683-01 PLATE A.D.P. 2
16 KHT-M2684-01 CLAMPER 1 2
17 KHT-M2685-01 BUSH 4
18 KHT-M2686-01 SHAFT A.D.P 4
19 KHT-M2688-00 MAGNET 2
20 KHT-M2689-00 NUT 2
21 KHT-M268A-00 KNOB 2
22 KHT-M268B-00 SPRING 2
23 KHT-M268C-00 WASHRE PLAIN 4
24 KHT-M268D-00 HOLDER PLATE,BUSH 4
25 KHT-M268E-00 STOPPER,DOWN 2
26 KHT-M268F-00 PLATE CLAMP 2
27 98702-04008 SCREW,FLAT HEAD 4
28 98902-03008 SCREW BINDING HEAD 8
29 KHT-M2680-01 MASK CLAMP A.D.P.L 1
30 KHT-M2680-51 MASK CLAMP A.D.P.R 1
1
4
3S Gear Box
Head
KHT-0906
36
4
15
39
29
30
11
15
39
16
30
11
10
12
29
17
15
9
30
43
31
14
13
29
22
21
28
33
34
46
32
7
24
2
33
28
25
20
1
44
8
45
37
43
43
3
26
44
6
5
27
23
38
42
40
19
43
41
35
40
18
43
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7101-00 PLATE,LC 1
2 KHT-M7102-00 HOLDER BLOCK 1
3 KHT-M7103-00 GEAR BOX 1 1
4 KHT-M7104-00 GEAR BOX 2 1
5 KHT-M7105-00 HOLDER,HARMONIC 1
6 KHT-M7106-00 FRANGE SHAFT 1
7 KHT-M7107-00 DAMPER 2 1
8 KHT-M7108-01 STOPPER PLATE,3S 1
9 KHT-M7110-00 SHAFT 1 1
10 KHT-M7111-00 SHAFT 2 1
11 KHT-M7112-00 COLLAR 1,SHAFT 2 2
12 KHT-M7113-00 COLLAR 2,SHAFT 2 1
13 KHT-M7114-00 SHAFT 3 1
14 KHT-M7115-00 GEAR 1 1
15 KHT-M7116-00 GEAR 2 3
16 KHT-M7117-00 OIL SEAL(AG 0141 E2) 1
17 KHT-M7118-00 WAVE WASHER,BRG. 1
18 KHT-M7119-00 HOLDER R,SHAFT 2 1
19 KHT-M7119-10 HOLDER L,SHAFT 2 1
20 KGY-M7155-00 HOLDER R,BRG. 1
21 KGY-M7155-10 HOLDER F,BRG. 1
22 KGY-M7156-00 SHAFT,BRG. 1
23 KGY-M7157-00 HARMONIC DRIVE,3S 1
24 KGY-M7181-00 OIL SEAL(AG 0256 E0) 1
25 90185-01J000 NUT, U 1
26 90200-01J500 O-RING 1
27 90200-01J560 O-RING 1
28 90933-01J001 BEARING 2
29 90933-01J900 BEARING 3
30 90933-02J698 BEARING 3
31 90990-28J058 WASHER,PLAIN 1
32 90990-28J059 WASHER,PLAIN 2
33 90990-29J040 SHIM 2
34 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
35 91312-03045 BOLT HEX.SOCKET HEAD 3 M3X45
36 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
37 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
38 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
39 91B00-03616 KEY, STRAIGHT 2
40 92012-04012 BOLT,BUTTON HEAD 2
41 99009-08400 CIRCLIP 1
42 99480-04008 PIN,PARALLEL 2 M4X8
43 99480-04010 PIN PARALLEL 7 M4X10
44 91312-04010 BOLT HEX.SOCKET HEAD 9 M4X10
45 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
46 92902-03200 WASHER PLAIN 2
2
4
3S-Motor / Sensor
Head
KHT-1004
22
24
7
24
30
21
14
29
1
34
5
4
3
23
16
33
27
26
33
25
9
12
25
9
12
16
16
33
9
6
19
2
15
28
20
31
11
10
18
17
32
9
26
13
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7120-00 PLATE,SQG. 1
2 KHT-M7121-00 BRKT.,3S ORG. SENSOR 1
3 KHT-M7122-00 DOG,SR 1
4 KHT-M7123-00 SPACER,DOG SR 1
5 KHT-M7124-00 DOG,FX SAFETY 1
6 KHT-M7125-00 DAMPER,SR 1
7 KHT-M7128-00 WEIGHT 1,3S 1
8 KHT-M7129-00 WEIGHT 2,3S 8
9 KHT-M7531-00 COLLAR 5
10 KHT-M6523-A1 SENSOR SR ORG ASSY 1
11 KHT-M6524-A1 SENS. SR SAFE 1 ASSY 1
12 KGJ-M3169-00 DAMPER,R 2
13 KGJ-M7116-01 BALL PLUNGER 1
14 KGY-M7177-00 DAMPER 3 1
15 90K63-021H48 AC SERVO MOTOR 1
16 90990-11J003 SCREW,PAN HEAD W/W 3
17 91312-03010 BOLT HEX.SOCKET HEAD 1 M3X10
18 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
19 91312-03020 BOLT,HEX.SOCKET HEAD 1 M3X20
20 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
21 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
22 91312-04016 BOLT,HEX.SOCKET HEAD 2 M4X16
23 91312-04020 BOLT HEX.SOCKET HEAD 1 M4X20
24 91312-04050 BOLT HEX.SOCKET HEAD 2 M4X50
25 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
26 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
27 92902-03200 WASHER PLAIN 1
28 92902-04600 WASHER PLAIN 2
29 92A08-04305 SET SCREW 1 M4X5
30 95302-05700 NUT HEXAGON 1
31 98902-03008 SCREW BINDING HEAD 2 M3X8
32 99480-06018 PIN PARALLEL 1 M6X18
33 $NK-2N NYLON CLIP 3
34 99480-04010 PIN PARALLEL 2
