Contents
8 Conveyor Section
Main Base - Width ................................................8-1
Main Base - Transport ..........................................8-2
Main F - Frame / ARM ..........................................8-3
Main F - Belt / Sensor / CYL / Edge / V.Plate .......8-4
Main R - Frame / ARM ..........................................8-5
Main R - Belt / Sensor / CYL / Edge / V.Plate .......8-6
Main Duct Assy .....................................................8-7
ENT Width ............................................................8-8
ENT Transport ......................................................8-9
EXT Width ..........................................................8-10
EXT Transport ....................................................8-11
EXP Width ..........................................................8-12
EXP Transport ....................................................8-13
PCB Vacuum (Op.) .............................................8-14
PCB Back Up (Op.) ............................................8-15
PCB Press (Op.) .................................................8-16
Matrix-Plate ........................................................8-17
9 PSC Section
POT-Head Assy 1 .................................................9-1
POT-Head Assy 2 .................................................9-2
POT-Adpter , Ext. .................................................9-3
Syringe-Head Assy 1 / Valve ................................9-4
Syringe-Head Assy 2 ............................................9-5
Syringe-Dispence Supply .....................................9-6
FX-axis .................................................................9-7
FX-axis Sensor,Cable Duct / Distance Sensor .....9-8
10 Controller Section
Control Box. ........................................................10-1
11 Exterior, etc Section
Exterior, etc .........................................................11-1
Key Board ...........................................................11-2
Temp. Con. Spare. .............................................11-3
1
1

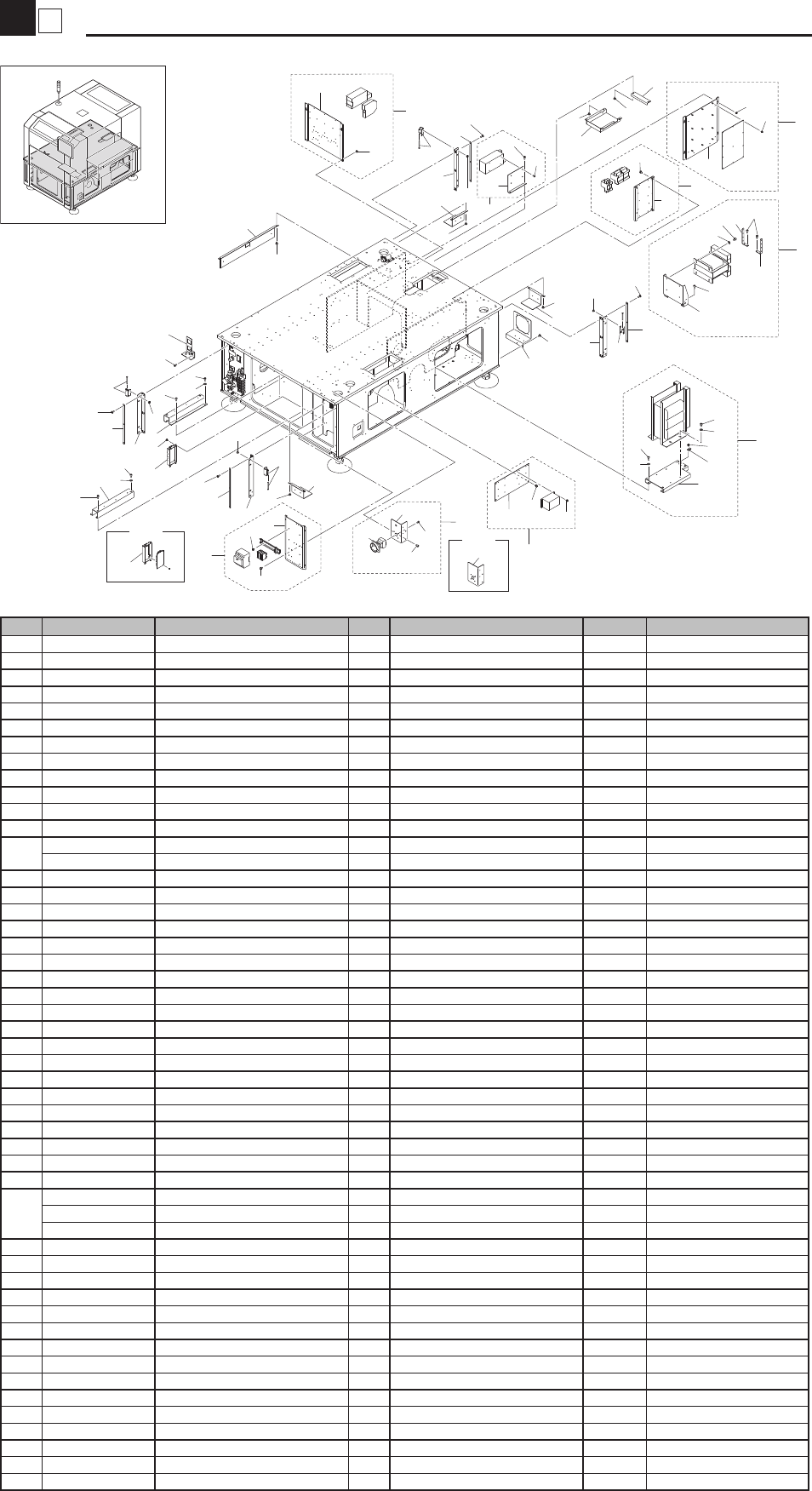

Base
Base
KHT-1301
27
26
31
30
22
28
46
47
29
23
4
3
41
41
41
46
9
6
30
44
42
32
15
16
48
43
43
25
24
14
35
46
10
11
6
46
31
31
32
42
32
36
42
36
36
33
43
36
39
36
39
1
2
44
44
8
5
35
35
34
13
13
OLD
OLD
12
45
38
40
37
39
31
18
19
17
37
40
38
19
36
46
42
36
34
21
20
32
42
44
6
46
46
30
33
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M11F1-00 STAY C/R,R 1
2 KHT-M11F2-00 STAY C/R,L 1
3 KHT-M1131-00 COVER 1,Y MOTOR 1
4 KHT-M1132-01 COVER 2,Y MOTOR 1
5 KHT-M1134-00 BRKT.,DUCT 1
6 KHT-M1135-00 BRKT.,DUCT 3
7
8
KHT-M1182-00 BRKT,GAUGE 1
9 KHT-M1183-00 BRACKET,FAN 1
10 KHT-M0110-00 BREAKER SUB ASSY 1
11 KHY-M1118-00 PLATE 18 1
12 KHT-M0120-00 MAIN SWITCH SUB ASSY 1
13
KHT-M1181-01 BRKT,SW 1 OK MF60126-2009/6/15
KHT-M1181-00 BRKT,SW 1
14 KM5-M6554-10 MAIN SWITCH 1
15 KHT-M0130-00 TRANS. SUB ASSY 1
16 KHT-M0131-00 PLATE 1,TRANSFORMER 1
17 KHT-M0140-00 TRANS. SUB ASSY 1
18 KHT-M0141-00 PLATE 2,TRANSFORMER 1
19 KHT-M0142-00 BRKT.,HNS. 2
20 KHT-M0150-00 P.SUPPLY SUB ASSY 1
21 KHT-M0151-00 PLATE,POWER SUPPLY 1
22 KHT-M0160-00 BREAKER SUB ASSY 1
23 KHT-M0161-00 PLATE,PROTECTOR 1
24 KHT-M0170-00 N.FILTER SUB ASSY 1
25 KHT-M0171-00 PLATE,NOISE FILTER 1
26 KHT-M0180-00 R.PANEL SUB ASSY 1
27 KHT-M0181-00 PLATE,R.PANEL 1
28 KHT-M0190-00 CONV I/O SUB ASSY 1
29 KHT-M0191-00 PLATE,CON. I/O 1
30 KGS-M1327-00 BRACKET 1-2 4
31 KG2-M1370-00 HINGE ASSY 8
32 KV7-M1347-00 PLATE,BRACKET 4
33
KHN-M220F-06 CAMERA SELECTOR 1 OK MH30127-2011/3/29
KHN-M220F-05 CAMERA SELECTOR 1 OK MFY0141-2010/2/15
KHN-M220F-04 CAMERA SELECTOR 1
34 91312-04008 BOLT HEX.SOCKET HEAD 5 M4X8
35 91312-05008 BOLT HEX.SOCKET HEAD 7 M5X8
36 91312-05010 BOLT HEX.SOCKET HEAD 18 M5X10
37 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
38 91312-06008 BOLT HEX.SOCKET HEAD 8 M6X8
39 92902-05200 WASHER PLAIN 8
40 92902-06200 WASHER PLAIN(N) 8
41 98902-05008 SCREW BINDING HEAD 8
42 98902-05012 SCREW BINDING HEAD 12
43 90990-11J003 SCREW,PAN HEAD W/W 16
44 90990-12J002 SCREW BIN.HEAD W/W 16
45 97602-03306 SCREW,PAN HEAD W/W 6
46 97602-05310 SCREW,PAN HEAD W/W 8
47 98902-03006 SCREW BINDING HEAD 11
48 $NK-2N NYLON CLIP 2
2
1
Blower Unit / Plate Side
Base
KHT-1301
6
34
40
42
35
45
48
48
48
48
48
48
48
16
3
38
23
22
48
24
21
25
33
26
19
49
33
27
8
1
36
46
47
10
17
44
18
37
9
13
16
16
16
14
5
36
41
30
43
12
39
46
36
36
6
2
31
29
15
5
36
5
4
36
32
11
28
20
50
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M3701-00 BASE,BLOWER 1
2 KHT-M3702-00 AIR HOLE 1
3 KHT-M3703-00 JOINT,TUBE 1
4 KHT-M3704-00 PLATE 1
5 KHT-M3705-00 TUBE BAND 3
6 KHT-M3706-00 STAY,TUBE 1
7 KHT-M3708-00 BRACKET,INV. 1
8 KHT-M3709-00 BRKT.,HARNESS 1
9 KHT-M3712-00 BOX,INLINE FILTER 1
10 KHT-M3713-00 COVER,FILTER BOX 1
11 KHT-M3714-00 GASKET 1
12 KHT-M3715-00 JOINT,TUBE 2
13 KHT-M3722-00 TUBE 25 1
14 KHT-M3723-00 TUBE 25 1
15 KGY-M3703-20 ANTI VIB. RUBBER 4
16 KGY-M3730-00 TUBE 25,BAND 4
17 KHU-M1345-00 HINGE 1
18 KH1-M1396-001 WASHER 2
19 KHT-M1151-00 PLATE,SIDE 1 2
20 KHT-M1152-00 PLATE,SIDE 2 1
21 KHT-M1152-10 PLATE,SIDE 2 1 with UPS
22 KHT-M1153-00 PLATE,SIDE 3 2
23 KHT-M1154-00 PLATE,SIDE 4 2
24 KHT-M1155-00 BRACKET,UPS 1
25 KHT-M1157-00 BRACKET,UPS 1
26 KHW-M1161-00 BRACKET 3,UPS 1
27 KHW-M1160-00 COVER,HARNESS 1
28 KV7-M1515-00 PLATE,RUBBER 1
29
KHT-M3730-03 INVERTER 1 OK MG90043-2012/1/9
KHT-M3730-02 INVERTER 1 OK MG20099-2010/2/23
KHT-M3730-01 INVERTER 1
30 KHT-M3731-00 BLOWER MOTOR 1
31 KGY-M537A-A0 NOIZE FILTER ASSY 1
32 KGY-M3710-40 INL. FILTER ELEMENT 1
33 91312-04006 BOLT HEX.SOCKET HEAD 4
34 91312-04008 BOLT HEX.SOCKET HEAD 2
35 91312-04010 BOLT HEX.SOCKET HEAD 8
36 91312-05008 BOLT HEX.SOCKET HEAD 9
37 91312-05016 BOLT HEX.SOCKET HEAD 2
38 91312-05025 BOLT HEX.SOCKET HEAD 4
39 91312-06010 BOLT HEX.SOCKET HEAD 4
40 91312-06014 BOLT HEX.SOCKET HEAD 4
41 90112-10J025 BOLT HEX.S.H.:M10X25 4
42 92902-06100 WASHER SPRING 4
43 92907-10100 WASHER,SPRING 4
44 98902-03004 SCREW BINDING HEAD 8
45 98902-05008 SCREW BINDING HEAD 2
46 90990-11J003 SCREW,PAN HEAD W/W 6
47 90990-12J001 SCREW BIN.HEAD W/W 2
48 90990-12J004 SCREW BIN.HEAD W/W 24
49 92902-04200 WASHER PLAIN 1
50 KHT-M3717-00 GASKET 1
