3 8 Main F - Frame / ARM Conveyor KHT -1102 32 14 21 23 36 41 35 5 20 25 26 20 20 26 9 26 25 35 24 26 26 25 40 8 30 12 38 39 45 3 1 1 3 19 29 38 31 31 44 28 48 39 38 15 33 37 37 17 37 43 17 2 43 16 16 49 28 29 15 38 35 2…
2
8

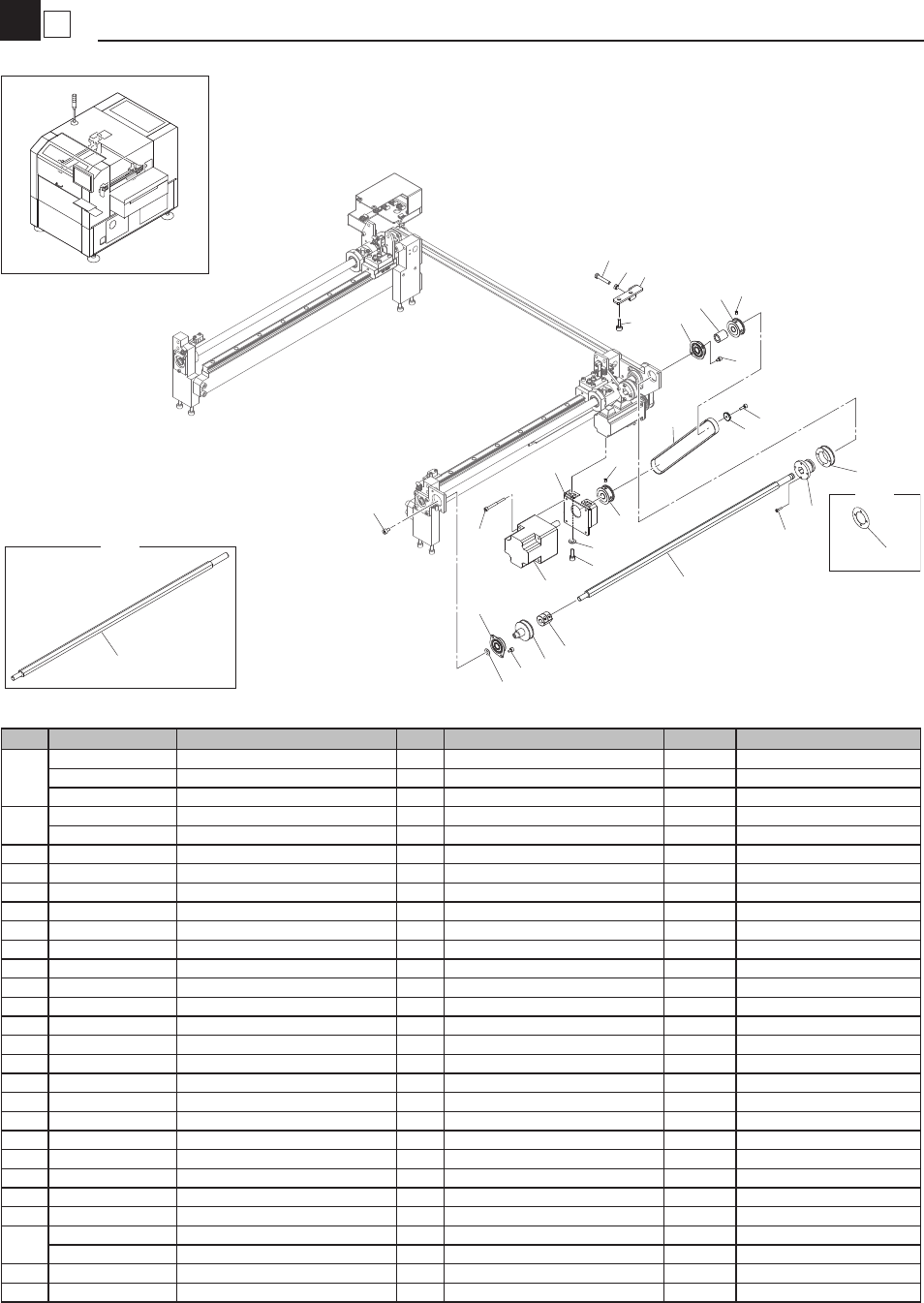

Main Base - Transport
Conveyor
KHT-1301
19
22
17
1
3
2
10
12
7
5
6
7
11
11
8
9
4
16
21
15
10
18
14
13
17
19
20
23
OLD
OLD
2
24
25
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M9111-02 PULLEY 1,MOTOR 1 Φ38 NG MH10026-2011/1/25
KHT-M9111-01 PULLEY 1,MOTOR 1 Φ42 OK MG00037-2010/10/29
KHT-M9111-00 PULLEY 1,MOTOR 1 Φ38
2
KHT-M9112-01 SPLINE 1 OK MKY0035-2013/12/20
KHT-M9112-00 SPLINE 1
3 KHT-M9113-00 COUPLING 1
4 KHT-M9114-00 PLATE ,MOTOR 1
5 KHT-M9116-00 BELT(501-3GT-9) 1
6 KHT-M9181-00 COLLAR 1
7 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
8 KGK-M9170-00 DC MOTOR ASSY. 1
9 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
10 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
11 92A08-04306 SET SCREW 4 M4X6
12 92902-06200 WASHER PLAIN(N) 2
13 KG2-M9108-11 COLLAR CONVEYOR 1
14 KGT-M9135-00 PULLEY 1 SPLINE 1
15 KHT-M9119-00 PLATE,TENSION 1
16 KHT-M3165-00 HEXAGON BOLT 1
17 KH2-M9121-00 BEARING 2
18 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
19 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
20 91312-05008 BOLT HEX.SOCKET HEAD 1 M5X8
21 95302-05600 NUT HEXAGON 1
22 92902-05200 WASHER PLAIN 1
23
Delete MH10026-2011/1/25
KHT-M9157-00 PLATE, KEEP BELT 1 MG00037-2010/10/29
24 90990-28J018 WASHER,PLAIN 1 MKY0035-2013/12/20
25 91312-04012 BOLT HEX.SOCKET HEAD 1 MKY0035-2013/12/20
3
8

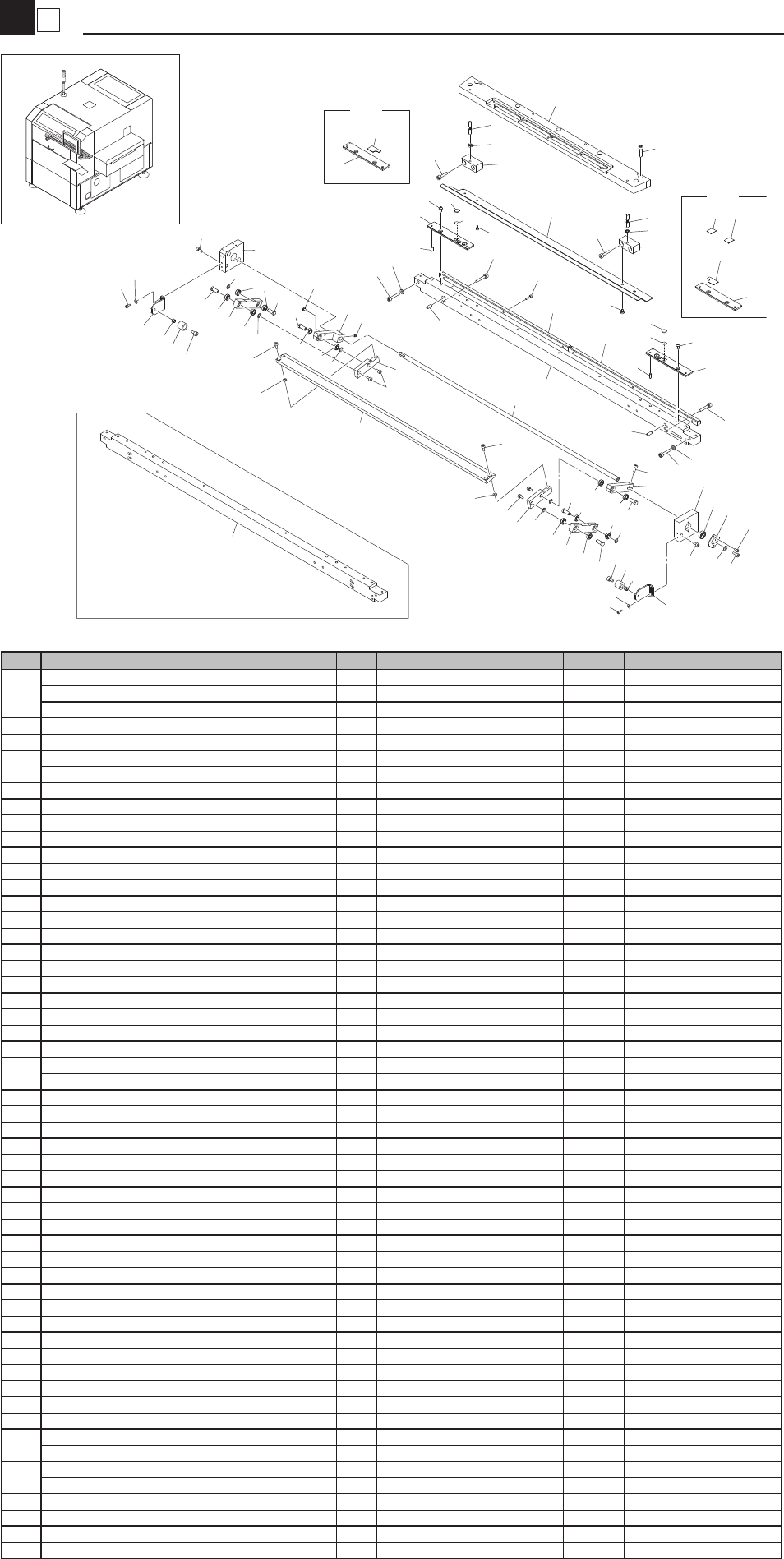

Main F - Frame / ARM
Conveyor
KHT-1102
32
14
21
23
36
41
35
5
20
25
26
20
20
26
9
26
25
35
24
26
26
25
40
8
30
12
38
39
45
3
1
1
3
19
29
38
31
31
44
28
48
39
38
15
33
37
37
17
37
43
17
2
43
16
16
49
28
29
15
38
35
20
26
26
26
26
20
25
35
7
6
27
18
42
31
35
14
35
36
23
21
32
41
34
11
25
26
9
26
20
24
13
10
34
OLD
22
22
OLD
4
46
47
OLD
4
46
47
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M9121-02 FRAME,FRONT 1 NG MH10026-2011/1/25
KHT-M9121-01 FRAME,FRONT 1 OK MGX0086-2010/11/22
KHT-M9121-00 FRAME,FRONT 1
2 KHT-M9122-00 MAIN CONV. PLATE 1
3 KHT-M9125-00 GUIDE,W BELT 2
4
Delete MK00097-2014/1/20
KHT-M9126-00 CONV. PLATE 2 2
5 KHT-M9131-00 LEG 1 1
6 KHT-M9131-10 LEG 2 1
7 KHT-M9132-00 ARM 1 1
8 KHT-M9132-50 ARM 2 1
9 KHT-M9133-00 ARM 4 2
10 KHT-M9134-00 BAR L 1
11 KHT-M9134-50 BAR R 1
12 KHT-M9135-00 SHAFT 1
13 KHT-M9136-00 PLATE 1 1
14 KHT-M9138-00 BRKT STOPPER 2
15 92902-05600 WASHER PLAIN 2
16 KHT-M9182-00 STAY ADJUST BOLT 2
17 KHT-M9183-00 ADJUST BOLT 2
18 KHT-M9184-00 BRKT BRG 1
19 KHT-M9185-00 COVER GUIDE 1
20 KHT-M9187-00 PIN 1 6
21 KHT-M7531-00 COLLAR 2
22
Delete MJ30181-2012/4/13
KGJ-M9141-00 TAPE,CONV. 2
23 KGY-M9115-00 DAMPER 2,W 2
24 90990-29J020 SHIM 4
25 90990-29J055 SHIM 6
26 90933-02J126 BEARING 12
27 90933-02J688 BEARING 1
28 99480-04010 PIN PARALLEL 4 M4X10
29 99480-05012 PIN,PARALLEL 4 M5X12
30 90152-04J04 SCREW,SET 1 M4X4
31 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
32 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
33 91312-03012 BOLT,HEX.SOCKET HEAD 5 M3X12
34 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
35 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
36 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
37 91312-05020 BOLT HEX.SOCKET HEAD 9 M5X20
38 91312-05025 BOLT HEX.SOCKET HEAD 10 M5X25
39 92012-04008 BOLT,BUTTON HEAD 8 M4X8
40 97002-04008 BOLT,HEXAGON 1 M4X8
41 92902-03200 WASHER PLAIN 6
42 92902-04200 WASHER PLAIN 1
43 95302-05700 NUT HEXAGON 2
44
Delete MK00097-2014/1/20
KHT-M914E-00 TAPE-1,CONV. 1 MJ30181-2012/4/13
45
Delete MK00097-2014/1/20
KHT-M914E-10 TAPE-2,CONV. 1 MJ30181-2012/4/13
46 KHT-M912B-00 TAPE,CONVEYOR 2 NG MK00097-2014/1/20
47 KHT-M912C-00 STOPPER,FLAP 2 NG MK00097-2014/1/20
48 KHT-M912D-00 PLATE 1,CONVEYOR 1 NG MK00097-2014/1/20
49 KHT-M912E-00 PLATE 2,CONVEYOR 1 NG MK00097-2014/1/20
4
8

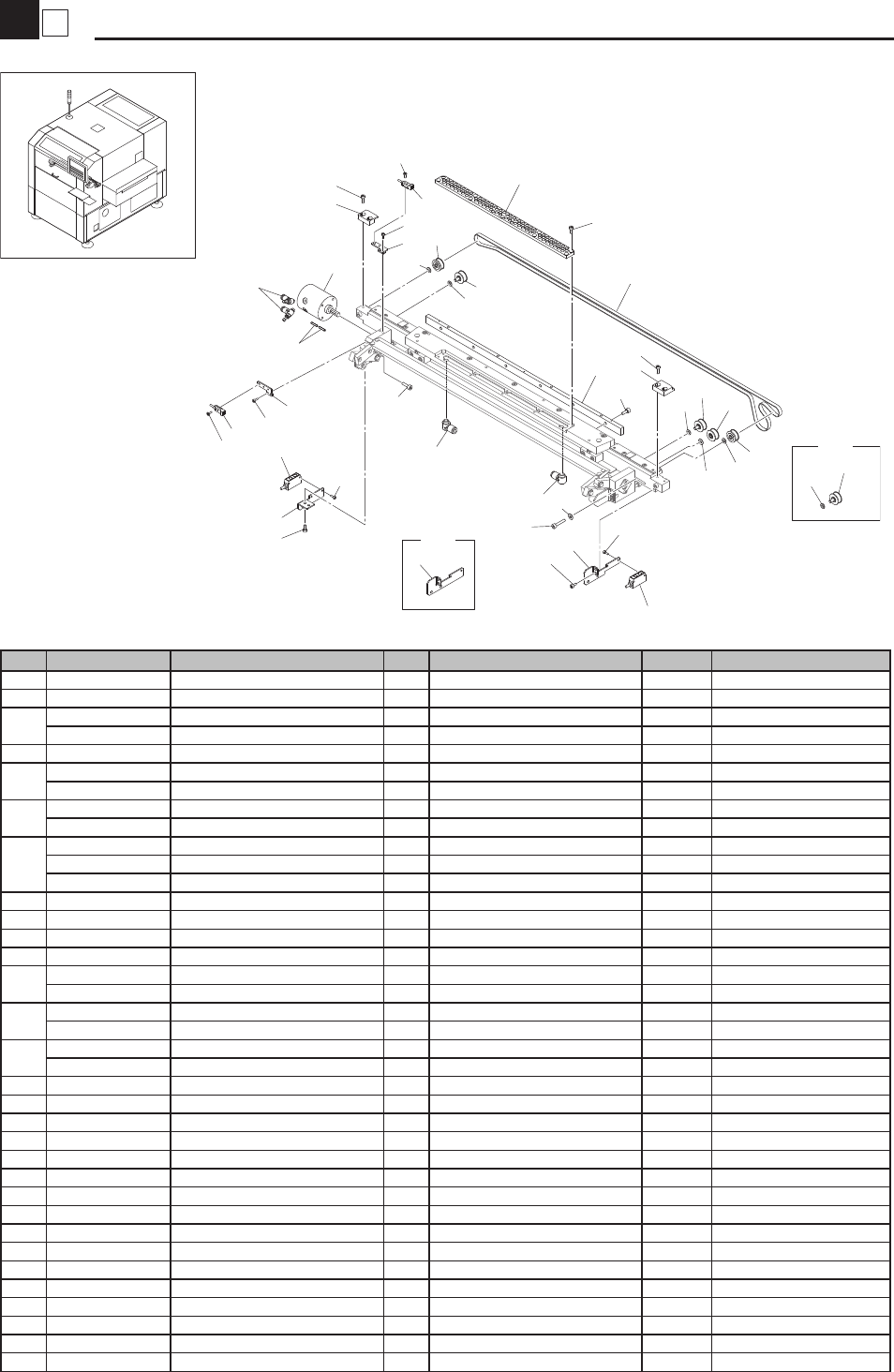

Main F - Belt / Sensor / CYL / Edge / V.Plate
Conveyor
KHT-1102
25
12
16
6
20
18
17
23
17
4
21
10
7
3
20
2
1
22
7>28
7
5
5
OLD
OLD
18
19
30
29
11
21
8
25
9
15
10
25
25
25>29
7
25
27
26
26
27
24
13
14
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9123-00 CONV. EDGE PLATE 1
2 KHT-M9124-00 VACUUM PLATE 1
3
KHT-M9127-02 TRANSFER BELT W2 1 W=1745mm NG MH10026-2010/1/25
KHT-M9127-01 TRANSFER BELT W2 1 W=1672mm
4 KHT-M9137-00 ROTARY AC. 1
5
KHT-M9172-01 STAY SENSOR,R 1 NG MG00037-2010/10/29
KHT-M9172-00 STAY SENSOR,R 1
6
KHT-M9172-51 STAY SENSOR,L 1 OK MGX0086-2010/11/22
KHT-M9172-50 STAY SENSOR,L 1
7
KV1-M9140-A0 PULLEY CONV.ASSY. 2 NG MH10026-2011/1/25
KHT-M9140-A0 PULLEY CONV.ASSY. 3 OK MG00037-2010/10/29
KV1-M9140-A0 PULLEY CONV.ASSY. 3
8 KGJ-M9118-00 GUIDE 1,END 1
9 KGJ-M9119-00 GUIDE 2,END 1
10 KGS-M9140-A0 PULLEY CONV.ASSY. 2
11 KHT-M6529-B0 SENSOR CONV2 R ASSY 1
12
KHT-M6529-C2 SENSOR CONV2 L ASSY 1 L=190mm NG MF50150-2009/5/29
KHT-M6529-C1 SENSOR CONV2 L ASSY 1 L=180mm
13
KHT-M6524-B2 SENS. FLAP F-H ASSY 1 L=250mm NG MF50150-2009/5/29
KHT-M6524-B1 SENS. FLAP F-H ASSY 1 L=240mm
14
KHT-M6524-C2 SENS. FLAP F-L ASSY 1 L=210mm NG MF50150-2009/5/29
KHT-M6524-C1 SENS. FLAP F-L ASSY 1 L=150mm
15 91B00-03616 KEY, STRAIGHT 2
16 $SC4-M5A SPEED CONTROLLER 2
17 $SLH6-01 JOINT 2
18 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
19 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
20 91312-04010 BOLT HEX.SOCKET HEAD 12 M4X10
21 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
22 91312-05012 BOLT HEX.SOCKET HEAD 6 M5X12
23 91312-05016 BOLT HEX.SOCKET HEAD 2 M5X16
24 98902-03008 SCREW BINDING HEAD 2 M3X8
25 92902-05600 WASHER PLAIN 5 Ø 10
26 KHT-M9139-00 BRKT.,SENSOR 2
27 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X6
28 KV7-M9140-A0 PULLEY CONV.ASSY. 1 NG MH10026-2011/1/25
29 92902-05200 WASHER PLAIN 2 Ø 12 NG MH10026-2011/1/25
30 91312-05025 BOLT HEX.SOCKET HEAD 1 M5X25 MH10026-2011/1/25
