6 8 Main R - Belt / Sensor / CYL / Edge / V .Plate Conveyor KHT -1301 1 1 5 6 29 32 28 21 5 29 6 7 4 23 25 34 8 3 22 8 25 36 8 35 2 1 27 25 26 27 26 30 25 10 18 19 20 14 21 30 20 7 23 34 25 33 9 33 17 12 33 17 9 24 1…
5
8

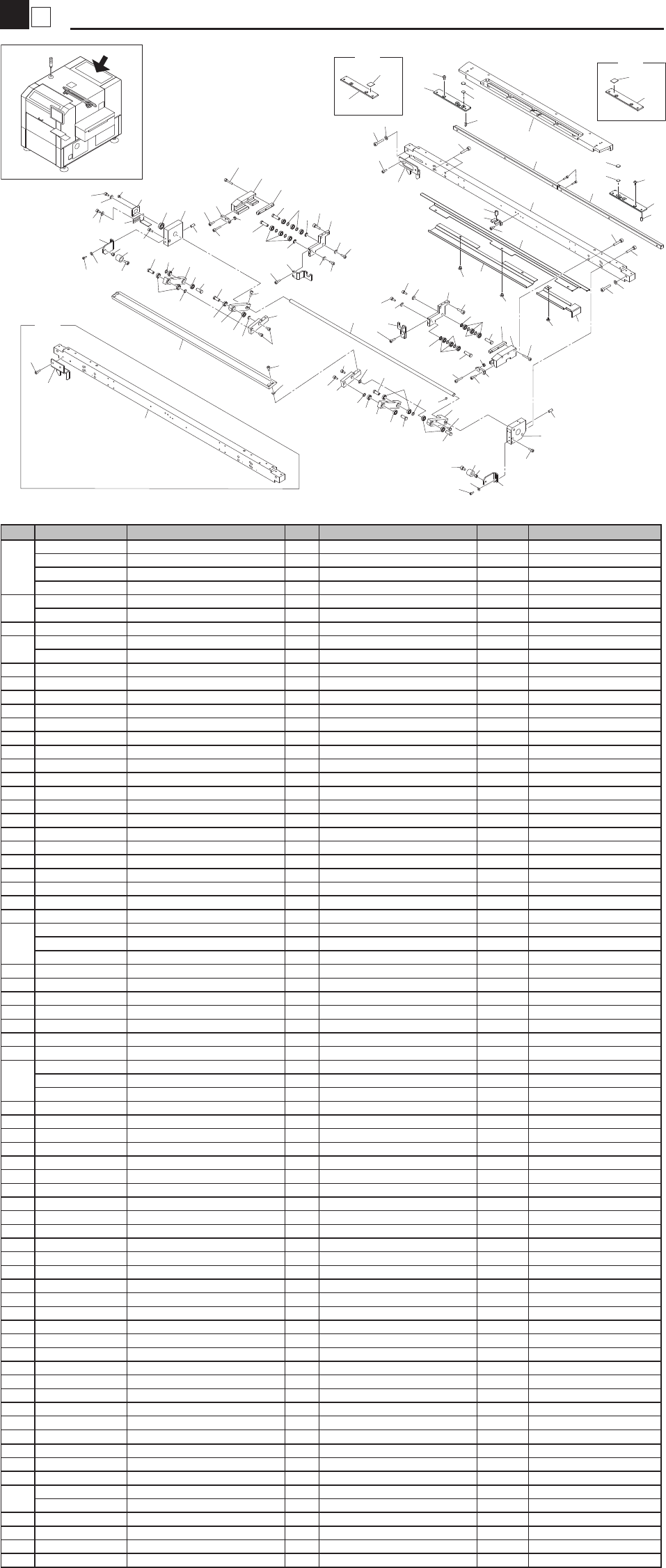

Main R - Frame / ARM
Conveyor
KHT-1301
45
29
46
15
53
41
30
14
31
49
6
33
40
39
40
9
40
33
33
4
7
40
39
49
10
48
48
11
39
40
9
40
33
33
53
15
46
31
30
14
40
48
39
33
39
56
8
58
12
49
5
20
52
19
16
34
50
51
60
37
34
40
37
49
23
49
22
50
23
49
17
25
1
1
3261
42
57
64
3
3
57
65
42
32
2
47
55
49
24
49
24
43
43
36
55
48
44
35
55
55
36
55
26
27
59
59
59
40
54
37
34
16
18
20
50
52
37
34
51
60
39
49
23
23
21
50
17
54
40
40
38
48
39
13
48
23
48
23
28
39
39
OLD
Be careful about the exploded view directions
OLD
OLD
4
63
62
4
63
62
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M9121-53 FRAME,REAR 1 OK MJ40021-2012/4/27
KHT-M9121-52 FRAME,REAR 1 NG MGX0086-2010/11/22
KHT-M9121-51 FRAME,REAR 1 OK MG00037-2010/10/29
KHT-M9121-50 FRAME,REAR 1
2
KHT-M9122-51 PLATE,EDGE CLAMP 1 Through-bore addition NG MJ40021-2012/4/27
KHT-M9122-50 PLATE,EDGE CLAMP 1
3 KHT-M9125-00 GUIDE,W BELT 2
4
Delete MK00097-2014/1/20
KHT-M9126-00 CONV. PLATE 2 2
5 KHT-M9131-20 LEG 1 1
6 KHT-M9131-30 LEG 2 1
7 KHT-M9132-00 ARM 1 1
8 KHT-M9132-60 ARM 3 1
9 KHT-M9133-00 ARM 4 2
10 KHT-M9134-00 BAR L 1
11 KHT-M9134-50 BAR R 1
12 KHT-M9135-50 SHAFT 1
13 KHT-M9136-50 PLATE 1 1
14 KHT-M9138-00 BRKT STOPPER 2
15 92902-03200 WASHER PLAIN 4
16 KHT-M9141-00 RAIL 1 2
17 KHT-M9142-00 PLATE,GUIDE 2
18 KHT-M9143-00 RAIL 2R 1
19 KHT-M9143-50 RAIL 2L 1
20 KHT-M9144-00 PLATE,STOPER 2
21 KHT-M9148-00 PLATE L,CYL. 1
22 KHT-M9148-50 PLATE R,CYL. 1
23 92902-04200 WASHER PLAIN 7
24
KHT-M9151-02 GUIDE,PULLEY 1 Long Hole NG MH10026-2011/1/25
KHT-M9151-01 GUIDE,PULLEY 1 2-Ø4.5 NG MG00037-2010/10/29
KHT-M9151-00 GUIDE,PULLEY 1 3-Ø4.5
25 KHT-M9152-00 GUARD PLATE, W 1
26 KHT-M9153-00 GUARD PLATE, W 2 1
27 KHT-M9154-00 GUARD PLATE, W 3 1
28 KHT-M9173-00 DOG W 1
29 KHT-M9184-00 BRKT BRG 1
30 KHT-M7531-00 COLLAR 2
31 KGY-M9115-00 DAMPER 2,W 2
32
Delete MK00097-2014/1/20
KHT-M914E-00 TAPE-1,CONV. 1 MJ30181-2012/4/3
KGJ-M9141-00 TAPE,CONV. 2
33 KHT-M9187-00 PIN 1 6
34 KGJ-M925A-00 PIN 1 4
35 KW3-M923H-00 BRACKET,PIN 1
36 92902-05600 WASHER PLAIN 2
37 90990-28J087 WASHER,PLAIN 4
38 90990-29J020 SHIM 4
39 90990-29J055 SHIM 14
40 90933-02J126 BEARING 24
41 90933-02J688 BEARING 1
42 99480-04010 PIN PARALLEL 4 M4X10
43 99480-05012 PIN,PARALLEL 4 M5X12
44 99480-06014 PIN,PARALLEL 1 M6X14
45 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
46 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
47 91312-03012 BOLT,HEX.SOCKET HEAD 5 M3X12
48 91312-04008 BOLT HEX.SOCKET HEAD 9 M4X8
49 91312-04010 BOLT HEX.SOCKET HEAD 11 M4X10
50 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
51 91312-04020 BOLT HEX.SOCKET HEAD 2 M4X20
52 91312-04022 BOLT HEX.SOCKET HEAD 6 M4X22
53 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
54 91312-05016 BOLT HEX.SOCKET HEAD 4 M5X16
55 91312-05025 BOLT HEX.SOCKET HEAD 10 M5X25
56 90152-04J04 SCREW,SET M4X4 1
57
92012-04008 BOLT,BUTTON HEAD
8
58 97002-04008 BOLT,HEXAGON 1
59 98902-04006 SCREW BINDING HEAD 7
60 95302-04600 NUT HEXAGON 2
61
Delete MK00097-2014/1/20
KHT-M914E-10 TAPE-2,CONV. 1 MJ30181-2012/4/3
62 KHT-M912B-00 TAPE,CONVEYOR 2 NG MK00097-2014/1/20
63 KHT-M912C-00 STOPPER,FLAP 2 NG MK00097-2014/1/20
64 KHT-M912D-00 PLATE 1,CONVEYOR 1 NG MK00097-2014/1/20
65 KHT-M912E-00 PLATE 2,CONVEYOR 1 NG MK00097-2014/1/20
6
8
Main R - Belt / Sensor / CYL / Edge / V.Plate
Conveyor
KHT-1301
11
5
6
29
32
28
21
5
29
6
7
4
23
25
34
8
3
22
8
2536
835
2
1
27
25
26
27
26
30
25
10
18
19
20
14
21
30
20
7
23
34
25
33
9
33
17
12
33
17
9
24
15
31
31
16
38
39
37
36
Be careful about the exploded view directions
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9123-00 CONV. EDGE PLATE 1
2 KHT-M9124-00 VACUUM PLATE 1
3
KHT-M9127-02 TRANSFER BELT W2 1 L=1745mm NG MH10026-2011/1/25
KHT-M9127-01 TRANSFER BELT W2 1 L=1672mm
4 KHT-M9137-00 ROTARY AC. 1
5 KHT-M9145-00 CYL.EDG 2
6 KHT-M9146-00 WASHER,CYL.ROD 2
7 KHT-M9147-00 SPACER,CYL.ROD 2
8
KV1-M9140-A0 PULLEY CONV.ASSY. 2 OK MH10026-2011/1/25
KHT-M9140-A0 PULLEY CONV.ASSY. 2 OK MG00037-2010/10/29
KV1-M9140-A0 PULLEY CONV.ASSY. 1
9 KHT-M9139-00 BRKT.,SENSOR 2
10 KGJ-M9118-00 GUIDE 1,END 1
11 KGJ-M9119-00 GUIDE 2,END 1
12
KHT-M9149-02 DOG,EDGE CLAMP 1 OK MH40038-2011/4/22
KHT-M9149-01 DOG,EDGE CLAMP 1
13
14 KHT-M6521-Y0 SENSOR E. CLAMP ASSY 1
15 KHT-M6524-E0 SENS. FLAP R-L ASSY 1
16 KHT-M6524-D0 SENS. FLAP R-H ASSY 1
17 $SL4-M5 JOINT 2
18 91B00-03616 KEY, STRAIGHT 2
19 $SC4-M5A SPEED CONTROLLER 2
20 $TSH4-M5M JOINT 4
21 $UY4 JOINT 3
22 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
23 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
24 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
25 92902-05600 WASHER PLAIN 5 Ø 10
26 $NK-2N NYLON CLIP 5
27 90990-11J003 SCREW,PAN HEAD W/W 5
28 91312-03016 BOLT,HEX.SOCKET HEAD 1 M3X16
29 91312-03025 BOLT,HEX.SOCKET HEAD 9 M3X25
30 91312-05012 BOLT HEX.SOCKET HEAD 6 M5X12
31 98902-03008 SCREW BINDING HEAD 2 M3X8
32
98502-03010 SCREW PAN HEAD (+) 4 M3X10 OK MJ40021-2012/4/27
98502-03008 SCREW PAN HEAD (+) 2 M3X8
33
91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8 OK MJ40021-2012/4/27
91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
34 KGS-M9140-A0 PULLEY CONV.ASSY. 2
35 KV7-M9140-A0 PULLEY CONV.ASSY. 1 NG MH10026-2011/1/25
36 92902-05200 WASHER PLAIN 2 Ø 12 NG MH10026-2011/1/25
37 91312-05025 BOLT HEX.SOCKET HEAD 1 M5X25 MH10026-2011/1/25
38 KHT-M9149-50 DOG,EDGE CLAMP FWD 1 MJ40021-2012/4/27
39 KHT-M6521-G0 SENSOR E,C,FWD ASSY 1 MJ40021-2012/4/27
7
8
Main Duct Assy
Conveyor
KHT-0906
2
14
12
11
1
5
10
32
13
12
7
9
32
6
8
4
3
4
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9118-00 BRKT.,DUCT 1
2 KHT-M9117-00 DUCT,CABLE 1
3 KHT-M911A-00 TAPE 1,W DUCT 1
4 KHT-M911B-00 TAPE 2,W DUCT 1
5 KHT-M9120-00 BRKT.,CABLE DUCT 1
6 KHT-M9155-00 BRKT.,HARNESS 1
7 KHT-M9156-00 COVER,HARNESS 1
8 98702-03006 SCREW FLAT HEAD 4 M3X6
9 98902-04006 SCREW BINDING HEAD 4 M4X6
10 91312-04008 BOLT HEX.SOCKET HEAD 5 M4X8
11 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
12 $NK-2N NYLON CLIP 11
13 90990-11J001 SCREW PAN HEAD 7
14 90990-11J003 SCREW,PAN HEAD W/W 4
