7 8 Main Duct Assy Conveyor KHT -0906 2 14 12 1 1 1 5 10 32 13 12 7 9 32 6 8 4 3 4 3 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHT -M9118-00 BRKT .,DUCT 1 2 KHT -M9117-00 DUCT ,CABLE 1 3 KHT -…
6
8

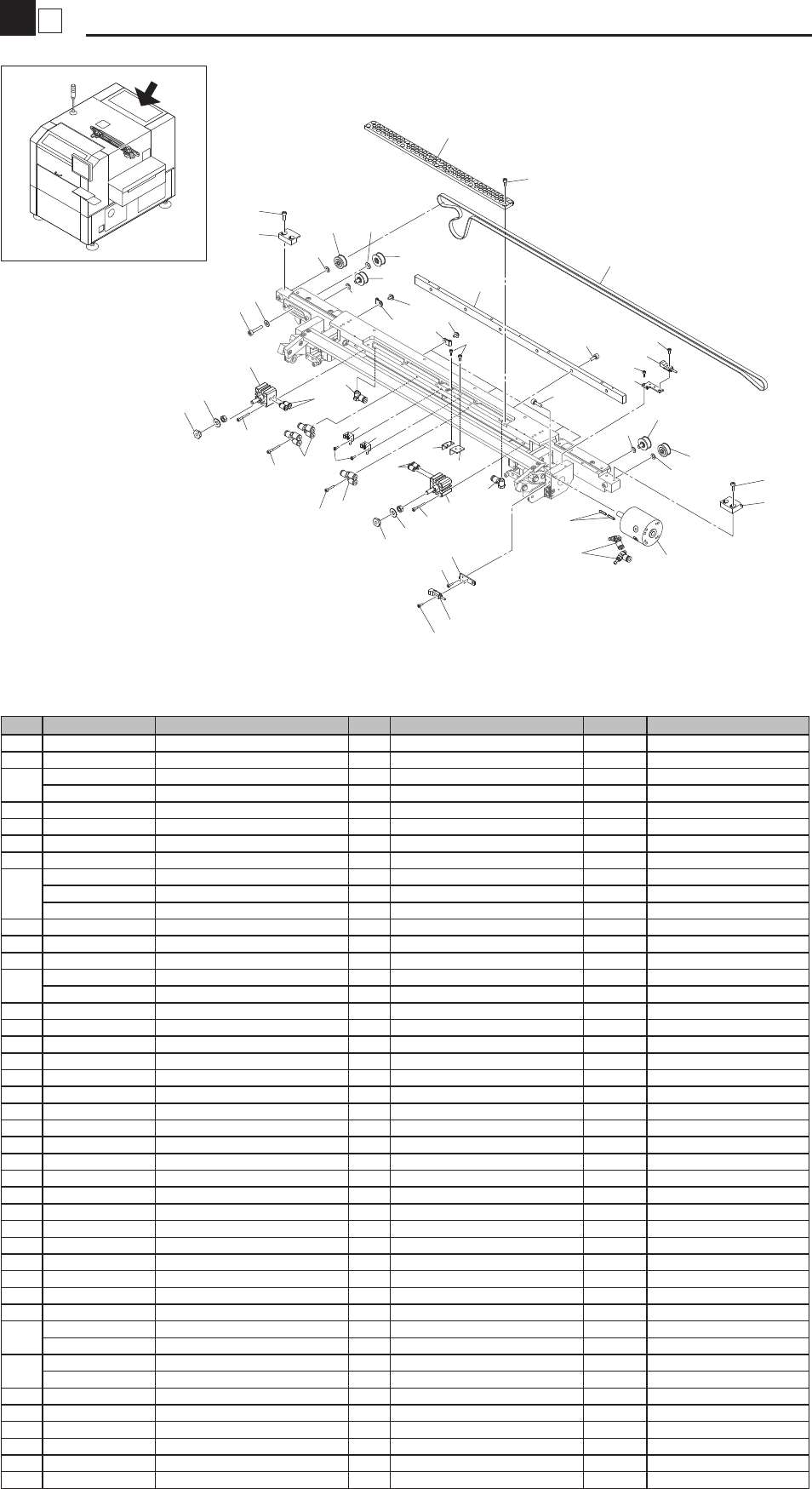

Main R - Belt / Sensor / CYL / Edge / V.Plate
Conveyor
KHT-1301
11
5
6
29
32
28
21
5
29
6
7
4
23
25
34
8
3
22
8
2536
835
2
1
27
25
26
27
26
30
25
10
18
19
20
14
21
30
20
7
23
34
25
33
9
33
17
12
33
17
9
24
15
31
31
16
38
39
37
36
Be careful about the exploded view directions
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9123-00 CONV. EDGE PLATE 1
2 KHT-M9124-00 VACUUM PLATE 1
3
KHT-M9127-02 TRANSFER BELT W2 1 L=1745mm NG MH10026-2011/1/25
KHT-M9127-01 TRANSFER BELT W2 1 L=1672mm
4 KHT-M9137-00 ROTARY AC. 1
5 KHT-M9145-00 CYL.EDG 2
6 KHT-M9146-00 WASHER,CYL.ROD 2
7 KHT-M9147-00 SPACER,CYL.ROD 2
8
KV1-M9140-A0 PULLEY CONV.ASSY. 2 OK MH10026-2011/1/25
KHT-M9140-A0 PULLEY CONV.ASSY. 2 OK MG00037-2010/10/29
KV1-M9140-A0 PULLEY CONV.ASSY. 1
9 KHT-M9139-00 BRKT.,SENSOR 2
10 KGJ-M9118-00 GUIDE 1,END 1
11 KGJ-M9119-00 GUIDE 2,END 1
12
KHT-M9149-02 DOG,EDGE CLAMP 1 OK MH40038-2011/4/22
KHT-M9149-01 DOG,EDGE CLAMP 1
13
14 KHT-M6521-Y0 SENSOR E. CLAMP ASSY 1
15 KHT-M6524-E0 SENS. FLAP R-L ASSY 1
16 KHT-M6524-D0 SENS. FLAP R-H ASSY 1
17 $SL4-M5 JOINT 2
18 91B00-03616 KEY, STRAIGHT 2
19 $SC4-M5A SPEED CONTROLLER 2
20 $TSH4-M5M JOINT 4
21 $UY4 JOINT 3
22 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
23 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
24 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
25 92902-05600 WASHER PLAIN 5 Ø 10
26 $NK-2N NYLON CLIP 5
27 90990-11J003 SCREW,PAN HEAD W/W 5
28 91312-03016 BOLT,HEX.SOCKET HEAD 1 M3X16
29 91312-03025 BOLT,HEX.SOCKET HEAD 9 M3X25
30 91312-05012 BOLT HEX.SOCKET HEAD 6 M5X12
31 98902-03008 SCREW BINDING HEAD 2 M3X8
32
98502-03010 SCREW PAN HEAD (+) 4 M3X10 OK MJ40021-2012/4/27
98502-03008 SCREW PAN HEAD (+) 2 M3X8
33
91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8 OK MJ40021-2012/4/27
91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
34 KGS-M9140-A0 PULLEY CONV.ASSY. 2
35 KV7-M9140-A0 PULLEY CONV.ASSY. 1 NG MH10026-2011/1/25
36 92902-05200 WASHER PLAIN 2 Ø 12 NG MH10026-2011/1/25
37 91312-05025 BOLT HEX.SOCKET HEAD 1 M5X25 MH10026-2011/1/25
38 KHT-M9149-50 DOG,EDGE CLAMP FWD 1 MJ40021-2012/4/27
39 KHT-M6521-G0 SENSOR E,C,FWD ASSY 1 MJ40021-2012/4/27
7
8

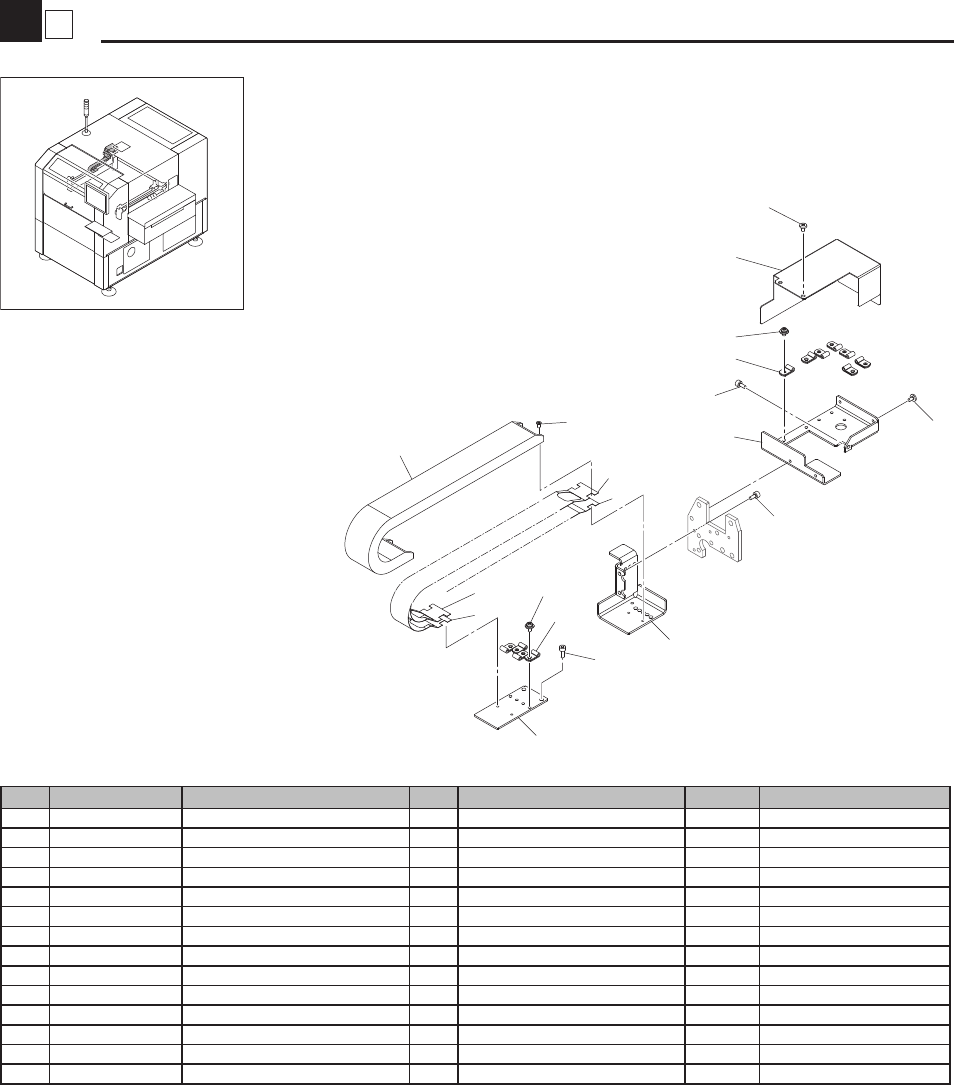

Main Duct Assy
Conveyor
KHT-0906
2
14
12
11
1
5
10
32
13
12
7
9
32
6
8
4
3
4
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9118-00 BRKT.,DUCT 1
2 KHT-M9117-00 DUCT,CABLE 1
3 KHT-M911A-00 TAPE 1,W DUCT 1
4 KHT-M911B-00 TAPE 2,W DUCT 1
5 KHT-M9120-00 BRKT.,CABLE DUCT 1
6 KHT-M9155-00 BRKT.,HARNESS 1
7 KHT-M9156-00 COVER,HARNESS 1
8 98702-03006 SCREW FLAT HEAD 4 M3X6
9 98902-04006 SCREW BINDING HEAD 4 M4X6
10 91312-04008 BOLT HEX.SOCKET HEAD 5 M4X8
11 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
12 $NK-2N NYLON CLIP 11
13 90990-11J001 SCREW PAN HEAD 7
14 90990-11J003 SCREW,PAN HEAD W/W 4
8
8

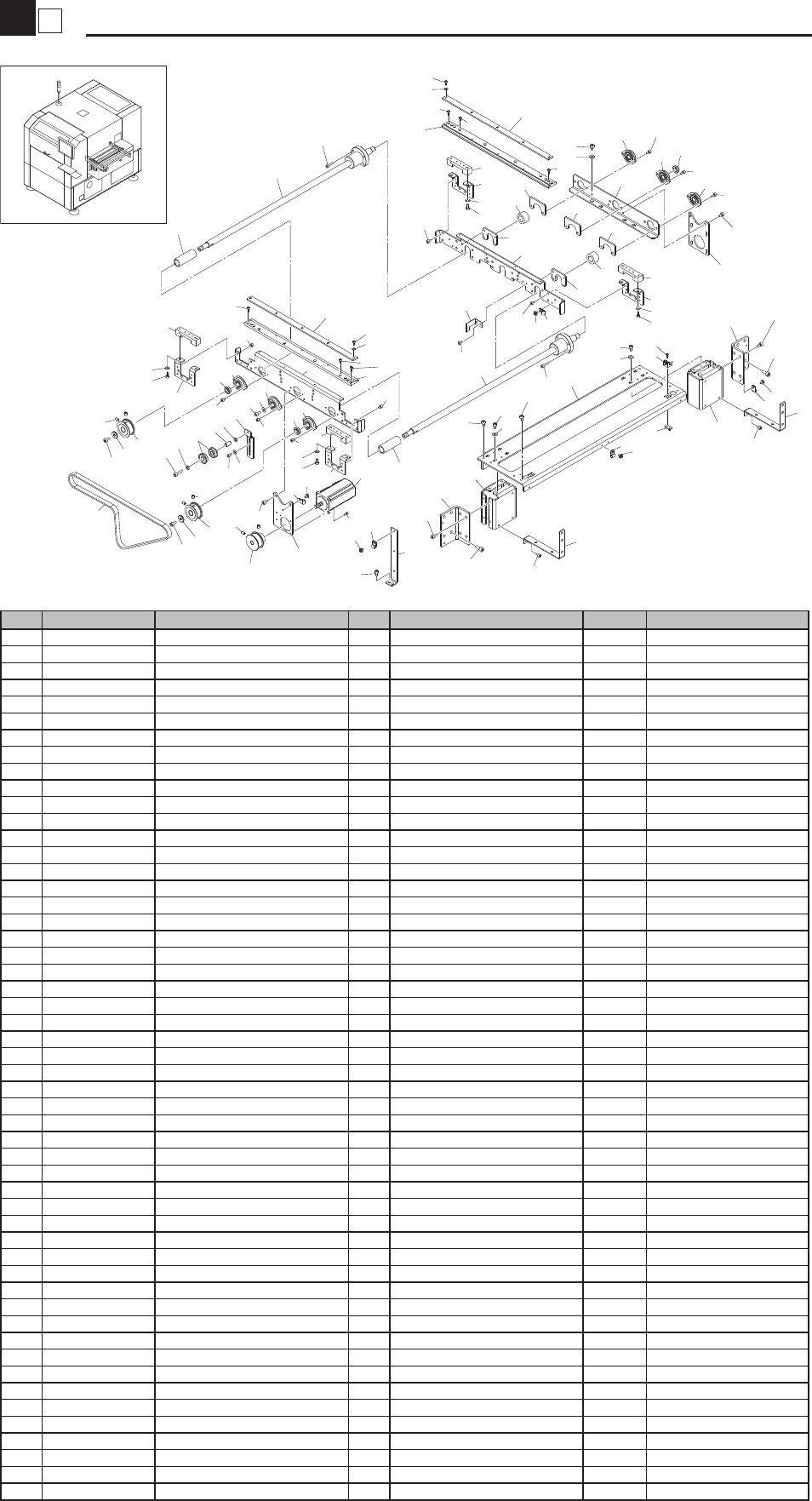

ENT Width
Conveyor
KHT-0906
36
26
24
16
35
9
24
26
29
31
37
33
40
42
25
21
42
10
36
41
23
32
23
27
32
32
27
23
7
31
39
30
6
3
20
36
38
13
15
35
35
41
35
34
1
26
24
12
41
35
43
44
15
24
26
38
36
14
24
26
18
32
11
19
22
4
19
22
17
17
17
8
35
33
23
33
27
23
33
23
5
35
41
7
31
39
30
6
34
18
20
32
48
48
32
45
2
46
33
30
28
33
46
45
47
47
51
40
50
32
49
50
51
40
32
49
49
50
40
51
32
49
50
40
51
32
52
52
52
52
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9301-02 FRAME 1 1
2 KHT-M9318-00 BELT(633-3GT-9) 1
3 KHT-M9302-02 PLATE 1,CONV. 1
4 KHT-M9303-02 PLATE 2,CONV. 1
5 KHT-M9304-02 PLATE 3,CONV. 1
6 KHT-M9305-02 GUIDE 1 2
7 KHT-M9306-01 GUIDE 1-1 2
8 KHT-M9315-00 BRKT.,CONV.MOTOR 1
9 KHT-M9316-00 BRKT.,MOTOR W 1
10 KHT-M9317-00 PLATE,TENSION IDLER 1
11 KHT-M9321-00 DOG,W.ORG 1
12 KHT-M9322-00 PLATE,NUT 1
13 KHT-M9331-01 STAND 1 1
14 KHT-M9331-51 STAND 2 1
15 KHT-M9332-01 STAND 3 2
16 KHT-M9333-00 BRKT.,DUCT 1
17 KHT-M9334-00 PLATE,NUT 3
18 KHT-M9A00-00 BALL SCREW,WF 2
19 KV1-M910C-00 NUT,PLATE 2
20 KV1-M9119-00 DAMPER 2,W 2
21 90990-41J057 COLLAR 1
22 KGY-M9321-00 DAMPER 1,W 2
23 KH2-M9121-00 BEARING 6
24 $NK-2N NYLON CLIP 3
25 90933-03J608 BEARING 2
26 90990-11J003 SCREW,PAN HEAD W/W 6
27 90990-41J106 COLLAR 3
28 KG7-M9113-01 PULLEY 3 1
29 90K63-001506 AC SERVO MOTOR 1
30 91312-03006 BOLT HEX.SOCKET HEAD 8 M3X6
31 91312-03008 BOLT HEX.SOCKET HEAD 14 M3X8
32 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
33 91312-04008 BOLT HEX.SOCKET HEAD 9 M4X8
34 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
35 91312-05008 BOLT HEX.SOCKET HEAD 22 M5X8
36 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
37 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
38 91312-06014 BOLT HEX.SOCKET HEAD 8 M6X14
39 92902-03200 WASHER PLAIN 10
40 92902-04200 WASHER PLAIN 12
41 92902-05200 WASHER PLAIN 13
42 92902-05600 WASHER PLAIN 2
43 98502-03010 SCREW PAN HEAD (+) 2 M3X10
44 KHT-M6521-N0 SENSOR W ORG ASSY 1
45 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
46 90990-28J070 WASHER,PLAIN 2
47 92A08-04306 SET SCREW 6 M4X6
48 KHT-M9327-00 BRKT.,HNS. 2
49 KHT-M9341-00 PLATE,PULLY CONV. 4
50 KHT-M9342-00 STAY 4
51 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
52 91312-03010 BOLT HEX.SOCKET HEAD 12 M3X10
