KHT_YSP_PL - 第50页
10 8 EXT Width Conveyor KHT -1301 32 48 36 26 24 16 35 9 24 26 29 31 37 33 40 42 25 21 42 10 36 41 23 32 23 27 32 32 27 23 7 31 39 30 6 3 20 36 38 14 15 36 41 36 41 34 1 26 24 12 41 36 43 44 15 13 24 26 18 32 1 1 19 22 4…

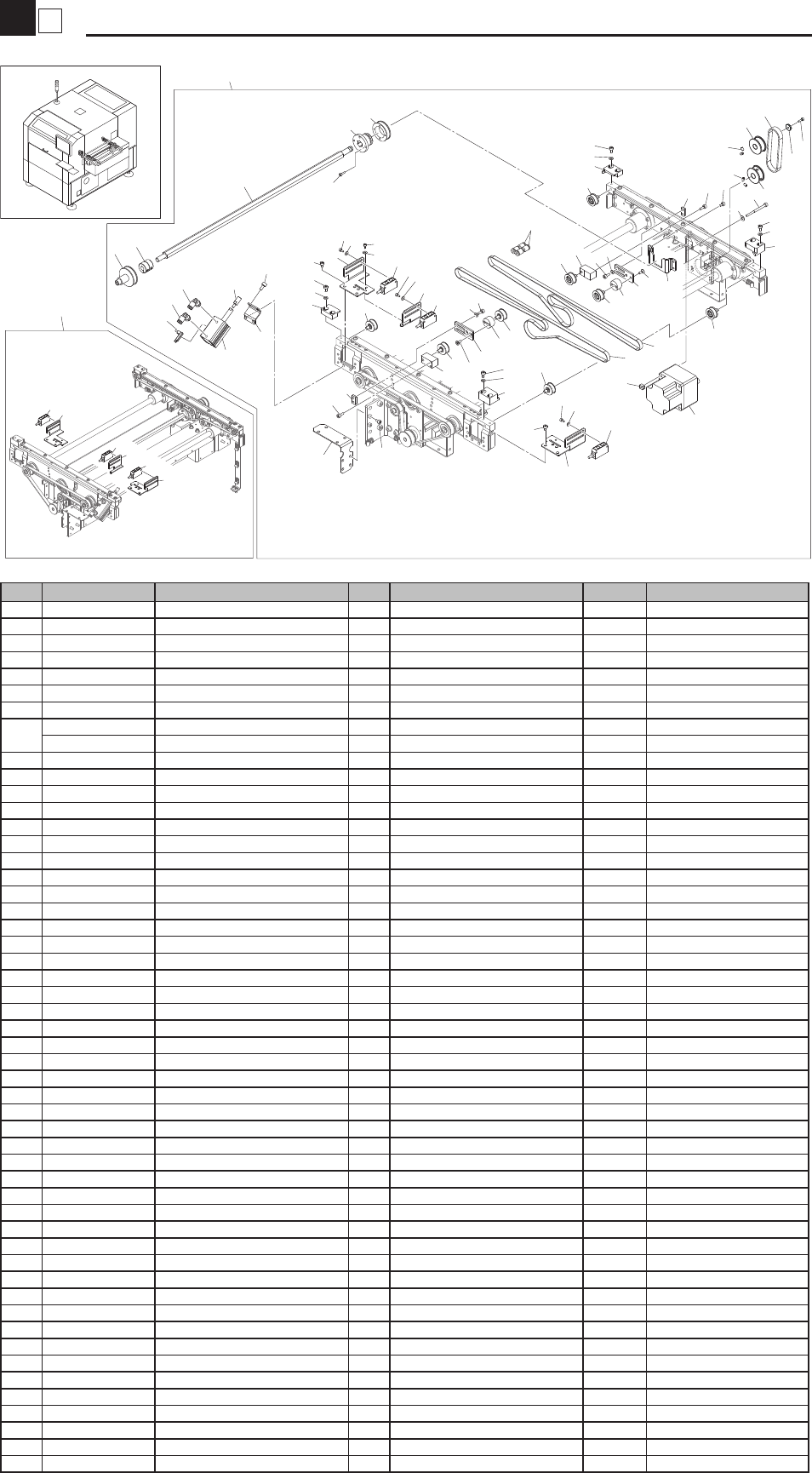

9
8
ENT Transport
Conveyor
KHT-1301
1
RF,LR
2
LF,RR
5
6
9
21
19
23
24
23
46
29
27
14
30
30
9
42
41
41
35
34
22
20
13
8
11
7
31
26
12
33
28
15
49
4
14
25
3
27
48
12
5
27
32
10
4
25
14
3
48
27
14
10
43
45
37
44
39
38
40
12
12
28
25
17
43
43
45
45
43
45
16
28
22
28
18
22
25
25
25
22
32
39
47
38
31
37
36
50
51
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M93A0-A0 ENT CONV ASSY.-RF,LR 1
2 KHT-M93A0-B0 ENT CONV ASSY.-LF,RR 1
3 KHT-M9309-A0 PLATE TENSION,PULLY 1
4 KHT-M9309-B0 BASE TENSION,PULLY 1
5 KHT-M9309-01 PLATE,PULLY CONV. 4
6 KHT-M9310-02 BRKT.,COLLAR 1
7
KHT-M9311-00 PULLEY 1,MOTOR
1
8
KHT-M9312-01 SPLINE 1 OK MKY0035-2013/12/20
KHT-M9312-00 SPLINE 1
9 KHT-M9314-01 TRANSFER BELT W1 2
10 KHT-M9309-C0 NUT PLATE 1
11 KHT-M9113-00 COUPLING 1
12 KV1-M9140-A0 PULLEY CONV.ASSY. 4
13 KG2-M9108-11 COLLAR,CONVEYOR 1
14 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
15 KGA-M9113-00 GUIDE 1,END 1
16 KGA-M9114-00 GUIDE 2,END 1
17 KGJ-M9118-00 GUIDE 1,END 1
18 KGJ-M9119-00 GUIDE 2,END 1
19 KGK-M9170-00 DC MOTOR ASSY 1
20 KGT-M9135-00 PULLEY 1,SPLINE 1
21 KGT-M9193-00 NUT PLATE 4
22 KGY-M9140-A0 PULLEY,CONV. ASSY 4
23 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
24 KGT-M910A-00 BELT(231-3GT-9) 1
25 92902-04600 WASHER PLAIN 12
26 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
27 91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
28 91312-04012 BOLT HEX.SOCKET HEAD 8 M4X12
29 91312-04050 BOLT HEX.SOCKET HEAD 4 M4X50
30 92A08-04306 SET SCREW 4 M4X6
31 KHT-M9323-01 BRKT 1,SENSOR 1
32 KHT-M9323-51 BRKT 2,SENSOR 1
33 KHT-M6526-J0 SENS. ENT-ST ASSY 1
34 KHT-M9381-01 PLATE,STOPPER 1
35 KHT-M9382-00 STOPPER 1
36 KHT-M9384-01 CYLINDER 1
37 KHT-M6528-A0 SENS. CV1R CV3L ASSY 1
38 KHT-M6528-B0 SENS. FIX CV. M ASSY 1
39 KHT-M6529-A0 SENS. CV1L CV3R ASSY 1
40 KHT-M9325-10 BRKT.,SENSOR 1 RF,LR
41 $TL4-M5 JOINT 2
42 $US4 JOINT 2
43 91312-03006 BOLT HEX.SOCKET HEAD 11 M3X6
44 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
45 92902-03200 WASHER PLAIN 11
46 92902-05200 WASHER PLAIN 4
47 KHT-M9325-00 BRKT.,SENSOR 1 LF,RR
48 98702-04010 SCREW FLAT HEAD 4
49 KHT-M9328-00 BRKT.,HNS. 1
50 90990-28J018 WASHER,PLAIN 1 MKY0035-2013/12/20
51 91312-04012 BOLT HEX.SOCKET HEAD 1 MKY0035-2013/12/20

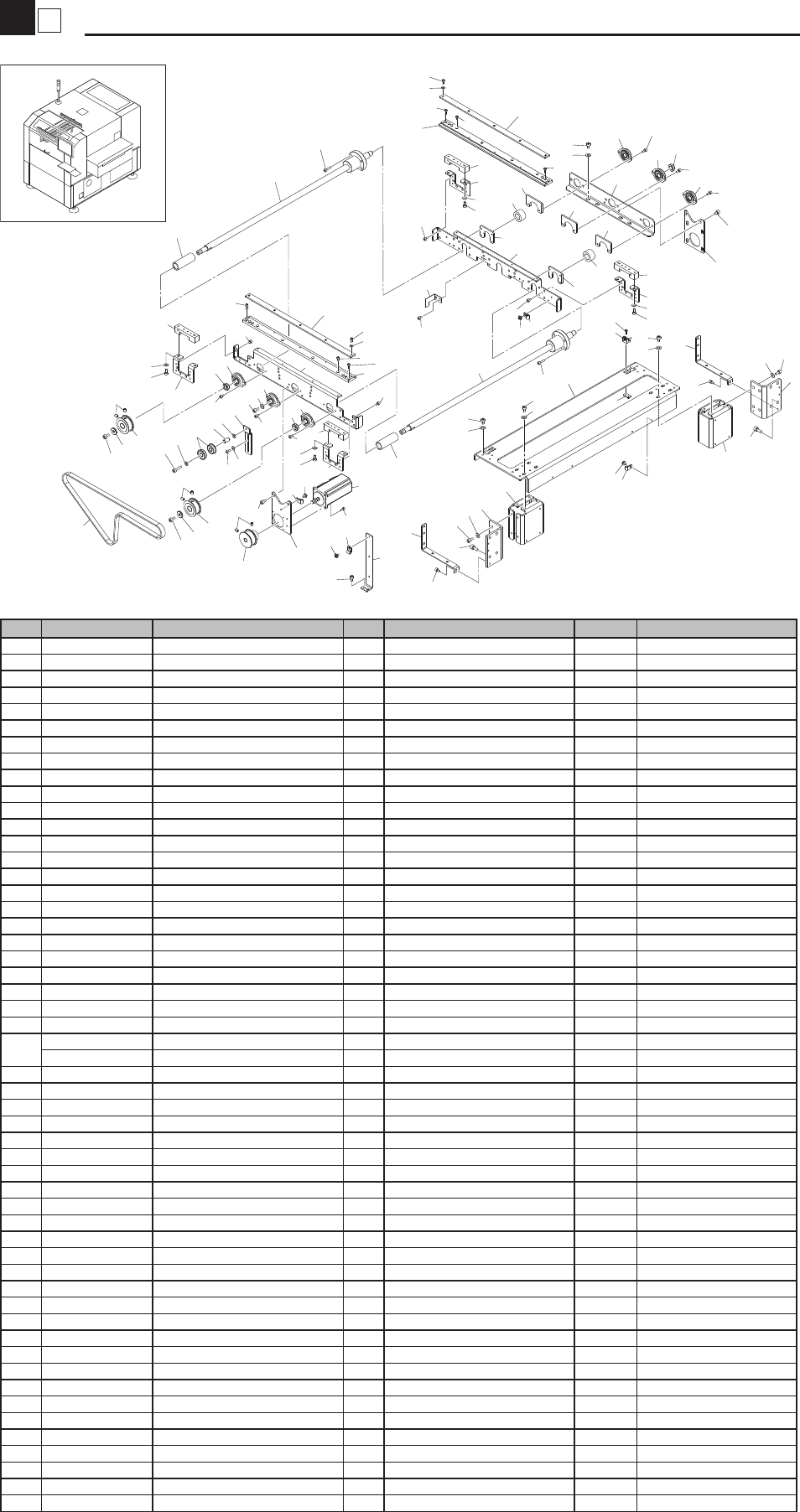

10
8
EXT Width
Conveyor
KHT-1301
32
48
36
26
24
16
35
9
24
26
29
31
37
33
40
42
25
21
42
10
36
41
23
32
23
27
32
32
27
23
7
31
39
30
6
3
20
36
38
14
15
36
41
36
41
34
1
26
24
12
41
36
43
44
15
13
24
26
18
32
11
19
22
4
19
22
17
17
17
8
35
33
23
33
27
23
33
23
5
36
41
7
31
39
6
34
18
20
41
32
48
45
2
46
33
28
33
46
45
36
41
38
32
51
40
50
49
52
50
51
40
32
49
52
49
50
40
51
32
49
50
40
51
32
30
52
52
47
47
47
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9301-02 FRAME 1 1
2 KHT-M9318-00 BELT(633-3GT-9) 1
3 KHT-M9302-02 PLATE 1,CONV. 1
4 KHT-M9303-02 PLATE 2,CONV. 1
5 KHT-M9304-02 PLATE 3,CONV. 1
6 KHT-M9305-02 GUIDE 1 2
7 KHT-M9306-01 GUIDE 1-1 2
8 KHT-M9315-00 BRKT.,CONV.MOTOR 1
9 KHT-M9316-00 BRKT.,MOTOR W 1
10 KHT-M9317-00 PLATE,TENSION IDLER 1
11 KHT-M9321-00 DOG,W.ORG 1
12 KHT-M9322-00 PLATE,NUT 1
13 KHT-M9331-01 STAND 1 1
14 KHT-M9331-51 STAND 2 1
15 KHT-M9332-01 STAND 3 2
16 KHT-M9333-00 BRKT.,DUCT 1
17 KHT-M9334-00 PLATE,NUT 3
18 KHT-M9A00-00 BALL SCREW,WF 2
19 KV1-M910C-00 NUT,PLATE 2
20 KV1-M9119-00 DAMPER 2,W 2
21 90990-41J057 COLLAR 1
22 KGY-M9321-00 DAMPER 1,W 2
23 KH2-M9121-00 BEARING 6
24 $NK-3N NYLON CLIP 3
25
90990-25J024 BEARING 2 OK MJ70186-2012/10/3
90933-03J608 BEARING 2
26 90990-11J003 SCREW,PAN HEAD W/W 6
27 90990-41J106 COLLAR 3
28 KG7-M9113-01 PULLEY 3 1
29 90K63-001506 AC SERVO MOTOR 1
30 91312-03006 BOLT HEX.SOCKET HEAD 8 M3X6
31 91312-03008 BOLT HEX.SOCKET HEAD 14 M3X8
32 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
33 91312-04008 BOLT HEX.SOCKET HEAD 9 M4X8
34 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
35 91312-05008 BOLT HEX.SOCKET HEAD 22 M5X8
36 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
37 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
38 91312-06014 BOLT HEX.SOCKET HEAD 8 M6X14
39 92902-03200 WASHER PLAIN 10
40 92902-04200 WASHER PLAIN 12
41 92902-05200 WASHER PLAIN 13
42 92902-05600 WASHER PLAIN 2
43 98502-03010 SCREW PAN HEAD (+) 2 M3X10
44 KHT-M6521-N0 SENSOR W ORG ASSY 1
45 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
46 90990-28J070 WASHER,PLAIN 2
47 92A08-04306 SET SCREW 6 M4X6
48 KHT-M9327-00 BRKT.,HNS. 2
49 KHT-M9341-00 PLATE,PULLY CONV. 4
50 KHT-M9342-00 STAY 4
51 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
52 91312-03010 BOLT HEX.SOCKET HEAD 12 M3X10

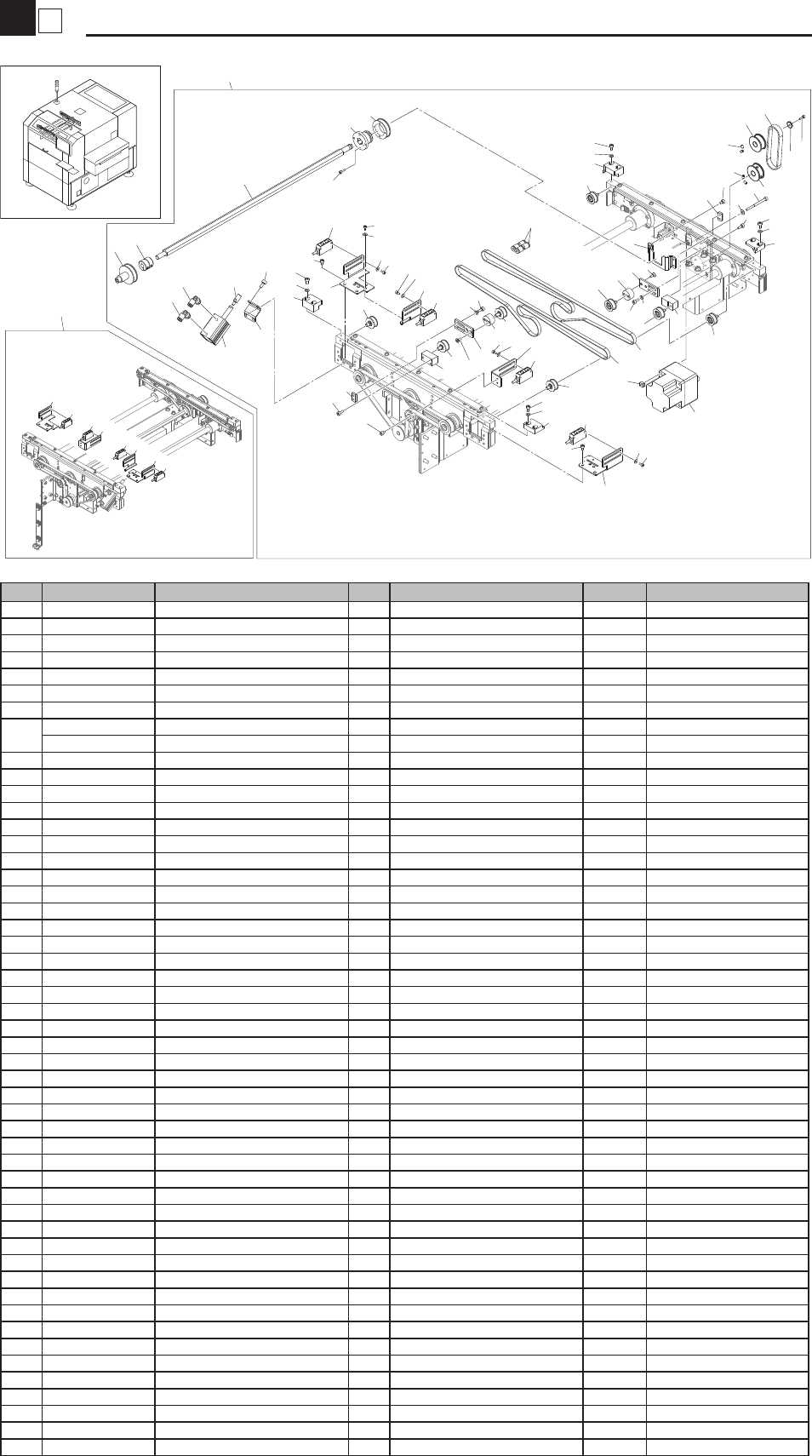

11
8
EXT Transport
Conveyor
KHT-1301
1
RF,LR
2
LF,RR
5
6
9
21
19
23
24
23
46
29
27
14
30
30
9
42
41
41
35
36
34
22
38
33
43
45
20
13
8
11
7
31
26
12
28
15
4
14
25
3
27
48
12
5
27
27
32
10
4
25
14
3
48
14
10
39
44
37
37
40
12
12
28
25
17
43
45
43
45
16
28
22
28
18
22
37
32
47
37
33
38
47
31
25
25
25
22
43
45
43
45
49
50
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M93B0-A0 ENT CONV ASSY.-RF,LR 1
2 KHT-M93B0-B0 ENT CONV ASSY.-LF,RR 1
3 KHT-M9309-A0 PLATE TENSION,PULLY 1
4 KHT-M9309-B0 BASE TENSION,PULLY 1
5 KHT-M9309-01 PLATE,PULLY CONV. 4
6 KHT-M9310-02 BRKT.,COLLAR 1
7
KHT-M9311-00
PULLEY 1,MOTOR 1
8
KHT-M9312-01
SPLINE 1 OK MKY0035-2013/12/20
KHT-M9312-00 SPLINE 1
9 KHT-M9314-01 TRANSFER BELT W1 2
10 KHT-M9309-C0 NUT PLATE 1
11 KHT-M9113-00 COUPLING 1
12 KV1-M9140-A0 PULLEY CONV.ASSY. 4
13 KG2-M9108-11 COLLAR,CONVEYOR 1
14 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
15 KGA-M9113-00 GUIDE 1,END 1
16 KGA-M9114-00 GUIDE 2,END 1
17 KGJ-M9118-00 GUIDE 1,END 1
18 KGJ-M9119-00 GUIDE 2,END 1
19 KGK-M9170-00 DC MOTOR ASSY. 1
20 KGT-M9135-00 PULLEY 1,SPLINE 1
21 KGT-M9193-00 NUT PLATE 4
22 KGY-M9140-A0 PULLEY,CONV. ASSY 4
23 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
24 KGT-M910A-00 BELT(231-3GT-9) 1
25 92902-04600 WASHER PLAIN 12
26 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
27 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
28 91312-04012 BOLT HEX.SOCKET HEAD 8 M4X12
29 91312-04050 BOLT HEX.SOCKET HEAD 4 M4X50
30 92A08-04306 SET SCREW 4 M4X6
31 KHT-M9323-01 BRKT 1,SENSOR 1
32 KHT-M9323-51 BRKT 2,SENSOR 1
33 KHT-M9324-01 BRKT.,SENSOR 1
34 KHT-M9381-01 PLATE,STOPPER 1
35 KHT-M9382-00 STOPPER 1
36 KHT-M9384-01 CYLINDER 1
37 KHT-M6528-A0 SENS. CV1R CV3L ASSY 2
38 KHT-M6528-B0 SENS. FIX CV. M ASSY 1
39 KHT-M6529-A0 SENS. CV1L CV3R ASSY 1
40 KHT-M9325-10 BRKT.,SENSOR 1 RF,LR
41 $TL4-M5 JOINT 2
42 $US4 JOINT 2
43 91312-03006 BOLT HEX.SOCKET HEAD 13 M3X6
44 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
45 92902-03200 WASHER PLAIN 13
46 92902-04200 WASHER PLAIN 4
47 KHT-M9325-00 BRKT.,SENSOR 1 LF,RR
48 98702-04010 SCREW FLAT HEAD 4
49 90990-28J018 WASHER,PLAIN 1 MKY0035-2013/12/20
50 91312-04012 BOLT HEX.SOCKET HEAD 1 MKY0035-2013/12/20
