KHT_YSP_PL - 第52页
12 8 EXP Width Conveyor KHT -1301 1 1 42 47 29 10 25 25 20 19 22 22 43 55 54 43 41 46 56 20 33 34 7 6 7 6 44 34 44 33 3 38 38 4 18 18 24 21 21 39 37 25 37 5 37 39 46 25 30 25 8 17 48 23 13 14 16 15 16 2 1 26 28 39 24 21 …
11
8
EXT Transport
Conveyor
KHT-1301
1
RF,LR
2
LF,RR
5
6
9
21
19
23
24
23
46
29
27
14
30
30
9
42
41
41
35
36
34
22
38
33
43
45
20
13
8
11
7
31
26
12
28
15
4
14
25
3
27
48
12
5
27
27
32
10
4
25
14
3
48
14
10
39
44
37
37
40
12
12
28
25
17
43
45
43
45
16
28
22
28
18
22
37
32
47
37
33
38
47
31
25
25
25
22
43
45
43
45
49
50
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M93B0-A0 ENT CONV ASSY.-RF,LR 1
2 KHT-M93B0-B0 ENT CONV ASSY.-LF,RR 1
3 KHT-M9309-A0 PLATE TENSION,PULLY 1
4 KHT-M9309-B0 BASE TENSION,PULLY 1
5 KHT-M9309-01 PLATE,PULLY CONV. 4
6 KHT-M9310-02 BRKT.,COLLAR 1
7
KHT-M9311-00
PULLEY 1,MOTOR 1
8
KHT-M9312-01
SPLINE 1 OK MKY0035-2013/12/20
KHT-M9312-00 SPLINE 1
9 KHT-M9314-01 TRANSFER BELT W1 2
10 KHT-M9309-C0 NUT PLATE 1
11 KHT-M9113-00 COUPLING 1
12 KV1-M9140-A0 PULLEY CONV.ASSY. 4
13 KG2-M9108-11 COLLAR,CONVEYOR 1
14 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
15 KGA-M9113-00 GUIDE 1,END 1
16 KGA-M9114-00 GUIDE 2,END 1
17 KGJ-M9118-00 GUIDE 1,END 1
18 KGJ-M9119-00 GUIDE 2,END 1
19 KGK-M9170-00 DC MOTOR ASSY. 1
20 KGT-M9135-00 PULLEY 1,SPLINE 1
21 KGT-M9193-00 NUT PLATE 4
22 KGY-M9140-A0 PULLEY,CONV. ASSY 4
23 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
24 KGT-M910A-00 BELT(231-3GT-9) 1
25 92902-04600 WASHER PLAIN 12
26 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
27 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
28 91312-04012 BOLT HEX.SOCKET HEAD 8 M4X12
29 91312-04050 BOLT HEX.SOCKET HEAD 4 M4X50
30 92A08-04306 SET SCREW 4 M4X6
31 KHT-M9323-01 BRKT 1,SENSOR 1
32 KHT-M9323-51 BRKT 2,SENSOR 1
33 KHT-M9324-01 BRKT.,SENSOR 1
34 KHT-M9381-01 PLATE,STOPPER 1
35 KHT-M9382-00 STOPPER 1
36 KHT-M9384-01 CYLINDER 1
37 KHT-M6528-A0 SENS. CV1R CV3L ASSY 2
38 KHT-M6528-B0 SENS. FIX CV. M ASSY 1
39 KHT-M6529-A0 SENS. CV1L CV3R ASSY 1
40 KHT-M9325-10 BRKT.,SENSOR 1 RF,LR
41 $TL4-M5 JOINT 2
42 $US4 JOINT 2
43 91312-03006 BOLT HEX.SOCKET HEAD 13 M3X6
44 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
45 92902-03200 WASHER PLAIN 13
46 92902-04200 WASHER PLAIN 4
47 KHT-M9325-00 BRKT.,SENSOR 1 LF,RR
48 98702-04010 SCREW FLAT HEAD 4
49 90990-28J018 WASHER,PLAIN 1 MKY0035-2013/12/20
50 91312-04012 BOLT HEX.SOCKET HEAD 1 MKY0035-2013/12/20

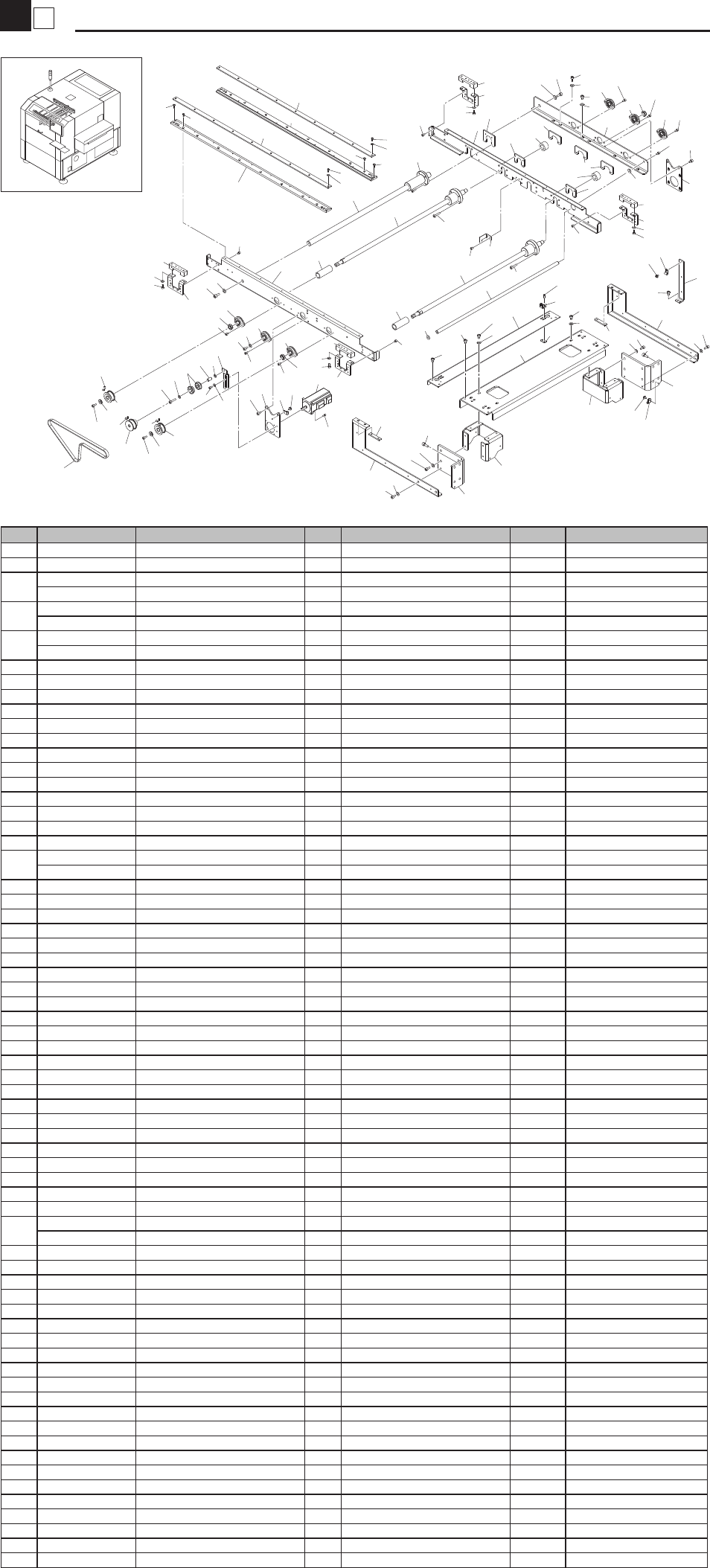

12
8
EXP Width
Conveyor
KHT-1301
11
42
47
29
10
25
25
20
19
22
22
43
55
54
43
41
46
56
20
33
34
7
6
7
6
44
34
44
33
3
38
38
4
18
18
24
21
21
39
37
25
37
5
37
39
46
25
30
25
8
17
48
23
13
14
16
15
16
2
1
26
28
39
24
21
35
12
41
36
37
45
36
36
9
30
34
32
28
26
46
25
30
36
47
27
39
40
39
46
40
45
45
45
45
41
58
59
57
41
59
40
63
63
28
26
40
46
52
51
49
51
53
52
52
53
50
50
61
62
45
36
60
62
45
61
36
60
60
61
45
62
36
60
61
45
62
36
31
31
64
64
65
65
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9301-11 FRAME 1 1
2 KHT-M9301-50 FRAME 2 1
3
KHT-M9302-21 PLATE 1,CONV. 1 RF,LR
KHT-M9302-11 PLATE 1,CONV. 1 LF,RR
4
KHT-M9303-21 PLATE 2,CONV. 1 RF,LR
KHT-M9303-11 PLATE 2,CONV. 1 LF,RR
5
KHT-M9304-22 PLATE 3,CONV. 1 RF,LR
KHT-M9304-12 PLATE 3,CONV. 1 LF,RR
6 KHT-M9305-11 GUIDE 1 2
7 KHT-M9306-10 GUIDE 1-1 2
8 KHT-M9315-00 BRKT.,CONV.MOTOR 1
9 KHT-M9316-00 BRKT.,MOTOR W 1
10 KHT-M9317-00 PLATE,TENSION IDLER 1
11 KHT-M9318-00 BELT(633-3GT-9) 1
12 KHT-M9321-00 DOG,W.ORG 1
13 KHT-M9322-00 PLATE,NUT 1
14 KHT-M9331-11 STAND 1 1
15 KHT-M9331-61 STAND 2 1
16 KHT-M9332-11 STAND 3 2
17 KHT-M9333-00 BRKT.,DUCT 1
18 KHT-M9334-00 PLATE,NUT 3
19
KHT-M9340-02 BAR 1
6 with parts No.65
SET MK40083-2013/4/15
KHT-M9340-01 BAR 1
10
20 KHT-M9A00-00 BALL SCREW,WF 2
21 KV1-M910C-00 NUT,PLATE 2
22 KV1-M9119-00 DAMPER 2,W 2
23 KHT-M6521-N0 SENSOR W ORG ASSY 1
24 KGY-M9321-00 DAMPER 1,W 2
25 KH2-M9121-00 BEARING 6
26 $NK-2N NYLON CLIP 3
27 90933-03J608 BEARING 2
28 90990-11J003 SCREW,PAN HEAD W/W 6
29 90990-41J057 COLLAR 1
30 90990-41J106 COLLAR 3
31 91312-03010 BOLT HEX.SOCKET HEAD 12 M3X10
32 90K63-001506 AC SERVO MOTOR 1
33 91312-03006 BOLT HEX.SOCKET HEAD 8 M3X6
34 91312-03008 BOLT HEX.SOCKET HEAD 14 M3X8
35 91312-04005 BOLT HEX.SOCKET HEAD 2 M4X5
36 91312-04006 BOLT HEX.SOCKET HEAD 24 M4X6
37 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
38 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
39 91312-05008 BOLT HEX.SOCKET HEAD 22 M5X8
40 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
41 91312-05012 BOLT HEX.SOCKET HEAD 5 M5X12
42 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
43
91312-06014 BOLT HEX.SOCKET HEAD 2 M6X14 OK MH00034-2011/10/18
91312-06014 BOLT HEX.SOCKET HEAD 8 M6X14
44 92902-03200 WASHER PLAIN 10
45 92902-04200 WASHER PLAIN 2
46 92902-05200 WASHER PLAIN 13
47 92902-05600 WASHER PLAIN 2
48 98502-03010 SCREW PAN HEAD (+) 2
49 KG7-M9113-01 PULLEY 3 1
50 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
51 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
52 92A08-04306 SET SCREW M4X6 6
53 90990-28J070 WASHER,PLAIN 2
54 KHY-M9217-100 BALL BUSH 1
55 KHT-M9335-000 SHAFT 1
56 KHT-M9336-000 PLATE,NUT 1
57 KHT-M9337-000 STAND 4 1
58 KHT-M9337-100 STAND 5 1
59 KHT-M9338-000 PLATE,NUT 2
60 KHT-M9341-00 PLATE,PULLY CONV. 4
61 KHT-M9342-00 STAY 4
62 91312-04010 BOLT HEX.SOCKET HEAD 8
63 91312-06016 BOLT HEX.SOCKET HEAD 8 MH00034-2011/10/18
64 92902-06200 WASHER PLAIN 2 MH00034-2011/10/18
65 90990-28J141 WASHER PLAIN 2 SET MK40083-2013/4/15
13
8
EXP Transport
Conveyor
KHT-1301
RF,LR
LF,RR
1
7
39
24
24
35
2451
36
37
42
42
39
33
21
30
21
6
22
28
22
28
45
31
27
18
9
20
10
8
23
47
38
46
34
45
45
49
43
9
48
44
48
44
12
19
2
25
16
29
25
29
15
21
17
25
29
25
14
21
29
4
29
32
3
26
11
5
32
13
11
4
32
29
3
48
44
33
45
41
49
48
44
3350
45
40
26
13
11
5
32
41
40
39
39
52
53
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M93B0-C0 EXP CONV.EXT-RF,LR 1
2 KHT-M93B0-D0 EXP CONV.EXT-LF,RR 1
3 KHT-M9309-A0 PLATE TENSION,PULLY 2
4 KHT-M9309-B0 BASE TENSION,PULLY 2
5 KHT-M9309-01 PLATE,PULLY CONV. 2
6 KHT-M9310-02 BRKT.,COLLAR 1
7 KHT-M9311-00 PULLEY 1,MOTOR 1
8
KHT-M9312-01 SPLINE 1 OK MKY0035-2013/12/20
KHT-M9312-00 SPLINE 1
9 KHT-M9314-11 TRANSFER BELT W3L 2
10 KHT-M9113-00 COUPLING 1
11 KV1-M9140-A0 PULLEY CONV.ASSY. 4
12 KG2-M9108-11 COLLAR,CONVEYOR 1
13 KHT-M9309-C0 NUT PLATE 2
14 KGA-M9113-00 GUIDE 1,END 1
15 KGA-M9114-00 GUIDE 2,END 1
16 KGJ-M9118-00 GUIDE 1,END 1
17 KGJ-M9119-00 GUIDE 2,END 1
18 KGT-M910A-00 BELT(231-3GT-9) 1
19 KGT-M9135-00 PULLEY 1,SPLINE 1
20 KGT-M9193-00 NUT PLATE 4
21 KGY-M9140-A0 PULLEY,CONV. ASSY 4
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
23 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
24
KHT-M9326-10 BRKT.,SENSOR 2 LF,RR OK MF90024-2009/9/4
KHT-M9326-10 BRKT.,SENSOR 3 LF,RR
25 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
26 98702-04010 SCREW FLAT HEAD 4 M4X10
27 92902-04200 WASHER PLAIN 4
28 92A08-04306 SET SCREW M4X6 4
29 92902-04600 WASHER PLAIN 12
30 KGK-M9170-00 DC MOTOR ASSY. 1
31 91312-04050 BOLT HEX.SOCKET HEAD 4
32 91312-04010 BOLT HEX.SOCKET HEAD 8
33
KHT-M9326-00 BRKT.,SENSOR 2 RF,LR OK MF90024-2009/9/4
KHT-M9326-00 BRKT.,SENSOR 3 RF,LR
34 KHT-M9371-01 PLATE,STOPPER 1 RF,LR
35 KHT-M9371-10 PLATE,STOPPER 1 LF,RR
36 KHW-M9272-00 STOPPER,EXIT 1
37 KHY-M9273-00 CYLINDER 1
38 KHY-M9284-00 PLATE,STOPPER 1
39 KHT-M6528-A0 SENS. CV1R CV3L ASSY 2
40 KHT-M6528-B0 SENS. FIX CV. M ASSY 1
41 KHT-M6529-A0 SENS. CV1L CV3R ASSY 1
42 $TS4-M5 JOINT 2
43 $US4 JOINT 2
44 91312-03006 BOLT HEX.SOCKET HEAD 11 M3X6
45 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
46 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
47 91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12
48 92902-03200 WASHER PLAIN 11
49 92902-04200 WASHER PLAIN 6
50 KHT-M9329-00 BRKT.,SENSOR 2 1 MF90024-2009/9/4
51 KHT-M9329-10 BRKT.,SENSOR 2 1 MF90024-2009/9/4
52 90990-28J018 WASHER,PLAIN 1 MKY0035-2013/12/20
53 91312-04012 BOLT HEX.SOCKET HEAD 1 MKY0035-2013/12/20
