14 8 PCB V acuum (Op.) Conveyor KHT -0906 2 8 10 3 1 5 4 14 6 9 1 1 7 13 12 5 12 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHT -M9400-00 PCB V ACUUM ASSY 1 2 KGY -M94A2-00 BLOCK,SUPPOR T 2 3 K…
13
8

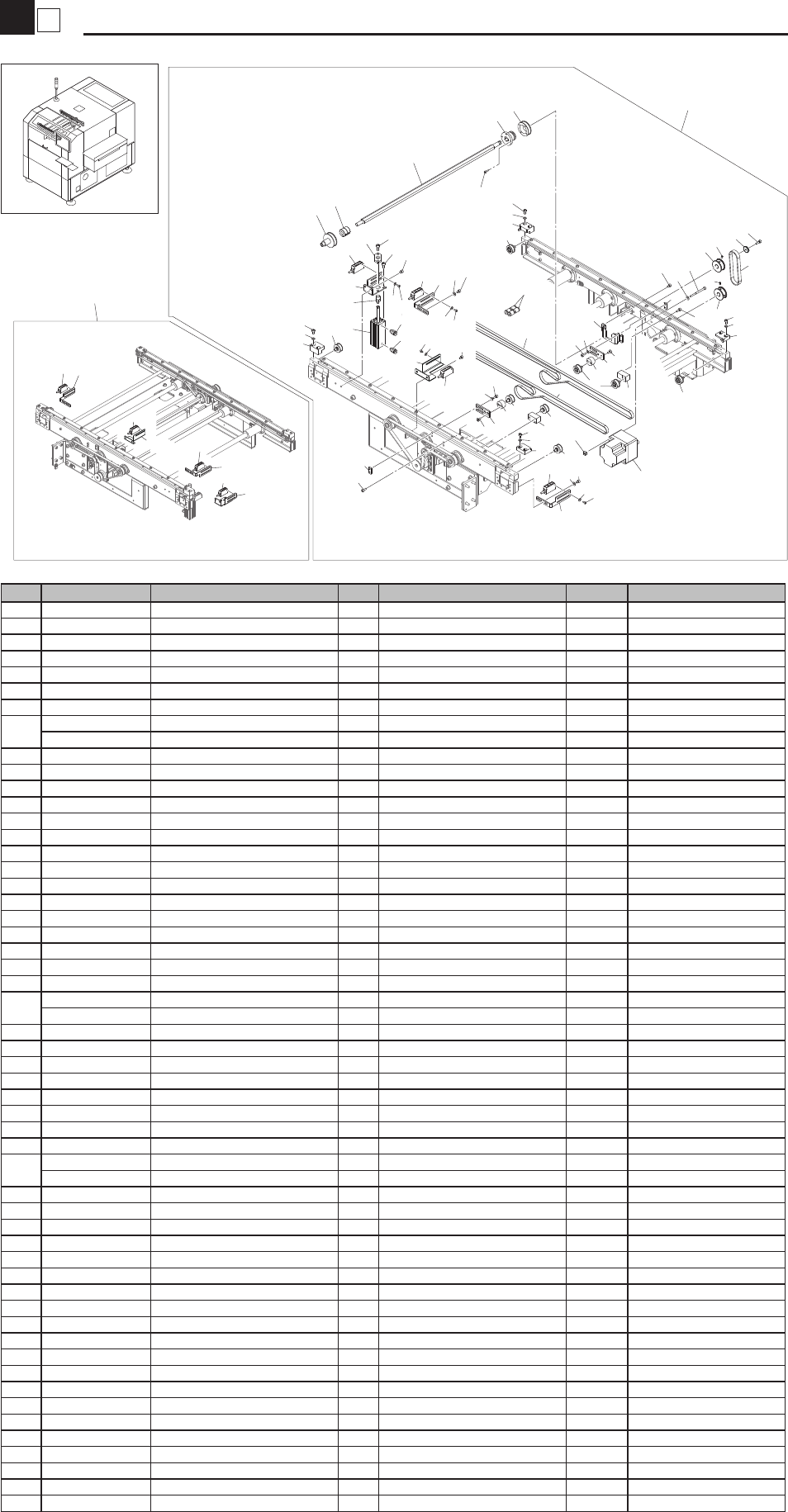

EXP Transport
Conveyor
KHT-1301
RF,LR
LF,RR
1
7
39
24
24
35
2451
36
37
42
42
39
33
21
30
21
6
22
28
22
28
45
31
27
18
9
20
10
8
23
47
38
46
34
45
45
49
43
9
48
44
48
44
12
19
2
25
16
29
25
29
15
21
17
25
29
25
14
21
29
4
29
32
3
26
11
5
32
13
11
4
32
29
3
48
44
33
45
41
49
48
44
3350
45
40
26
13
11
5
32
41
40
39
39
52
53
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M93B0-C0 EXP CONV.EXT-RF,LR 1
2 KHT-M93B0-D0 EXP CONV.EXT-LF,RR 1
3 KHT-M9309-A0 PLATE TENSION,PULLY 2
4 KHT-M9309-B0 BASE TENSION,PULLY 2
5 KHT-M9309-01 PLATE,PULLY CONV. 2
6 KHT-M9310-02 BRKT.,COLLAR 1
7 KHT-M9311-00 PULLEY 1,MOTOR 1
8
KHT-M9312-01 SPLINE 1 OK MKY0035-2013/12/20
KHT-M9312-00 SPLINE 1
9 KHT-M9314-11 TRANSFER BELT W3L 2
10 KHT-M9113-00 COUPLING 1
11 KV1-M9140-A0 PULLEY CONV.ASSY. 4
12 KG2-M9108-11 COLLAR,CONVEYOR 1
13 KHT-M9309-C0 NUT PLATE 2
14 KGA-M9113-00 GUIDE 1,END 1
15 KGA-M9114-00 GUIDE 2,END 1
16 KGJ-M9118-00 GUIDE 1,END 1
17 KGJ-M9119-00 GUIDE 2,END 1
18 KGT-M910A-00 BELT(231-3GT-9) 1
19 KGT-M9135-00 PULLEY 1,SPLINE 1
20 KGT-M9193-00 NUT PLATE 4
21 KGY-M9140-A0 PULLEY,CONV. ASSY 4
22 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
23 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
24
KHT-M9326-10 BRKT.,SENSOR 2 LF,RR OK MF90024-2009/9/4
KHT-M9326-10 BRKT.,SENSOR 3 LF,RR
25 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
26 98702-04010 SCREW FLAT HEAD 4 M4X10
27 92902-04200 WASHER PLAIN 4
28 92A08-04306 SET SCREW M4X6 4
29 92902-04600 WASHER PLAIN 12
30 KGK-M9170-00 DC MOTOR ASSY. 1
31 91312-04050 BOLT HEX.SOCKET HEAD 4
32 91312-04010 BOLT HEX.SOCKET HEAD 8
33
KHT-M9326-00 BRKT.,SENSOR 2 RF,LR OK MF90024-2009/9/4
KHT-M9326-00 BRKT.,SENSOR 3 RF,LR
34 KHT-M9371-01 PLATE,STOPPER 1 RF,LR
35 KHT-M9371-10 PLATE,STOPPER 1 LF,RR
36 KHW-M9272-00 STOPPER,EXIT 1
37 KHY-M9273-00 CYLINDER 1
38 KHY-M9284-00 PLATE,STOPPER 1
39 KHT-M6528-A0 SENS. CV1R CV3L ASSY 2
40 KHT-M6528-B0 SENS. FIX CV. M ASSY 1
41 KHT-M6529-A0 SENS. CV1L CV3R ASSY 1
42 $TS4-M5 JOINT 2
43 $US4 JOINT 2
44 91312-03006 BOLT HEX.SOCKET HEAD 11 M3X6
45 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
46 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
47 91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12
48 92902-03200 WASHER PLAIN 11
49 92902-04200 WASHER PLAIN 6
50 KHT-M9329-00 BRKT.,SENSOR 2 1 MF90024-2009/9/4
51 KHT-M9329-10 BRKT.,SENSOR 2 1 MF90024-2009/9/4
52 90990-28J018 WASHER,PLAIN 1 MKY0035-2013/12/20
53 91312-04012 BOLT HEX.SOCKET HEAD 1 MKY0035-2013/12/20
14
8

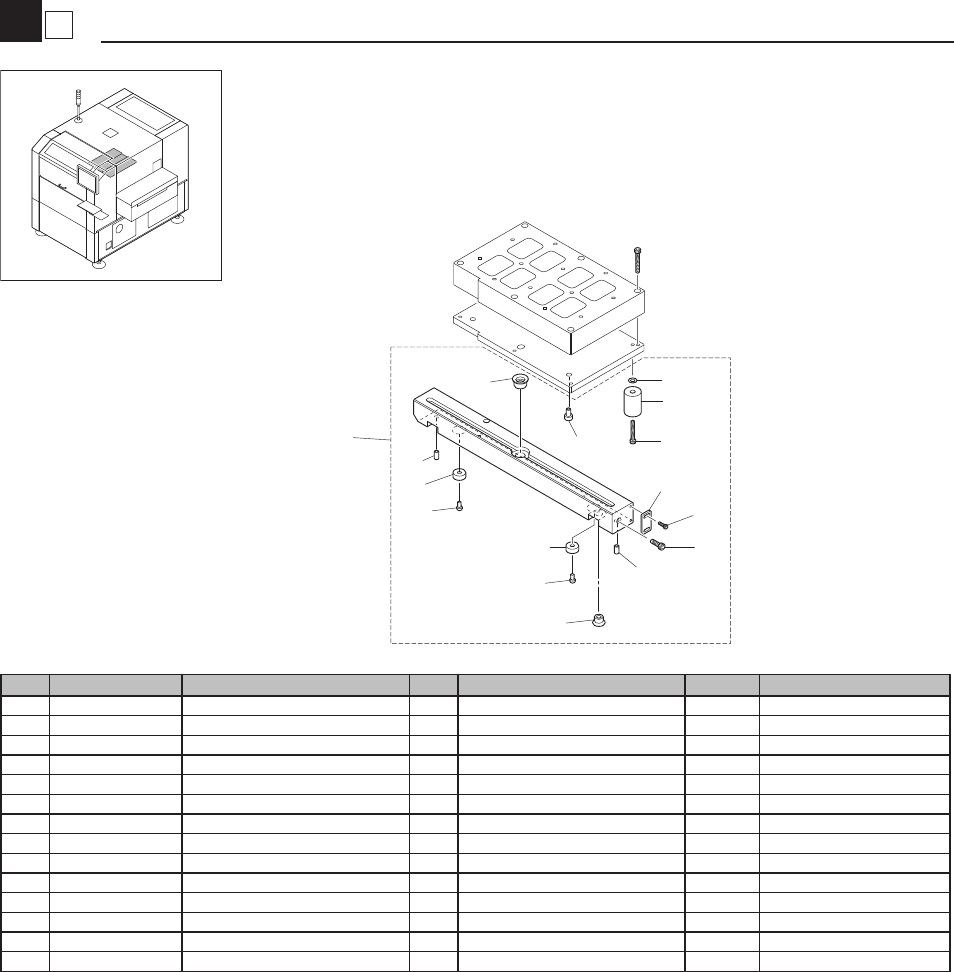

PCB Vacuum (Op.)
Conveyor
KHT-0906
2
8
10
3
1
5
4
14
6
9
11
7
13
12
5
12
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M9400-00 PCB VACUUM ASSY 1
2 KGY-M94A2-00 BLOCK,SUPPORT 2
3 KGY-M94A3-00 VACUUM PAD 1
4 KGY-M94A5-00 VACUUM PAD 2
5 KGY-M94A7-00 MAGNET 2
6 KGY-M94A8-00 DOG 1
7 90990-43J009 PIN 2
8 90990-29J014 SHIM 10
9 91312-03006 BOLT HEX.SOCKET HEAD 2 M3X6
10 91312-04030 BOLT HEX.SOCKET HEAD 4 M4X30
11 91312-08012 BOLT HEX.SOCKET HEAD 2 M8X12
12 98702-04012 SCREW FLAT HEAD 2
13 99480-05016 PIN PARALLEL 1
14 99480-06014 PIN,PARALLEL 1
15
8

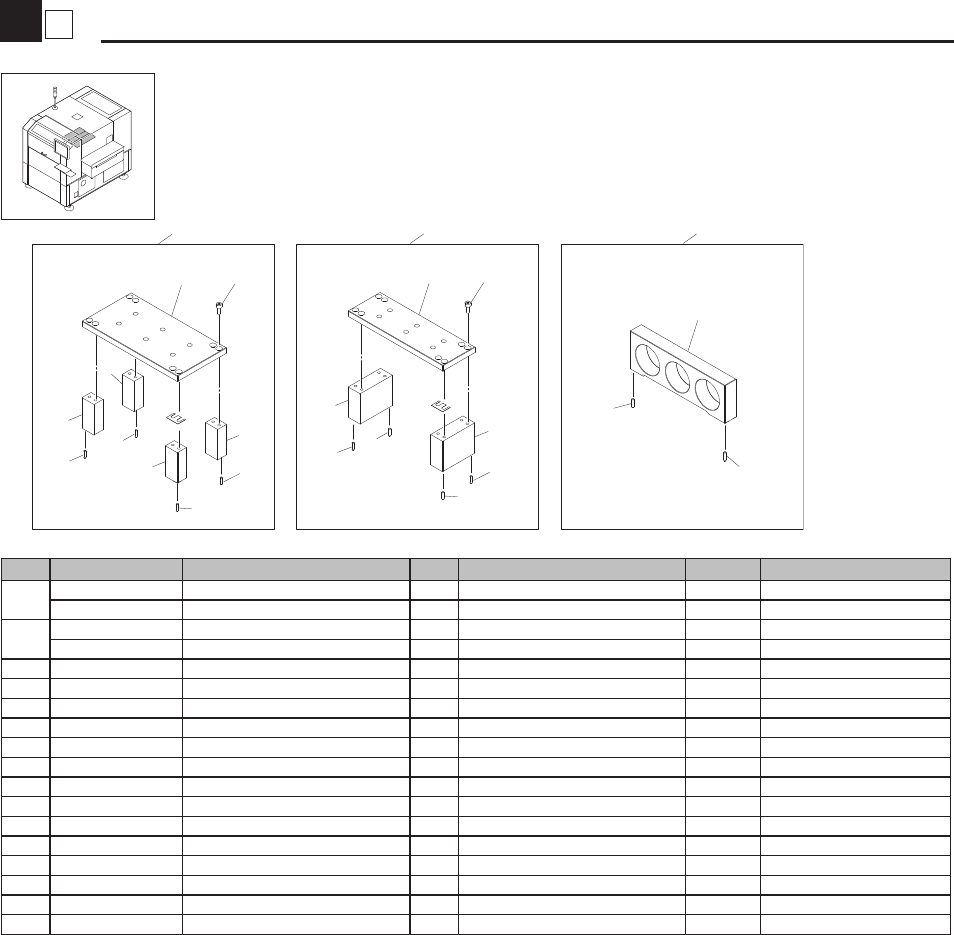

PCB Back Up (Op.)
Conveyor
KHT-1301
1
7
12
2
8
13
5
10
3
9
4
616
1116
11
1415
14
6
4
3
9
16
16
16
16
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M3300-A2 BACK UP,A 9 OK MJ60024-2012/6/18
KHT-M3300-A1 BACK UP,A 9
2
KHT-M3301-A2 PLATE,BACK UP A 1 OK MJ60024-2012/6/18
KHT-M3301-A1 PLATE,BACK UP,A 1
3 KHT-M3302-01 LEG 1 2
4 KHT-M3303-01 LEG 2 2
5 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
6 99480-03010 PIN,PARALLEL 2 Ø 3.0
7 KHT-M3300-B1 BACK UP,B 6
8 KHT-M3301-B1 PLATE,BUCK UP,B 1
9 KHT-M3305-00 LEG 2 2
10 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
11 99480-03010 PIN,PARALLEL 4 Ø 3.0
12 KHT-M3300-C1 BACK UP,C 3
13 KHT-M3304-01 BLOCK,BACK UP 1
14 99480-03010 PIN,PARALLEL 1
15 90990-21J004 PIN 1 Ø 2.9 OK MG80014-2010/8/5
16 90990-21J004 PIN 3 Ø 2.9 OK MJ60024-2012/6/18
