KHT_YSP_PL - 第57页
17 8 Matrix-Plate Conveyor KHT -1102 1 3 8 13 1 1 12 1 1 12 2 4 2 4 9 17 8 18 19 1 6 3 15 1 1 12 1 1 12 9 17 22 23 6 8 8 7 3 16 1 1 12 1 1 12 9 17 24 25 7 5 3 14 1 1 12 10 10 1 1 12 2 4 2 4 9 17 20 21 5 26 No. Part No. P…
16
8

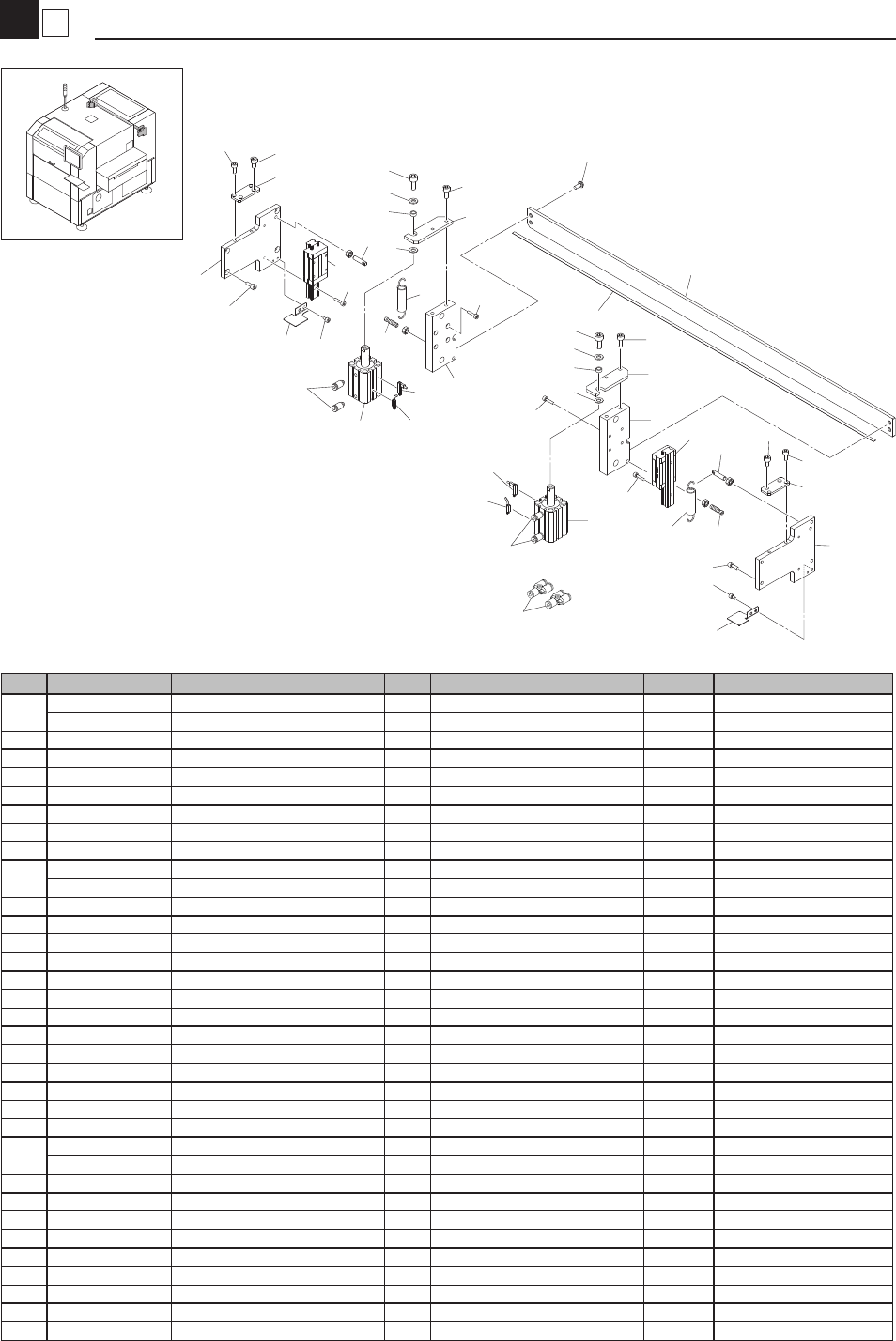

PCB Press (Op.)
Conveyor
KHT-1301
22
7
9
11
19
10
23
8
24
1
23
26
27
28
29
6
9
21
22
7
4
14
10
930
21
19
12
20
14
5
20
20
2
16
18
13
930
25
20
2
21
3
21
15
17
25
27
28
29
32
31
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M9451-01 PRESS BAR 1 OK MJ20012-2012/2/9
KHT-M9451-00 PRESS BAR 1
2 KHT-M9452-00 GUIDE PRESS 2
3 KHT-M9453-00 PLATE GUIDE,L 1
4 KHT-M9453-50 PLATE GUIDE,R 1
5 KHT-M9454-00 STAY PRESS 1
6 KHT-M9454-50 STAY PRESS,R 1
7 KHT-M9455-00 BRKT.CYL,PRESS 2
8 KHT-M9456-01 BRKT GUIDE,PRESS 1
9
KHT-M9457-00 SPRING POST 2 OK MG40026-2010/4/8
KHT-M9457-00 SPRING POST 4
10 KHT-M9458-00 SPRING,PRESS 2
11 KHT-M9459-00 COVER L 1
12 KHT-M9459-50 COVER R 1
13 KHT-M945A-00 TAPE,PCB PRESS 1
14 KHT-M945B-00 CYL,PRESS 2
15 KHT-M6526-E0 SENS. PRE. L-H ASSY 1
16 KHT-M6526-G0 SENS. PRE. R-L ASSY 1
17 KHT-M6534-C0 SENS. PRE. L-L ASSY 1
18 KHT-M6534-D0 SENS. PRE. R-L ASSY 1
19 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
20 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
21 91312-05012 BOLT HEX.SOCKET HEAD 12 M5X12
22 91312-06010 BOLT HEX.SOCKET HEAD 4 M6X10
23
91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14 OK MF50113-2009/5/25
91312-06014 BOLT HEX.SOCKET HEAD 6 M6X14
24 92012-06012 BOLT,BUTTON HEAD 4 M6X12
25 $TSH4-M5 JOINT 4
26 KHT-M9456-50 BRKT GUIDE,PRESS 1
27 90990-28J118 WASHER PLAIN 2
28 90990-28J074 WASHER PLAIN 2
29 90990-28J082 WASHER PLAIN 2
30 KHT-M9457-10 POST 2 MG40026-2010/4/8
31 91312-06016 BOLT HEX.SOCKET HEAD 2 MF50113-2009/5/25
32 $UY4 JOINT 2 MF40020-2009/4/6
17
8

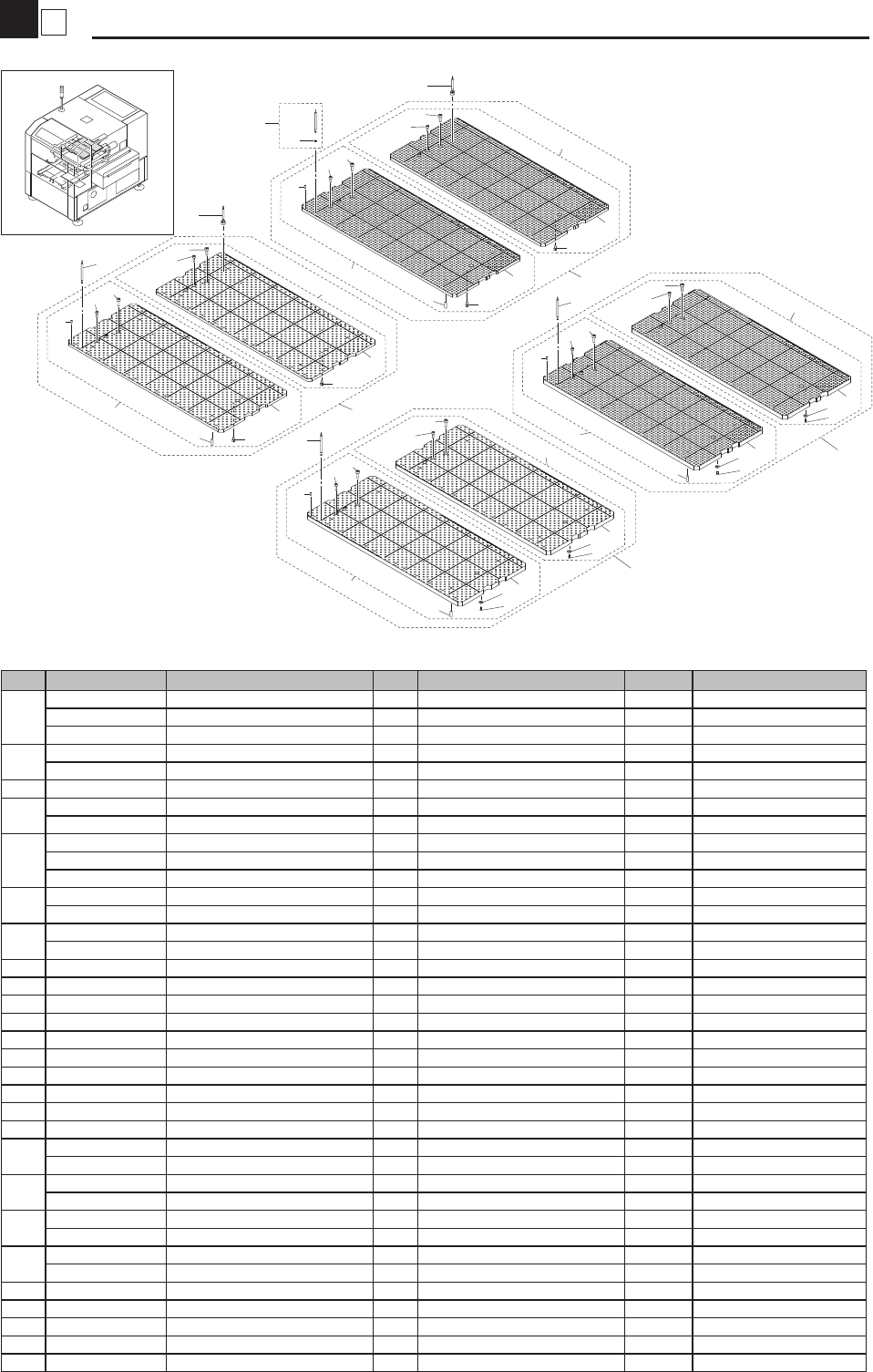

Matrix-Plate
Conveyor
KHT-1102
1
3
8
13
11
12
11
12
2
4
2
4
9
17
8
18
19
1
6
3
15
11
12
11
12
9
17
22
23
6
8
8
7
3
16
11
12
11
12
9
17
24
25
7
5
3
14
11
12
10
10
11
12
2
4
2
4
9
17
20
21
5
26
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M3351-12 MATRIX PLATE,AL14 2 (AL) OK MHX0061-2011/11/24
KHT-M3351-11 MATRIX PLATE,AL14 2 (AL) OK MF60083-2009/6/10
KHT-M3351-10 MATRIX PLATE,AL14 2 (AL)
2
KHT-M3356-00 ADJUSTER,MATRIX P 16 OK MHX0061-2011/11/24
KHT-M3356-00 ADJUSTER,MATRIX P 12
3 99480-05016 PIN PARALLEL 8
4
98702-03008 SCREW FLAT HEAD 16 OK MHX0061-2011/11/24
98702-03008 SCREW FLAT HEAD 12
5
KHT-M3351-22 MATRIX PLATE,AL7 2 (AL) OK MHX0061-2011/11/24
KHT-M3351-21 MATRIX PLATE,AL7 2 (AL) OK MF60083-2009/6/10
KHT-M3351-20 MATRIX PLATE,AL7 2 (AL)
6
KHT-M3351-31 MATRIX PLATE,FE14 2 (FE) OK MF60083-2009/6/10
KHT-M3351-30 MATRIX PLATE,FE14 2 (FE)
7
KHT-M3351-41 MATRIX PLATE,FE7 2 (FE) OK MF600832009/6/10
KHT-M3351-40 MATRIX PLATE,FE7 2 (FE)
8 KGY-M3352-00 SUPPORT SHAFT 72
9 KGJ-M3352-A0 MATRIX PIN ASSY 200
10 KGY-M3354-A0 MAGNET MATRIX PIN ASSY 5
11 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
12 91312-05014 BOLT HEX.SOCKET HEAD 16 M5X14
13 KHT-M3350-10 MATRIX P ASSY AL14 1 (AL)
14 KHT-M3350-20 MATRIX P ASSY AL7 1 (AL)
15 KHT-M3350-30 MATRIX P ASSY FE14 1 (FE)
16 KHT-M3350-40 MATRIX P ASSY FE7 1 (FE)
17 92A08-03308 SCREW, SET 18 MG70099-2010/7/19
18
KHT-M3360-11 MATRIX P F ASSY, AL14 1 (AL) OK MHX0061-2011/11/24
KHT-M3360-10 MATRIX P F ASSY, AL14 1 (AL) MG60041-2011/1/21
19
KHT-M3360-21 MATRIX P R ASSY, AL14 1 (AL) OK MHX0061-2011/11/24
KHT-M3360-20 MATRIX P R ASSY, AL14 1 (AL) MG60041-2011/1/21
20
KHT-M3360-31 MATRIX P F ASSY, AL7 1 (AL) OK MHX0061-2011/11/24
KHT-M3360-30 MATRIX P F ASSY, AL7 1 (AL) MG60041-2011/1/21
21
KHT-M3360-41 MATRIX P R ASSY, AL7 1 (AL) OK MHX0061-2011/11/24
KHT-M3360-40 MATRIX P R ASSY, AL7 1 (AL) MG60041-2011/1/21
22 KHT-M3360-50 MATRIX P F ASSY, EF14 1 (FE) MG60041-2011/1/21
23 KHT-M3360-60 MATRIX P R ASSY, EF14 1 (FE) MG60041-2011/1/21
24 KHT-M3360-70 MATRIX P F ASSY, FE7 1 (FE) MG60041-2011/1/21
25 KHT-M3360-80 MATRIX P R ASSY, EF7 1 (FE) MG60041-2011/1/21
26 90200-12J010 O-RING 200
1
9

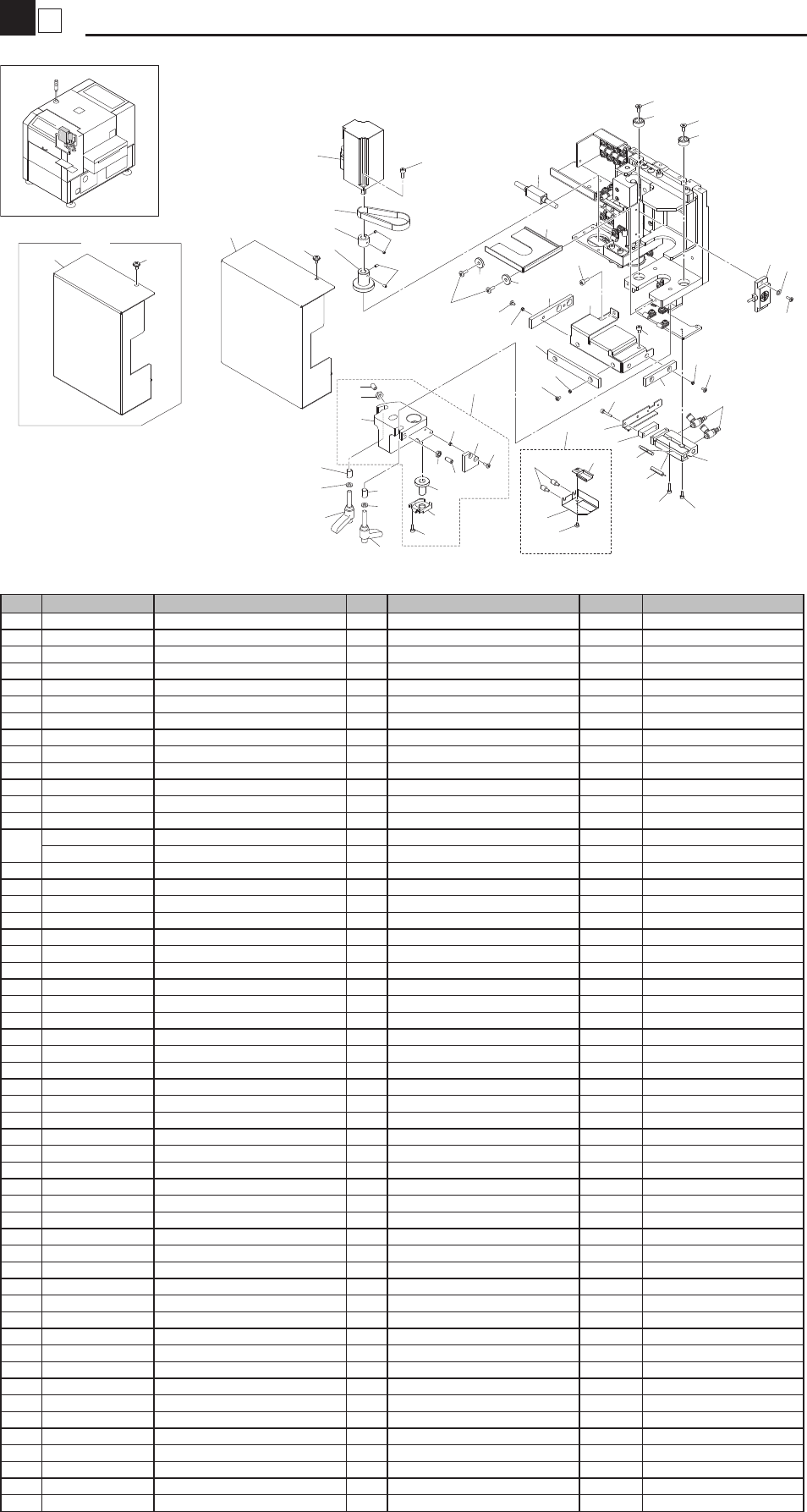

POT-Head Assy 1
PSC
KHT-1101
32
3
36
1
4
5
14
14
51
42
44
29
53
10
7
34
11
13
33
9
20
52
25
30
29
53
24
19
18
8
38
39
16
27
37
35
46
31
46
31
43
48
47
49
37
47
41
40
47
37
28
15
OLD
12
42
50
23
17
6
21
26
25
22
30
45
2
2
51
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7307-00 UNDER COVER,SOL. 1
2 KHT-M7308-00 WASHER 2
3 KHT-M7313-00 BELT, FP MOTOR 1
4 KHT-M7315-00 PULLEY,MOTOR 1
5 KHT-M7316-00 KNOB,FP MOTOR 1
6 KHT-M7320-A0 PASTE CUTTER ASSY 1
7 KHT-M7321-00 PASTE CUTTER 1
8 KHT-M7380-00 PASTE CUP 1
9 KHT-M7394-00 KNOBE,M3 2
10 98902-03004 SCREW BINDING HEAD 1 M3X4
11 KHT-M7322-02 CUTTER PLATE 1
12 KHT-M7323-01 COVER,HNS. 1
13 KHT-M7324-00 SPACER BLOCK 1
14
KHT-M7326-01 COVER,FP 1 W=160mm NG MG50071-2010/5/24
KHT-M7326-00 COVER,FP 1 W=135mm
15 KHT-M7328-01 DAMPER 2,FP COVER 1
16 KHT-M7329-00 DAMPER 3,FP COVER 1
17 KHT-M7330-A1 PASTE NOZZLE ASSY 1
18 KHT-M7331-00 NOZZLE 6,POT DISP. 1
19 KHT-M7332-00 HOLDER,NOZZLE 1
20 KHT-M7333-01 BLOCK,PASTE NOZZLE 1
21 KHT-M7334-00 DAMPER,PASTE NOZZLE 1
22 KGJ-M7116-01 BALL PLUNGER 1
23 90990-41J042 COLLAR 2
24 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
25 95302-05700 NUT HEXAGON 1
26 98902-03008 SCREW BINDING HEAD 2 M3X8
27 KHT-M7371-01 CYLINDER 1
28 KHT-M7388-00 DAMPER 1,FP COVER 1
29 KGJ-M710B-C0 SPACER PIPE 2
30 KHT-M7327-00 MINI CLAMP LEVER 2
31 KGY-M94A7-00 MAGNET 2
32 90KA0-001G60 AC SERVO MOTOR ASSY 1
33 KHT-M6535-A0 SENS. CUT OPEN ASSY 1
34 KHT-M6535-B0 SENS. CUT CLOSE ASSY 1
35 KHT-M6538-A0 SENS.SOL.DEFECT ASSY 1
36 KHT-M6538-B0 PNP CHANGER ASSY 1
37 90990-41J042 COLLAR 6
38 91312-03008 BOLT HEX.SOCKET HEAD 1 M3X8
39 91312-03012 BOLT,HEX.SOCKET HEAD 1 M3X12
40 91312-03016 BOLT,HEX.SOCKET HEAD 2 M3X16
41 91312-04006 BOLT HEX.SOCKET HEAD 1 M4X6
42 91312-04010 BOLT HEX.SOCKET HEAD 3 M4X10
43 92902-04600 WASHER PLAIN 2
44 92A08-03303 SET SCREW M3X3 2 M3X3
45 92A08-03305 SCREW,SET 2 M3X5
46 98702-04010 SCREW FLAT HEAD 2
47 98902-03005 SCREW BINDING HEAD 6 M3X5
48 98902-03008 SCREW BINDING HEAD 2 M3X8
49 98902-04010 SCREW BINDING HEAD 2 M4X10
50 $SC4-M3MA SPEED CONTROLLER 2
51 90990-12J001 SCREW BIN.HEAD W/W 3
52 KHT-M7336-00 BALL PLUNGER 1
53 92902-06600 WASHER PLAIN 2
