1 10 Control Box Control Box KHT -1004 16 14 15 17 18 5 19 2 2 1 25 23 1 25 23 20 26 28 13 21 24 22 26 3 4 6 7 1 1 12 8,9 29 7 27 27 28 28 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KJJ-M41 1B-…
8
9

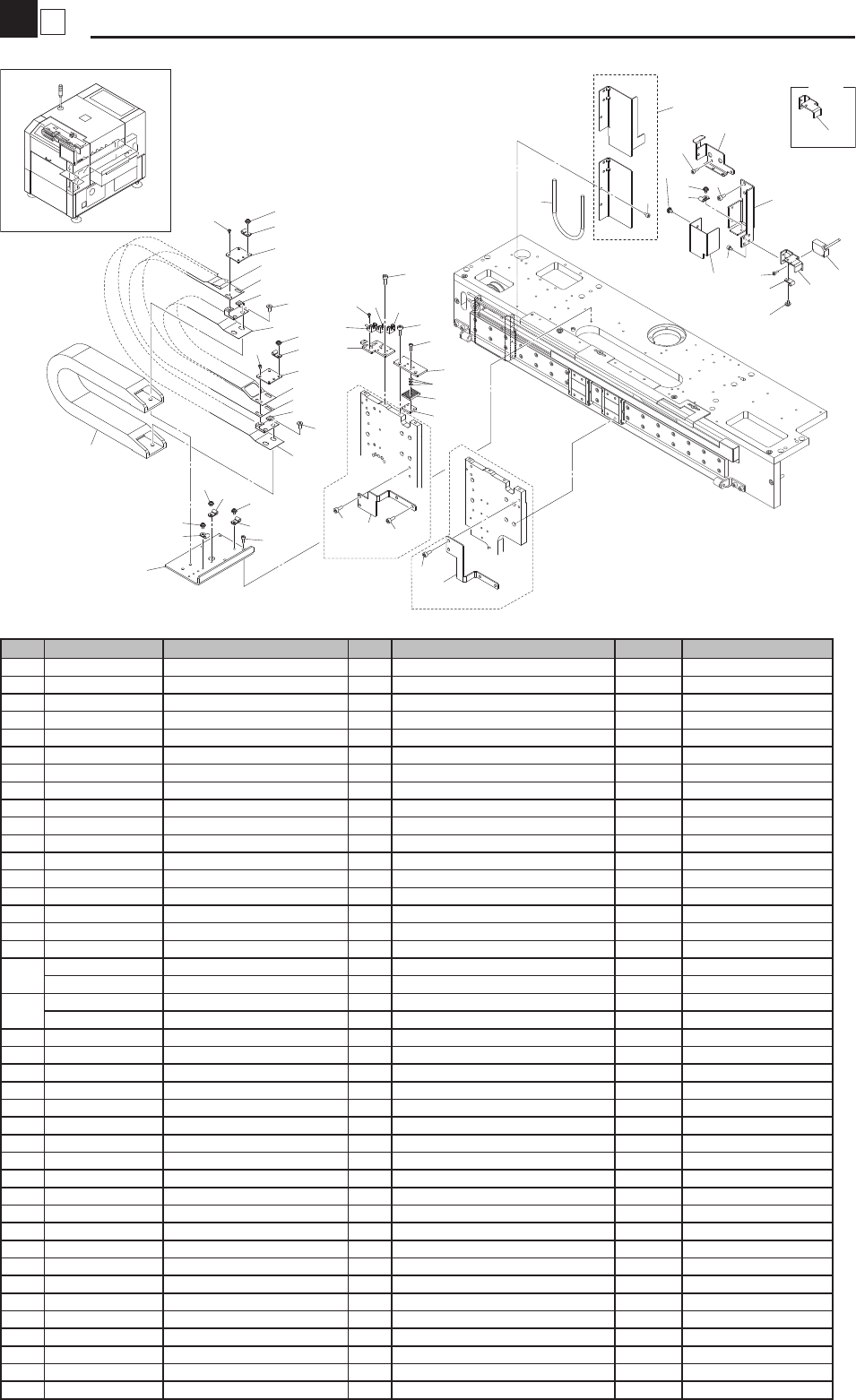

FX-axis Sensor,Cable Duct / Distance Sensor
PSC
KHT-1301
13
12
3
8
18
17
21
25
24
12
14
14
23
22
12
16
21
15
20
19
13
5
12
3
6
7
2
8
10
12
14
12
13
14
12
4
9
9
11
1
7
6
11
38
for Pot
for Syringe
38
34
35
35
32
33
36
28
29
30
27
37
26
31
38
39
40
Only
PSC
19
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7204-00 BRKT. UP,FX TAPE 1
2 KHT-M7204-50 BRKT. LOW,FX TAPE 1
3 KHT-M7205-01 PLATE,NUT FX 2
4 KHT-M7221-00 BRKT.,FX DUCT 1
5 KHT-M7222-00 DUCT CABLE,FX 1
6 KHT-M7223-01 TAPE 1,FX DUCT 1
7 KHT-M7224-01 TAPE 2,FX DUCT 1
8 KHT-M7225-00 TAPE 3,FX DUCT 1
9 90990-01J032 BOLT,HEX.SOCKET HEAD 4
10 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
11 98902-03005 SCREW BINDING HEAD 4 M3X5
12 $NK-3N NYLON CLIP 19
13 90990-11J001 SCREW PAN HEAD W/W 8
14 90990-11J003 SCREW,PAN HEAD W/W 13
15 KHT-M7241-00 BRKT.,SENSOR 1
16 KHT-M7242-00 COVER,SENSOR 1
17 KHT-M7243-00 BRKT. 1,HNS. 1
18
KHT-M7244-00 BRKT. 2,HNS. 1 with PSC
KHT-M7244-10 BRKT. 2,HNS. 1 Distance Sensor Only
19
KHT-M7245-01 STAY,SENSOR R 1 NG MG30104-2010/3/8
KHT-M7245-00 STAY,SENSOR R 1
20 KHT-M653C-A0 SENSOR SOL.DET.ASSY 1
21 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
22 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
23 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
24 98902-03010 SCREW BINDING HEAD 2 M3X10
25 90990-12J001 SCREW BIN.HEAD W/W 2
26 KHT-M66JB-00 HNS,SOL.DET.SENSOR 1 1
27 KHT-M7385-00 BRKT.,FP SENSOR 1
28 KHT-M7390-00 BRACKET,FP BELT 1
29 KHT-M7391-00 NUT PLATE 1
30 KHT-M7392-00 FITTING,BELT 1
31 KHT-M6531-A0 SENSOR FX ORG ASSY 1
32 KHT-M6531-B0 SENSOR FX SAFE ASSY 1
33 KHT-M6531-C0 SENS. FX CENTER ASSY 1
34 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
35 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
36 92902-03600 WASHER PLAIN 6
37 98502-03006 SCREW PAN HEAD 6 M3X6
38 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
39 KHT-M7339-00 CARRY BRKT. FX 1
40 KHT-M7395-00 CARRY BRKT. FX 1
1
10
Control Box
Control Box
KHT-1004
16
14
15
17
18
5
19
2
2
1
25
23
1
25
23
20
26
28
13
21
24
22
26
3
4
6
7
11
12
8,9
29
7
27
27
28
28
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJJ-M411B-00 BRACKET 2 2
2 KJJ-M411A-00 PLATE 2
3 KJJ-M4119-00 BRACKET 1 FILTER 1
4 KJJ-M4120-00 BRACKET 2 FILTER 1
5
KJJ-M4510-02 MOTHER BOARD ASSY 1 OK MF60242-2009/6/25
KJJ-M4510-01 MOTHER BOARD ASSY 1
6
KHN-M5840-02 SERVO BOARD ASSY 1 (SERVO 1) OK MG90117-2010/10/13
KHN-M5840-00 SERVO BOARD ASSY 1
7
KHN-M5840-82 SERVO BOARD ASSY 2 (SERVO 2/4) OK MG90117-2010/10/13
KHN-M5840-80 SERVO BOARD ASSY 2 MFY0015-2009/12/3
KHN-M5840-80 SERVO BOARD ASSY 3
8 KHL-M4209-01 SYSTEM UNIT ASSY 1 S.T.D NG MF00126-2009/11/2
9 KHL-M4209-21 SYSTEM UNIT ASSY 1 IT O/P
10
11
KHL-M441H-23 VISION BOARD ASSY 1 OK MF80042-2009/9/3
KHL-M441H-13 VISION BOARD ASSY 1
12
KHN-M4530-65 REMOTE IF BOARD ASSY 1 OK MFY0053-2009/12/26
KHN-M4530-55 REMOTE IF BOARD ASSY 1 OK MF70204-2009/7/27
KHN-M4530-54 REMOTE IF BOARD ASSY 1
13 KJJ-M5880-00 DRIVER POWER ASSY 1
14 KJJ-M4454-01 RAS BOARD ASSY 1
15 KJJ-M4250-00 BACKPLANE BOARD ASSY 1
16 KHL-M4255-00 FLASH DISK 1
17 KGS-M5303-00 SW POWER DC5 1
18 KGS-M5303-10 SW POWER DC12 1
19 KJJ-M4186-00 FAN MOTOR ASSY 1
20 KJJ-M4186-10 FAN MOTOR ASSY 1
21 KJJ-M4186-20 FAN MOTOR ASSY 1
22 KJJ-M53A9-10 FILTER 1
23 KJJ-M53A9-20 FILTER 2
24 KJJ-M53E9-10 TAPE 1
25 KJJ-M53E9-20 TAPE 2
26 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
27 90166-12JA10 SCREW,PAN HEAD 4
28 97602-04308 SCREW,PAN HEAD W/W 63
29
KHN-M5840-B2 SERVO BOARD ASSY 1 S.T.D (SERVO 3) OK MG90117-2010/10/13
KHN-M5803-81 SERVO BOARD ASSY 1 PSC O/P Pot (SERVO 3) OK MG90117-2010/10/13
KHN-M5840-82 SERVO BOARD ASSY 1 PSC O/P Syringe (SERVO 3) OK MG90117-2010/10/13
KHN-M5840-B0 SERVO BOARD ASSY 1 S.T.D
KHN-M5803-80 SERVO BOARD ASSY 1 PSC O/P Pot
KHN-M5840-80 SERVO BOARD ASSY 1 PSC O/P Syringe
1
11

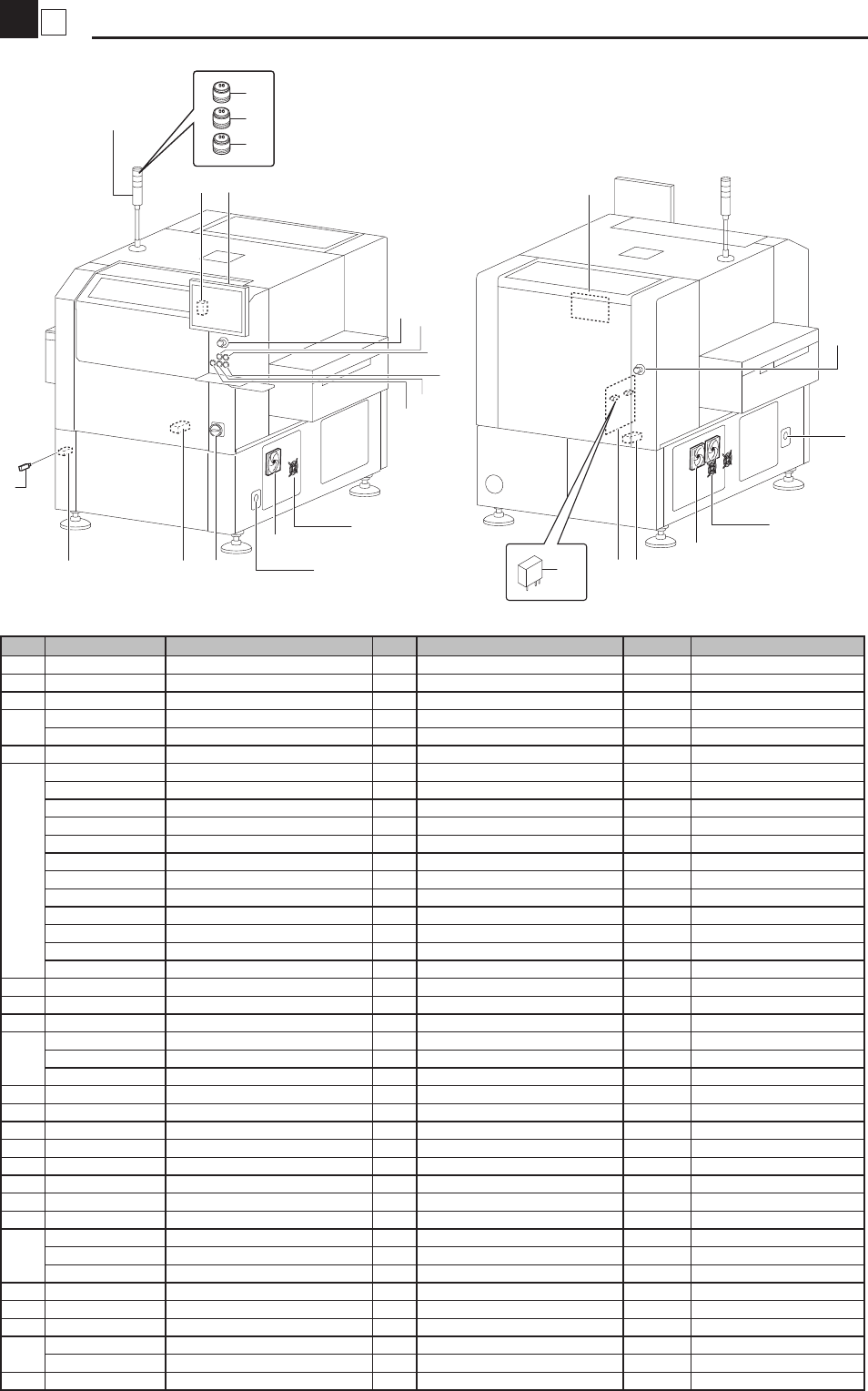

Exterior, etc.
Exterior, etc.
KHT-1004
1
4
10
5
19
23
6
7
8
7
8
14
13
12
11
15
16
17
19,24
20
21
22
3
2
9
9
18
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KM5-M6554-10 MAIN SWITCH 1
2 KGA-M669V-24 HNS,SWITCH START 1
3 KGA-M669V-32 HNS,SWITCH STOP 1
4
KJJ-M4580-14 I/O CONVEYOR BOARD ASSY 1 OK MG30022-2010/4/13
KJJ-M4580-10 I/O CONVEYOR BOARD A 1
5 KGY-M4572-00 I/O SHEAD BOARD ASSY 1
6
KHT-M4899-00 LIGHT 1 ASSY 1 L=1850 RYG
KHT-M4899-10 LIGHT 1 ASSY 1 L=1900 RYG
KHT-M4899-20 LIGHT 1 ASSY 1 L=2000 RYG
KHT-M4899-30 LIGHT 1 ASSY 1 L=2100 RYG
KHT-M4899-40 LIGHT 1 ASSY 1 L=2200 RYG
KHT-M4899-50 LIGHT 1 ASSY 1 L=2300 RYG
KHT-M4899-60 LIGHT 1 ASSY 1 L=1850 CBG
KHT-M4899-70 LIGHT 1 ASSY 1 L=1900 CBG
KHT-M4899-80 LIGHT 1 ASSY 1 L=2000 CBG
KHT-M4899-90 LIGHT 1 ASSY 1 L=2100 CBG
KHT-M4899-A0 LIGHT 1 ASSY 1 L=2200 CBG
KHT-M4899-B0 LIGHT 1 ASSY 1 L=2300 CBG
7 KHY-M6185-10 FAN MOTOR ASSY 4 L=300
8 KGA-M4187-00 FAN GUARD 119MM 8
9 KGK-M5138-00 SWITCH EMG ASSY 2
10
KW7-M5126-F0 SAFETY SW LOCK ASSY 1 OK MFX0093-2009/12/1
KW7-M5126-T0 SAFETY SWITCH ASSY 1 OK MF00102-2009/11/6
KW7-M5126-00 SAFETY SWITCH 1
11 KGY-M4268-00 USB MEMORY 1
12 KGK-M6680-20 HNS USB MEMORY 2M ASSY 1
13 KW3-M66GW-00 HNS NEXT INTERFACE 1
14 KW3-M66GX-00 HNS PRE INTERFACE 1
15 KV7-M4887-00 LED UNIT,R-R 1
16 KV7-M4887-10 LED UNIT,Y-Y 1
17 KV7-M4887-20 LED UNIT,G-G 1
18 KGA-M6522-20 SPARE RELAY 1 G6D-1A-ASI-AP
19
KHY-M5126-F0 SAFTY SWI UNIT ASSY 2 OK MFX0093-2009/12/1
KHY-M5126-T0 SAFTY SWITCH ASSY 2 OK MF00102-2009/11/6
KHY-M5126-00 SAFTY SWITCH 2
20 KGA-M669V-54 HNS,SWITCH RESET 1
21 KGA-M669V-14 HNS,SWITCH READY 1
22 KGA-M669V-42 HNS,SWITCH ERR.CLR. 1
23
KGT-M5106-02 15 NORMAL LCD" 1
KGT-M5119-02 15 TOUCH LCD ASSY 1
24 91312-04025 BOLT HEX.SOCKET HEAD 2
