1 1 1 Exterior , etc. Exterior , etc. KHT -1004 1 4 10 5 19 23 6 7 8 7 8 14 13 12 1 1 15 16 17 19,24 20 21 22 3 2 9 9 18 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KM5-M6554-10 MAIN SWITCH 1 2 …
1
10
Control Box
Control Box
KHT-1004
16
14
15
17
18
5
19
2
2
1
25
23
1
25
23
20
26
28
13
21
24
22
26
3
4
6
7
11
12
8,9
29
7
27
27
28
28
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJJ-M411B-00 BRACKET 2 2
2 KJJ-M411A-00 PLATE 2
3 KJJ-M4119-00 BRACKET 1 FILTER 1
4 KJJ-M4120-00 BRACKET 2 FILTER 1
5
KJJ-M4510-02 MOTHER BOARD ASSY 1 OK MF60242-2009/6/25
KJJ-M4510-01 MOTHER BOARD ASSY 1
6
KHN-M5840-02 SERVO BOARD ASSY 1 (SERVO 1) OK MG90117-2010/10/13
KHN-M5840-00 SERVO BOARD ASSY 1
7
KHN-M5840-82 SERVO BOARD ASSY 2 (SERVO 2/4) OK MG90117-2010/10/13
KHN-M5840-80 SERVO BOARD ASSY 2 MFY0015-2009/12/3
KHN-M5840-80 SERVO BOARD ASSY 3
8 KHL-M4209-01 SYSTEM UNIT ASSY 1 S.T.D NG MF00126-2009/11/2
9 KHL-M4209-21 SYSTEM UNIT ASSY 1 IT O/P
10
11
KHL-M441H-23 VISION BOARD ASSY 1 OK MF80042-2009/9/3
KHL-M441H-13 VISION BOARD ASSY 1
12
KHN-M4530-65 REMOTE IF BOARD ASSY 1 OK MFY0053-2009/12/26
KHN-M4530-55 REMOTE IF BOARD ASSY 1 OK MF70204-2009/7/27
KHN-M4530-54 REMOTE IF BOARD ASSY 1
13 KJJ-M5880-00 DRIVER POWER ASSY 1
14 KJJ-M4454-01 RAS BOARD ASSY 1
15 KJJ-M4250-00 BACKPLANE BOARD ASSY 1
16 KHL-M4255-00 FLASH DISK 1
17 KGS-M5303-00 SW POWER DC5 1
18 KGS-M5303-10 SW POWER DC12 1
19 KJJ-M4186-00 FAN MOTOR ASSY 1
20 KJJ-M4186-10 FAN MOTOR ASSY 1
21 KJJ-M4186-20 FAN MOTOR ASSY 1
22 KJJ-M53A9-10 FILTER 1
23 KJJ-M53A9-20 FILTER 2
24 KJJ-M53E9-10 TAPE 1
25 KJJ-M53E9-20 TAPE 2
26 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
27 90166-12JA10 SCREW,PAN HEAD 4
28 97602-04308 SCREW,PAN HEAD W/W 63
29
KHN-M5840-B2 SERVO BOARD ASSY 1 S.T.D (SERVO 3) OK MG90117-2010/10/13
KHN-M5803-81 SERVO BOARD ASSY 1 PSC O/P Pot (SERVO 3) OK MG90117-2010/10/13
KHN-M5840-82 SERVO BOARD ASSY 1 PSC O/P Syringe (SERVO 3) OK MG90117-2010/10/13
KHN-M5840-B0 SERVO BOARD ASSY 1 S.T.D
KHN-M5803-80 SERVO BOARD ASSY 1 PSC O/P Pot
KHN-M5840-80 SERVO BOARD ASSY 1 PSC O/P Syringe
1
11
Exterior, etc.
Exterior, etc.
KHT-1004
1
4
10
5
19
23
6
7
8
7
8
14
13
12
11
15
16
17
19,24
20
21
22
3
2
9
9
18
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KM5-M6554-10 MAIN SWITCH 1
2 KGA-M669V-24 HNS,SWITCH START 1
3 KGA-M669V-32 HNS,SWITCH STOP 1
4
KJJ-M4580-14 I/O CONVEYOR BOARD ASSY 1 OK MG30022-2010/4/13
KJJ-M4580-10 I/O CONVEYOR BOARD A 1
5 KGY-M4572-00 I/O SHEAD BOARD ASSY 1
6
KHT-M4899-00 LIGHT 1 ASSY 1 L=1850 RYG
KHT-M4899-10 LIGHT 1 ASSY 1 L=1900 RYG
KHT-M4899-20 LIGHT 1 ASSY 1 L=2000 RYG
KHT-M4899-30 LIGHT 1 ASSY 1 L=2100 RYG
KHT-M4899-40 LIGHT 1 ASSY 1 L=2200 RYG
KHT-M4899-50 LIGHT 1 ASSY 1 L=2300 RYG
KHT-M4899-60 LIGHT 1 ASSY 1 L=1850 CBG
KHT-M4899-70 LIGHT 1 ASSY 1 L=1900 CBG
KHT-M4899-80 LIGHT 1 ASSY 1 L=2000 CBG
KHT-M4899-90 LIGHT 1 ASSY 1 L=2100 CBG
KHT-M4899-A0 LIGHT 1 ASSY 1 L=2200 CBG
KHT-M4899-B0 LIGHT 1 ASSY 1 L=2300 CBG
7 KHY-M6185-10 FAN MOTOR ASSY 4 L=300
8 KGA-M4187-00 FAN GUARD 119MM 8
9 KGK-M5138-00 SWITCH EMG ASSY 2
10
KW7-M5126-F0 SAFETY SW LOCK ASSY 1 OK MFX0093-2009/12/1
KW7-M5126-T0 SAFETY SWITCH ASSY 1 OK MF00102-2009/11/6
KW7-M5126-00 SAFETY SWITCH 1
11 KGY-M4268-00 USB MEMORY 1
12 KGK-M6680-20 HNS USB MEMORY 2M ASSY 1
13 KW3-M66GW-00 HNS NEXT INTERFACE 1
14 KW3-M66GX-00 HNS PRE INTERFACE 1
15 KV7-M4887-00 LED UNIT,R-R 1
16 KV7-M4887-10 LED UNIT,Y-Y 1
17 KV7-M4887-20 LED UNIT,G-G 1
18 KGA-M6522-20 SPARE RELAY 1 G6D-1A-ASI-AP
19
KHY-M5126-F0 SAFTY SWI UNIT ASSY 2 OK MFX0093-2009/12/1
KHY-M5126-T0 SAFTY SWITCH ASSY 2 OK MF00102-2009/11/6
KHY-M5126-00 SAFTY SWITCH 2
20 KGA-M669V-54 HNS,SWITCH RESET 1
21 KGA-M669V-14 HNS,SWITCH READY 1
22 KGA-M669V-42 HNS,SWITCH ERR.CLR. 1
23
KGT-M5106-02 15 NORMAL LCD" 1
KGT-M5119-02 15 TOUCH LCD ASSY 1
24 91312-04025 BOLT HEX.SOCKET HEAD 2
2
11

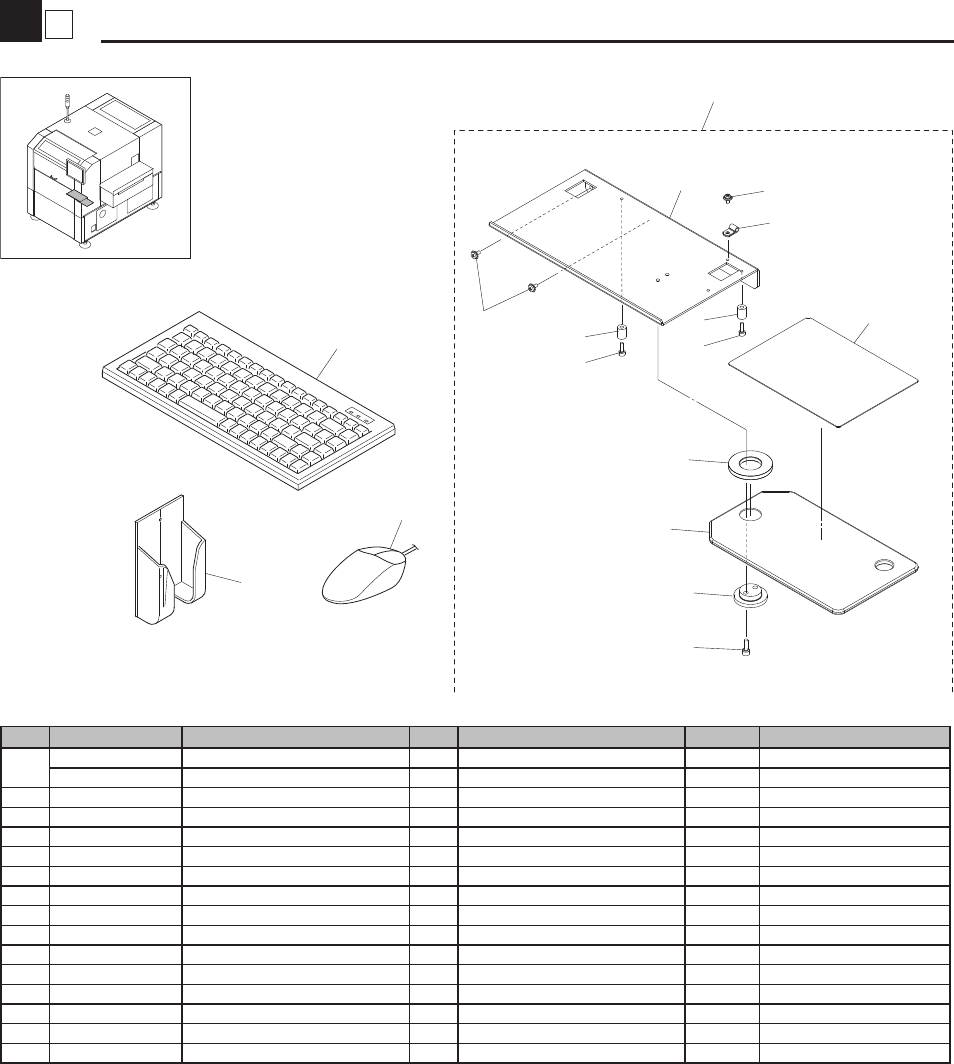

Key Board
Exterior, etc.
KHT-0906
1
14
2
3
9
13
5
6
4
12
7
8
11
8
11
10
15
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KW3-M5150-50 KEYBOARD J 1 Japanese
KW3-M5150-60 KEYBOARD E 1 English
2 KHT-M13B1-A0 BRACKET KEYBOARD ASSY 1
3 KHT-M13B1-00 BRKT,KEYBOARD 1
4 KGA-M13B2-01 SHAFT,KEYBOARD 1
5 90990-41J007 COLLAR 1
6 KGA-M13B4-00 BRACKET,PAD 1
7 KGB-M1391-00 MOUSE PAD 1
8 KG2-M1362-00 STOPPER 2
9 90990-11J003 SCREW,PAN HEAD W/W 1
10 90990-12J001 SCREW BIN.HEAD W/W 2
11 91312-04012 BOLT,HEX.SOCKET HEAD 2
12 91312-05014 BOLT HEX.SOCKET HEAD 2
13 $NK-2N NYLON CLIP 1
14 KW3-M5169-04 MOUSE 1
15 KGA-M13B5-00 MOUSE POCKET ASSY 1
