2 1 1 Key Board Exterior , etc. KHT -0906 1 14 2 3 9 13 5 6 4 12 7 8 1 1 8 1 1 10 15 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KW3-M5150-50 KEYBOARD J 1 Japanese KW3-M5150-60 KEYBOARD E 1 Engl…
1
11
Exterior, etc.
Exterior, etc.
KHT-1004
1
4
10
5
19
23
6
7
8
7
8
14
13
12
11
15
16
17
19,24
20
21
22
3
2
9
9
18
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KM5-M6554-10 MAIN SWITCH 1
2 KGA-M669V-24 HNS,SWITCH START 1
3 KGA-M669V-32 HNS,SWITCH STOP 1
4
KJJ-M4580-14 I/O CONVEYOR BOARD ASSY 1 OK MG30022-2010/4/13
KJJ-M4580-10 I/O CONVEYOR BOARD A 1
5 KGY-M4572-00 I/O SHEAD BOARD ASSY 1
6
KHT-M4899-00 LIGHT 1 ASSY 1 L=1850 RYG
KHT-M4899-10 LIGHT 1 ASSY 1 L=1900 RYG
KHT-M4899-20 LIGHT 1 ASSY 1 L=2000 RYG
KHT-M4899-30 LIGHT 1 ASSY 1 L=2100 RYG
KHT-M4899-40 LIGHT 1 ASSY 1 L=2200 RYG
KHT-M4899-50 LIGHT 1 ASSY 1 L=2300 RYG
KHT-M4899-60 LIGHT 1 ASSY 1 L=1850 CBG
KHT-M4899-70 LIGHT 1 ASSY 1 L=1900 CBG
KHT-M4899-80 LIGHT 1 ASSY 1 L=2000 CBG
KHT-M4899-90 LIGHT 1 ASSY 1 L=2100 CBG
KHT-M4899-A0 LIGHT 1 ASSY 1 L=2200 CBG
KHT-M4899-B0 LIGHT 1 ASSY 1 L=2300 CBG
7 KHY-M6185-10 FAN MOTOR ASSY 4 L=300
8 KGA-M4187-00 FAN GUARD 119MM 8
9 KGK-M5138-00 SWITCH EMG ASSY 2
10
KW7-M5126-F0 SAFETY SW LOCK ASSY 1 OK MFX0093-2009/12/1
KW7-M5126-T0 SAFETY SWITCH ASSY 1 OK MF00102-2009/11/6
KW7-M5126-00 SAFETY SWITCH 1
11 KGY-M4268-00 USB MEMORY 1
12 KGK-M6680-20 HNS USB MEMORY 2M ASSY 1
13 KW3-M66GW-00 HNS NEXT INTERFACE 1
14 KW3-M66GX-00 HNS PRE INTERFACE 1
15 KV7-M4887-00 LED UNIT,R-R 1
16 KV7-M4887-10 LED UNIT,Y-Y 1
17 KV7-M4887-20 LED UNIT,G-G 1
18 KGA-M6522-20 SPARE RELAY 1 G6D-1A-ASI-AP
19
KHY-M5126-F0 SAFTY SWI UNIT ASSY 2 OK MFX0093-2009/12/1
KHY-M5126-T0 SAFTY SWITCH ASSY 2 OK MF00102-2009/11/6
KHY-M5126-00 SAFTY SWITCH 2
20 KGA-M669V-54 HNS,SWITCH RESET 1
21 KGA-M669V-14 HNS,SWITCH READY 1
22 KGA-M669V-42 HNS,SWITCH ERR.CLR. 1
23
KGT-M5106-02 15 NORMAL LCD" 1
KGT-M5119-02 15 TOUCH LCD ASSY 1
24 91312-04025 BOLT HEX.SOCKET HEAD 2
2
11
Key Board
Exterior, etc.
KHT-0906
1
14
2
3
9
13
5
6
4
12
7
8
11
8
11
10
15
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KW3-M5150-50 KEYBOARD J 1 Japanese
KW3-M5150-60 KEYBOARD E 1 English
2 KHT-M13B1-A0 BRACKET KEYBOARD ASSY 1
3 KHT-M13B1-00 BRKT,KEYBOARD 1
4 KGA-M13B2-01 SHAFT,KEYBOARD 1
5 90990-41J007 COLLAR 1
6 KGA-M13B4-00 BRACKET,PAD 1
7 KGB-M1391-00 MOUSE PAD 1
8 KG2-M1362-00 STOPPER 2
9 90990-11J003 SCREW,PAN HEAD W/W 1
10 90990-12J001 SCREW BIN.HEAD W/W 2
11 91312-04012 BOLT,HEX.SOCKET HEAD 2
12 91312-05014 BOLT HEX.SOCKET HEAD 2
13 $NK-2N NYLON CLIP 1
14 KW3-M5169-04 MOUSE 1
15 KGA-M13B5-00 MOUSE POCKET ASSY 1
3
11

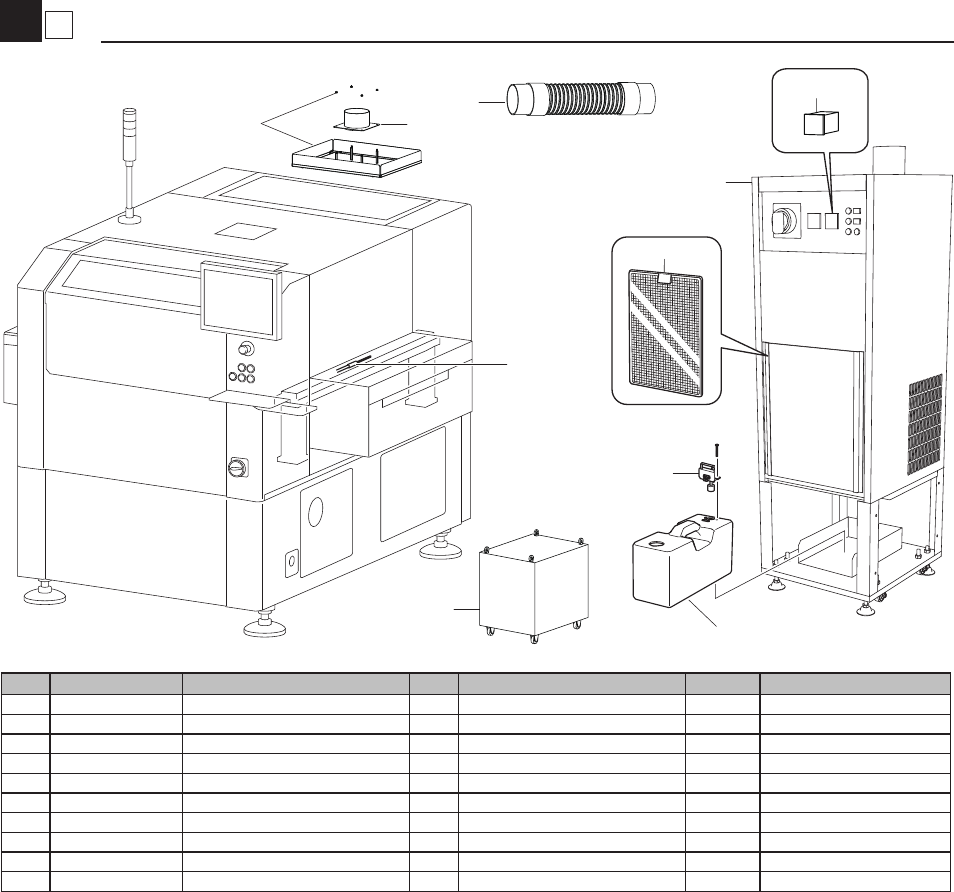

Temp. Con. Spare
Exterior, etc.
KHT-0906
4
2
3
1
6
10
8
7
9
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGJ-M9514-60 TEMP SENSOR ASSY 1
2 KGJ-M9513-00 TANK 1
3 KGJ-M9511-00 FILTER 1
4 KGJ-M9512-60 FLOAT SW. ASSY 1
5 KGJ-M9516-00 CONTROLLER,TEMP. 1 MK60050-2013/7/18
6 KGJ-M9501-B0 TEMP CON,UNIT 1
7 KGJ-M9502-01 TRANS CE 1
8 KHT-M9502-00 AIR DUCT,TEMP CON. 1
9 KHT-M9504-A0 TEMP.CON.COVER ASSY. 1
10 KHU-M9505-A0 DUCT HOSE ASSY. 1
