1 2 Cover / LCD Stay Cover KHT -1011 36 36 9 37 29 OLD 34 36 36 36 36 34 34 13 34 4 6 8 7 10 37 29 13 34 34 34 34 34 15 34 23 33 39 1 50 50 50 50 51 51 51 48 48 51 14 5 36 35 36 36 28 31 41 38 33 29 32 42 34 27 27 21 21 …
3
1

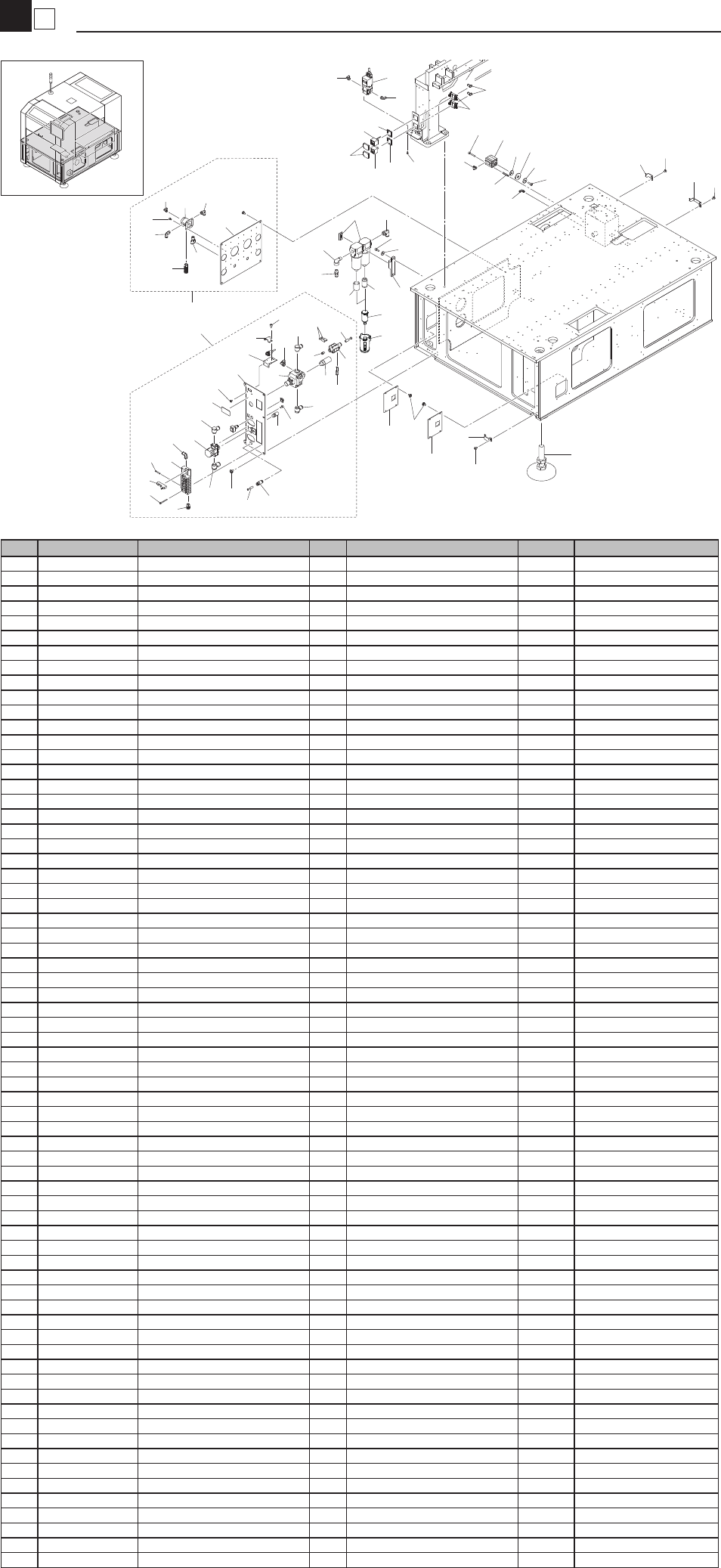

Foot / Air / Magnet
Base
KHT-1301
45
37
35
36
37
48
55
47
49
32
53
52
61
39
39
41
3
29
27
28
28
57
30
31
26
25
34
34
49
50
44
62
60
42
43
56
33
13
12
19
64
19
6
4
11
65
20
58
19
19
22
54
23
24
15
16
17
9
8
21
23
14
5
66
41
63
63
64
63
1
40
46
53
48
2
37
37
59
7
67
68
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGA-M1180-00 LEVELING BOLT ASSY 4
2 KHT-M8583-A0 E.CLAMP REG. ASSY 1
3 KHT-M1120-00 P. GAUGE SUB ASSY. 1
4 KHT-M1111-00 PLATE 3-1 1
5 KHT-M8582-00 VALVE 1
6 KH5-M8501-00 EXHAUST VALVE 1
7 KHY-M8504-00 REGULATOR 1
8 KJJ-M11G2-00 BRACKET,USB 1
9 KHM-M1397-00 BRACKET,FDD 3 1
10
11 90K41-000540 LABEL,ALERT 1
12 $KM-11 MUFFLER 1
13 $TL8-01 JOINT 1
14 $UK8 JOINT 1
15 $UEDW10-8 JOINT 1
16 $UR8-6 JOINT 1
17 $UC4 JOINT 1 OK MEY0031-2008/12/9
18 $SL12-03 JOINT 1
19 $SL10-03 JOINT 3
20 $KM-22 MUFFLER 1
21 $KM-31 MUFFLER 1
22 $TBLY4-02 JOINT 1
23 $UP8 PLUG 3
24 $UP10 JOINT 1
25 KHT-M1130-00 VALVE ASSY. 1
26 KGY-M1124-00 PLATE,VALVE 1
27 KV8-M9212-00 VALVE 1
28 $TL8-02 JOINT 2
29 $TL4-01 JOINT 1
30 $KM-23 MUFFLER 1
31 $UYD8-6 JOINT 1
32 KGJ-M3754-00 CYL,VALVE 1
33 KHW-M8582-40 VALVE 1 Spare
34 KHW-M8502-00 F.M.COMB. 1
35 KHY-M8596-00 MAIN PRESSURE 1
36 KGY-M3761-00 CLEANER VACUUM PRESSURE 1
37 KHW-M8597-00 BRACKET,GAUGE 2
38
39 KV7-M1125-00 PLATE,CLAMP 3
40 KW8-M1328-00 BRACKET 9 2
41 KGY-M111D-00 PLATE,GATE IN/OUT 2
42 90990-42J006 JOINT 1
43 90990-42J008 JOINT 1
44 $TL12-03 JOINT 1
45 $SL4-M5 JOINT 2
46 $TL4-M5 JOINT 1
47 $TL4-01 JOINT 2
48 $TL4-02 JOINT 2
49 KHW-M8501-10 ELEMENT 1
50 KHW-M8501-20 MANTLE 1
51 90563-24J370 SPACER BOLT 4
52 90990-28J022 WASHER,PLAIN 1
53 90990-28J069 WASHER,PLAIN 2
54 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
55 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
56 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
57 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
58 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
59 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
60 91312-06014 BOLT HEX.SOCKET HEAD 2 M6X14
61 91312-08020 BOLT HEX.SOCKET HEAD 1 M8X20
62 92902-06200 WASHER PLAIN(N) 2
63 98902-05008 SCREW BINDING HEAD 31
64 90990-12J004 SCREW BIN.HEAD W/W 24
65 98902-04006 SCREW BINDING HEAD 2
66 $UP4 JOINT 4
67 KHW-M8501-30 BOWL (F3000-W) 2 MH00013-2011/12/20
68 KHW-M8501-40 BOWL GUARD (F3000-W) 2 MH00013-2011/12/20
1
2

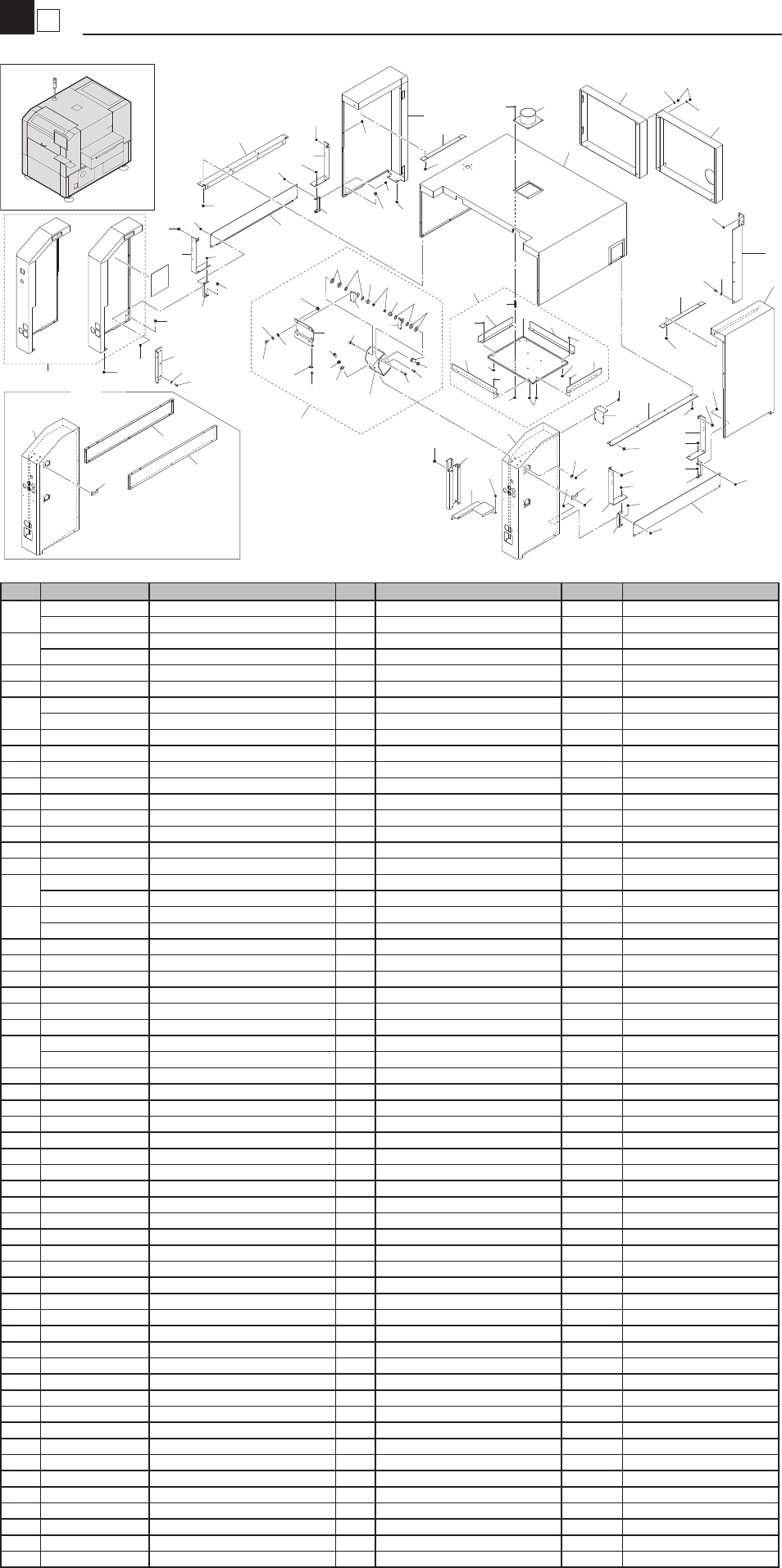

Cover / LCD Stay
Cover
KHT-1011
36
36
9
37
29
OLD
34
36
36
36
36
34
34
13
34
4
6
8
7
10
37
29
13
34
34
34
34
34
15
34
23
33
39
1
50
50
50
50
51
51
51
48
48
51
14
5
36
35
36
36
28
31
41
38
33
29
32
42
34
27
27
21
21
40
30
33
38
17
43
19
19
18
22
22
20
39
36
16
35
12
11
3
26
26
34
34
34
11
16
5
2
PSC S.T.D
5
44
45
5
36
34
34
34
36
44
45
36
23
1
25
34
36
34
15
34
52
54
49
46
47
47
53
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M1301-01 COVER FR 1 SET MF70206-2009/7/29
KHT-M1301-00 COVER FR 1
2
KHT-M1302-00 COVER FL 1 S.T.D
KHT-M1302-10 COVER FL 1 PSC of SY RINGE (Addition) MG20021-2010/3/18
3 KHT-M1303-00 COVER RR 1
4 KHT-M1304-00 COVER RL 1
5
KHT-M1305-01 COVER S 2 NG MF60284-2009/7/2
KHT-M1305-00 COVER S 2
6 KHT-M1306-01 COVER T 1
7 KHT-M1313-00 COVER BRR 1
8 KHT-M1314-00 COVER BRL 1
9 KHT-M1351-00 BRKT.,HINGE 1
10 KHT-M1351-10 BRKT.,HINGE 1
11 KHT-M1356-01 BRKT.,COVER T 2
12 KHT-M1357-01 BRKT.,SCHMEASAL 1
13 KHT-M1358-00 BRKT.,COVER RT 2
14 KHT-M1361-00 COVER,HNS. 1
15
KHT-M1371-01 BRKT.1, GATE COVER 2 OK MF60284-2009/7/2
KHT-M1371-00 BRKT.1, GATE COVER 2
16
KHT-M1372-01 BRKT.2, GATE COVER 2 OK MF60284-2009/7/2
KHT-M1372-00 BRKT.2, GATE COVER 2
17 KHT-M1380-A0 LCD STAY ASSY. 1
18 KHT-M1381-00 STAY, LCD 1
19 KHW-M1383-00 BRACKET 2 2
20 KHW-M1384-00 BRACKET,LCD 1
21 KHW-M1385-00 SPACER 4
22 KHW-M1386-00 BUSH 2
23
KHT-M1318-00 COVER FL 2 SET MF70206-2009/7/29
KGA-M1318-00 COVER 18 2
24 KGS-M1360-00 BOLT 4
25 KHT-M1362-00 COVER,HNS 1
26 KH1-M1396-00 WASHER 4
27 90990-37J001 WASHER,BELLEVILLE 4
28 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
29 91312-05010 BOLT HEX.SOCKET HEAD 10 M5X10
30 91312-05012 BOLT HEX.SOCKET HEAD 1 M5X12
31 92902-04200 WASHER PLAIN 8
32 92902-05200 WASHER PLAIN 4
33 90990-11J003 SCREW,PAN HEAD W/W 5
34 90990-12J001 SCREW BIN.HEAD W/W 56
35 90990-12J002 SCREW BIN.HEAD W/W 10
36 90990-12J004 SCREW BIN.HEAD W/W 34
37 92902-05200 WASHER PLAIN 6
38 $NK-3N NYLON CLIP 5
39 $NK-2N NYLON CLIP 2
40 91312-06025 BOLT HEX.SOCKET HEAD 2
41 90172-00J040 WASHER,EXTL.TOOTHED 8
42 90172-00J050 WASHER,EXTL.TOOTHED 4
43 95602-06100 NUT,U 2
44 KHT-M1378-00 BRKT.2 ,COVER S 2 MF60284-2009/7/2
45 KHT-M1378-10 BRKT.2 ,COVER S 2 MF60284-2009/7/2
46 KHT-M9504-01 COVER 1, TEMP. CON. 1 MG80007-2010/8/3
47 KHT-M9505-00 COVER 2, TEMP. CON. 2 MG80007-2010/8/3
48 KHT-M9506-00 COVER 3, TEMP. CON. 2 MG80007-2010/8/3
49 90563-24J500 SPACER BOLT 4 MG80007-2010/8/3
50 90990-12J001 SCREW BIN.HEAD W/W 68 MG80007-2010/8/3
51 95302-04600 NUT, HEXAGON 8 MG80007-2010/8/3
52 95302-04800 NUT CAP : M4 4 MG80007-2010/8/3
53 KHT-M9504-A0 TEMP.CON.CONVER ASSY. 1 MG80007-2010/8/3
54 KHT-M9502-00 AIR.DUCT.TRMP COM. 1
2
2

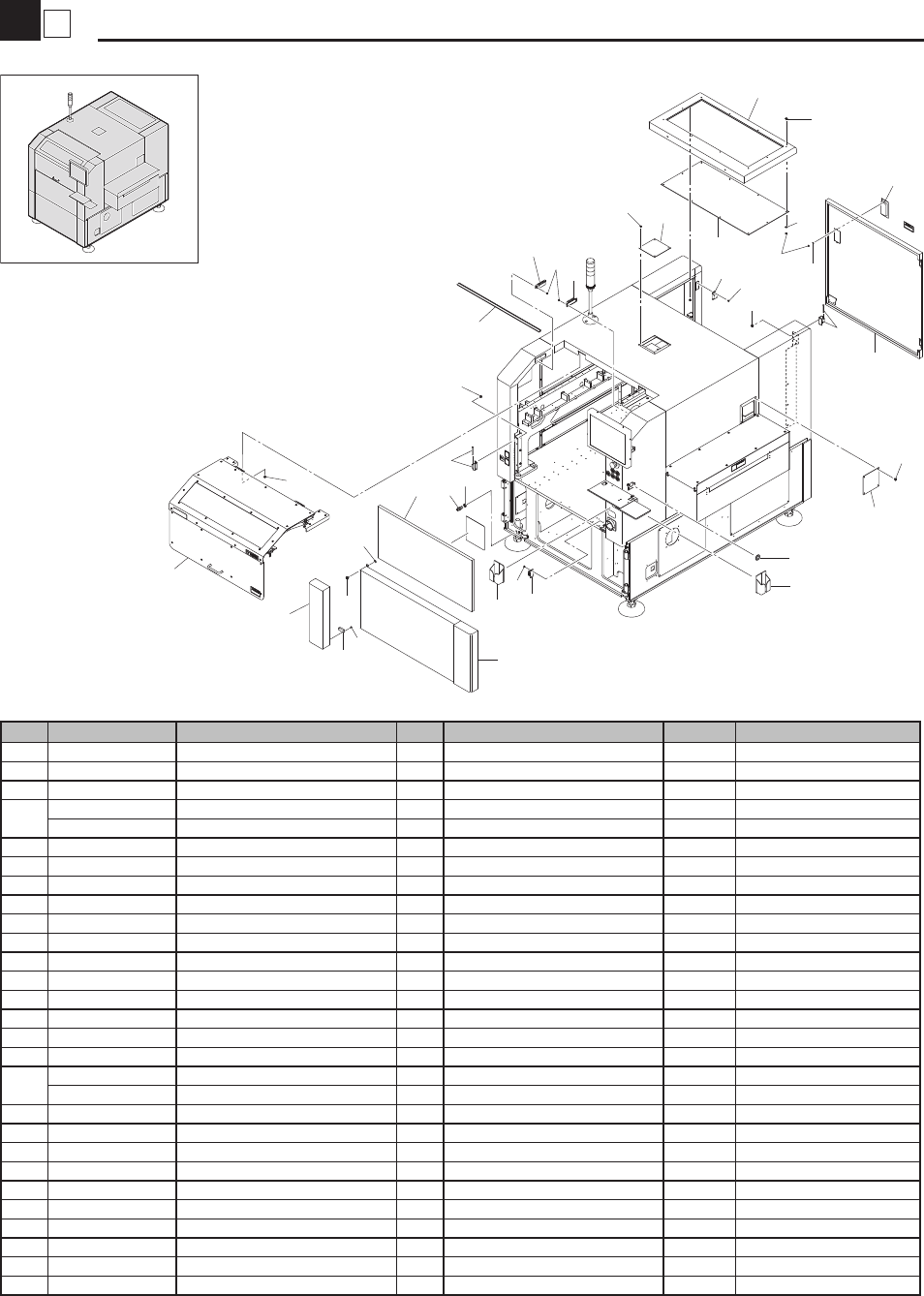

Door FT / R
Cover
KHT-1004
2
9
10
10
19
20
20
20
7
13
12
12
1
21
26
27
14
22
4
3
16
19
20
19
16
5
7
23
8
24
24
15
6
11
11
18
25
17
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M1307-00 DOOR F 1
2 KHT-M1309-A0 COVER FT ASSY 1
3 KHT-M1310-00 COVER BFR 1
4
KHT-M1311-01 COVER BLF 1 OK MF50112-2009/6/4
KHT-M1311-00 COVER BFL 1
5 KHT-M1315-00 COVER RT 1
6 KHT-M1316-01 DOOR R 1
7 KHT-M1317-00 COVER,AIR DUCT 3
8 KHT-M130C-00 COVER,ACRYLIC 1
9 KHT-M1331-00 TRIM,SF.COVER 1
10 KHT-M1349-00 CATCH MG. 2
11 KG2-M1370-00 HINGE ASSY 4
12 KGA-M13B5-00 MOUSE POCKET ASSY 1
13 KH1-M13A9-00 BUSH 2
14 KH1-M1396-00 WASHER 4
15 KHU-M1117-00 PULL 1
16 KV5-M1130-00 CATCH MG. 4
17
Delete MF50112-20096/4
KHT-M1332-00 MAGNET CATCH 2
18 KV7-M1396-00 WASHER 2
19 98902-03005 SCREW BINDING HEAD 12
20 90990-12J001 SCREW BIN.HEAD W/W 12
21 90990-12J004 SCREW BIN.HEAD W/W 2
22 90990-12J002 SCREW BIN.HEAD W/W 6
23 90990-46J001 BOLT,THIN HEAD 11
24 92907-04200 WASHER PLAIN 12
25 95307-04600 NUT HEXAGON 12
26 K44-M1354-00 MG. CATCH(TL-152-2) 1 MF50112-2009/6/4
27 98902-03008 SCREW BINDING HEAD 12
