3 2 Door FT Cover KHT -1301 2 30 40 3 35 36 29 28 28 28 29 22 22 40 14 14 7 15 1 30 27 8 41 20 20 23 23 23 17 23 23 28 23 28 38 32 39 33 26 39 33 26 25 38 32 25 29 29 16 16 13 12 37 37 9 9 10 10 10 10 1 1 1 1 1 1 1 1 1 1…
2
2
Door FT / R
Cover
KHT-1004
2
9
10
10
19
20
20
20
7
13
12
12
1
21
26
27
14
22
4
3
16
19
20
19
16
5
7
23
8
24
24
15
6
11
11
18
25
17
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M1307-00 DOOR F 1
2 KHT-M1309-A0 COVER FT ASSY 1
3 KHT-M1310-00 COVER BFR 1
4
KHT-M1311-01 COVER BLF 1 OK MF50112-2009/6/4
KHT-M1311-00 COVER BFL 1
5 KHT-M1315-00 COVER RT 1
6 KHT-M1316-01 DOOR R 1
7 KHT-M1317-00 COVER,AIR DUCT 3
8 KHT-M130C-00 COVER,ACRYLIC 1
9 KHT-M1331-00 TRIM,SF.COVER 1
10 KHT-M1349-00 CATCH MG. 2
11 KG2-M1370-00 HINGE ASSY 4
12 KGA-M13B5-00 MOUSE POCKET ASSY 1
13 KH1-M13A9-00 BUSH 2
14 KH1-M1396-00 WASHER 4
15 KHU-M1117-00 PULL 1
16 KV5-M1130-00 CATCH MG. 4
17
Delete MF50112-20096/4
KHT-M1332-00 MAGNET CATCH 2
18 KV7-M1396-00 WASHER 2
19 98902-03005 SCREW BINDING HEAD 12
20 90990-12J001 SCREW BIN.HEAD W/W 12
21 90990-12J004 SCREW BIN.HEAD W/W 2
22 90990-12J002 SCREW BIN.HEAD W/W 6
23 90990-46J001 BOLT,THIN HEAD 11
24 92907-04200 WASHER PLAIN 12
25 95307-04600 NUT HEXAGON 12
26 K44-M1354-00 MG. CATCH(TL-152-2) 1 MF50112-2009/6/4
27 98902-03008 SCREW BINDING HEAD 12

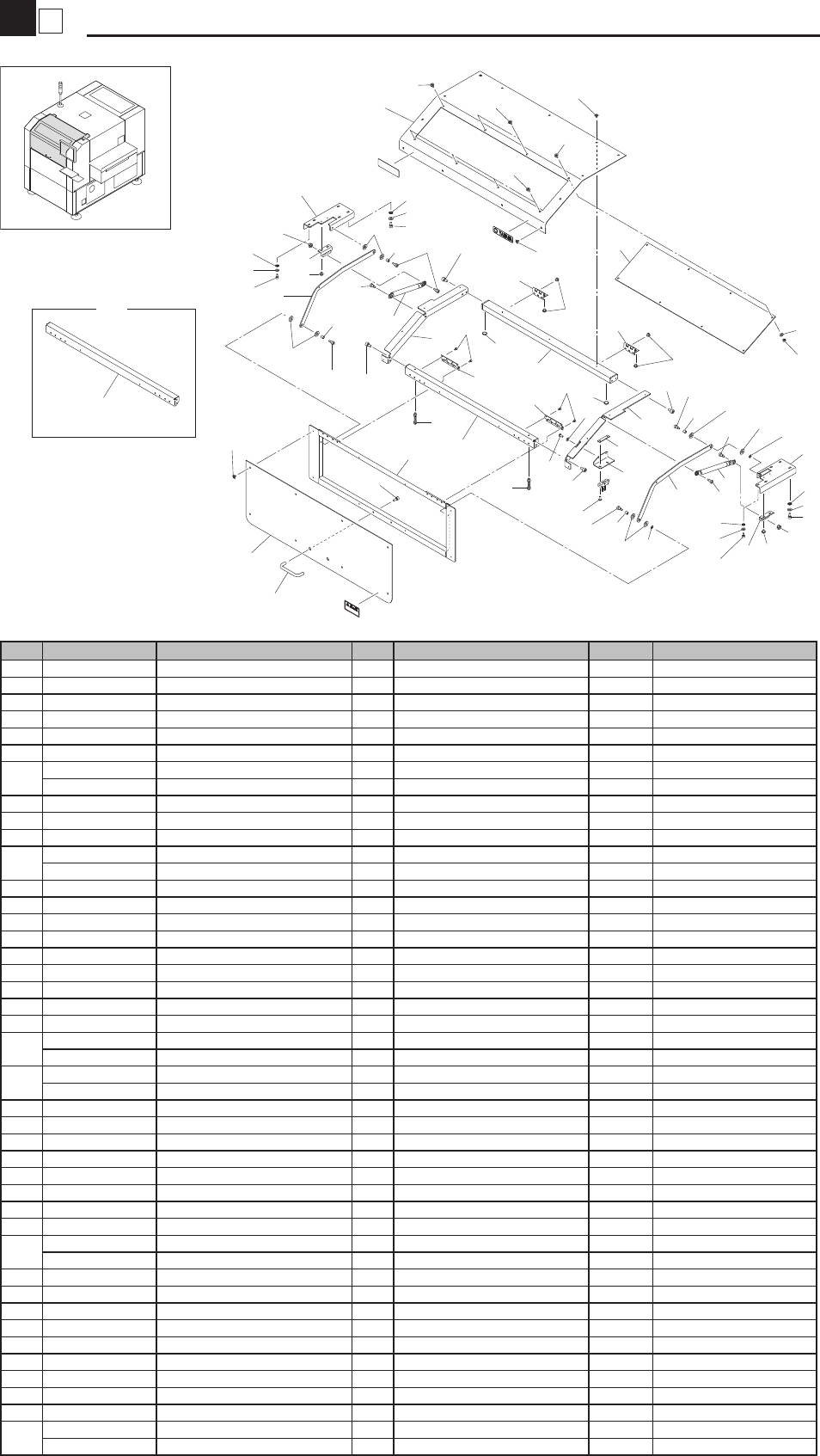

3
2
Door FT
Cover
KHT-1301
2
30
40
3
35
36
29
28
28
28
29
22
22
40
14
14
7
15
1
30
27
8
41
20
20
23
23
23
17
23
23
28
23
28
38
32
39
33
26
39
33
26
25
38
32
25
29
29
16
16
13
12
37
37
9
9
10
10
10
10
11
11
11
11
11
34
34
35
19
18
24
4
5
6
30
40
31
31
17
7
OLD
41
21
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M1309-00
COVER 9-1 1
2 KHT-M130A-00 COVER 9-2 1
3 KHT-M130B-00 COVER 9-3 1
4 KHT-M1340-00 BRKT.1,COVER 9 1
5 KHT-M1341-00 BRKT.2,COVER 9 1
6 KHT-M1342-00 BRKT.3,COVER 9 1
7
KHT-M1343-02
BRKT.4,COVER 9 1
OK MF70005-2009/7/2
KHT-M1343-01
BRKT.4,COVER 9 1
8 KHT-M1344-00 BRKT.5,COVER 9 1
9 KHT-M1345-00 PLATE,LINK 2
10 KHT-M1346-00 BUSH 4
11
90990-28J166 WASHER,PLAIN 8 OK MJY0091-2013/2/4
KHT-M1347-00 SPACER 8
12 KHT-M1348-01 PLATE 1,JOINT 1
13 KHT-M1348-11 PLATE 2,JOINT 1
14 KHT-M134A-00 HINGE 2
15 KH2-M1324-01 GRIP 1
16 KM0-M1331-01 BRACKET GAS DAMPER 2
17 KL3-M1348-10 GAS SPRING 2
18 KHT-M134B-00 BRACKET 1 SCHMEASAL 1
19 KL0-M1374-00 PLATE 1 SCHMEASAL 1
20 KGS-M1360-00 BOLT 4
21
Delete MF70005-2009/7/2
K93-M1392-00 SPACER (TM-180-303) 2
22
K46-M1374-11 HINGE 2 4 OK MF70096-2009/7/13
K46-M1374-10 HINGE 2 2
23 90990-31J006 BOLT,SHOULDER 8
24 91312-03005 BOLT HEX.SOCKET HEAD 16 M3X5
25 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
26 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
27 91317-05012 BOLT HEX.SOCKET HEAD 2 M5X12
28 91317-06010 BOLT HEX.SOCKET HEAD 8 M6X10
29 90990-12J002 SCREW BIN.HEAD W/W 12
30 90990-46J001 BOLT,THIN HEAD 20
31
90990-46J003 BOLT,THIN HEAD 6 OK MF50070-2009/5/18
90990-46J003 BOLT,THIN HEAD 8
32 92902-04200 WASHER PLAIN 2
33 92902-05200 WASHER PLAIN 8
34 92902-06200 WASHER PLAIN(N) 4
35 92907-04200 WASHER PLAIN 10
36 95307-04600 NUT HEXAGON 8
37 95307-06600 NUT HEXAGON 2
38 90172-00J040 WASHER,EXTL.TOOTHED 2
39 90172-00J050 WASHER,EXTL.TOOTHED 8
40 90990-46J002 BOLT,THIN HEAD 2 MF50070-2009/5/18
41
90990-33J041 BOLT,STOPPER 2 OK MG50010-2010/5/10
90990-33J008 BOLT,STOPPER 2 MF70005-2009/7/2

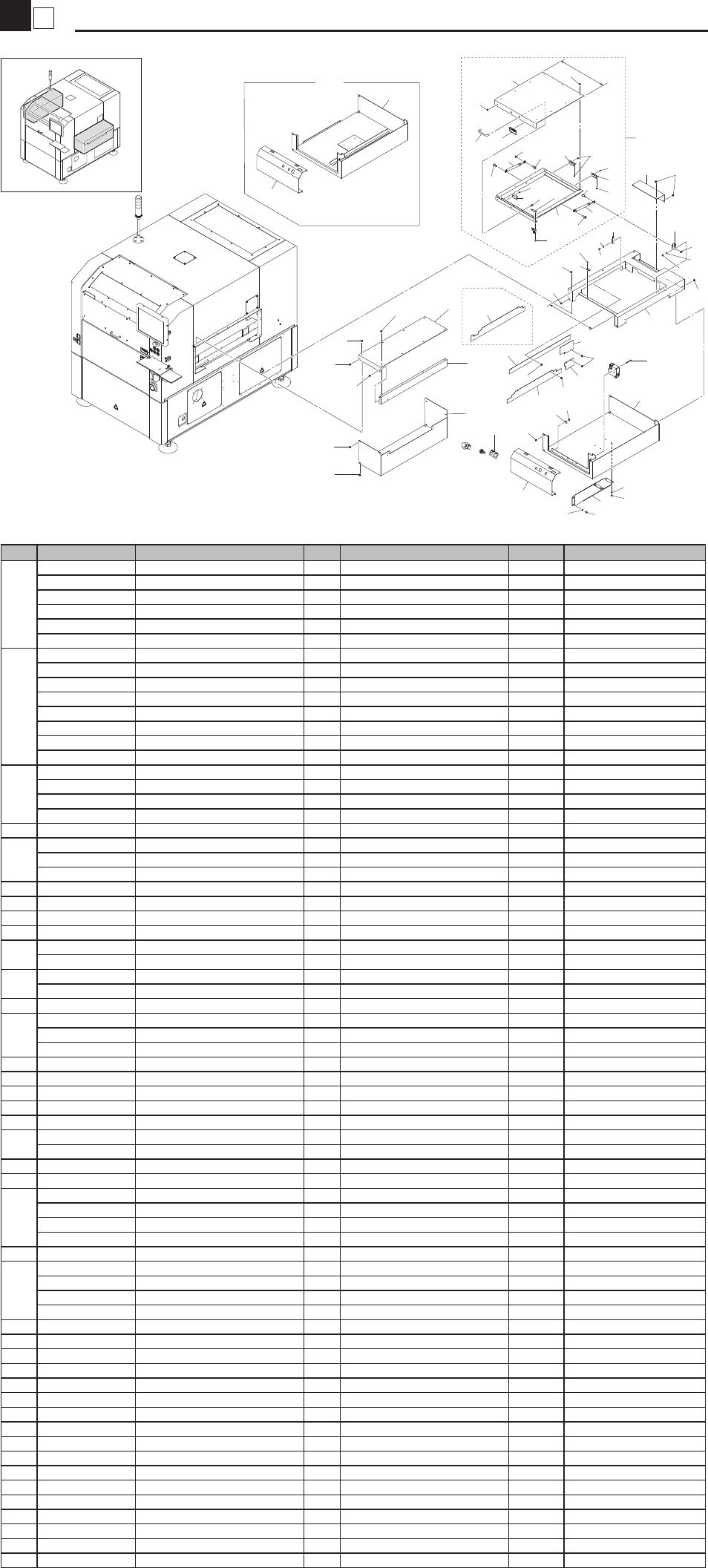

4
2
R / L Conveyor
Cover
KHT-1301
10
11
40
W
40
15
19
39
17
17
26
26
36
L
36
36
3620
23
Left
24
22
37
37
37
37
36
36
The illustration shows the comveyor cover of the right side.
33
30
29
33
8
3
38
35
36
9
6
7
1
2
27
32
21
4
36
21
27
32
39
36
28
14
12
16
41
31
18
26
26
13
13
25
25
25
34
18
5
5
3
1
OLD
36
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHT-M13G1-02 COVER,CONV. BOTTOM R 1 Right side Muzzle position change NG MJ00188-2012/10/26
KHT-M13G1-01 COVER,CONV. BOTTOM R 1 Acrylic width change NG MF30138-2009/7/8
KHT-M13G1-00 COVER,CONV. BOTTOM R 1
KHT-M13G1-12 COVER,CONV. BOTTOM L 1 Left side Muzzle position change NG MJ00188-2012/10/26
KHT-M13G1-11 COVER,CONV. BOTTOM L 1 Acrylic width change NG MF30138-2009/7/8
KHT-M13G1-10 COVER,CONV. BOTTOM L 1
2
KHT-M13G2-04 COVER,CONV. UP R 1 Right side Muzzle position change NG MJ00188-2012/10/26
KHT-M13G2-03 COVER,CONV. UP R 1 OK MGX0108-2010/12/6
KHT-M13G2-02 COVER,CONV. UP R 1 L=503mm Acrylic width change Acrylic width change NG MF30138-2009/7/8
KHT-M13G2-01 COVER,CONV. UP R 1 L=508mm
KHT-M13G2-14 COVER,CONV. UP L 1 Left side Muzzle position change NG MJ00188-2012/10/26
KHT-M13G2-13 COVER,CONV. UP L 1 OK MGX0108-2010/12/6
KHT-M13G2-12 COVER,CONV. UP L 1 Acrylic width change NG MF30138-2009/7/8
KHT-M13G2-11 COVER,CONV. UP L 1
3
KHT-M13G3-01 COVER,CONV. FR 1 Right side Acrylic width change NG MF30138-2009/7/8
KHT-M13G3-00 COVER,CONV. FR 1
KHT-M13G3-11 COVER,CONV. FL 1 Left side Acrylic width change NG MF30138-2009/7/8
KHT-M13G3-10 COVER,CONV. FL 1
4 KHT-M13G4-00 COVER,CONV. R 1
5
KHT-M13G5-11 COVER,CONV. IN F 1 Right side OK MJ50025-2012/5/16
KHT-M13G5-10 COVER,CONV. IN F 1 Right side MF70001-2009/7/2
KHT-M13G5-00 COVER,CONV. IN F 1 Left side
6 KHT-M13G6-00 COVER,CONV. IN R 1
7 KHT-M13G7-00 COVER,CONV. IN RT 1
8 KHT-M13G8-00 BRACKET,COVER 1
9 KHT-M13G9-00 COVER,CONV. IN FT 1
10
KHT-M13GA-00 DOOR R,CONV. COVER 1 Right side
KHT-M13GA-10 DOOR L,CONV. COVER 1 Left side
11
KHT-M13GB-01 COVER,DOOR ACRYLIC 1 W=497mm Acrylic width change NG MF30138-2009/7/8
KHT-M13GB-00 COVER,DOOR ACRYLIC 1 W=502mm
12 KHT-M13GC-00 BRKT.,COVER 1
13
K46-M1374-12 HINGE 2 2 OK MK20039-2013/2/13
K46-M1374-11 HINGE 2 2 OK MF70096-2009/7/16
K46-M1374-10 HINGE 2 2
14 KGS-M1360-00 BOLT 2
15 KH2-M1324-01 GRIP 1
16 KL0-M1374-00 PLATE 1 SCHMEASAL 1
17 KL3-M1348-10 GAS SPRING 2
18 KV5-M1130-00 CATCH MG. 2
19
90K41-001250 LABEL,WARNING 1 75x45mm NG MJ30200-2012/4/20
90K41-000360 LABEL,ALERT 1 82x42mm
20 KGY-M93G5-00 PANEL,S/W 1
21 KM0-M1331-01 BRACKET GAS DAMPER 2
22
KHT-M1373-02 COVER,CONV.BOTTOM R 1 Right side Muzzle position change NG MJ00188-2012/10/26
KHT-M1373-01 COVER,CONV.BOTTOM R 1
KHT-M1373-12 COVER,CONV.BOTTOM L 1 Left side Muzzle position change NG MJ00188-2012/10/26
KHT-M1373-11 COVER,CONV.BOTTOM L 1
23 KHT-M1374-01 COVER,CONV. TOP 1
24
KHT-M1376-01 COVER,CONV. UP R 1 Right side Muzzle position change NG MJ00188-2012/10/26
KHT-M1376-00 COVER,CONV. UP R 1
KHT-M1376-11 COVER,CONV. UP L 1 Left side Muzzle position change NG MJ00188-2012/10/26
KHT-M1376-10 COVER,CONV. UP L 1
25 90990-12J006 SCREW BIND HEAD W/W 24
26 90990-31J006 BOLT,SHOULDER 8
27 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
28 91312-04035 BOLT HEX.SOCKET HEAD 3 M4X35
29 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
30 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
31 91312-05014 BOLT HEX.SOCKET HEAD 2 M5X14
32 92902-04200 WASHER PLAIN 4
33 92902-05600 WASHER PLAIN 8
34 98702-03005 SCREW FLAT HEAD 4
35 90990-11J003 SCREW,PAN HEAD W/W 10
36 90990-12J001 SCREW BIN.HEAD W/W 40
37 90990-12J003 SCREW BIN.HEAD W/W 10
38 $NK-3N NYLON CLIP 8
39 95302-06600 NUT HEXAGON 2
40 90990-46J001 BOLT,THIN HEAD 11
41 98902-03006 SCREW BINDING HEAD 4
