Retrofit instructions Splice sensors 8 - 72 mm

07/2003 Edition

Ready Splice Detect Sensor 4

: For the 12/16 wide kit and the 24/32 kit, determine which tape/feeder width you need.

Both kits are shipped pre-assembled in the smaller tape/feeder position. The upper lid can be

flipped over (180 deg.) to accommodate the larger width. 4

No spring guide at the 24/32 splice sensor! 4

: Using the supplied M 2.5 x 8 pan head screws, mount the right side guide block in the appro-

priate holes in the kit spring bottom with the upper tape notch facing inboard the same way it

was received.

: Then mount the lid piece in the corresponding slots and screw in place with the supplied pan-

head screws. See Fig. 4 - 2.

Movable guide block

M2.5x8 Pan HD screw

Fixed sensor block

Retrofit instructions Splice sensors 8 - 72 mm

07/2003 Edition

For the 44, 56, and 72 wide kits, they are shipped pre-assembled ready to install. 4

Fig. 4 - 4 End views of 44, 56, & 72 wide kits

Fig. 4 - 5 Splice Sensors

Blade spring

Setting the 32 mm position

Setting the 24 mm position

Cover

4 screws

Retrofit instructions Splice sensors 8 - 72 mm

07/2003 Edition

Install Splice Detect Sensor on Feeder 4

: Attach the Splice Detect Sensor Spring with the (2) saved m3 x 4 flat head screws to the remo-

ved spring mount bracket.

: Slide the bracket back into the feeder until the end slot engages the pins inside of the feeder

where it was originally attached.

Use the saved phillips head screws to attach the bracket on both sides of the feeder. The Splice

Detect Sensor is now installed.

Install Feeder 4

: Re-install completed feeder module onto feeder table at original machine location.

: Re-plug feeder communication cable into feeder communication unit and plug splice detect

sensor communication cable into unit as shown in Fig. 4 - 6.

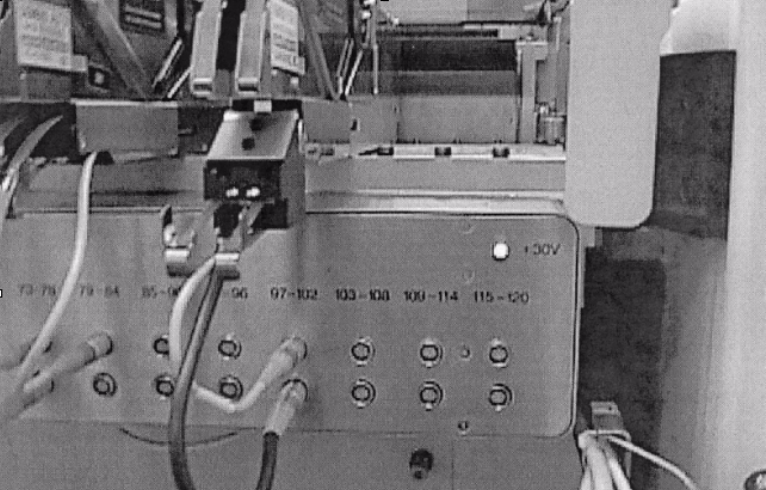

Fig. 4 - 6 Communication cables installed

The installation is now complete. Refer to Splice Detect Sensor operations instructions for further

information. 4

LEDs on splice sensors 4

The LEDs on the splice sensors have the following meaning: 4

– LED on: Ready

– LED off: Splice detected
