YV100II PARTLIST - 第17页
KM8-9910 Feeder Floating Detection (Front) 3 3 Feeder 4 6 7 2 5 1 3 3
KM8-9910
Feeder Holder C
32
Feeder
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KG2-M3401-C2X PLATE C, FEEDER 1
2 KM0-M3402-C0X GUIDE C-1, TAPE 1
3 KG2-M3403-C1X GUIDE C-2,TAPE 1
4 KM0-M3405-01X STAND 1 1
5 KM0-M3406-01X STAND 2 1
6 KM0-M3408-C0X BRACKET C, VALVE 1
7 KL0-M3409-C1X COVER C, VALVE 1
8 KM5-M3410-C0X VALVE ASSY, C 1
9 KM0-M3417-00X GUIDE, 4 2
10 $BF4BU-M3 JOINT 8
11 $BF4BU JOINT 8
12 $TL8-01 JOINT 1
13 $KM-06 MUFFLER 2
14 91317-06018 BOLT, HEXAGON SOCKET HEAD 4
15 91317-04008 BOLT, HEXAGON SOCKET HEAD 12
16 98901-04008 SCREW, BINDING HEAD 8
17 92901-04400 WASHER, EXTL. TOOTHED 8
18 98907-03004 SCREW, BINDING HEAD 8
19 KM0-M3416-00X GASKET 8
20 KG2-M3407-A0X AIR JOINT 8
21 KG2-M3407-00X JOINT 1
22 KG2-M3411-00X PACKING 2
23 KG2-M3412-00X O-RING 2
24 91317-04016 BOLT, HEXAGON SOCKET HEAD 2
25 91317-03006 BOLT, HEXAGON SOCKET HEAD 4
26 KU0-M3410-41X VALVE (8) REPAIR PARTS
KM8-9910
Feeder Floating Detection (Front)
33
Feeder
4
6
7
2
5
1
3
3
KM8-9910
Feeder Floating Detection (Front)
33

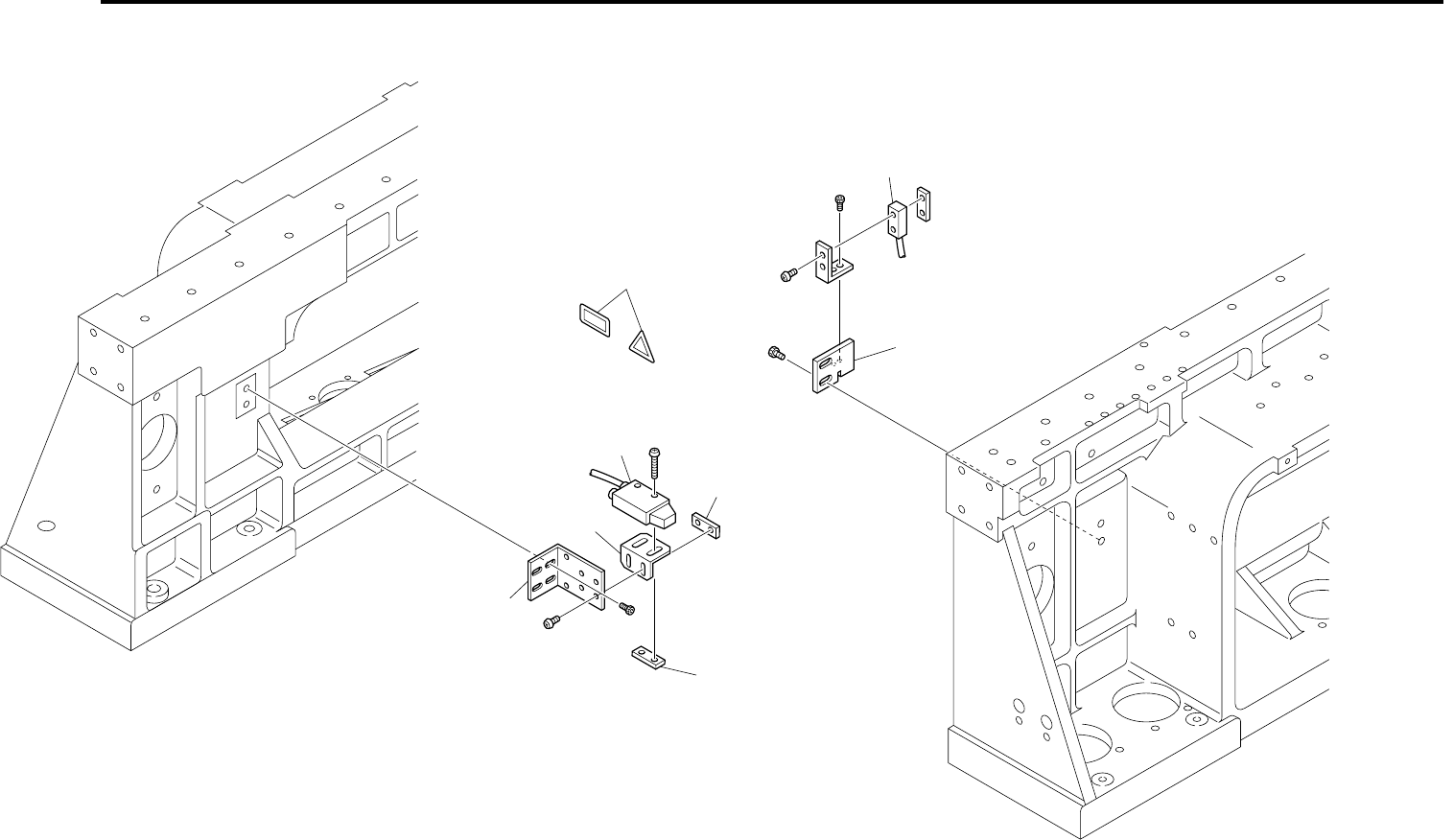

Feeder Floating
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KV7-M3903-00X BRACKET SENSOR,2 1
2 KV7-M3910-01X BRACKET SENSOR,1 1
3 KG7-M3906-00X BRACKET 6 2
4 KM0-M3905-10X BRACKET2,SENSOR 1
5 KG9-M3455-11X SENSOR S 1
6 KH5-M3456-A0X SENSOR R 1 GTR3RSPN
7 KG2-M3903-10X SEAL, CAUTION 1 FOR CE
