YV100II PARTLIST - 第21页

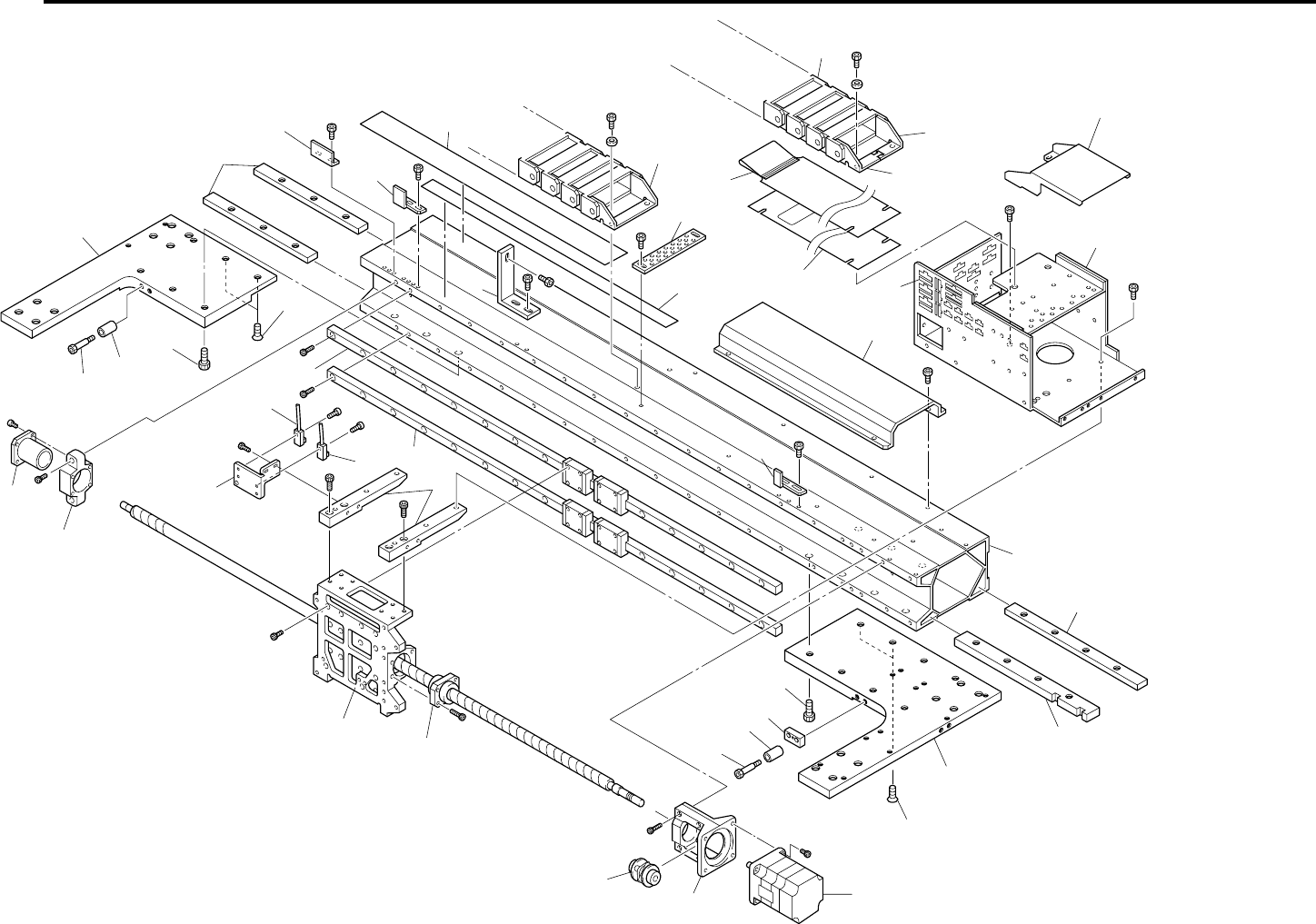

KM8-9910 X-Axis 4 1 X-Axis 41 4 15 13 14 10 12 11 31 30 3 32 33 18 17 16 27 22 23 26 21 25 19 8 34 5 7 2 33 29 31 28 32 1 23 35 20 36 40 38 39 37 6 18 9
KM8-9910
Feeder Floating Detection (Rear)
34
Feeder Floating
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KV7-M3901-11X BRACKET SENSOR,2 1
2 KV7-M3910-01X BRACKET SENSOR,1 1
3 KG7-M3906-00X BRACKET 6 2
4 KV7-M3905-30X BRACKET 2, SENSOR 1
5 KM0-M3904-02X PLATE, EXTENSION 2
6 KG9-M3455-11X SENSOR S 1
7 KH5-M3456-A0X SENSOR R 1 FOR CE
8 KG2-M3903-00X SEAL, CAUTION 1 GTR3RSPN
