YV100II PARTLIST - 第24页

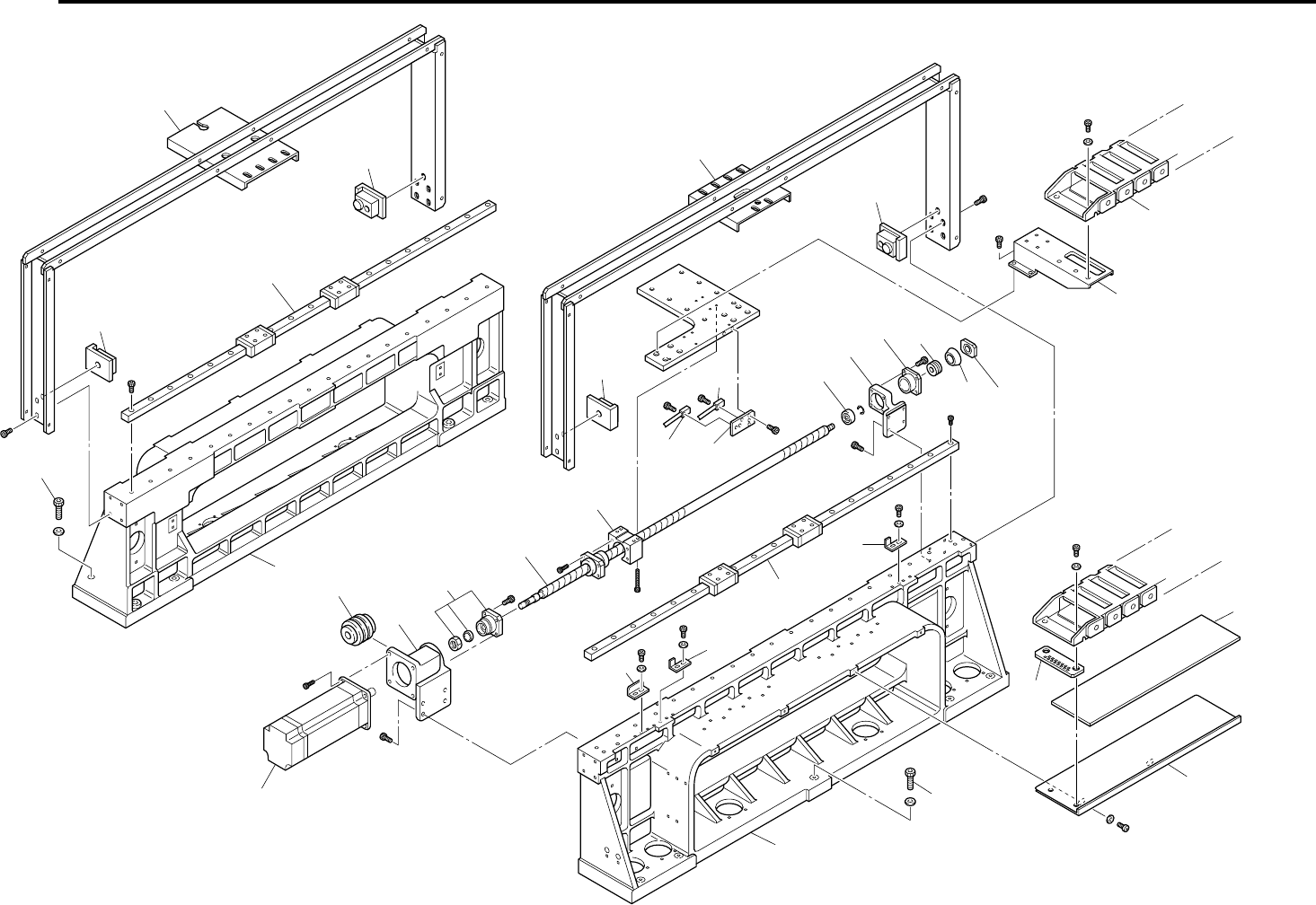

KM8-9910 Y-Axis 4 2 Y-Axis N o . Part No. Part Name Q'ty Remarks N o . Part No. Part Name Q'ty Remarks 1 KM0-M2611-02X FRAME R, Y AXIS 1 2 KM0-M2612-02X FRAME L, Y AXIS 1 3 KM8-M2671-00X SCREW, BALL 1 W1508-192…
KM8-9910
Y-Axis
42
Y-Axis
2
1
9
17
11
18
12
23
3
21
7
33
13
14
8
9
10
15
16
24
21
19
5
22
23
4
6
20
33
25
4
26
27
33
33
KM8-9910
Y-Axis
42
Y-Axis
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KM0-M2611-02X FRAME R, Y AXIS 1
2 KM0-M2612-02X FRAME L, Y AXIS 1
3 KM8-M2671-00X SCREW, BALL 1
W1508-192GXU-C7T20
4 KG2-M2604-00X SUPPORT UNIT 1 WBK12-11
5 KM0-M2641-00X HOLDER MOTOR, Y AXIS 1
6 KM0-M2642-00X HOLDER BRG. Y AXIS 1
7 KM0-M2666-01X HOLDER, NUT Y AXIS 1
8 KM0-M2682-01X DOG, ORG 1
9 KM0-M2683-01X DOG, 2nd LIMIT 2
10 KM0-M2691-01X BRACKET, SENSOR 1
11 KM0-M2694-00X BRACKET A, GUIDE 1
12 KM0-M2695-00X BRACKET B, GUIDE 1
13 KM8-M26F1-00X FRAME 1 1
14 KM8-M26F2-00X FRAME 2 1
15 KM0-M655A-00X SENSOR, 1-1 1
GXL-8FUB(FOR 2ND LIMIT)
16 KM0-M655E-00X SENSOR, 1-2 1
GXL-8FUIB(FOR ORG.)
17 KM0-M260A-00X TAPE, Y AXIS 1 NBR T3
18 KM0-M2678-10X GUIDE 1
250,10-100-16LW-210,12P
19 90K55-8A134Y AC SERVO MOTOR 1
P50, 750W, 2048P,86
20 KM8-M2643-01X HOLDER,BRG. 1
21 KM0-M2676-30X GUIDE, Y AXIS 1
LS201120AL2-003P63
22 KM5-M2611-00X COUPLING,Y-AXIS :LCD 1 VIFC-10BC/16BC
23 KM0-M2651-00X NYLOCK BOLT 20 MIOXI.5 50L4
24 KM8-M26D1-00X SEAL,HIGH TEMP 1
25 KM8-M2645-10X BRG THRUST 1
26 KM8-M2646-01X SPRING CONED DISK 1
27 KG2-M9173-00X LOCK NUT 1
28 KM7-M2648-20X STPPER 1 ASSY. 4
