YV100II PARTLIST - 第31页
Body Head Head 5 2 KM8- 0208 84 87 82 85 86 81 52 54 43 78 79 1 56 30 30 41 56 36 35 48 49 47 49 48 21 38 50 18 47 57 57 16 34 36 35 57 72 57 50 38 15 17 25 40 32 20 15 38 50 39 12 45 28 13 31 23 14 37 24 55 26 33 51 29 …
KM8-9910
Head Combination
51
Head
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KM1-M7102-01X PLATE HEAD 1
2 KM1-M7126-00X SPRING POST 2
3 KM1-M7127-00X SPRING POST 2
4 KM1-M7128-01X BALL SCREW Z 1
5 KM1-M7129-00X HOLDER 1, BEARING 1
6 KM1-M7130-00X PLATE, BEARING 1
7 KM1-M7142-01X STAY, 1 MIRROR 1
8 KM8-M7144-00X COVER 1 1
9 KM1-M7145-00X DAMPER, Z SCREW 1
10 KM1-M7146-00X HOLDER 2, BEARING 1
11 KM1-M7148-00X STAY 3, MIRROR 2
12 KM1-M7149-00X HANDLE 1
13 KM1-M7150-01X POST, COVER 1
14 KJ2-M7151-01X DUMPER, Z GUIDE 1
15 KM8-M7182-01X COVER, CAMERA 1
16 KM1-M7184-00X POST HANDLE 2
17 KM1-M7185-01X BLACKET POST 2
18 KG2-M2284-00X SPG. MAIN 2
19 KG2-M7141-00X BRG., 7000ADF 1 7000ADF
20 K11-M1762-00X BEARING 1 1 6000ZZ
21 KU4-M7120-00X COUPLING 1
22 KG2-M9173-00X LOCK NUT 1
23 90K55-4W034Z MOTOR 1
24 90250-04J12 PIN, PARALLEL 6
25 99009-10400 CIRCLIP 1
26 91317-03006 BOLT, HEXAGON SOCKET HEAD 38
27 91317-03010 BOLT, HEXAGON SOCKET HEAD 16
28 91317-04016 BOLT, HEXAGON SOCKET HEAD 6
29 91317-04030 BOLT, HEXAGON SOCKET HEAD 2
30 91317-04040 BOLT, HEXAGON SOCKET HEAD 4
31 91317-05016 BOLT, HEXAGON SOCKET HEAD 4
32 91317-05045 BOLT, HEXAGON SOCKET HEAD 2
33 91317-05040 BOLT, HEXAGON SOCKET HEAD 4
34 91317-05010 BOLT, HEXAGON SOCKET HEAD 2
35 91317-03005 BOLT, HEXAGON SOCKET HEAD 10
Body Head
Head
52
KM8-0208
84
87
82
85
86
81
52
54
43
78
79
1
56
30
30
41
56
36
35
48
49
47
49
48
21
38
50
18
47
57
57
16
34
36
35
57
72
57
50
38
15
17
25
40
32
20
15
38
50
39
12
45
28
13
31
23
14
37
24
55
26
33
51
29
53
42
83
74
75
41
27
73
77
76
46
22
50
38
21
58
3
2
4
5
9
8
6
7
11
4
5
10
9
5
Head2,4,6,8
68
80
71
64
53
66
67
55
64
67
69
70
62
63
63
62
59
59
71
60
62
61
48
49
47
49
48
21
38
38
50
19
47
22
21
50
58
Head1,3,5,7
70
46
46
46
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KM8-M7101-20X HOUSING,HEAD 1
2 KM8-M7103-A0X PLUG 1, ASSY 8
3 KM8-M7103-00X PLUG 1 1
4 KM1-M7140-00X PACKING 1
5 K65-M257M-00X O-RING 1
6 KM1-M7104-A0X PISTON, ASSY 8
7 KM1-M7104-00X PISTON 1
8 KM1-M7107-00X PACKING 1
9 KM1-M7141-00X PACKING 2
10 KM1-M7105-A0X PLUG 2, ASSY 8
11 KM1-M7105-00X PLUG 2 1
12 KM1-M7112-01X STOPPER 1
13 KM9-M7113-00X RING DOG 1
14 KJ2-M7114-00X PLATE, BRG 1
15 KJ2-M7115-00X SHAFT 1, TENSION 2
16 KM9-M7107-00X SHAFT, HEAD ASSY 7
17 KM1-M7117-01X ADJUST BLOCK 1
18 KM1-M7108-00X NUT 7
19 KM7-M7108-00X NUT 1
20 KM1-M7119-01X TENSION BLOCK 1
21 KM1-M7109-00X PULLEY 8
22 KJ2-M7110-00X COLLAR 2, HEAD 8
23 KM1-M7111-01X PULLEY, POST 1
24 KM1-M7123-00X U-NUT:M6 1
25 KJ2-M7124-02X PLATE R, SENSOR 1
26 KM1-M7125-00X FLANGE, MOTOR 1
27 KG2-M7181-00X PACKIN MYA 4 1 6
28 KM1-M7131-01X BRACKET, Z SENSOR 1
29 $SLH6-01 ELBOW 2
30 KJ2-M7136-00X GUID, Z AXIS 2
31 KJ2-M7137-00X BELT, R MOTOR 1
32 KM1-M7138-00X BELT, HEAD 2
33 KM1-M7139-00X PULLEY, MOTOR 1
34 KU1-M7152-00X WASHER 1, THRUST 8
35 KM1-M7154-00X SPG. RETURN 8
36 KM1-M7155-00X BRG. 8 604ZZ
37 KJ2-M7156-00X BRG. 3 697ZZ
38 KJ2-M7157-00X BRG. 1 0 MF128ZZS
39 KM9-M7158-00X SENSOR,HEAD 1 4 GXL8HUB
40 KM9-M7159-00X SENSOR,R AXIS 1 GXL8HUB
41 KM8-M7160-00X SENSOR,HEAD 1
42 KM8-M7162-01X SOLENOID VALVE 1
43 KM8-M7163-01X EJECTOR, RESIN 1
44 KM1-M4592-11X VAC SENSOR BOARD ASSY 8
45 KM9-M7165-00X SENSOR,HEAD 2 4 GXL8HUIB
46 KM1-M7186-00X O-RING 3 2
47 KG7-M7137-A0X LEAF SPRING 1 6
48 KG7-M7169-00X SCREW 1 6 M2 X 3
49 KG7-M7170-00X WASHER 1 6
φ
4.3X
φ
2.2Xt0.3
50 KH4-M7133-00X BEARING 1 0 MR128ZZS
51 $USD10-8 JOINT 1
52 $TL6-01M JOINT 1
53 $KM-05 MUFFLER 6
54 $SLH8-01 ELBOW 1
55 90K50-4W035R MOTOR 1
56 93604-06083 PIN DOWEL 4
57 90159-04197 SCREW PAN HEAD W/W 9
58 93210-02518 O-RING 8
59 90250-04J08 PIN, PARALLEL 2
60 92A08-03303 SCREW, SET 1
61 92A08-04005 SCREW, SET 2
62 91317-03006 BOLT, HEXAGON SOCKET HEAD 4 2
63 91317-03008 BOLT, HEXAGON SOCKET HEAD 1 2
64 91317-03010 BOLT, HEXAGON SOCKET HEAD 1 6
65 91317-04008 BOLT, HEXAGON SOCKET HEAD 1 0

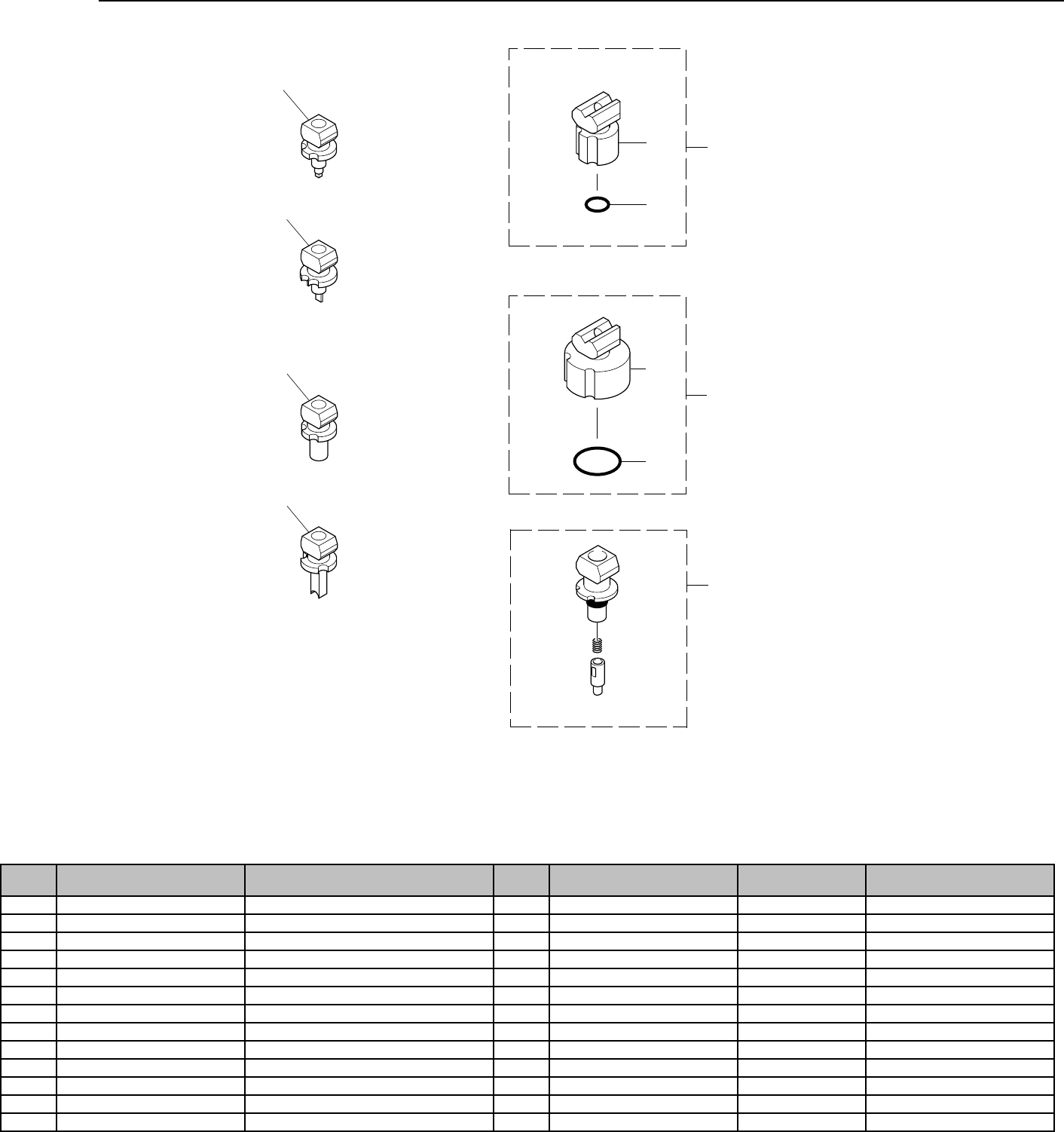

Nozzle Selection
Nozzle
61
KM8-0112
1
2
10
4
6
5
7
9
8
3
11
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KM0-M711A-31X FLOATING NOZZLE(for Head1) 1 TYPE 31
2 KM0-M711A-03X NOZZLE A 1 TYPE 31
3 KM0-M711C-02X NOZZLE C 1 TYPE 32-2
4 KM0-M711D-00X NOZZLE D COMP 1 TYPE 33
5 KM0-M711D-12X NOZZLE D 1
6 KGB-M7742-C0X O-RING P4 1 O-RING P4 Type B
6-1 KG7-M711D-C0X O-RING 1 2001/10/01
7 KM0-M711E-00X NOZZLE COMP 1 Type 34
8 KM0-M711E-12X NOZZLE 1
9 KGA-M7752-00X O-RING P9 1 B-P9
9-1 KG7-M711E-00X O-RING 1 2001/10/01
10 KM0-M71AB-A0X NOZZLE AB 1 Type 35
11 KM0-M71MN-A0X CIRCLE NOZZLE 3A 1
