YV100II PARTLIST - 第42页

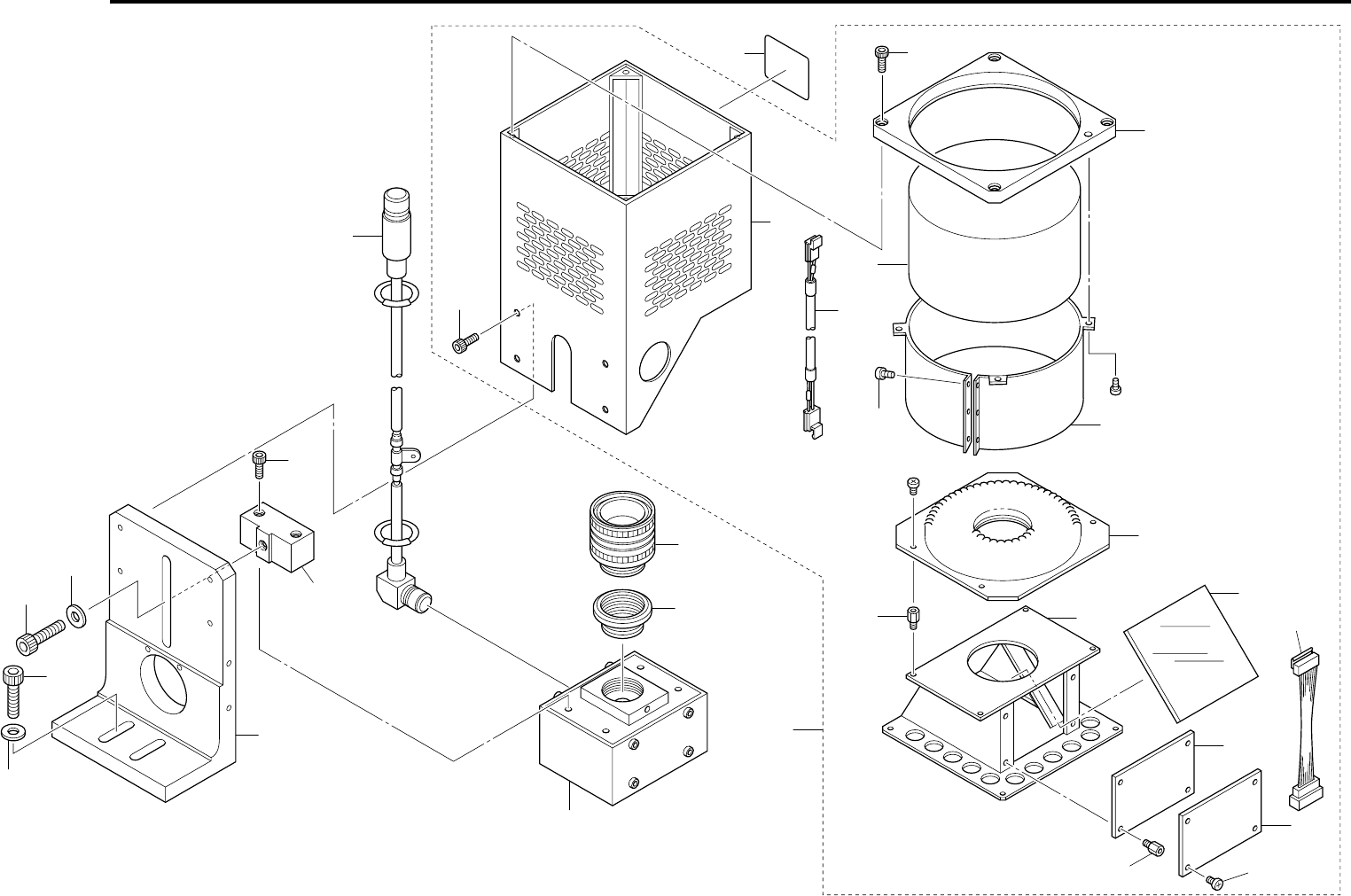

KM8-9910 Multi Vision Camera 8 2 Recognition Equipment 16 19 24 26 25 21 20 3 6 8 7 4 12 13 10 11 15 9 1 5 2 28 27 14 23 22 18 21 22 17
KM8-9910
Moving Camera
81
Recognition Equipment
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KG9-M7210-10X CCD CAMERA 1
2 KG9-M7211-00X LENS 1 1
3 KM8-M7600-00X FIDUCIAL LIGHT ASSY 1
4 KM8-M7135-03X STAY, FID, LIGHT 1
5 KM8-M7133-02X HOLDER,CAMERA 1
6 91317-03005 BOLT, HEXAGON SOCKET HEAD 2
7 91317-05010 BOLT, HEXAGON SOCKET HEAD 4
8 91317-04015 BOLT, HEXAGON SOCKET HEAD 2
KM8-9910
Multi Vision Camera
82
Recognition Equipment
16
19
24
26
25
21
20
3
6
8
7
4
12
13
10
11
15
9
1
5
2
28
27
14
23
22
18
21
22
17
KM8-9910
Multi Vision Camera
82
Recognition Equipment
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KM5-M7501-00X FRONT LIGHT 2 ASSY 1
2 KM5-M7502-00X PRISM 1 1
3 KM5-M7505-00X WINDOW 1
4 KM5-M7506-00X LED 1, BOARD ASSY 1 MAIN LIGHT
5 91C00-03205 SPACER 4 M3L5
6 KM5-M7508-00X LED 2 BOARD ASSY 1 COAXIAL LIGHT
7 91C00-03210 SPACER 4 M3L10
8 98507-03006 SCREW, PAN HEAD (+) 8 M3L6
9 KM5-M7510-00X HARF MIRROR 1
10 KM5-M7511-00X HOLDER PRISM 1
11 KM5-M7512-01X CASE 1 1
12 KM5-M7513-00X CASE 2 1
13 KM5-M7514-00X CLAMP 1
14 98507-03015 SCREW, PAN HEAD (+) 3 M3L15
15 91317-03010 BOLT, HEXAGON SOCKET HEAD 4 M3L10
16 KM8-M669Y-00X HARNESS, 9-17 (Io, LIGHT) 1
17 KM8-M669V-01X HARNESS, 9-14 (Io, LIGHT) 1
18 91317-03006 BOLT, HEXAGON SOCKET HEAD 4
19 KM5-M7301-03X CAMERA STAND 1 1
20 KM1-M7303-02X CAMERA STAND 3 1
21 91317-06020 BOLT, HEXAGON SOCKET HEAD 3
22 92907-06020 WASHER PLAIN 3
23 KV8-M7310-00X L CAMERA ASSY 1
24 91317-03020 BOLT, HEXAGON SOCKET HEAD 2
25 KM1-M7312-10X LENS HOLDER 1
26 KM7-M7214-20X LENS 25 1
27 KG2-M66F3-001 HARNESS 12-3 1
28 KG2-M7165-00X SEAL DON'T TOUCH 1
