YV100II PARTLIST - 第47页
KM8-9910 Manual Tray Feeder 9 3 Exterior, etc. 24 22 2 5 1 18 18 19 19 6 14 8 21 10 12 14 13 23 23 29 3 7 16 16 7 9 17 11 27 27 25 20 20 20 28 28 4 15 26 29 27 28

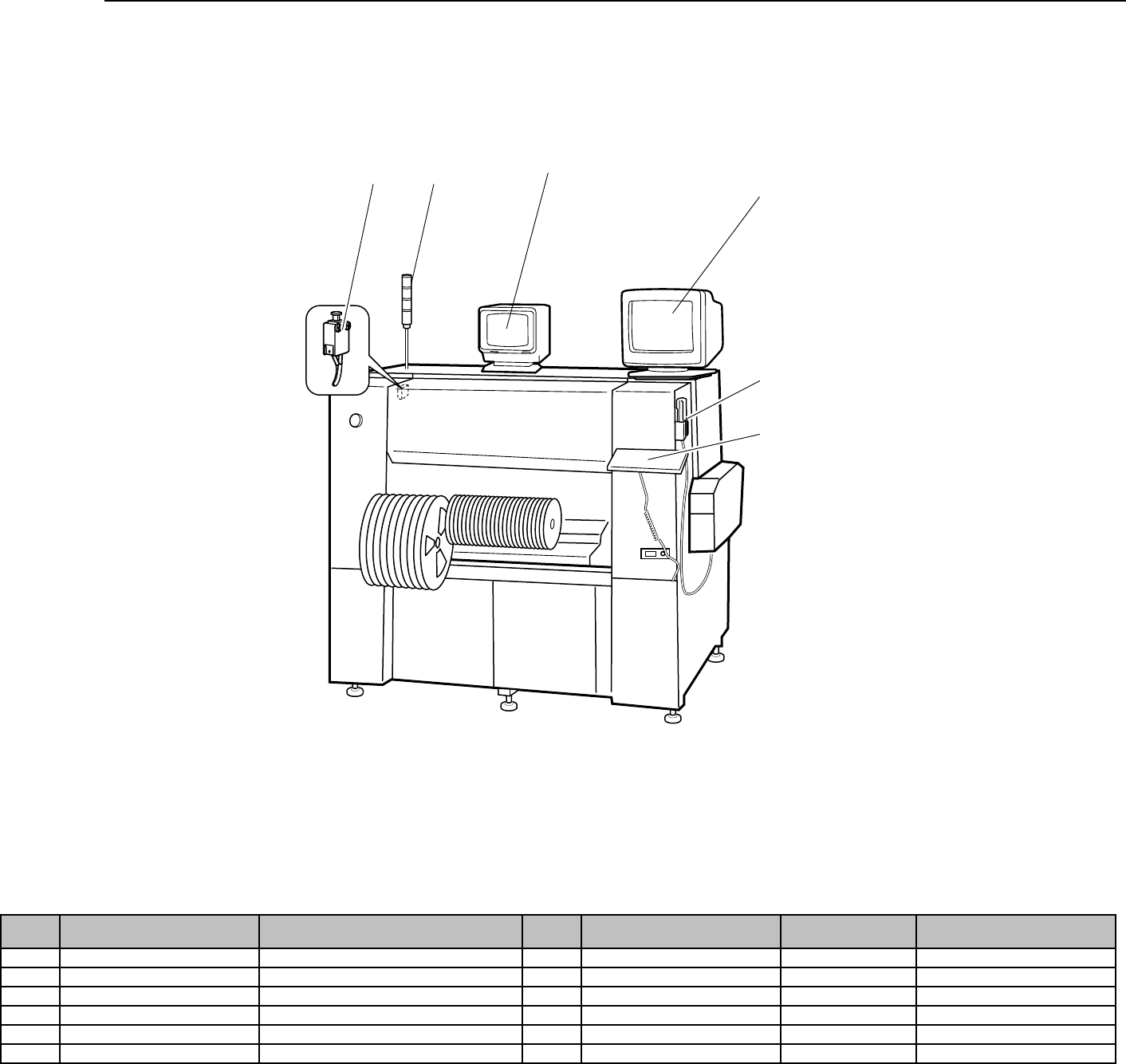

Monitor, etc.
Exterior, etc
91
KM8-0206
1
4
3
5
2
6
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KM8-M5109-00X MONITOR 1
2 KH1-M5111-A1X CRT 2 ASSY 1 VISION 2002.5
3 KH1-M5150-10X KEY BOARD 1 ASSY 1
4 KH1-M5180-20X PROG, UNIT ASSY 1 YPU NEW
5 KH4-M668R-00X HARNESS 8-11 2 LIMIT SWITCH
6 KG2-M4899-10X LIGHT 1 ASSY 3

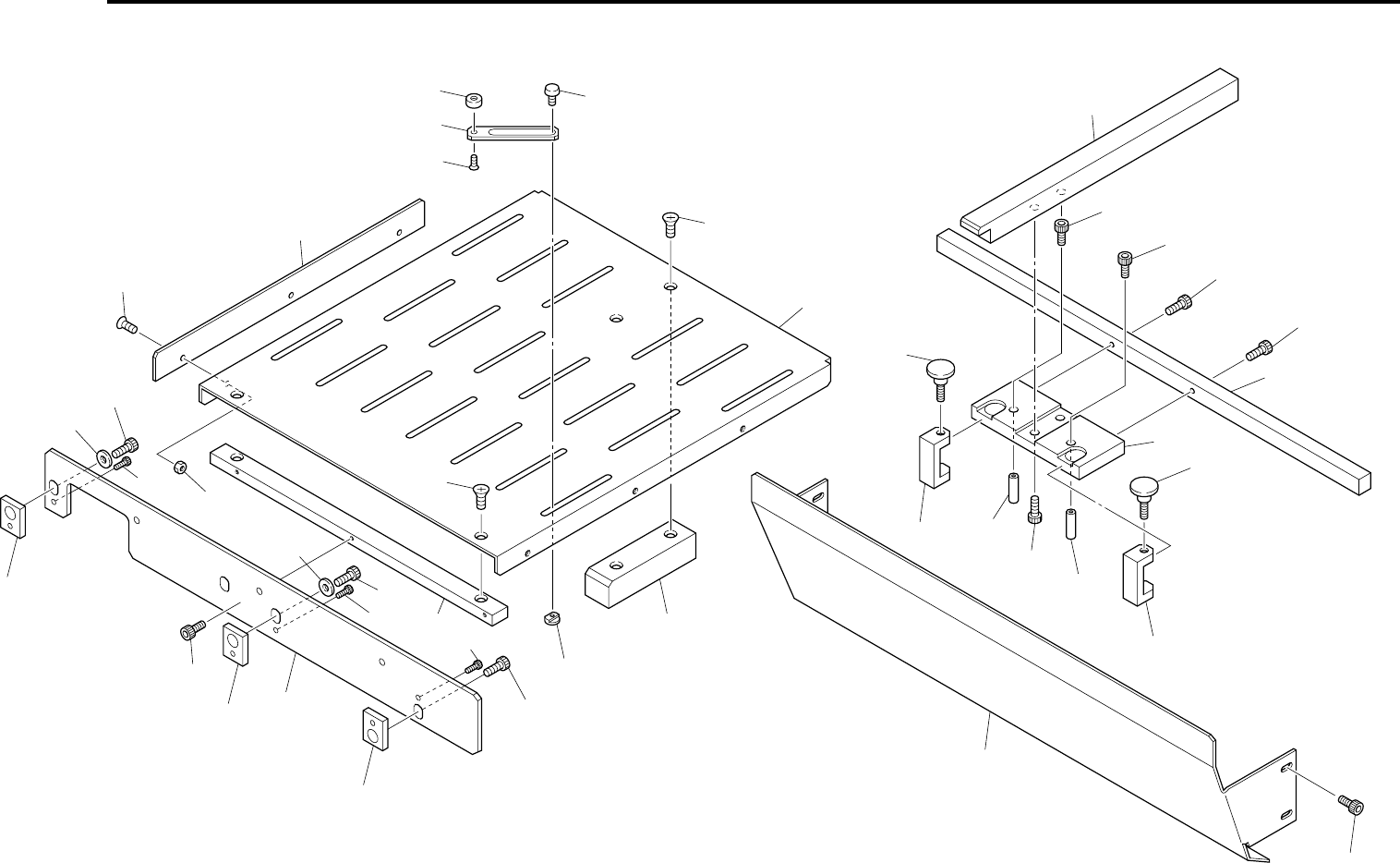

KM8-9910
Manual Tray Feeder
93
Exterior, etc.
24
22
2
5
1
18
18
19
19
6
14
8
21
10
12
14
13
23
23
29
3
7
16
16
7
9
17
11
27
27
25
20
20
20
28
28
4
15
26
29
27
28
KM8-9910
Manual Tray Feeder
93
Exterior, etc.
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KH5-M9751-00X SUPPORT, TRAY 1
2 KH5-M9752-00X PLATE, SIDE 1
3 KH5-M9753-00X PAD, SLIDE 1
4 KU0-M9754-00X HOLDER 1
5 KM8-M9755-00X SHAFT 1
6 KH5-M9756-00X BLOCK 1
7 KH5-M9757-00X ARM, CLAMP 2
8 KH5-M9758-00X STRIP 1
9 KH5-M9759-00X GUIDE,TAPE 1
10 KH5-M9760-00X LEVER, CLAMP 4
11 KH5-M9761-00X NUT, CLAMP 4
12 KH5-M9762-00X PAD, CLAMP 4
13 KH5-M9763-00X KNURLED SCREW 4 M3 X 8
14 KH5-M9764-00X KNURLED SCREW 1
M5 X
15
15 91317-06008 BOLT, HEXAGON SOCKET HEAD 1
16 KH1-M34D3-00X LOCATE, PIN 2 6g6
17 91317-04010 BOLT, HEXAGON SOCKET HEAD 4
18 91317-04015 BOLT, HEXAGON SOCKET HEAD 2
19 91317-06014 BOLT, HEXAGON SOCKET HEAD 2
20 KM8-M9766-00X SPACER, PLATE 5
21 98704-03005 SCREW FLAT HEAD 4
22 98704-04010 SCREW FLAT HEAD 3
23 98704-05010 SCREW FLAT HEAD 7
24 95304-04600 NUT, HEXAGON 3
25 KM8-M9765-00X PLATE, HOLDER 1
26 91317-06012 BOLT, HEXAGON SOCKET HEAD 2
27 91317-05014 BOLT, HEXAGON SOCKET HEAD 3
28 91317-03006 BOLT, HEXAGON SOCKET HEAD 5
29 98903-05200 WASHER, PLAIN 2
