1 - 1 17 Edition 10/2 018 SIPLACE CAN Bus 11 7 4.13.1 Machine CAN Bus st ructure SX1 / DX1 (fro m MA No.P001/June 2016) Fig. 4.13 - 2 Machine CAN Bus structur e SX/DX 1
1 - 116
SIPLACE CAN Bus Edition 10/2018
116
4.13 CAN Bus structure SX / DX - Series (from MA
No.P001/June 2016)
All SX machine with serial number P001, delivered since june 2016 are provided with one MGCU-
for the SX1 or two MGCU‘s for the SX2 machine.
The MGCU 3 fold is able to control 3 main axes.
All SX machine with the 3 fold MGCUwill be support from the Stationssoftware 709.1.
The Stationssoftware can also run in the compatiblen mode as 708.2©/707.4©.
Fig. 4.13 - 1 Overview 2 fold MGCU and 3 fold MGCU
1 - 117
Edition 10/2018 SIPLACE CAN Bus
117

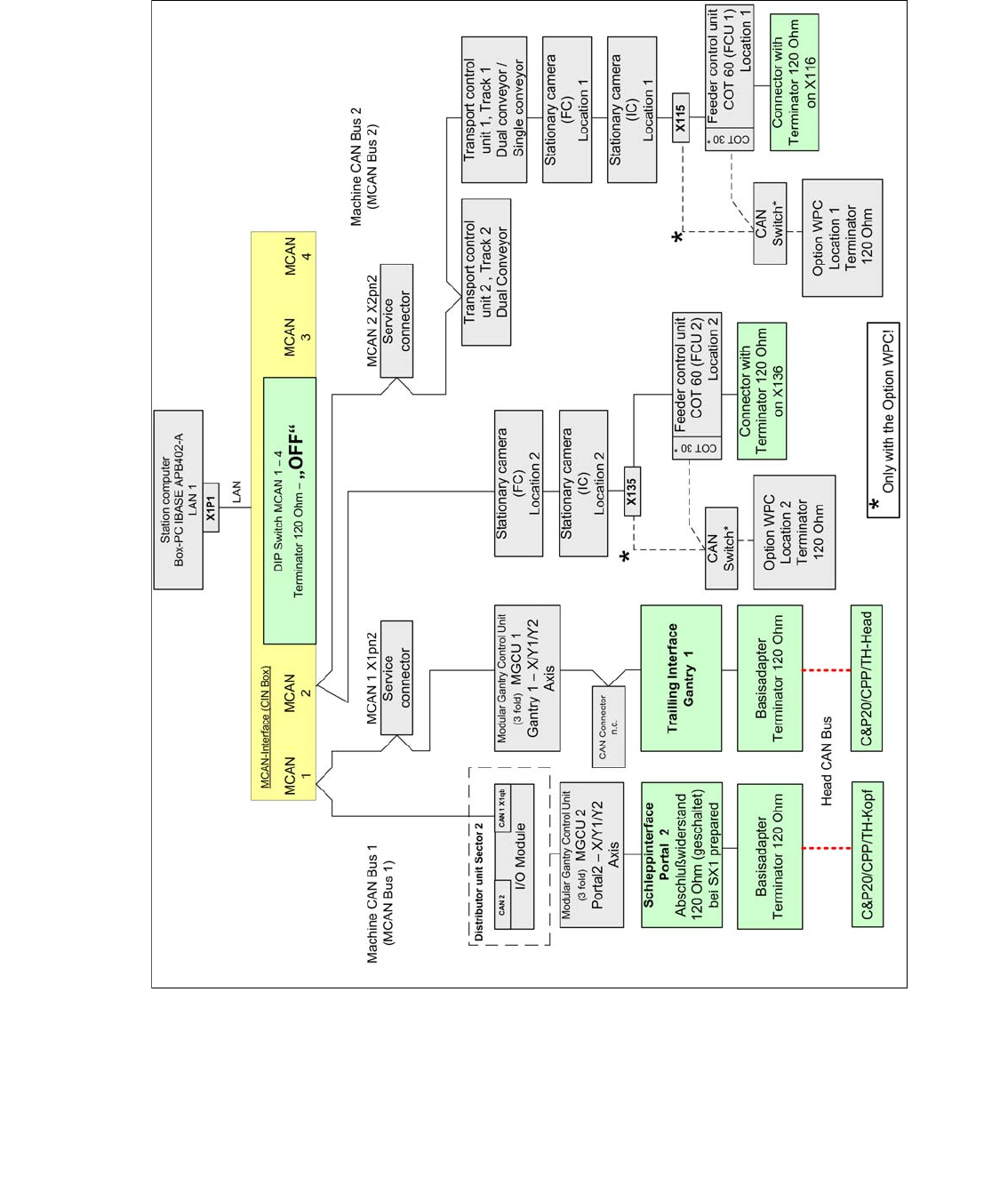

4.13.1 Machine CAN Bus structure SX1 / DX1 (from MA No.P001/June 2016)
Fig. 4.13 - 2 Machine CAN Bus structure SX/DX 1
1 - 118
SIPLACE CAN Bus Edition 10/2018
118
4.13.2 Machine CAN Bus structure SX2 / DX2 (from MA No.P001/June 2016)
Fig. 4.13 - 3 Machine CAN Bus structure SX/DX 2
