4 Service Work
4.2 Replacing Spare Parts
46 Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017
4.2.21 Replacing the downholder assembly
Overview
Downholder assembly [03071772-xx]
Equipment required
●
Standard tools
●
Torx key size T8
●
Spare part: downholder assembly [03071772-xx]
Removal
► Loosen the 4 screws fastening the
downholder, as marked in the dia-
gram.
► Remove the downholder.
 NOTICE!
Pay attention to the two pins on
the left downholder. If needed, use
a thin screwdriver to release the
downholder from these pins.
.
Installation
CAUTION
Important installation instructions
► Make sure that the pins on the downholder engage correctly.
► First tighten the fastening screws on the side with pins (on the left, when viewed from
the display).
► Installation is performed by following the above instructions in the reverse order.
4 Service Work
4.2 Replacing Spare Parts
Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017 47

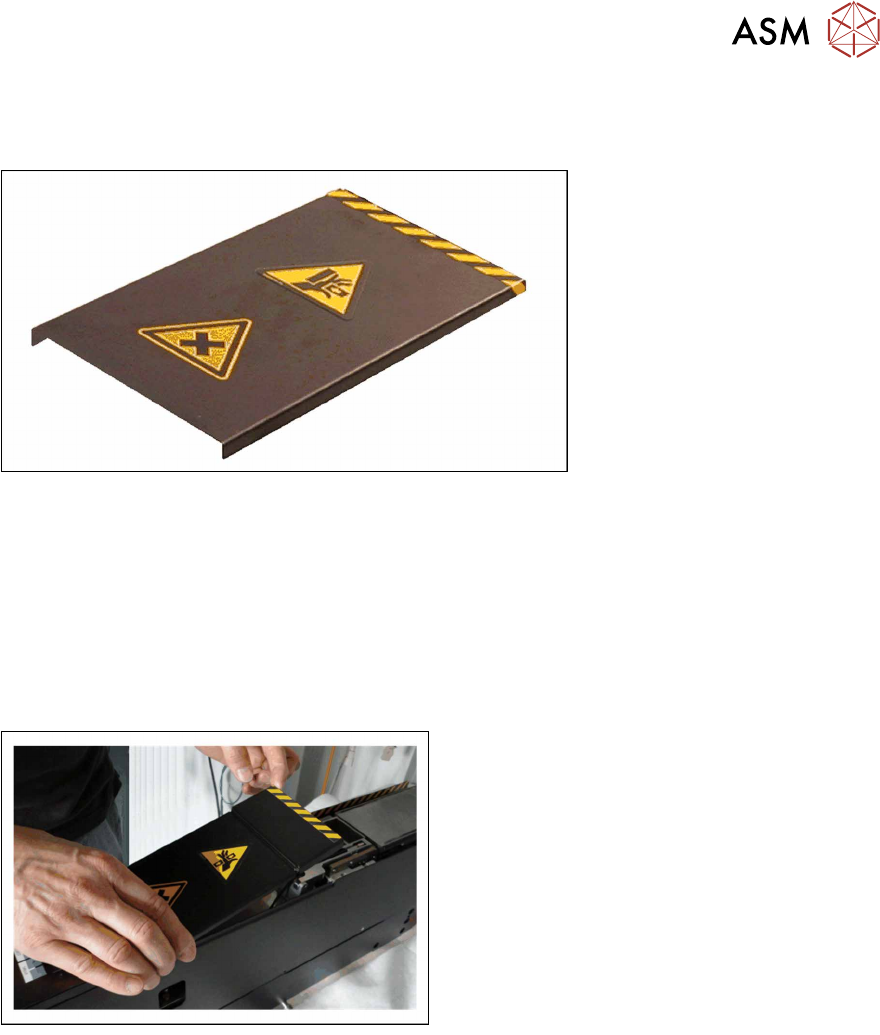

4.2.22 Replacing the cover
Overview
Cover [03062461-xx]
Equipment required
●
Spare part: cover [03062461-xx]
Removal
The cover is fixed by two magnets.
► Remove the old cover.
Installation
► Make sure that the new cover is fitted with
the two warning labels and the warning
strip.
► Position the new cover on the top of the
LDU-X so that the warning strip points to-
wards the dip plate.
4 Service Work
4.2 Replacing Spare Parts
48 Service Manual SIPLACE LDU-X Linear Dipping Unit 11/2017

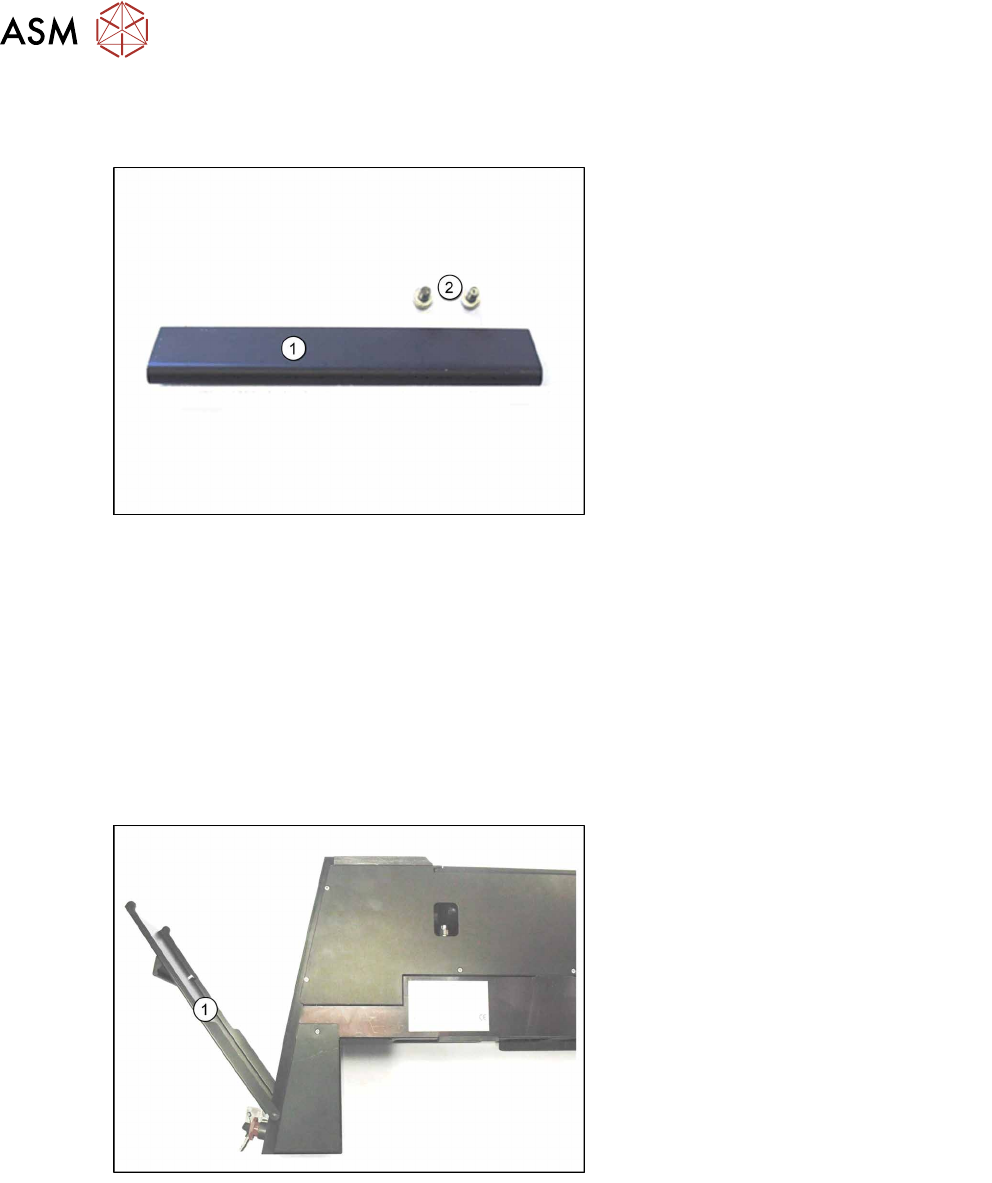

4.2.23 Replacing the handle
Overview
Spare parts kit "Handle" [03062471-xx]
Legend
1. Handle [03062471-xx] with holes
drilled for grub screws
2. Screws ISO4762–M3x6-8.8, gal-
vanized [03007733-xx] (2x)
Equipment required
●
Standard tools
●
Loctite 222 (screw locking varnish)
●
Allen key size 2.5
●
Spare parts:
– Handle [03062471-xx]
– Screws ISO4762–M3x6-8.8, galvanized [03007733-xx] (2x)
Removal
► Place the LDU-X down on its left-hand
side, on a stable, clean and even sur-
face.
► Open the flap(1).
