Reject bin sensor 2 A ssembly instructions: Re ject bin sensor for the SIPLACE HF-series 08/2006 Edition 23 Fit the second sensor on the mo unt for the component reject bin in the p ark position since only the large reje…
2 Assembly instructions: Reject bin sensor for the SIPLACE HF-series Reject bin sensor
08/2006 Edition
22
2.9 Fitting the sensors on locations with large reject
bin
Fit a sensor beneath the large reject bin. 2
2
Reject bin
Sensor beneath
the reject bin
Sensor beneath
the reject bin
Reject bin sensor 2 Assembly instructions: Reject bin sensor for the SIPLACE HF-series
08/2006 Edition
23

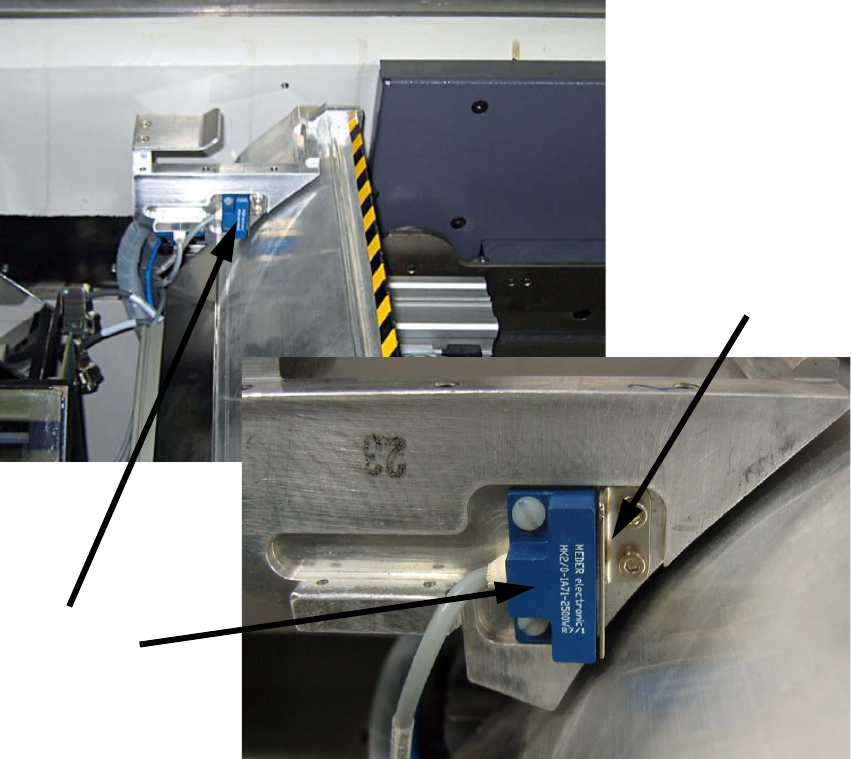

Fit the second sensor on the mount for the component reject bin in the park position
since only the large reject bin is installed in the TwinHead placement area. 2
To activate the sensor the scanning plate must be fitted using the enclosed hexagon socket head
screws. 2
2
2
2
2
2
2
2
2
2
Scanning plate
Sensor in
park position
2 Assembly instructions: Reject bin sensor for the SIPLACE HF-series Reject bin sensor
08/2006 Edition
24
2.10 Running the connecting cables
: Run the two connecting cables in the cable duct behind the component docking unit and then
in the cable duct which leads to the opening in the machine frame.
2
2
Running the cables in the cable duct
Opening in the machine frame
