Reject bin sensor 2 A ssembly instructions: Re ject bin sensor for the SIPLACE HF-series 08/2006 Edition 27 2.10.2 Final t asks : Fit the two connectors neatly in the machine fram e and check, that all the cables are lai…
2 Assembly instructions: Reject bin sensor for the SIPLACE HF-series Reject bin sensor
08/2006 Edition
26
: Remove the connector with the cable link and connect the sensor cable instead.
2
2
2
Plug with cable link
Cable from the machine frame
Sensor cable
Reject bin sensor 2 Assembly instructions: Reject bin sensor for the SIPLACE HF-series
08/2006 Edition
27
2.10.2 Final tasks
: Fit the two connectors neatly in the machine frame and check, that all the cables are laid cor-
rectly so that they cannot be damaged (e.g. when docking in the component table).
2

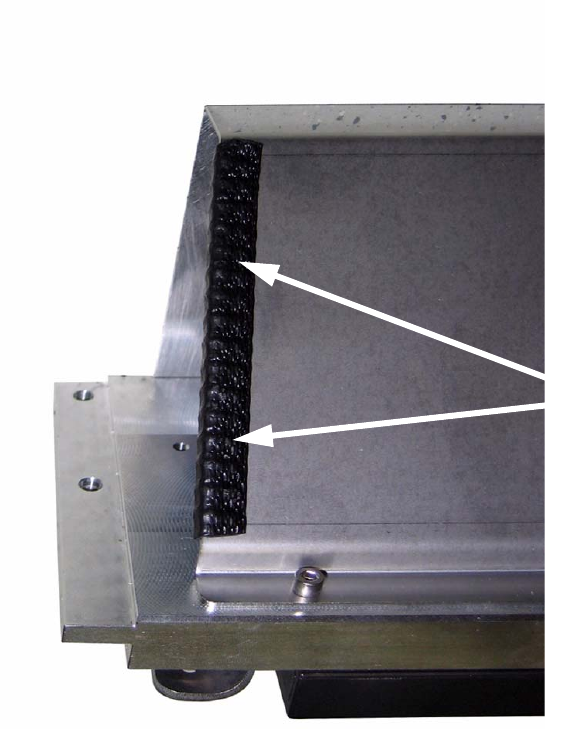

: If a second row of nozzle changer is installes, we recommend to isolate the edge of the pro-
tection sheet with an an adequate adhesive tape like shwn in the picture.
This avoids the damaging of the cable of the reject sensor.
2
2
: Fit the nozzle changer.
2
2
2
2
Edge protection
2 Assembly instructions: Reject bin sensor for the SIPLACE HF-series Reject bin sensor
08/2006 Edition
28
: Start the machine and check the correct sensor functions by removing the reject bins one after
the other.

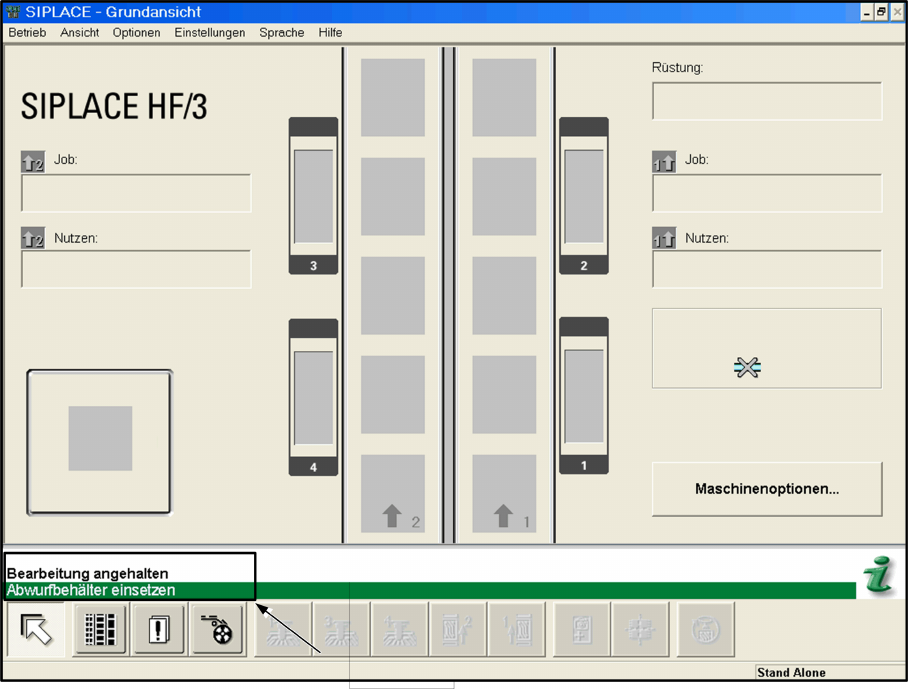

An "Insert reject bin" message must appear on the user interface.
2
2
: Then calibrate the nozzle changers.
2
2
