User Manual SIPLAC E HS-60 5 O perator, Line engineer, Service engineer Software vers ion SR.503.xx 07/2003 US Edition 5.4 Carrying out a walk -through inspection 113 5.4.4 Insert dividing plates in the t ape cont ainer …

5 Operator, Line engineer, Service engineer User Manual SIPLACE HS-60

5.4 Carrying out a walk-through inspection Software version SR.503.xx07/2003 US Edition

112

5.4.2 Checking the PCB supports

Æ Check the magnetic PCB supports on the lifting table. They must be arranged so that they do

not collide with components on the bottom of the PCBs.

5.4.3 Splicing the tape in good time

PLEASE NOTE: 5

Splice the tapes early enough so that the feeders do not become empty. Otherwise you will expe-

rience prolonged down times.

However, do not splice the tapes too early because if you wind the end of the old tape onto the

new reel after splicing, the reel holding the new tape may become overfilled and the tape will slip

off the reel and become tangled up. This will again result in pick-up errors and prolonged down

times.

User Manual SIPLACE HS-60 5 Operator, Line engineer, Service engineer

Software version SR.503.xx 07/2003 US Edition 5.4 Carrying out a walk-through inspection

113

5.4.4 Insert dividing plates in the tape container of the component trolley

Æ Insert the dividing plates as shown in Fig. 5.4 - 2 and remember that the smallest division of

the tape container is a 2x division. This will help avoid placement errors.

Æ Check that the dividing plates engage in the same positions on both guide rails. Otherwise the

dividing plate will be offset or bent.

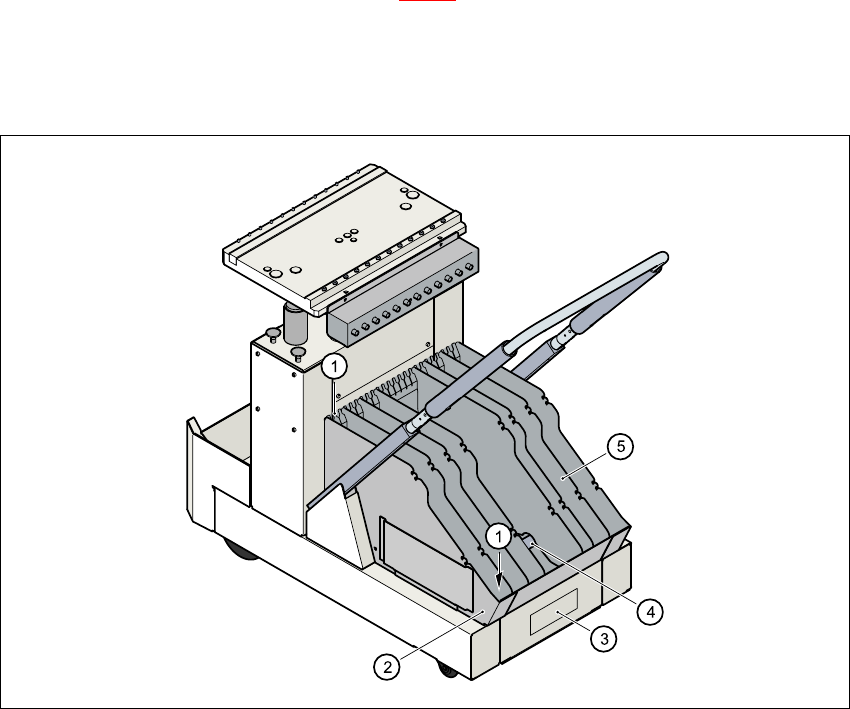

Fig. 5.4 - 2 Inserting dividing plates in the component trolley tape container

(1) Guide rail for the dividing plates

(2) Tape container

(3) Waste tape container

(4) Supporting rods for the dividing plates

(5) Dividing plate

5 Operator, Line engineer, Service engineer User Manual SIPLACE HS-60

5.4 Carrying out a walk-through inspection Software version SR.503.xx07/2003 US Edition

114

5.4.5 Using spindles for large tape reels

Æ Insert spindles into the dividing plates when using large tape reels.

PLEASE NOTE

We recommend that you use spindles if the tape reel diameter exceeds 5". This will ensure that

the feeders operate reliably.

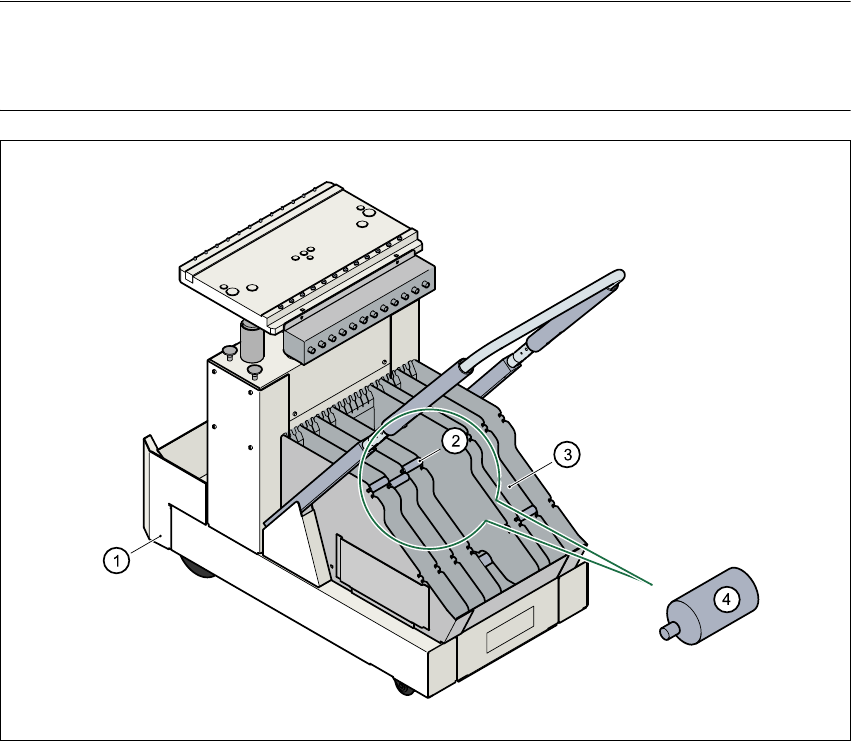

Fig. 5.4 - 3 Inserting spindles for large reels

(1) Component trolley

(2) Position of the spindles

(3) Dividing plate

(4) Spindle (enlarged)
