5 Operator, Line engineer, Service engineer User Manual SIPLACE HS-60
5.9 Component trolley Software version SR.503.xx07/2003 US Edition
120
5.9 Component trolley
5.9.1 Safety instructions on docking and undocking the component trolley
WARNING 5
Æ Never reach into the gaps between the component trolley and the placement system while the
machine is running (see item 1).
Æ Always check that the component trolley is docked on the placement system before connecting
or disconnecting the connecting cable for the component trolley at the socket on the placement
system (item 2).
– Never connect the connecting cable for the component trolley to the socket on the placement
system and then operate the component trolley outside the machine via the compressed air
control unit (item 3).
5

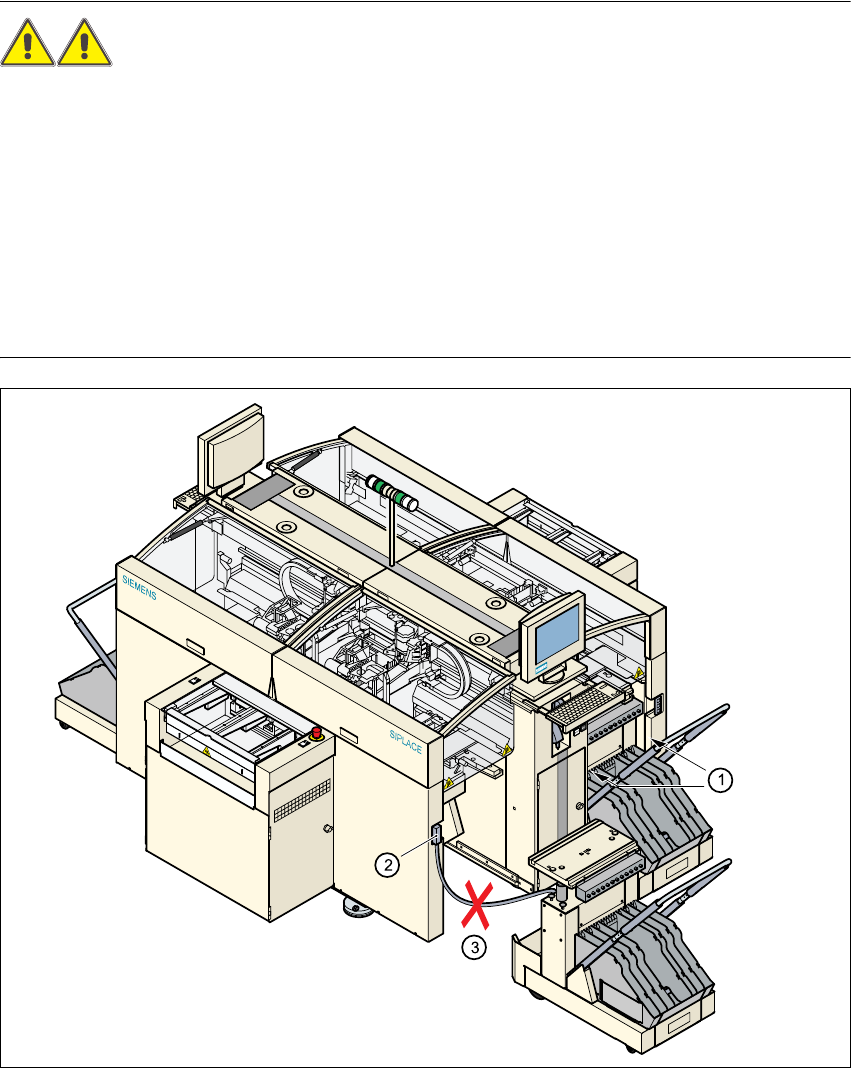

Fig. 5.9 - 1 Safety instructions on the component trolley
User Manual SIPLACE HS-60 5 Operator, Line engineer, Service engineer
Software version SR.503.xx 07/2003 US Edition 5.9 Component trolley
121

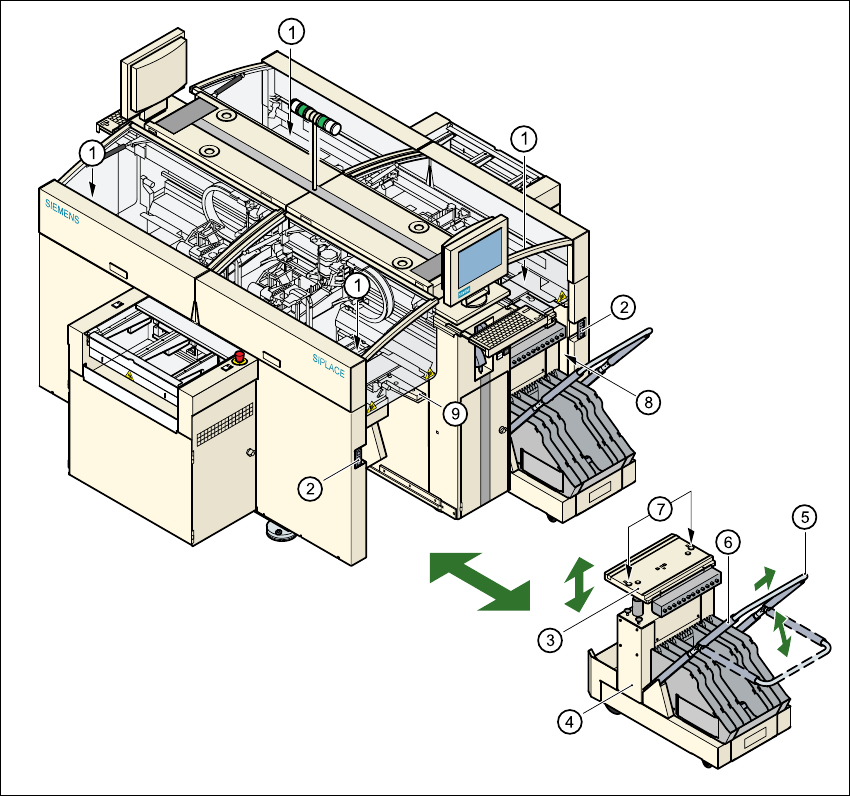

Fig. 5.9 - 2 Docking or undocking the component trolley
5
(1) Button for raising and lowering the component table bed
(2) Plug for connecting the component trolley cable
(3) Component table bed, can be raised or lowered
(4) Component trolley
(5) Bracket
(6) Actuator tube
(7) Centering holes for the centering pins
(8) Gap between the component trolley and the machine frame
(9) Supporting surface for the component table bed
5 Operator, Line engineer, Service engineer User Manual SIPLACE HS-60
5.9 Component trolley Software version SR.503.xx07/2003 US Edition
122
5.9.2 Docking out the component trolley
Æ Click on the
STOP PROCESSING icon in the main view menu. The station will continue to place compo-
nents until the current PCBs are completely populated and have been transported to the inter-
mediate or output conveyor, i.e. until the processing conveyors are empty.
Æ Click in the tool bar in the main view on the symbol for the gantry that you want to move out of
the feeder area using the gantry functions.
Æ Click in the "Gantry functions" view on the Move to set-up position button and press the Start
button as often as you are requested to do so.
The gantry moves from the feeder area to the set-up position.
Æ Open the protective cover of the selected gantry.
Æ Fold up the bracket (see Fig. 5.9 - 1item 5) of the component trolley.
Thus you will lock the raised component table bed in its top end position.
Æ Open the cover over the button used to raise or lower the component table top (see Fig. 5.9 -
1, item 1).
WARNING DANGER OF CRUSHING 5
When raising the component table bed, never reach into the gap between the feeders and
the used tape channel. 5
Æ Hold down the button until the component table bed (see Fig. 5.9 - 1, item 3) reaches its top
end position.
The component table bed latches into the raised position when the button is released.
Æ Unplug the power cable of the component trolley from the socket on the station (see Fig. 5.9 -
1, item 2).
Æ Remove the component trolley.
